Description
About this Product

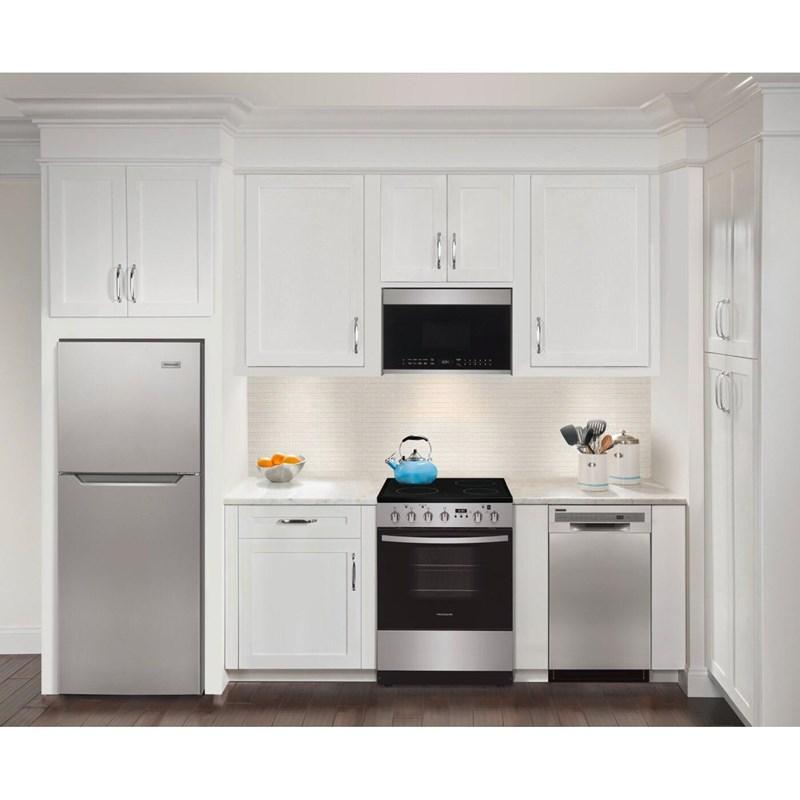

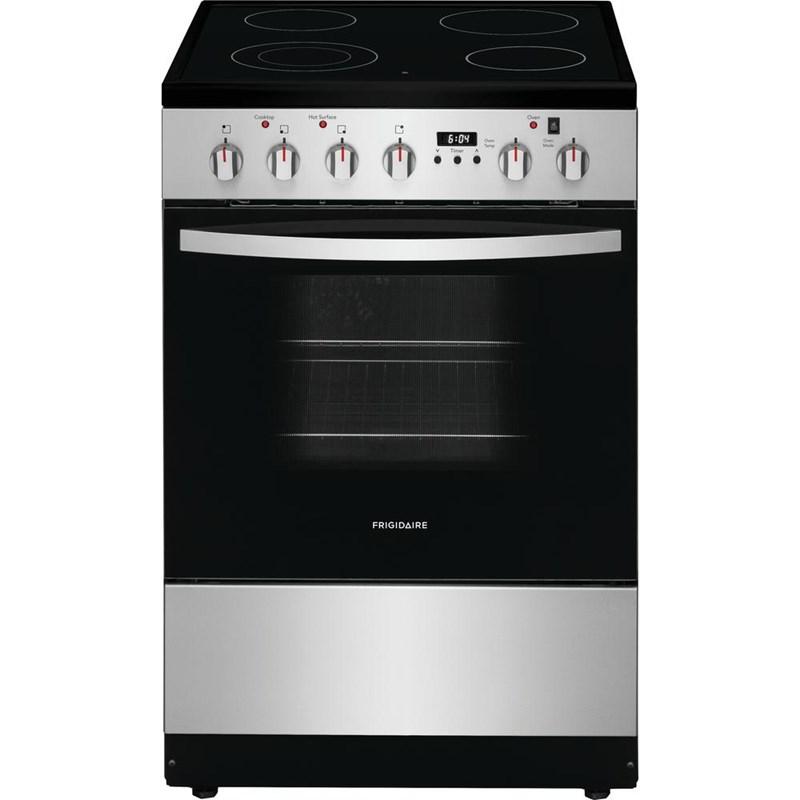

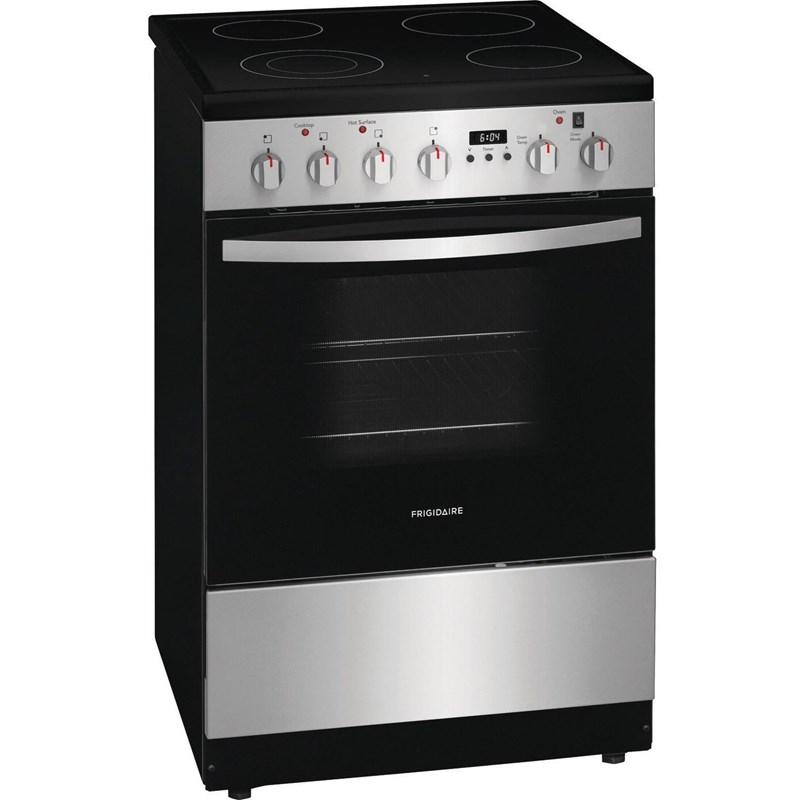

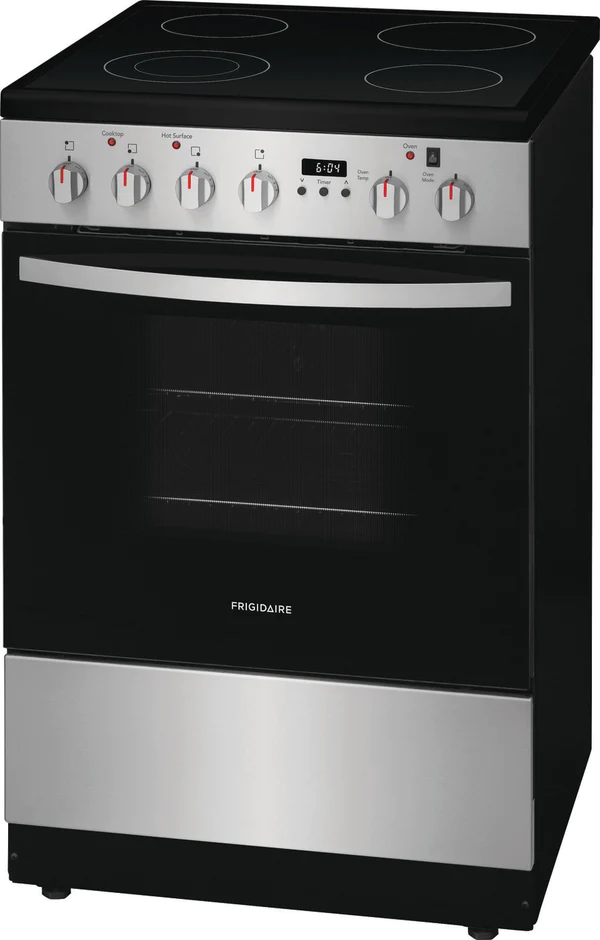

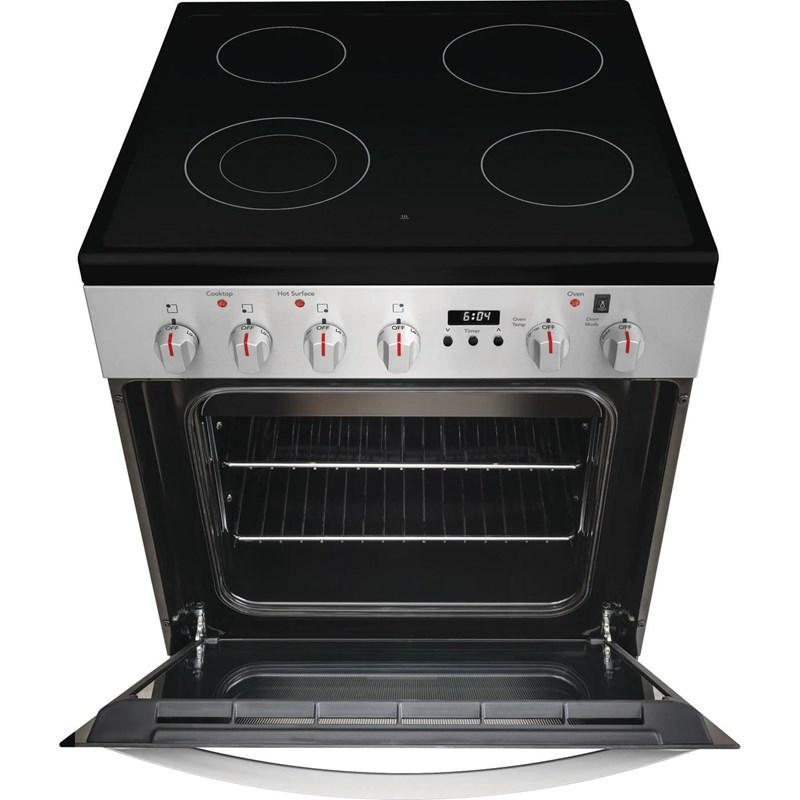

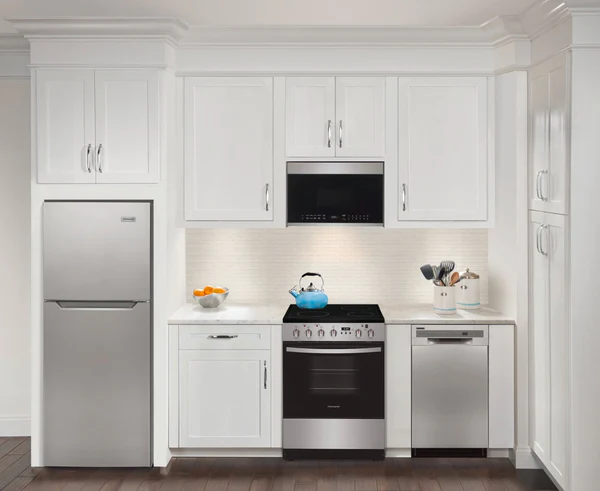

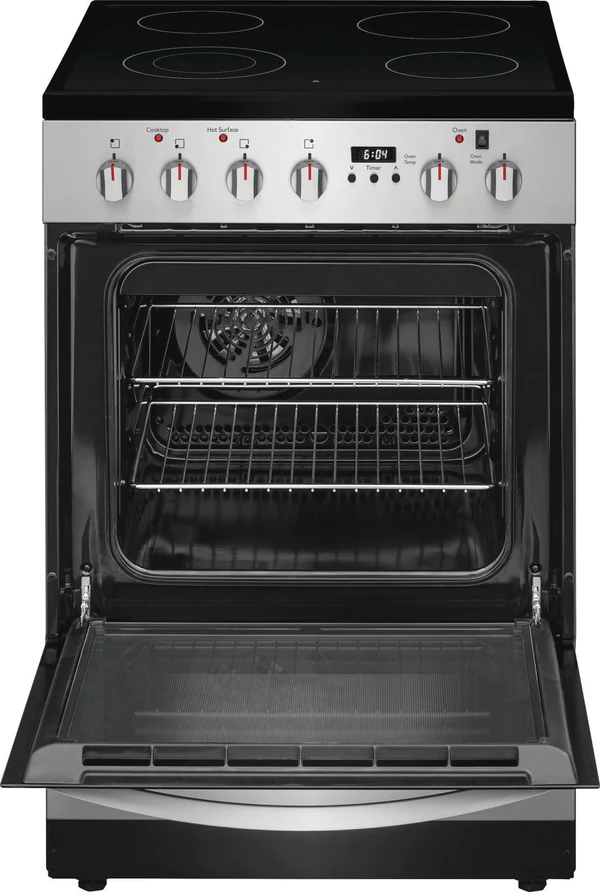

Achieve better baking results with Convection Bake and get faster, more even baking results with the fan convection baking system. This 24" electric range is compact in design and fits perfectly into smaller kitchens. The smooth, glass design of the cooktop seamlessly integrates with your countertop, making it easy to clean.
Features
- HIDDEN BAKE ELEMENT — Keeping the bottom of your oven clean is easy with a hidden heating element.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Highlights

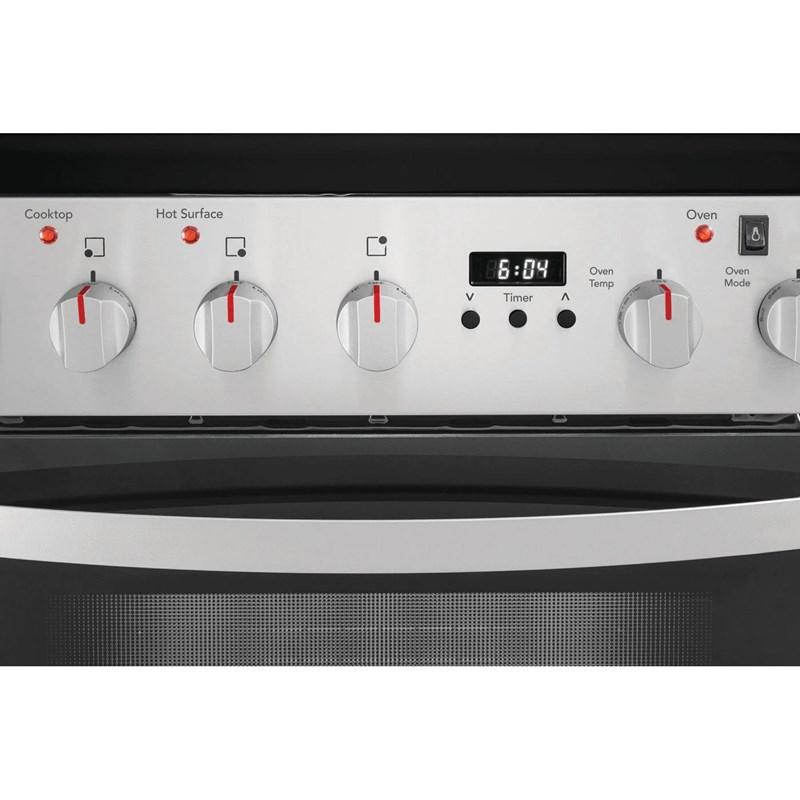

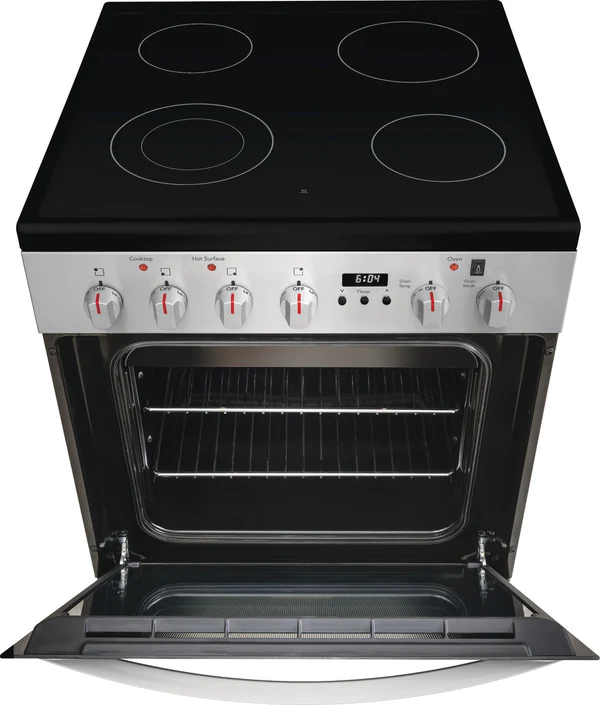

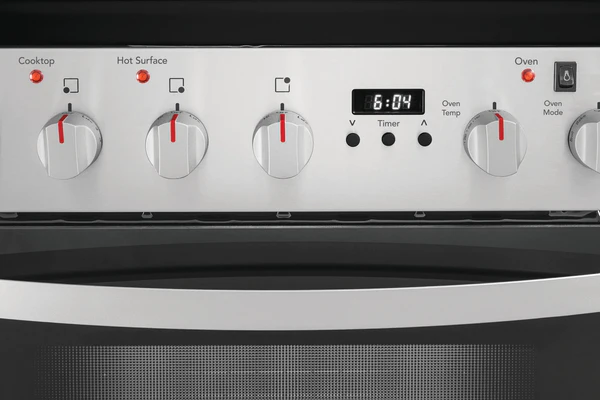

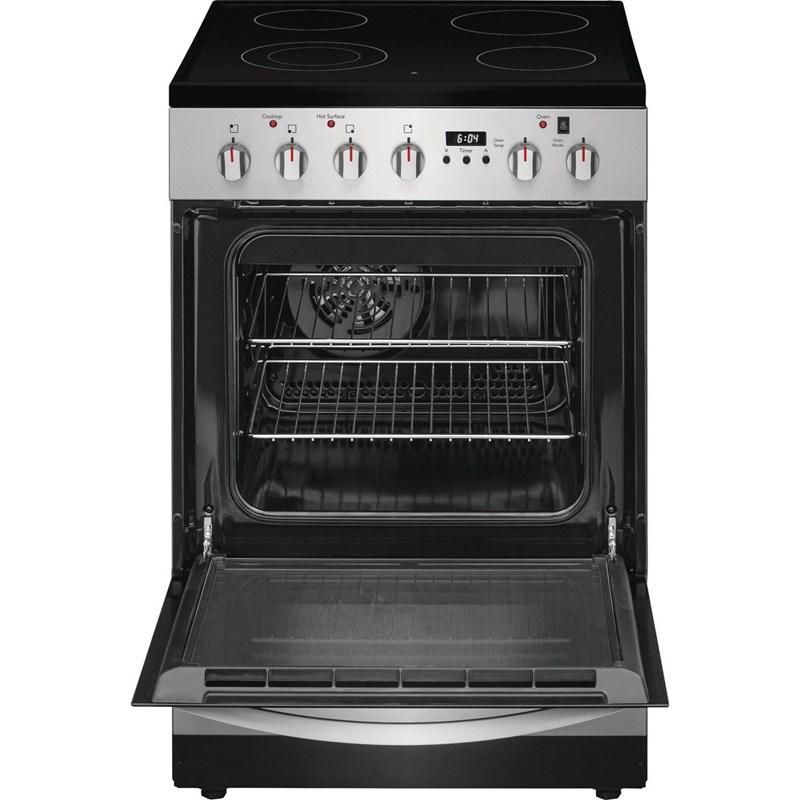

Cooking Surface Type: Smooth | Element On Indicator Light | Hot-Surface Indicator Light | Keep Warm | On / Off (for each element) | Oven Indicator Light | Oven Light | Timer On / Off | Up / Down Arrow | Bake Element Type: Hidden | Bake Element Pass: 4 | Bake Element: 1,000 Watts | Broil Element Pass: 4 | Broil Element: 1,800 Watts | Convection Type: Fan | Rack Position Type: Embossed | Number of Rack Positions: 4 | Rack Type 1: Flat | Rack Type 1 Quantity: 2 | Oven Interior Color: Midnight Black | Oven Light Type: Halogen | Oven Light Quantity: 1 | Oven Light Watts: 25 Watts
Specifications
| Class Width | 24" | Width | 59.69 cm | Height | 91.12 cm |
| Depth (Without Handles) | 105.41 cm | Oven Light | Y | Digital Temperature Display | Y |
| Convection | Y | Elements | Smoothtop | Burners/Elements | 4 |
| Warranty | 1-Year parts and labor | Number of Ovens | Single | Capacity (cu. ft.) | 1.9 cu. ft. |
| Included | Power Cord | UPC# | 12505566493 | Manufacturer Color | Stainless Steel |
| Fuel Type | Electric | Color | Stainless Steel | Installation Type | Freestanding |
| Storage | Y | ||||
|
Additional Dimensions Depth With Door 90° Open: 41 1/2" | Oven Interior Height: 12 7/8" | Oven Interior Width: 16 1/8" | Oven Interior Depth: 16 3/8" | Maximum Height: 36 7/8"
| |||||
|

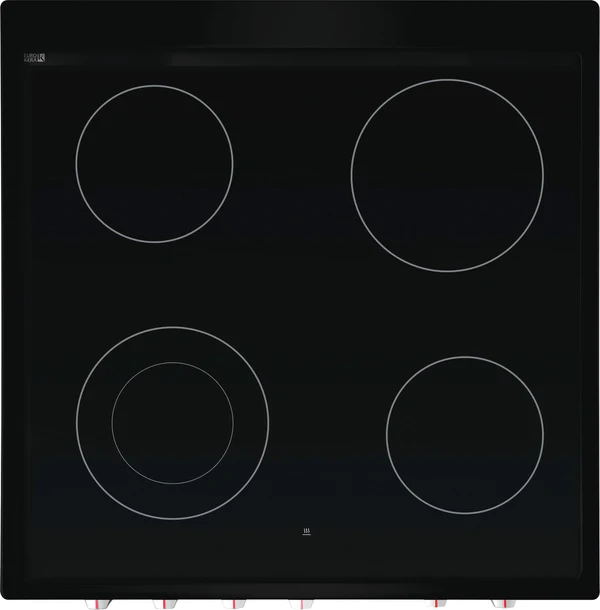

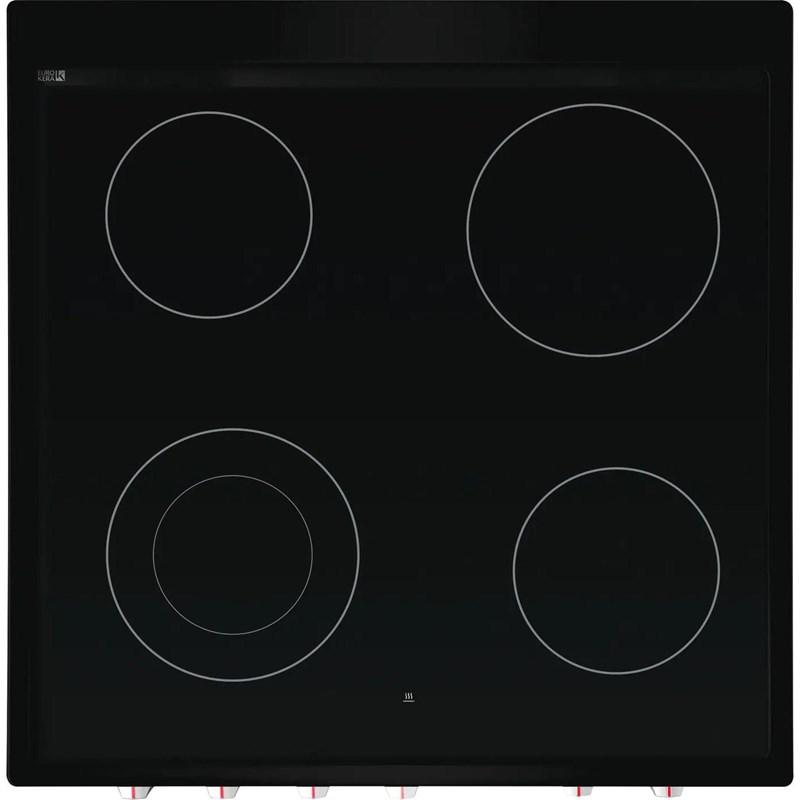

Burner/Element Size Right Front Element Burner Size: 6" | Right Rear Element Burner Size: 7" | Left Rear Element Burner Size: 6" | Left Front Element Burner Size 7"
| |||||
|
Burners/Elements Output Right Front Element Burner: 1,200 Watts | Right Rear Element Burner: 1,800 Watts | Left Rear Element Burner: 1,200 Watts | Left Front Element Burner: 800/1,800 Watts
| |||||
|
Information CSA
| |||||
|
Programs Bake | Broil | Convection Bake | Convection Broil
| |||||
|
Information Connected Load @ 240V: 8 kW | Minimum Circuit Required: 40 Amps | Voltage Rating: 240 V
| |||||
Accessories
Class Width
24"
Width
59.69 cm
Height
91.12 cm
Depth (Without Handles)
105.41 cm
Oven Light
Y
Digital Temperature Display
Y
Convection
Y
Elements
Smoothtop
Burners/Elements
4
Warranty
1-Year parts and labor
Number of Ovens
Single
Capacity (cu. ft.)
1.9 cu. ft.
Included
Power Cord
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Color
Stainless Steel
Installation Type
Freestanding
Storage
Y
Additional Dimensions
Depth With Door 90° Open: 41 1/2" | Oven Interior Height: 12 7/8" | Oven Interior Width: 16 1/8" | Oven Interior Depth: 16 3/8" | Maximum Height: 36 7/8"
Additional Information
Cooking Surface Type: Smooth | Element On Indicator Light | Hot-Surface Indicator Light | Keep Warm | On / Off (for each element) | Oven Indicator Light | Oven Light | Timer On / Off | Up / Down Arrow | Bake Element Type: Hidden | Bake Element Pass: 4 | Bake Element: 1,000 Watts | Broil Element Pass: 4 | Broil Element: 1,800 Watts | Convection Type: Fan | Rack Position Type: Embossed | Number of Rack Positions: 4 | Rack Type 1: Flat | Rack Type 1 Quantity: 2 | Oven Interior Color: Midnight Black | Oven Light Type: Halogen | Oven Light Quantity: 1 | Oven Light Watts: 25 Watts
Burner/Element Size
Right Front Element Burner Size: 6" | Right Rear Element Burner Size: 7" | Left Rear Element Burner Size: 6" | Left Front Element Burner Size 7"
Burners/Elements Output
Right Front Element Burner: 1,200 Watts | Right Rear Element Burner: 1,800 Watts | Left Rear Element Burner: 1,200 Watts | Left Front Element Burner: 800/1,800 Watts
Information
CSA
Programs
Bake | Broil | Convection Bake | Convection Broil
Information
Connected Load @ 240V: 8 kW | Minimum Circuit Required: 40 Amps | Voltage Rating: 240 V
