Description
About this Product

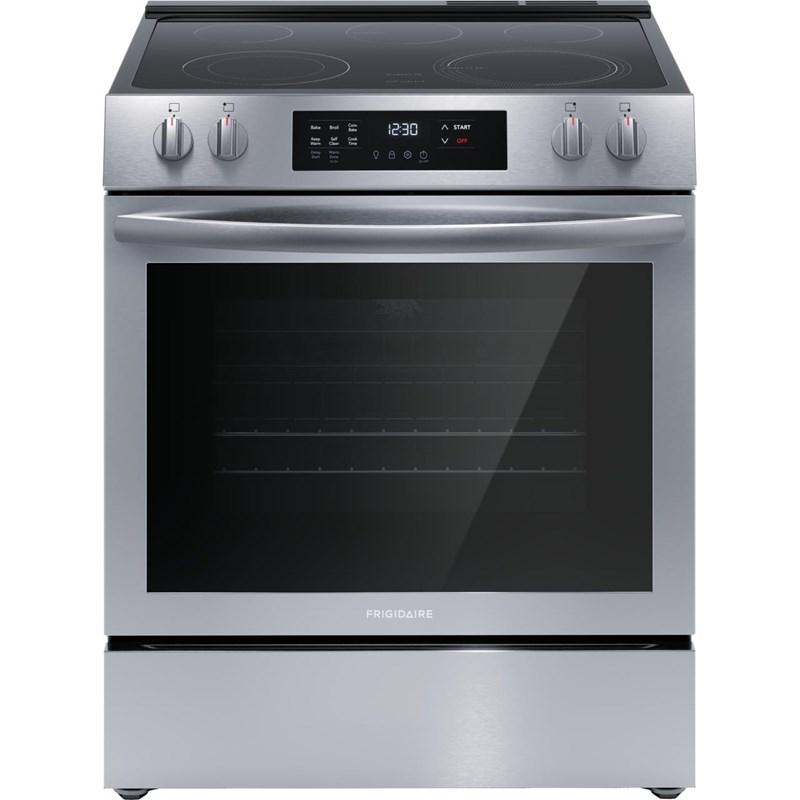

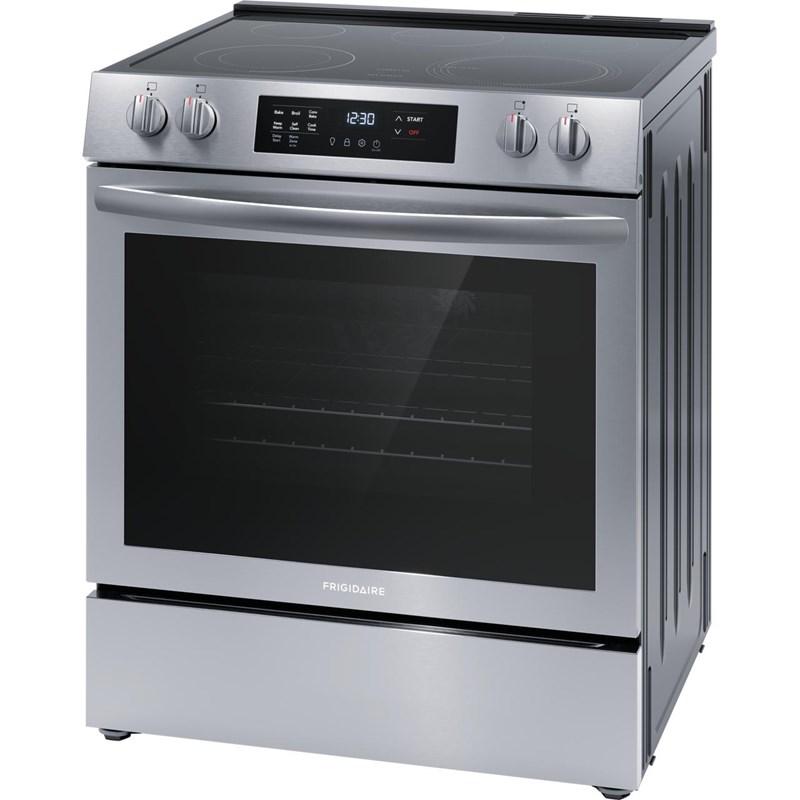

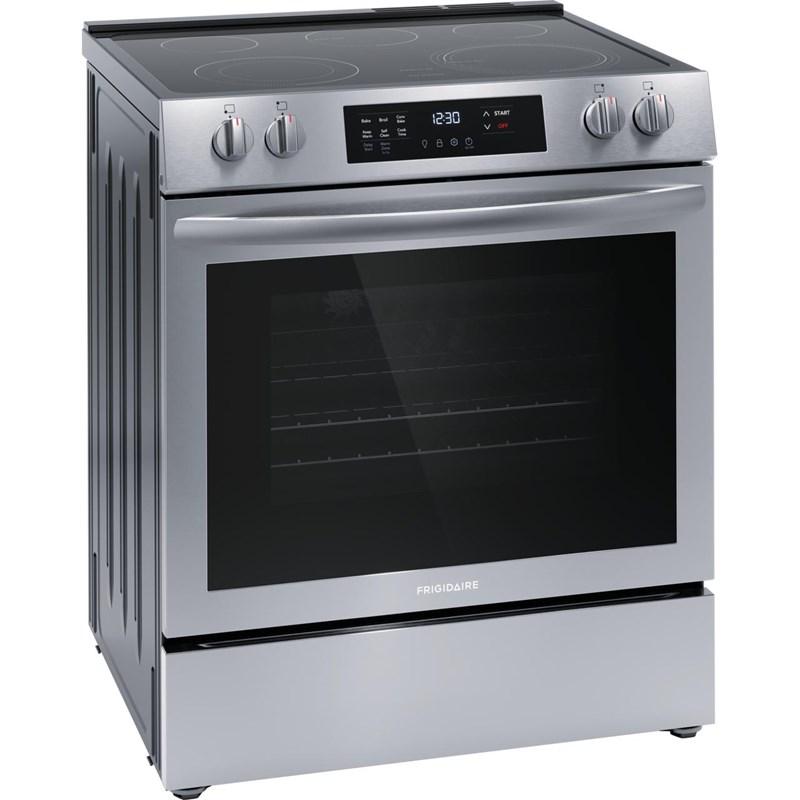

Frigidaire 30-inch freestanding electric range features EvenTemp™ technology, 5 flexible cooktop elements, a Store-More® storage drawer and a total oven capacity of 5.3 cu. ft.
Features

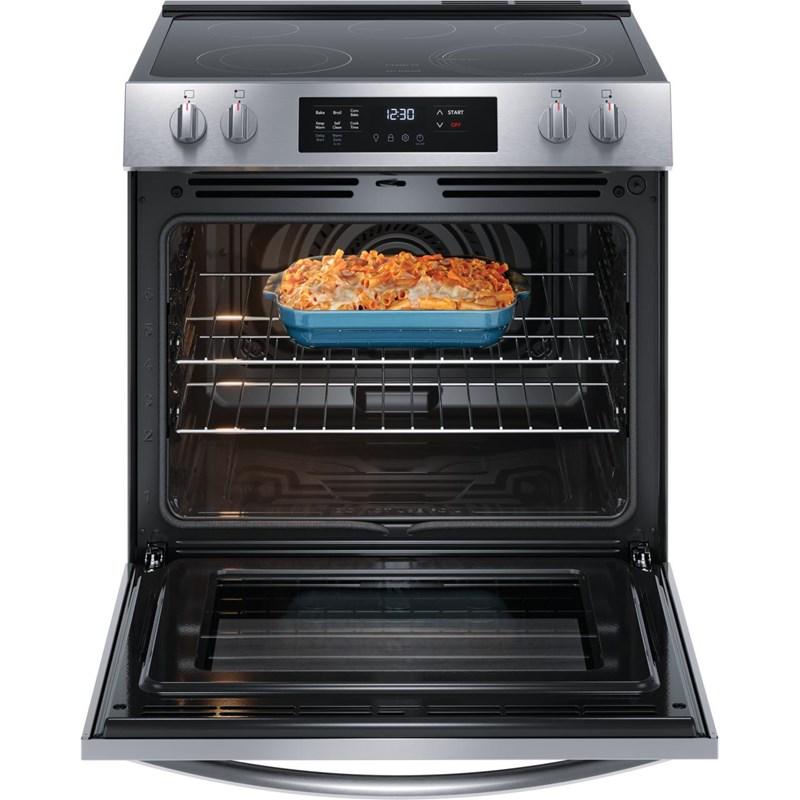

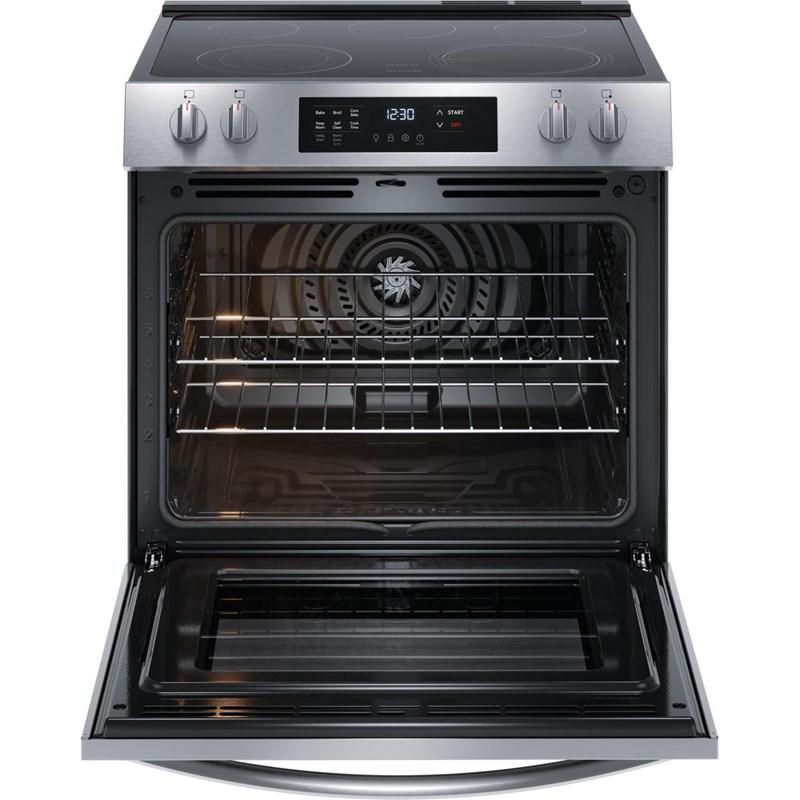

- ACHIEVE BETTER BAKING RESULTS WITH CONVECTION BAKE — Get faster, more even baking results with our fan convection baking system.
- CONSISTENT RESULTS WITH THE EVENTEMP™ COOKTOP ELEMENT — With our EvenTemp™ cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

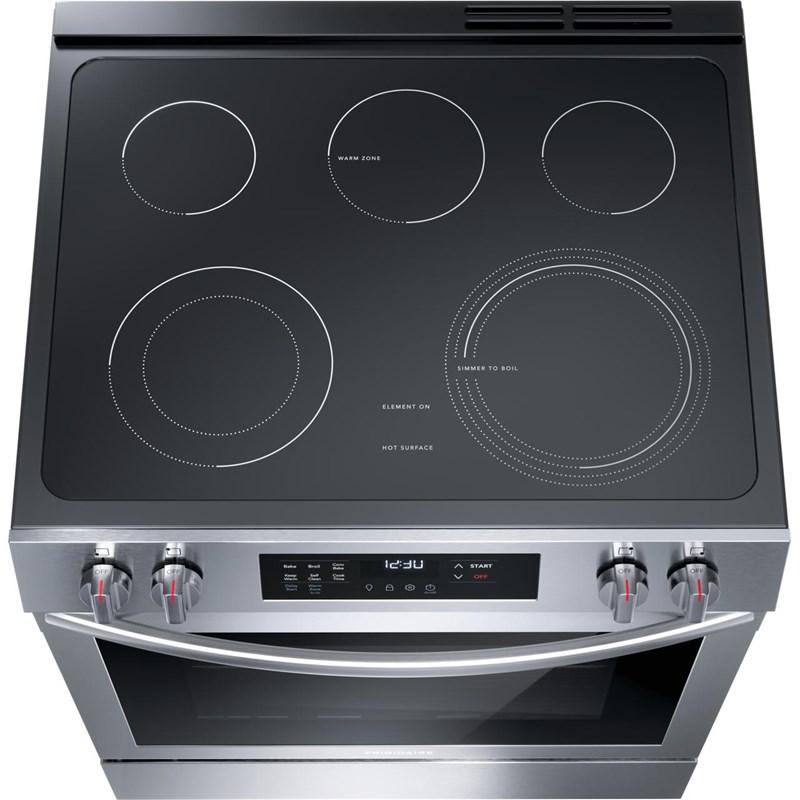

- FLEXIBLE FIVE ELEMENT COOKTOP (3,200W) — With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp™ element, a Dual Expandable Element and a convenient Warm Zone.
- ONE-TOUCH SELF CLEAN — Start the self-cleaning cycle with just the touch of a button.
- ONE-TOUCH SELF CLEAN (3 HOURS) — A convenient 3-hour self clean cycle cleans your oven, so you don't have to.
- SPACEWISE® DUAL EXPANDABLE ELEMENT (6"/9") — Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
- EXTRA WIDE STORE-MORE™ STORAGE DRAWER — Redesigned to be even wider - allowing you to store any unused oven racks, baking trays, and more!
- CLEANUP IS EASIER WITH HIDDEN BAKE — Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights

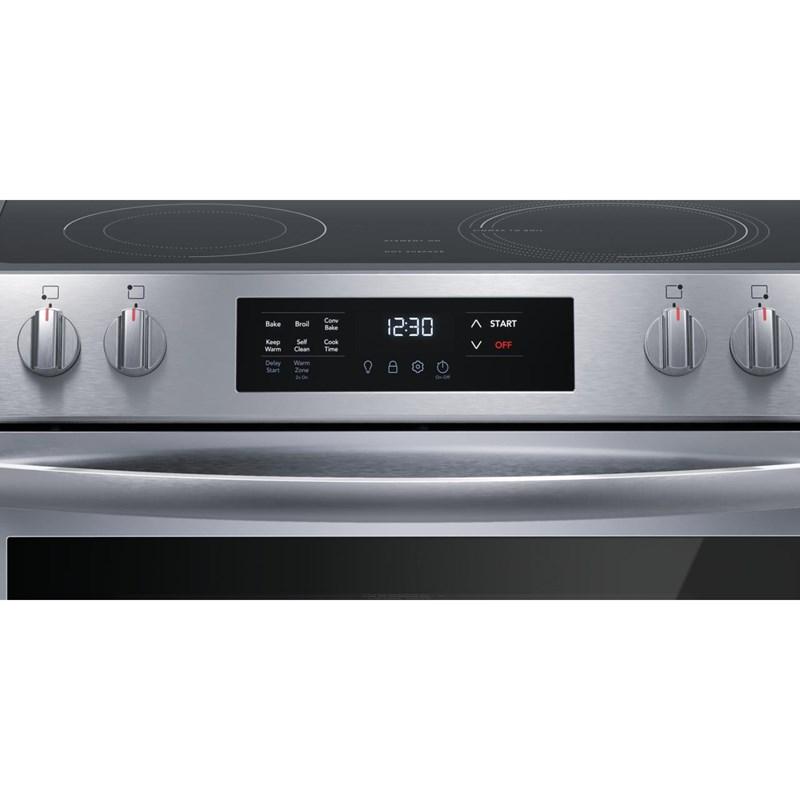

Element On Indicator Light | Hot-Surface Indicator Light | Keep Warm Zone Light | Door Lock | Kitchen Timer | Lockout | Temperature Display | LED Display
Specifications
| Class Width | 30" | Depth (Including Handles) | 72.39 cm | Width | 76.2 cm |
| Depth (Without Handles) | 66.04 cm | Height | 90.48 cm | Oven Light | Y |
| Control Lock | Y | Self-Cleaning | Y | Digital Temperature Display | Y |
| Convection | Y | Elements | Smoothtop | Burners/Elements | 5 |
| Warranty | 1 Year Parts and Labor | UPC# | 12505514371 | Number of Ovens | Single |
| Capacity (cu. ft.) | 5.3 cu. ft. | Fuel Type | Electric | Color | Stainless Steel |
| Installation Type | Freestanding | Storage | Y | ||
|
Additional Dimensions Depth With Door 90° Open: 47 5/16" | Oven Interior Height: 18 1/8" | Oven Interior Width: 25 3/16" | Oven Interior Depth: 19 7/8" | Maximum Height: 36 3/8"
| |||||
|
Technologies EvenTemp™ | SpaceWise® Dual Expandable Element
| |||||
|
Burner/Element Size Right Front Element: 9" | Right Rear Element: 6" | Left Rear Element: 6" | Left Front Element (Large): 9" | Left Front Element (Small): 6"
| |||||
|
Burners/Elements Output Right Front Element: 3,200 Watts | Right Rear Element: 1,200 Watts | Left Rear Element: 1,200 Watts | Center Rear Element: 100 Watts | Left Front Element (Large): 3,000 Watts | Left Front Element (Small) 1,400: Watts
| |||||
|
Information Amps @ 120 Volts 10 Amps | Amps @ 240 Volts 13 Amps | Minimum Circuit Required 40 Amps | Voltage Rating 240 V
| |||||
|
Information UL Listed | RoHS
| |||||
|
Programs Bake | Bake Time | Broil | Convection Bake | Cook Time | Delay Clean | Delay Start | Keep Warm | Preheat
| |||||
Class Width
30"
Depth (Including Handles)
72.39 cm
Width
76.2 cm
Depth (Without Handles)
66.04 cm
Height
90.48 cm
Oven Light
Y
Control Lock
Y
Self-Cleaning
Y
Digital Temperature Display
Y
Convection
Y
Elements
Smoothtop
Burners/Elements
5
Warranty
1 Year Parts and Labor
Number of Ovens
Single
Capacity (cu. ft.)
5.3 cu. ft.
Fuel Type
Electric
Color
Stainless Steel
Installation Type
Freestanding
Storage
Y
Additional Dimensions
Depth With Door 90° Open: 47 5/16" | Oven Interior Height: 18 1/8" | Oven Interior Width: 25 3/16" | Oven Interior Depth: 19 7/8" | Maximum Height: 36 3/8"
Technologies
EvenTemp™ | SpaceWise® Dual Expandable Element
Additional Information
Element On Indicator Light | Hot-Surface Indicator Light | Keep Warm Zone Light | Door Lock | Kitchen Timer | Lockout | Temperature Display | LED Display
Burner/Element Size
Right Front Element: 9" | Right Rear Element: 6" | Left Rear Element: 6" | Left Front Element (Large): 9" | Left Front Element (Small): 6"
Burners/Elements Output
Right Front Element: 3,200 Watts | Right Rear Element: 1,200 Watts | Left Rear Element: 1,200 Watts | Center Rear Element: 100 Watts | Left Front Element (Large): 3,000 Watts | Left Front Element (Small) 1,400: Watts
Information
Amps @ 120 Volts 10 Amps | Amps @ 240 Volts 13 Amps | Minimum Circuit Required 40 Amps | Voltage Rating 240 V
Information
UL Listed | RoHS
Programs
Bake | Bake Time | Broil | Convection Bake | Cook Time | Delay Clean | Delay Start | Keep Warm | Preheat
