Description
About this Product

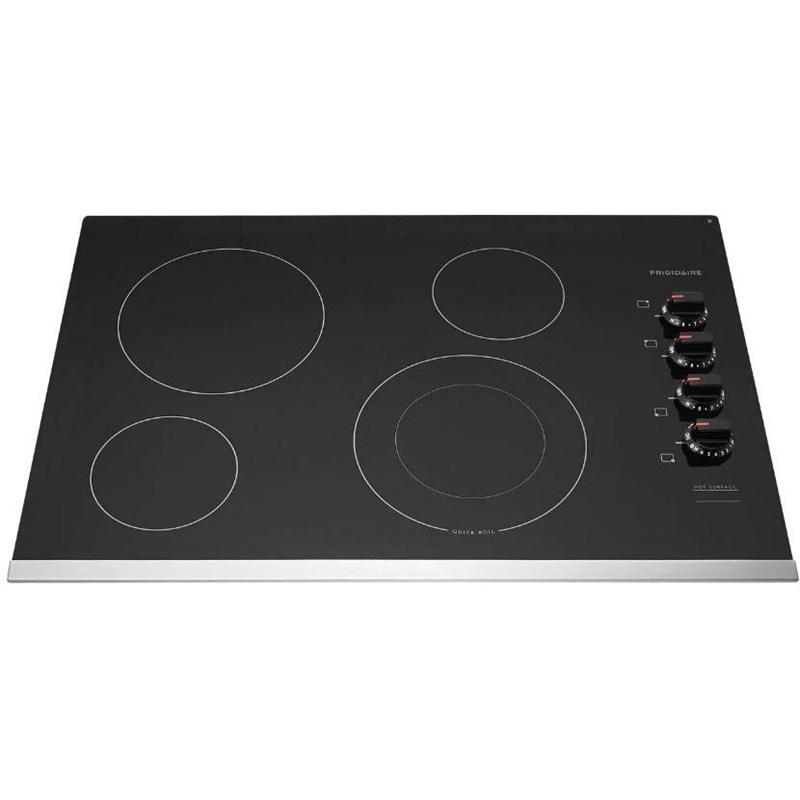

This Frigidaire 30 inch electric cooktop has two different element sizes, and alerts you when the cooktop is on and is too hot to touch. This frameless drop-in cooktop has easy-to-use controls that make it easy to select cooking temperatures and options.
Features
- READY-SELECT CONTROLS — Select options or control cooking temperature with their easy-to-use controls.
- SPACEWISE® EXPANDABLE ELEMENT — Flexible element expands to accommodate various sizes of cookware.
- QUICK BOIL ELEMENT 3000W — Get meals on the table faster with our powerful 3,000W Quick Boil element.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Hot Surface Indicator | Quick Boil Element
Specifications
| Surface Features | Ceramic Glass Cooktop | Elements | Smoothtop | Burners/Elements | 4 |
| Height | 6.66 cm | Width | 77.15 cm | Class Width | 30" |
| Weight | 22.23 kg | Depth | 54.29 cm | Type | Built-In |
| Fuel Type | Electric | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Warranty | 1-Year Parts and Labor | UPC# | 057112992280 | ||
| Burner/Element Size Right Front Element: 6"/9" | Right Rear Element: 6" | Left Front Element: 6" | Left Rear Element: 9" | |||||
| Power Output Right Front Element: 1,600/3,000 W | Right Rear Element: 1,200 W | Left Front Element: 1,200 W | Left Rear Element: 2,500 W | |||||
| Information 240 / 208 V | 60 Hz | 40 A | |||||
| Additional Dimensions Cutout Width (Min.-Max.): 28-1/2"-29-7/8" | Cutout Depth (Min.-Max.): 19-5/8"-20-1/2" | Cutout Height (Min.): 5" | |||||
| Technologies Ready-Select® Controls | SpaceWise® Expandable Element | |||||
