Description
About this Product

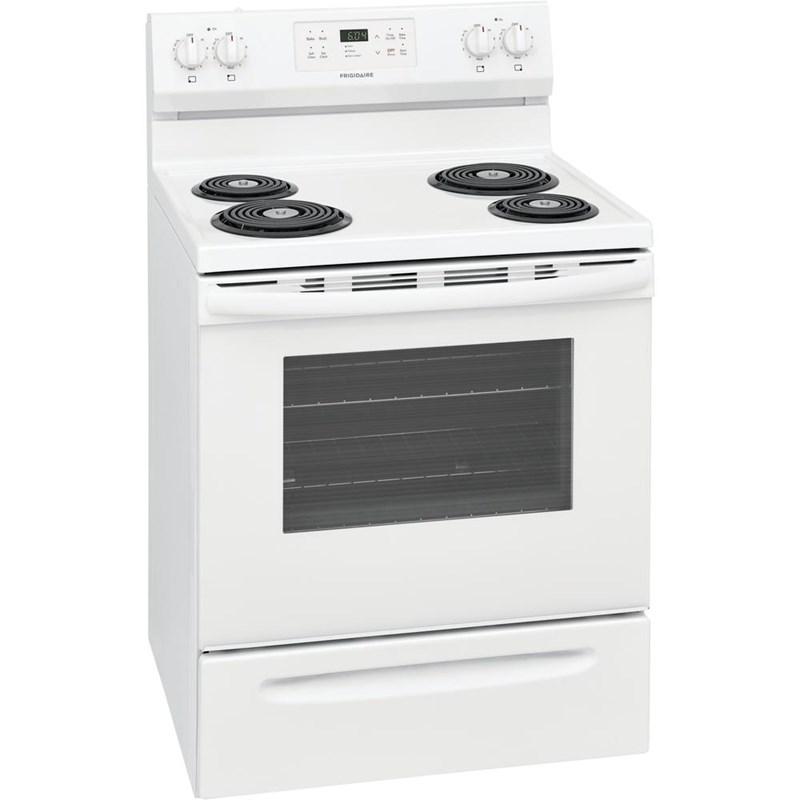

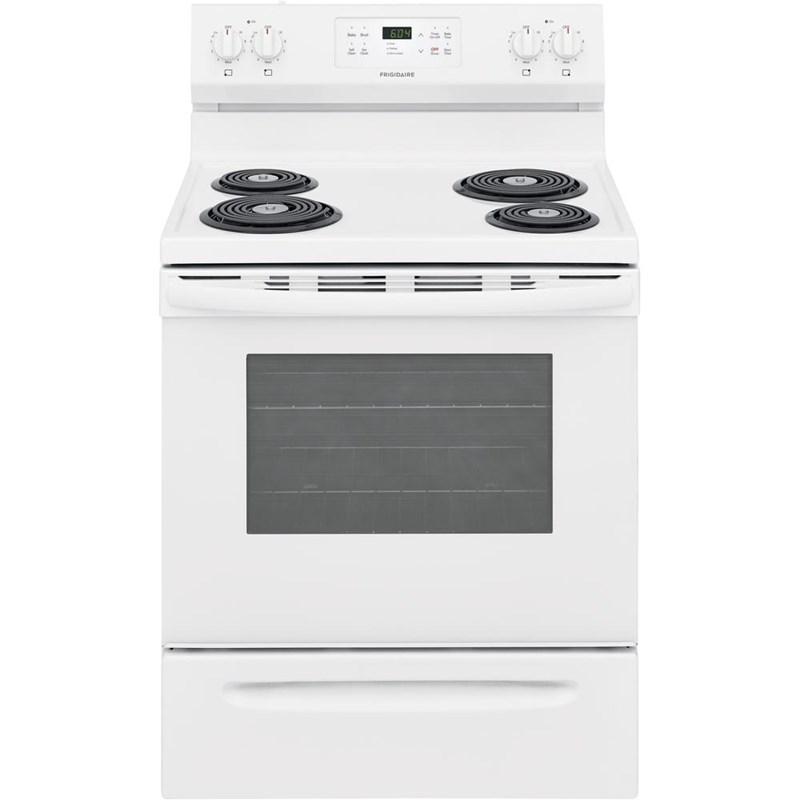

This 30-inch wide Frigidaire electric range features 4 coil elements, self-cleaning oven, Ready-Select® controls and a 5.3 cu.ft. oven capacity.
Features
- DELAY CLEAN — Set the oven to begin cleaning on your schedule.

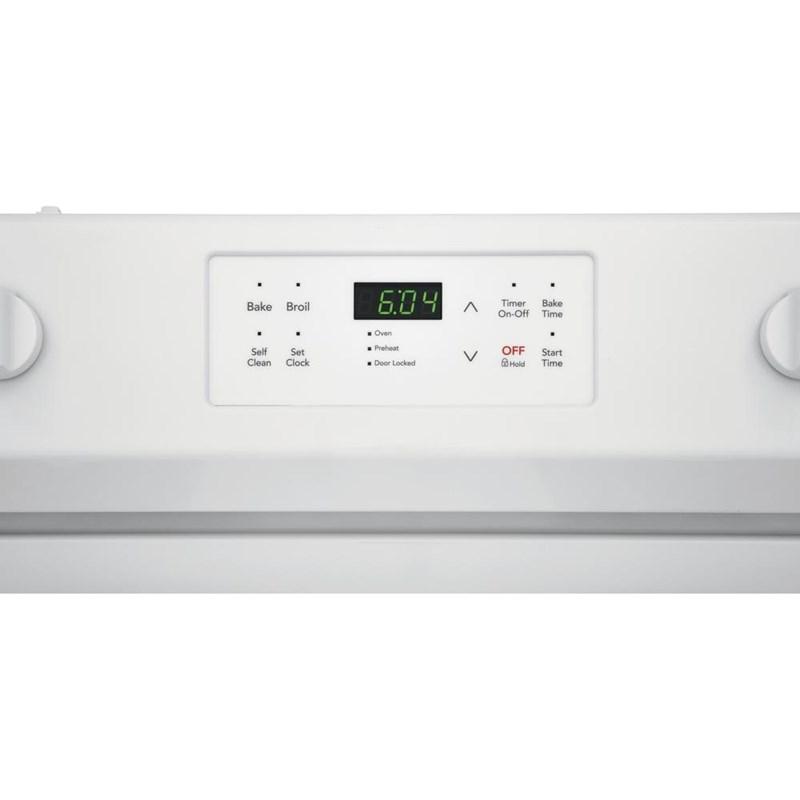

- READY-SELECT CONTROLS — Easily select options with the touch of a button.
- VARI-BROIL™ — Vari-Broil™ temperature control allows you to choose between two heat levels(400F- 550F Degrees).
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
1 Incandescent 40 W Light | Bake Element / Broil Element: 2,600/3,000 W | 2 Standard Rack Configuration
Specifications
| Class Width | 30" | Depth (Including Handles) | 74.3 cm | Width | 75.88 cm |
| Height | 121.92 cm | Oven Light | Y | Self-Cleaning | Y |
| Digital Temperature Display | Y | Elements | Coil | Burners/Elements | 4 |
| Warranty | Limited 1 Year Parts and Labor | Weight | 68.04 kg | UPC# | 12505513534 |
| Appliance Care | Self Clean 2, 3 Hours | Fuel Type | Electric | Manufacturer Color | White |
| Color | White | Installation Type | Freestanding | Number of Ovens | Single |
| Capacity (cu. ft.) | 5.3 cu.ft. | Storage | Y | ||
|
Additional Dimensions Oven Interior ( H x W x D ): 19-3/4" x 24-3/8" x 19-1/8" | Depth with Door Open 90°: 49" | Cutout Height (Standard.) 36" | Cutout Width (Min.) 30" | Cutout Depth 25"
| |||||
|
Technologies Ready-Select® Controls | Even Baking Technology | Vari-Broil™ (Hi / Lo)
| |||||
|

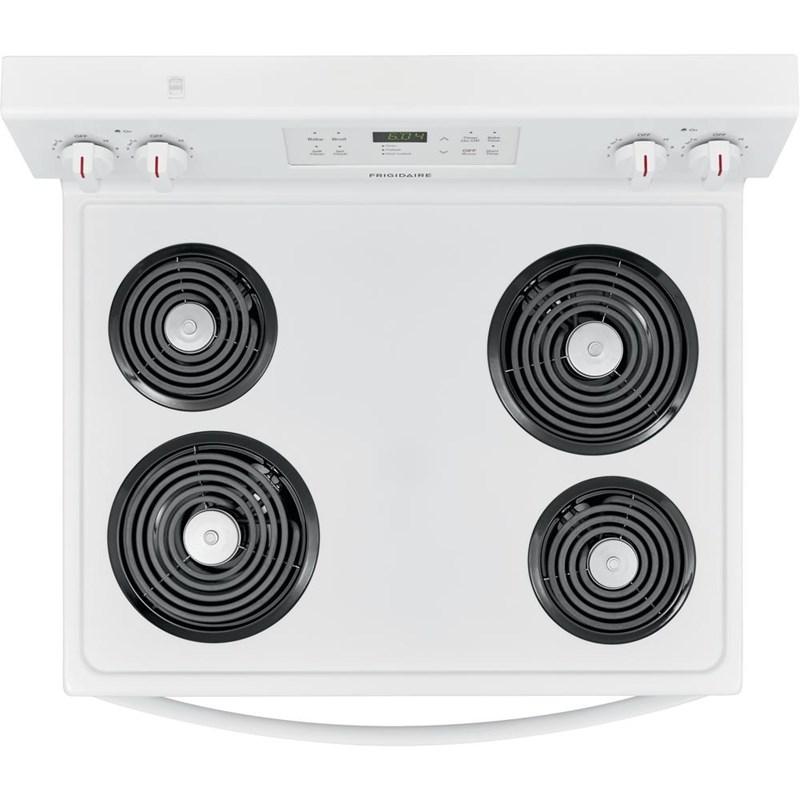

Burner/Element Size Right Front Element: 6" | Right Rear Element: 8" | Left Front Elemen: 8" | Left Rear Element: 6"
| |||||
|
Burners/Elements Output Right Front Element: 1,500 W | Right Rear Element: 2,400 W | Left Front Elemen: 2,400 W | Left Rear Element: 1,500 W
| |||||
|
Information 240 V / 208 V | 60 Hz | 40 A
| |||||
|
Programs Delay Start | Self Clean 2, 3 Hours | Delay Clean | Kitchen Timer | Timed Cook Option | Auto Oven Shut-Off
| |||||
Class Width
30"
Depth (Including Handles)
74.3 cm
Width
75.88 cm
Height
121.92 cm
Oven Light
Y
Self-Cleaning
Y
Digital Temperature Display
Y
Elements
Coil
Burners/Elements
4
Warranty
Limited 1 Year Parts and Labor
Weight
68.04 kg
Appliance Care
Self Clean 2, 3 Hours
Fuel Type
Electric
Manufacturer Color
White
Color
White
Installation Type
Freestanding
Number of Ovens
Single
Capacity (cu. ft.)
5.3 cu.ft.
Storage
Y
Additional Dimensions
Oven Interior ( H x W x D ): 19-3/4" x 24-3/8" x 19-1/8" | Depth with Door Open 90°: 49" | Cutout Height (Standard.) 36" | Cutout Width (Min.) 30" | Cutout Depth 25"
Technologies
Ready-Select® Controls | Even Baking Technology | Vari-Broil™ (Hi / Lo)
Additional Information
1 Incandescent 40 W Light | Bake Element / Broil Element: 2,600/3,000 W | 2 Standard Rack Configuration
Burner/Element Size
Right Front Element: 6" | Right Rear Element: 8" | Left Front Elemen: 8" | Left Rear Element: 6"
Burners/Elements Output
Right Front Element: 1,500 W | Right Rear Element: 2,400 W | Left Front Elemen: 2,400 W | Left Rear Element: 1,500 W
Information
240 V / 208 V | 60 Hz | 40 A
Programs
Delay Start | Self Clean 2, 3 Hours | Delay Clean | Kitchen Timer | Timed Cook Option | Auto Oven Shut-Off
