Description
About this Product

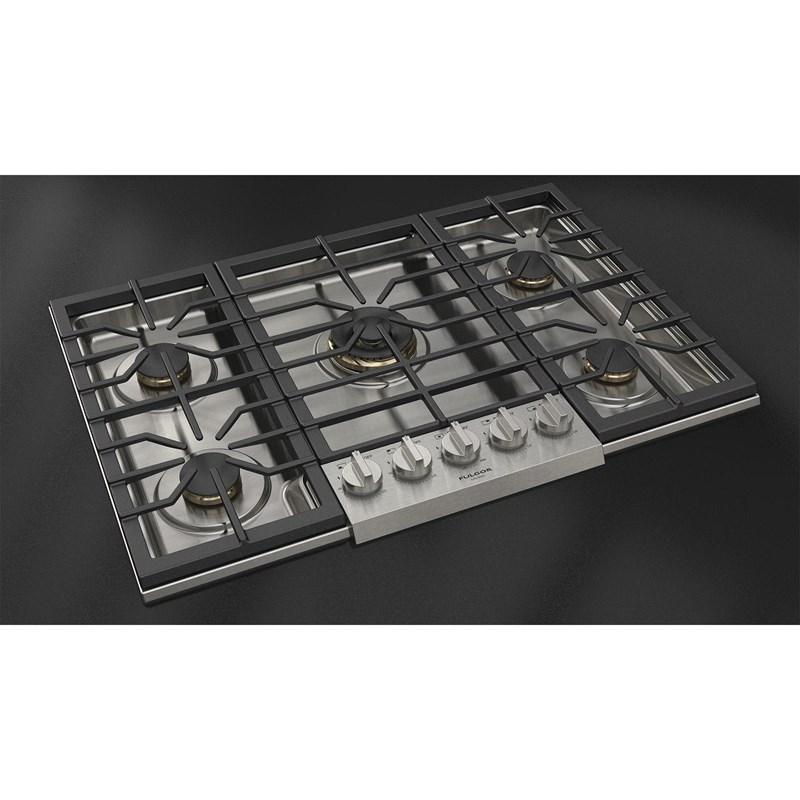

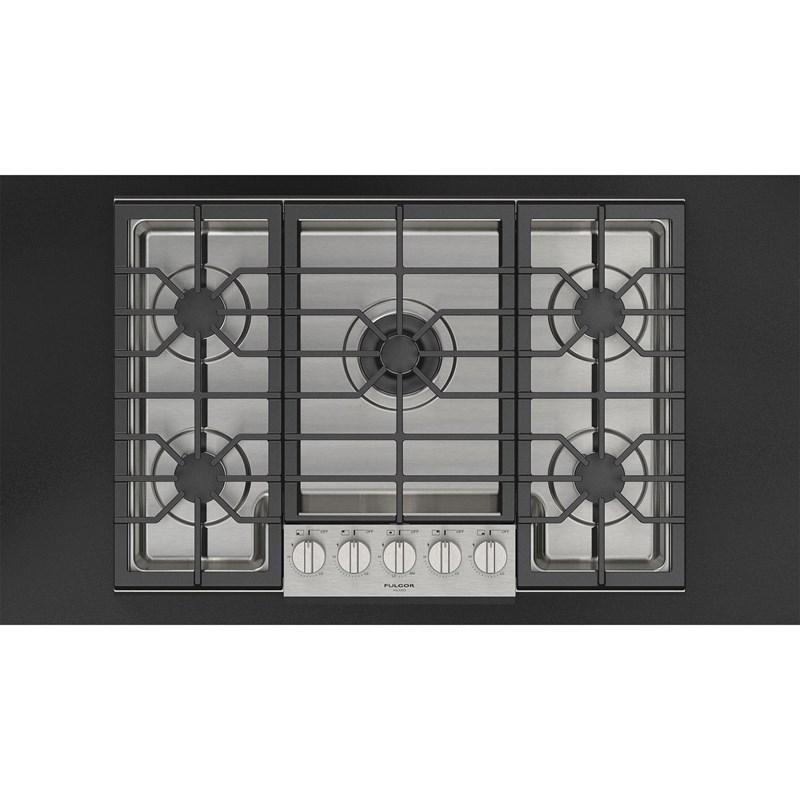

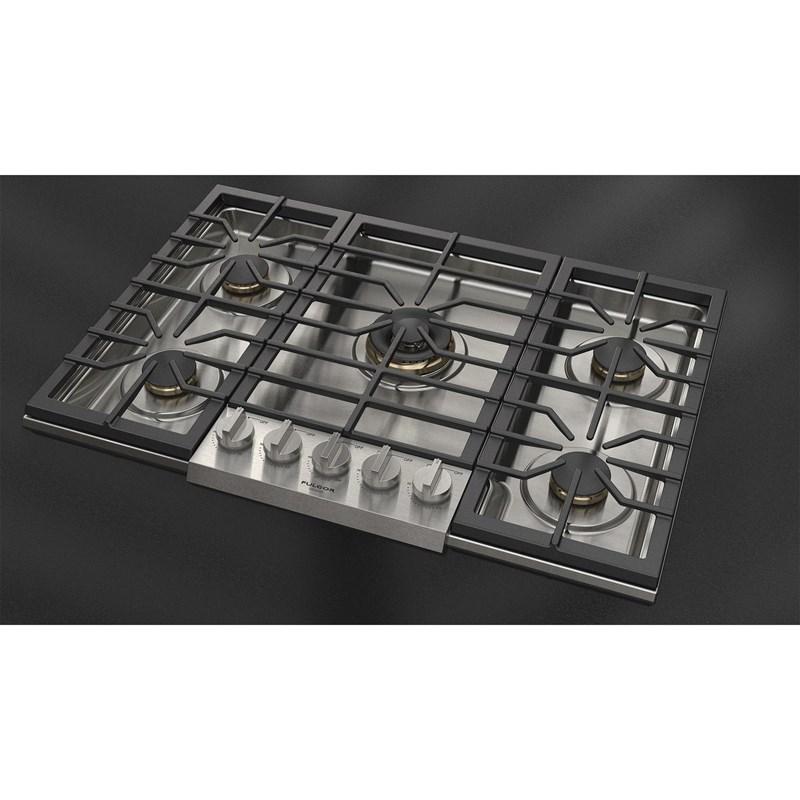

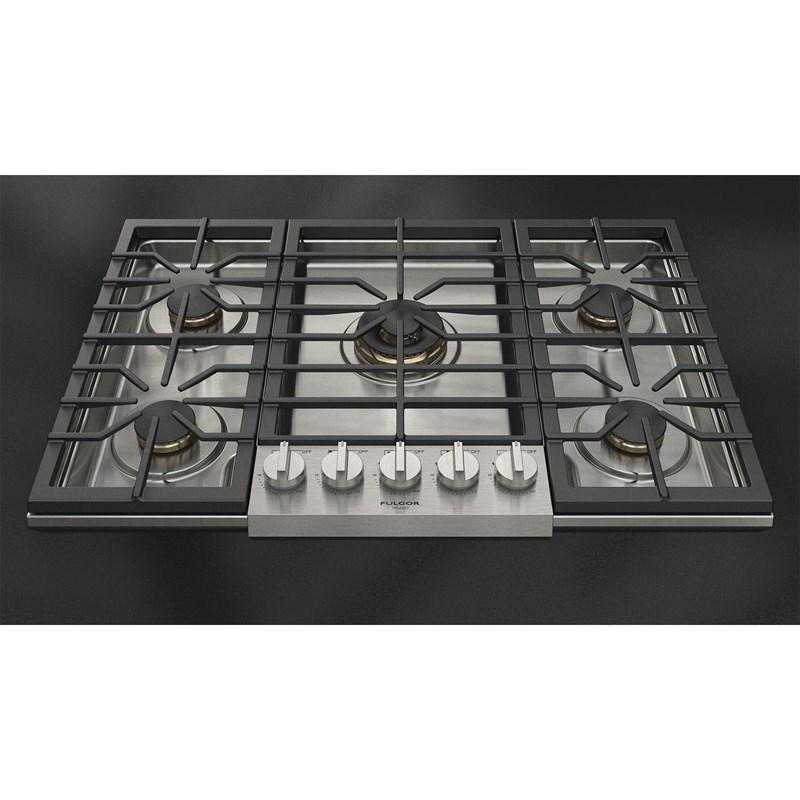

With sleek lines, a continuous surface grate over powerful brass burners, and LED-illuminated controls, the Sofia cooktop combines elegant design, responsive performance, and thoughtful convenience. Enjoy the power of a 20,000 BTU Dual Brass Burner of this Sofia cooktop while using the additional 4 burners, designed to surpass all of your expectations. Continuous cast-iron grates offer an even cooking surface for easy movement of pans from burner to burner so that even your biggest cooking events can be handled with ease.
Documents
Highlights

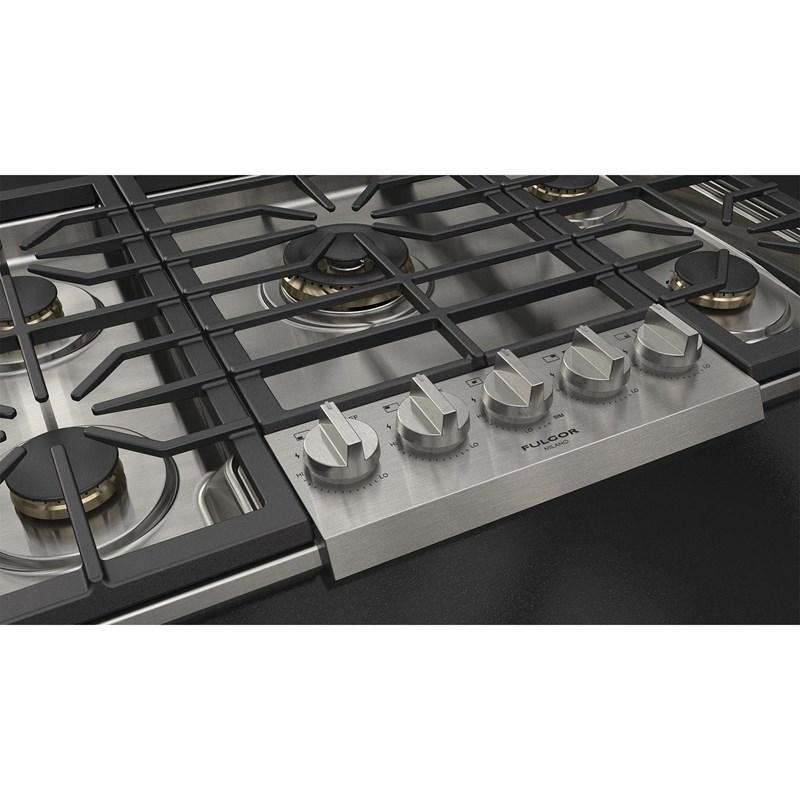

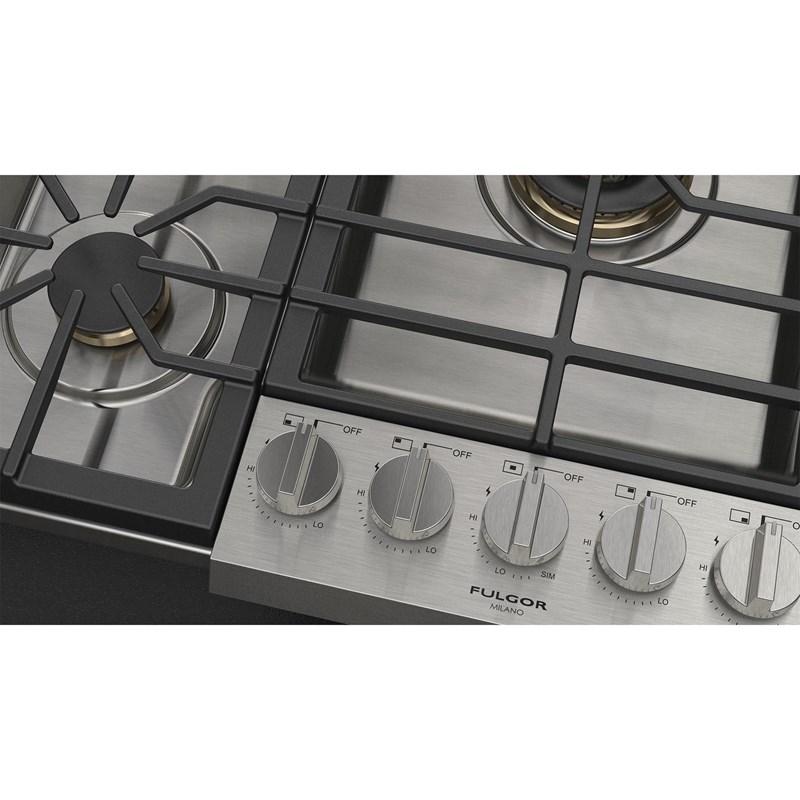

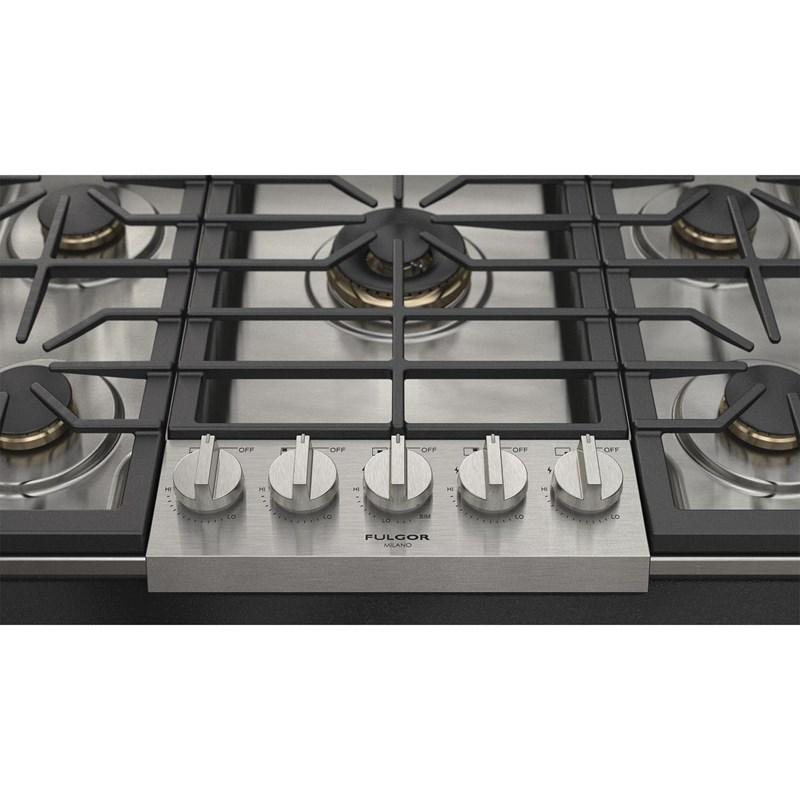

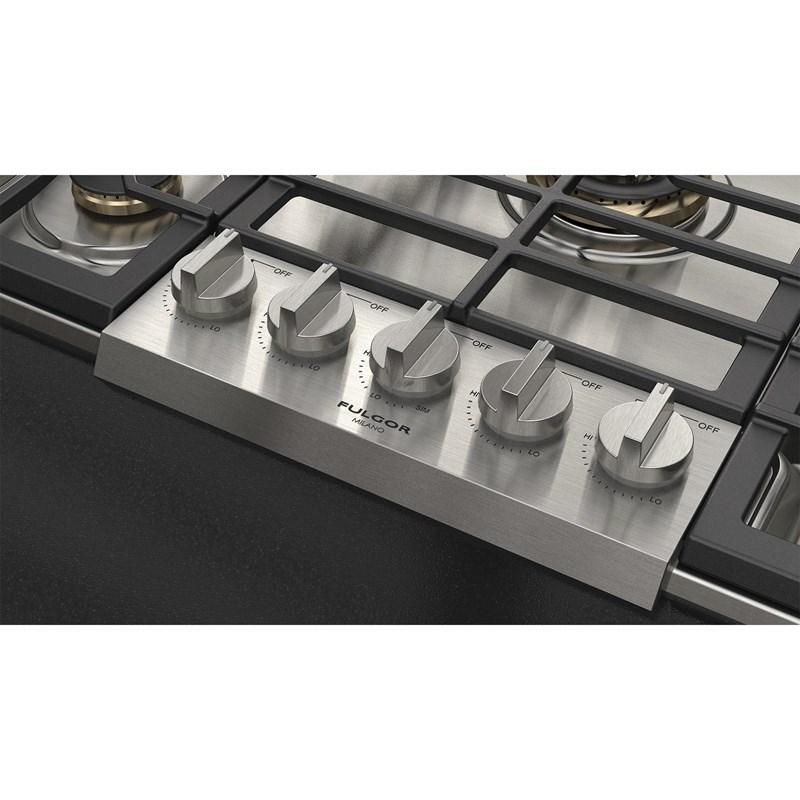

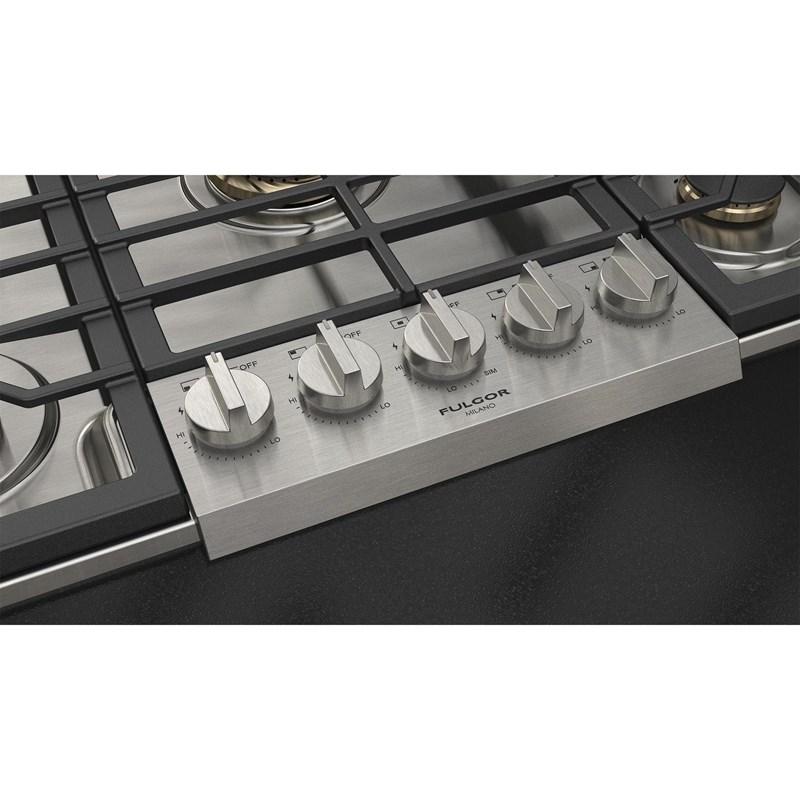

Control Type: Knobs control with backlight system | 3 Heavy-duty continuous cast iron grates | Heavy Gauge 304 Stainless Steel Burner Bowl | Backlit Control Knob indicates burner operation (White) | Backlit Control Knob indicates residual heat (Red) | Heavy-duty control panel | Large cooking area | Full pot stability | LP Convertible
Specifications
| Burners/Elements | 5 | Burners | Sealed | Height | 8.73 cm |
| Width | 76.2 cm | Depth | 54.45 cm | Weight | 28.8 kg |
| Class Width | 30" | Fuel Type | Natural Gas | Color | Stainless Steel |
| Type | Built-In | Manufacturer Color | Stainless Steel | Warranty | 1-Year Parts and Labor |
| Power Output Power (Max/Min) (Front-L): 6300 (BTU/h) - 1848W / 1300 (BTU/h) - 382W | Power (Max/Min) (Rear-L): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W | Power (Max/Min) (Center): Dual Flame / Simmer Burner: 20000 (BTU/h) - 5880W / 750 (BTU/h) - 220W | Power (Max/Min) (Rear-R): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W | Power (Max/Min) (Front-R): 6300 (BTU/h) - 1848W / 1300 (BTU/h) - 382W | |||||
| Information Power: 120 V, 60 HZ | Amps 0.1A | Max Power: 48600 (BTU/h) - 14266W | Power Cable: Nema 5-15P | Cable length: 53" (1350 mm) | |||||
| Additional Dimensions Cut-out - Width - min - max: 28-1/2", 28-11/16" (724 mm - 729 mm) | Cut-out - Height - min: 3-3/8" (87 mm) | Cut-out - Depth - min - max: 19-9/16",19-3/4" (497 mm - 502 mm) | |||||
| Technologies Halo Vision | |||||
| Series Name Sofia | Series: 600 | |||||
| Optional FMWOK: Wok ring | FMSIM: Simmer plate | |||||
Accessories
• FMSIM: Simmer plate
