Description
About this Product

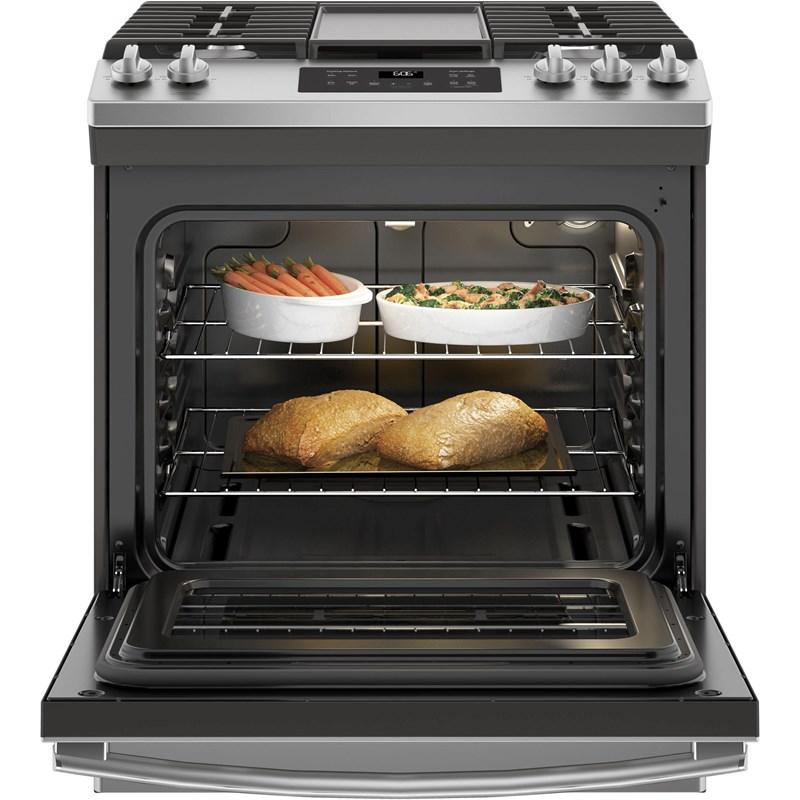

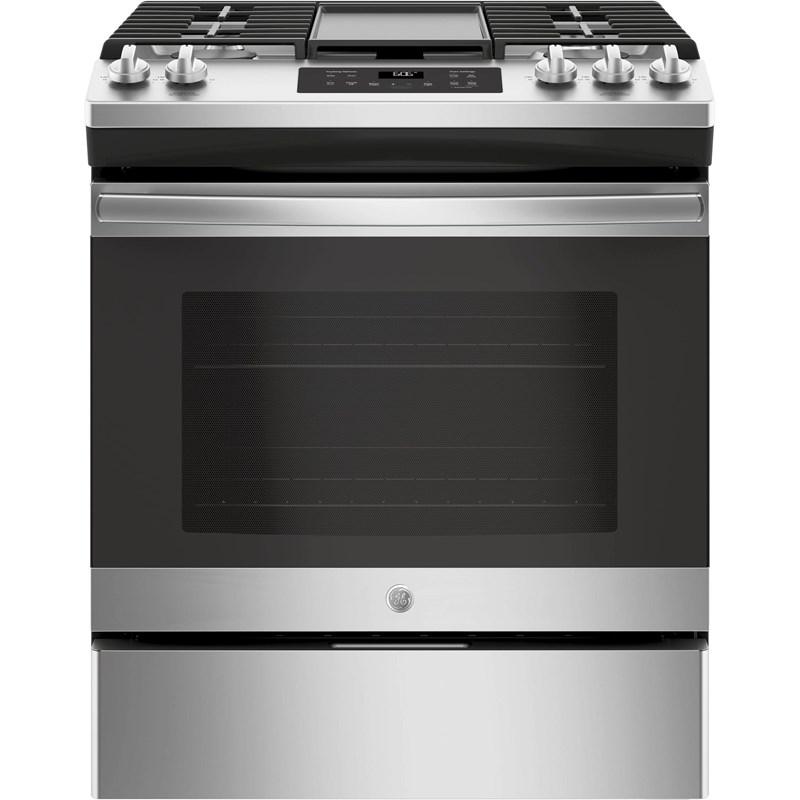

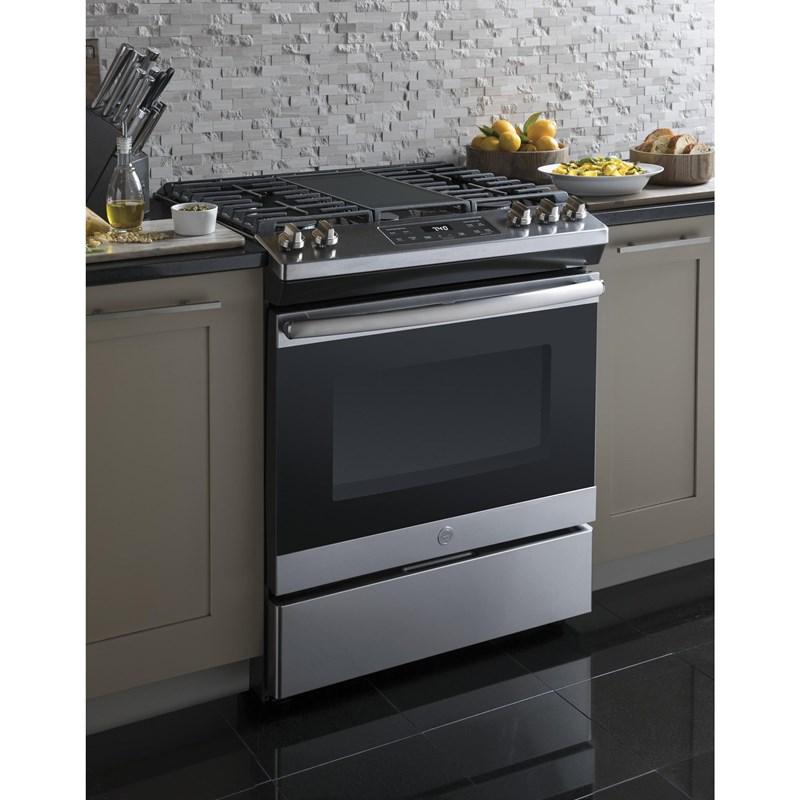

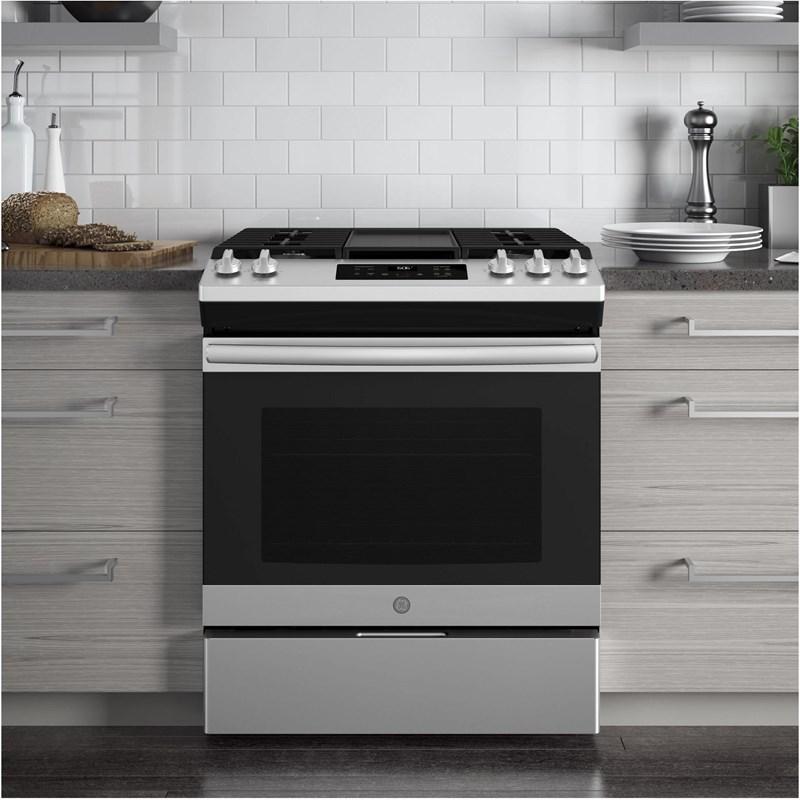

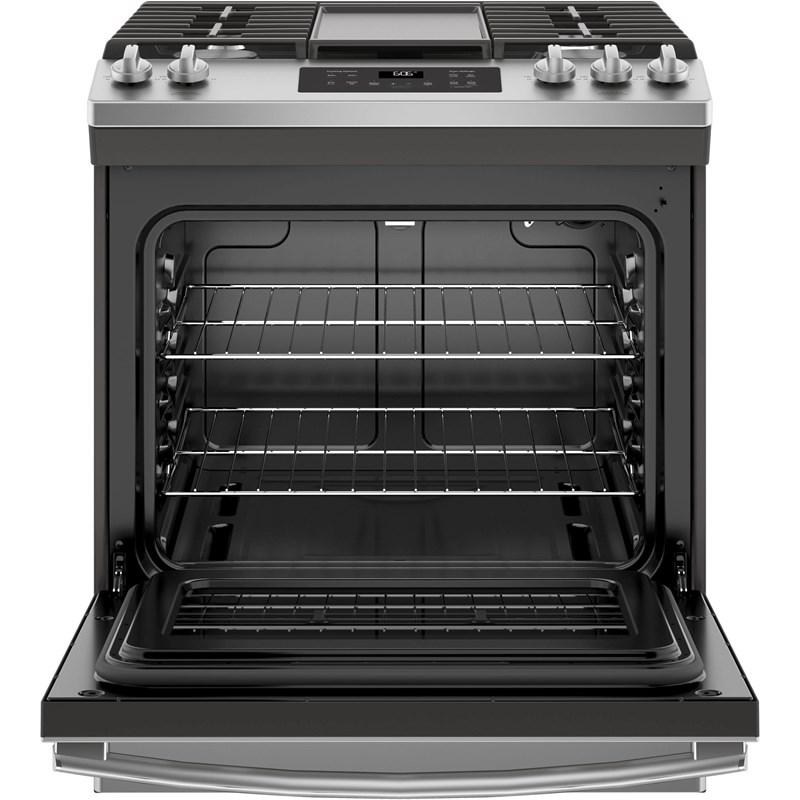

GE® 30" slide-in front control gas range featuring an edge-to-edge cooktop, an extra-large integrated non-stick griddle, two 15,000 BTU power boil burners and steam cleaning oven.
Features
- FIT GUARANTEE — Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit to make replacement easy.

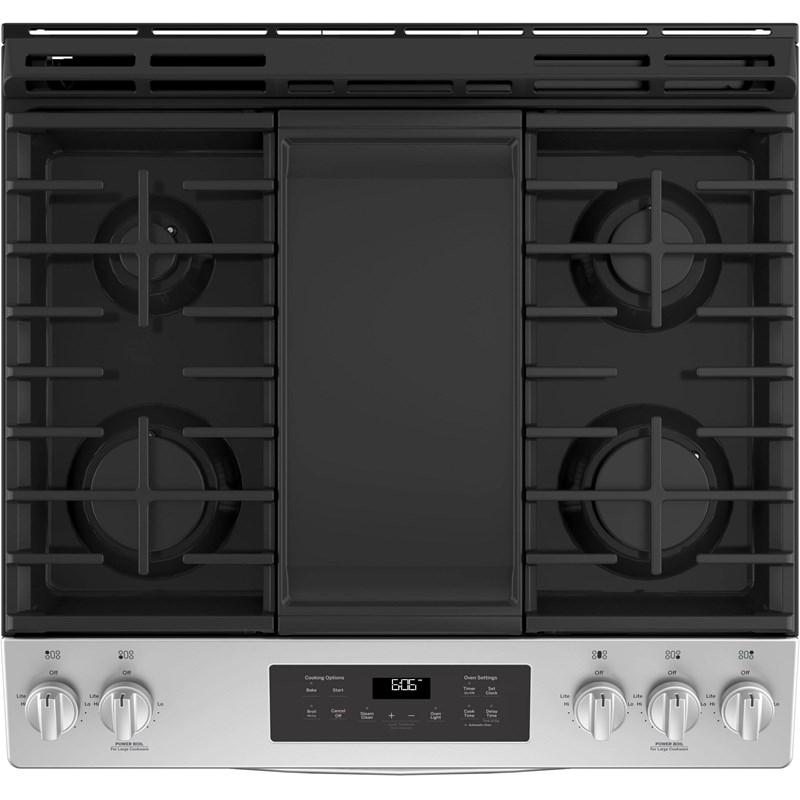

- EDGE-TO-EDGE SEAMLESS COOKTOP — A large, seamless surface makes it easy to wipe away messes
- CONTINUOUS GRATES — Continuous grates give you a large cooking space and can handle any cookware.
- CENTER OVAL BURNER — Large oval fifth burner is ideal for griddle or odd-size cookware.
- SELF-CLEAN WITH STEAM CLEAN OPTION — This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.

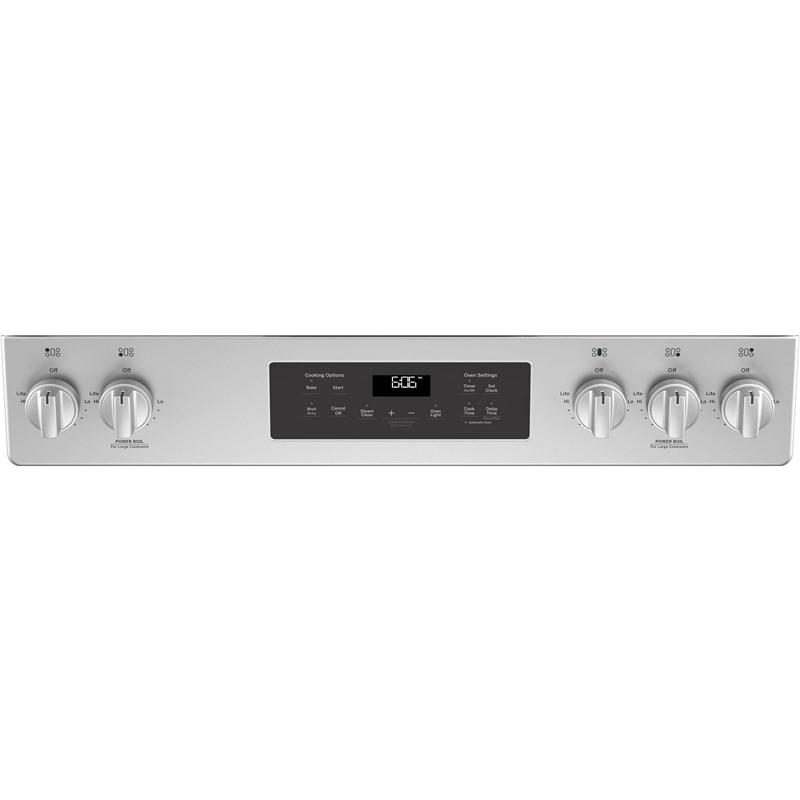

- SEALED COOKTOP BURNERS — Helps contain spills from dripping beneath cooktop for easy clean-up. Sealed gas burner controls let you adjust flame height for various cooking needs.
- EXTRA-LARGE INTEGRATED NON-STICK GRIDDLE — Cook up to six grilled cheeses at once on the industry's largest integrated griddle
- SMOOTH-GLIDE STORAGE DRAWER — Drawer opens and closes easily for instant access and extra storage
- FINISHED SIDES — Attractive look allows for installation flexibility in any kitchen
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Edge-to-edge cooktop | Extra-large integrated non-stick griddle | Smooth-glide storage drawer | In-oven broil | Continuous grates | FIT guarantee | Smooth glide storage drawer | Finished sides | 2 flat oven racks | Audible pre-heat signal
Specifications
| Class Width | 30" | Depth (Including Handles) | 74.42 cm | Weight | 77.11 kg |
| Width | 75.95 cm | Depth (Without Handles) | 67.95 cm | Height | 94.49 cm |
| Downdraft Ventilation | N | Oven Light | Y | Control Lock | Y |
| Digital Temperature Display | Y | Wi-Fi | N | Burners | Sealed |
| Other | Griddle | Burners/Elements | 5 | Warranty | Limited one year parts and labor |
| UPC# | 067732153428 | Fuel Type | Natural Gas | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation Type | Slide-in | Number of Ovens | Single |
| Capacity (cu. ft.) | 5.4 cu. ft. | Sabbath/Star-K | Y | ADA Compliant | Y |
| Storage | Y | ||||
|
Additional Dimensions Depth with door fully open: 47" | Oven interior (W x H x D): 24" x 19" x 19"
| |||||
|
Burners/Elements Output Center burner: 10,000 BTU oval | Right front burner: 15,000 BTU power boil | Left rear burner: 5,000 BTU precise simmer | Burner left front: 15,000 BTU | Right rear burner: 9,500 BTU | Bake: 16,000 BTU | Broil: 16,500 BTU
| |||||
|
Included LP conversion kit | Griddle
| |||||
|
Information 120 V | 60 Hz | 15 A
| |||||
Accessories
• Griddle
Class Width
30"
Depth (Including Handles)
74.42 cm
Weight
77.11 kg
Width
75.95 cm
Depth (Without Handles)
67.95 cm
Height
94.49 cm
Downdraft Ventilation
N
Oven Light
Y
Control Lock
Y
Digital Temperature Display
Y
Wi-Fi
N
Burners
Sealed
Other
Griddle
Burners/Elements
5
Warranty
Limited one year parts and labor
Weight
90.26 kg
Fuel Type
Natural Gas
Manufacturer Color
Stainless Steel
Color
Stainless Steel
Installation Type
Slide-in
Number of Ovens
Single
Capacity (cu. ft.)
5.4 cu. ft.
Sabbath/Star-K
Y
ADA Compliant
Y
Storage
Y
Additional Dimensions
Depth with door fully open: 47" | Oven interior (W x H x D): 24" x 19" x 19"
Additional Information
Edge-to-edge cooktop | Extra-large integrated non-stick griddle | Smooth-glide storage drawer | In-oven broil | Continuous grates | FIT guarantee | Smooth glide storage drawer | Finished sides | 2 flat oven racks | Audible pre-heat signal
Burners/Elements Output
Center burner: 10,000 BTU oval | Right front burner: 15,000 BTU power boil | Left rear burner: 5,000 BTU precise simmer | Burner left front: 15,000 BTU | Right rear burner: 9,500 BTU | Bake: 16,000 BTU | Broil: 16,500 BTU
Included
LP conversion kit | Griddle
Information
120 V | 60 Hz | 15 A
