Description
About this Product

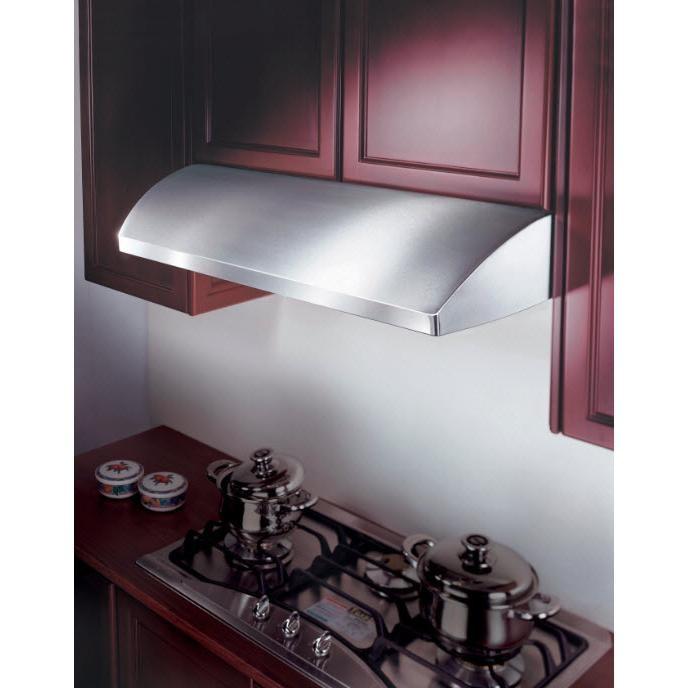

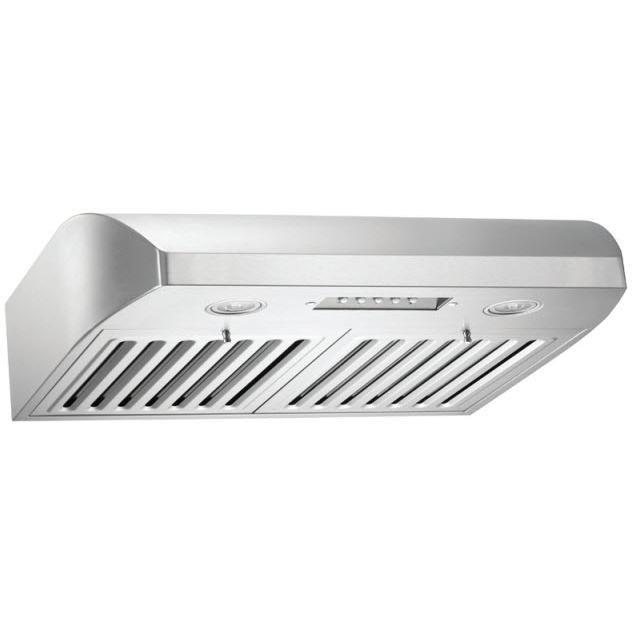

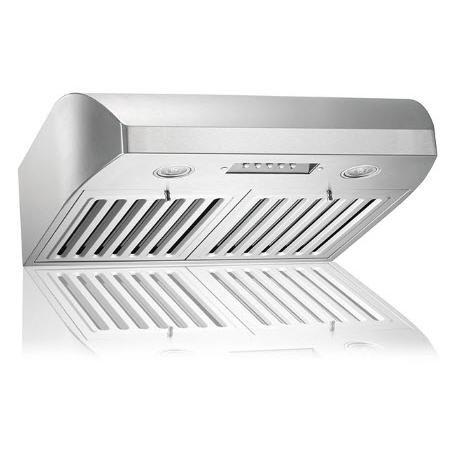

Kobe 30-inch CHX22 SQB-1 range hood features a 680 CFM, mechanical push button, baffle filter and LED lighting.
Features
- QUIETMODE™ — This unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
- MECHANICAL PUSH BUTTON — Mechanical push button control
Documents
Product Sheet (en)

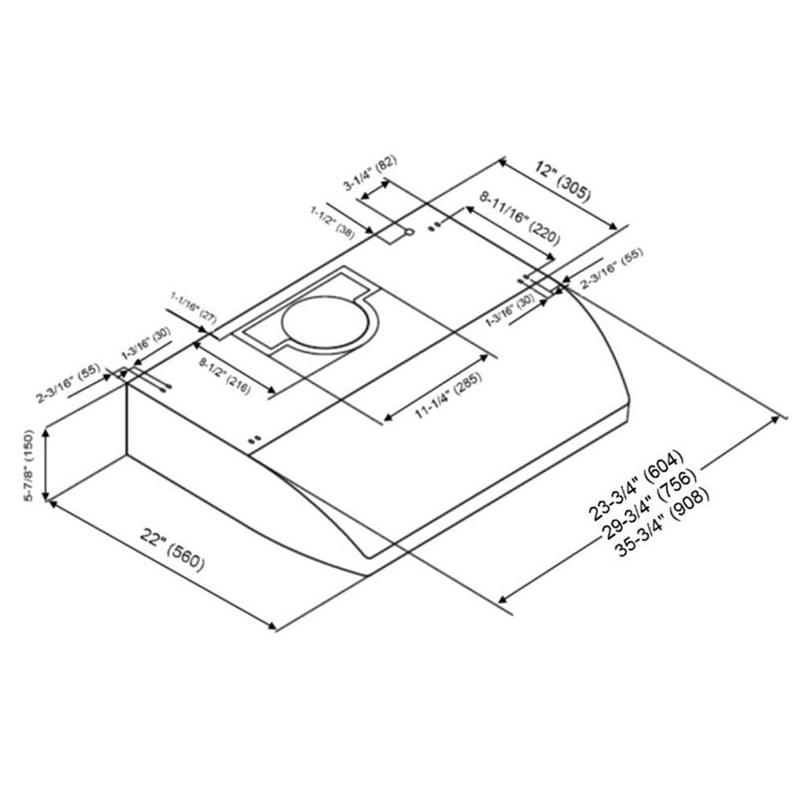

Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
CFM / Sone: | 300 / 1.0 / QuietMode™ | 510 / 3.0 / Low | 680 / 5.0 / High | Mechanical Push Button | Baffle Filter | (2x) 3W LED Lights | Twin Vertical Turbine Impeller | Exhaust: Top 6" Round
Specifications
| Series Name | CHX22 SQB-1 | Blower Included | Y | Style | Standard |
| Color | Stainless Steel | Installation | Under-Cabinet | Airflow | 680 CFM |
| Manufacturer Color | Stainless Steel | Width | 75.57 cm | Height | 14.92 cm |
| Depth | 55.88 cm | Class Width | 30" | Speeds | 3-Speed / Mechanical Push Button Control |
| Dishwasher-Proof Filters | Y | Ducting Information | Vertical and Horizontal | Warranty | Limited 1 year parts and labor |
| Optional TVC20 (Top Vent Cover ) – for Top and Rear Rectangular Exhaust | Stainless Steel Back Splash: | 30" Stainless Steel Back Splash – Model No. SSP30 | 36" Stainless Steel Back Splash – Model No. SSP36 | |||||
| Technologies QuietMode™: At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone) | |||||
Accessories
• TVC20 (Top Vent Cover ) – for Top and Rear Rectangular Exhaust
• Stainless Steel Back Splash:
• 30" Stainless Steel Back Splash – Model No. SSP30
• 36" Stainless Steel Back Splash – Model No. SSP36
• Stainless Steel Back Splash:
• 30" Stainless Steel Back Splash – Model No. SSP30
• 36" Stainless Steel Back Splash – Model No. SSP36
