Description
About this Product

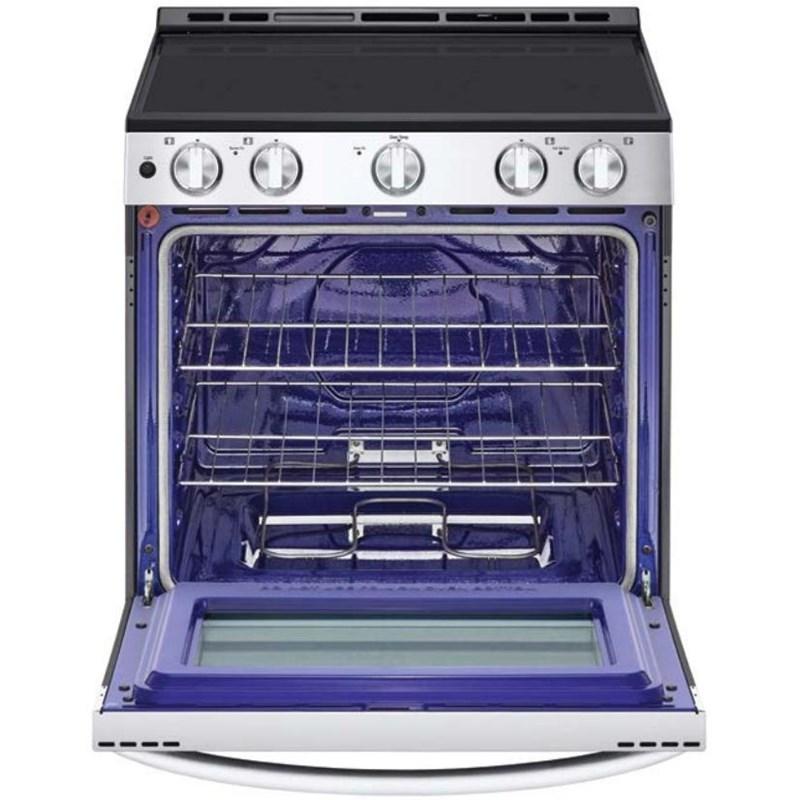

LG 6.3 cu ft. Electric Range with a large capacity oven and two 3200W UltraHeat™ cooktop elements. This slide-in electric range features WideView™ Window Oven Door, GoCook Smart Oven Light and EasyClean®.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Highlights
Cooktop type: Radiant, Ceramic Glass | Cooktop Finish: Black Ceramic Glass with Gray Pattern | Hot Surface LED Indicator | Broil Element (Watt): 2600W | Oven Bake Element Wattage: 2200W | Oven Racks: 2 Standard | No. of Rack Positions: 7 | Control Type: Knob | Temperature Unit of Measure: Fahrenheit
Specifications
| Width | 82.55 cm | Height | 111.76 cm | Depth | 77.47 cm |
| Weight | 73.48 kg | Class Width | 30" | Depth (Including Handles) | 74.22 cm |
| Oven Light | Y | Elements | Smoothtop | Burners/Elements | 4 |
| Included | 2 Standard Racks, Rear Filler Kit, Anti-tip Kit | Warranty | 1-Year Parts and Labor | UPC# | 048231346245 |
| Appliance Care | EasyClean® | Fuel Type | Electric | Manufacturer Color | Smudge resistant stainless steel |
| Color | Stainless Steel | Installation Type | Slide-in | Programs | Warm, Bake, Broil, EasyClean |
| Number of Ovens | Single | Capacity (cu. ft.) | 6.3 cu. ft. | ADA Compliant | Y |
|
Additional Dimensions Product Height to Cooking Surface: 36" | Overall Depth (in.) - with handle: 30" | Cutout Dimensions (W x H x D): 30" x 36" x 25"
| |||||
|
Technologies UltraHeat™ Elements | GoCook Smart Oven Light | WideView™ Window Oven Door
| |||||
|
Burner/Element Size Left Rear: 6" Single | Right Rear: 6" Single | Left Front: 9" / 6" Dual | Right Front: 9" / 6" Dual | Center (Warming Zone)
| |||||
|
Burners/Elements Output Left Rear: 1200W | Right Rear: 1200W | Left Front: 3200W (UltraHeat™) | Right Front: 3200W (UltraHeat™) | Center (Warming Zone)
| |||||
|
Optional Slide-in Range Filler Kit (Side Gaps): LSFL301S
| |||||
|
Information Amp rating at 208V: 41.3A | Amp rating at 240V: 47.7A | KW rating at 208V: 8.6kW | KW rating at 240V: 11.5kW | Required power supply amp: 40A
| |||||
Accessories
Width
82.55 cm
Height
111.76 cm
Depth
77.47 cm
Weight
73.48 kg
Class Width
30"
Depth (Including Handles)
74.22 cm
Width
75.88 cm
Height
94.62 cm
Oven Light
Y
Elements
Smoothtop
Burners/Elements
4
Included
2 Standard Racks, Rear Filler Kit, Anti-tip Kit
Warranty
1-Year Parts and Labor
Appliance Care
EasyClean®
Fuel Type
Electric
Manufacturer Color
Smudge resistant stainless steel
Color
Stainless Steel
Installation Type
Slide-in
Programs
Warm, Bake, Broil, EasyClean
Number of Ovens
Single
Capacity (cu. ft.)
6.3 cu. ft.
ADA Compliant
Y
Additional Dimensions
Product Height to Cooking Surface: 36" | Overall Depth (in.) - with handle: 30" | Cutout Dimensions (W x H x D): 30" x 36" x 25"
Technologies
UltraHeat™ Elements | GoCook Smart Oven Light | WideView™ Window Oven Door
Additional Information
Cooktop type: Radiant, Ceramic Glass | Cooktop Finish: Black Ceramic Glass with Gray Pattern | Hot Surface LED Indicator | Broil Element (Watt): 2600W | Oven Bake Element Wattage: 2200W | Oven Racks: 2 Standard | No. of Rack Positions: 7 | Control Type: Knob | Temperature Unit of Measure: Fahrenheit
Burner/Element Size
Left Rear: 6" Single | Right Rear: 6" Single | Left Front: 9" / 6" Dual | Right Front: 9" / 6" Dual | Center (Warming Zone)
Burners/Elements Output
Left Rear: 1200W | Right Rear: 1200W | Left Front: 3200W (UltraHeat™) | Right Front: 3200W (UltraHeat™) | Center (Warming Zone)
Optional
Slide-in Range Filler Kit (Side Gaps): LSFL301S
Information
Amp rating at 208V: 41.3A | Amp rating at 240V: 47.7A | KW rating at 208V: 8.6kW | KW rating at 240V: 11.5kW | Required power supply amp: 40A
