Description
About this Product

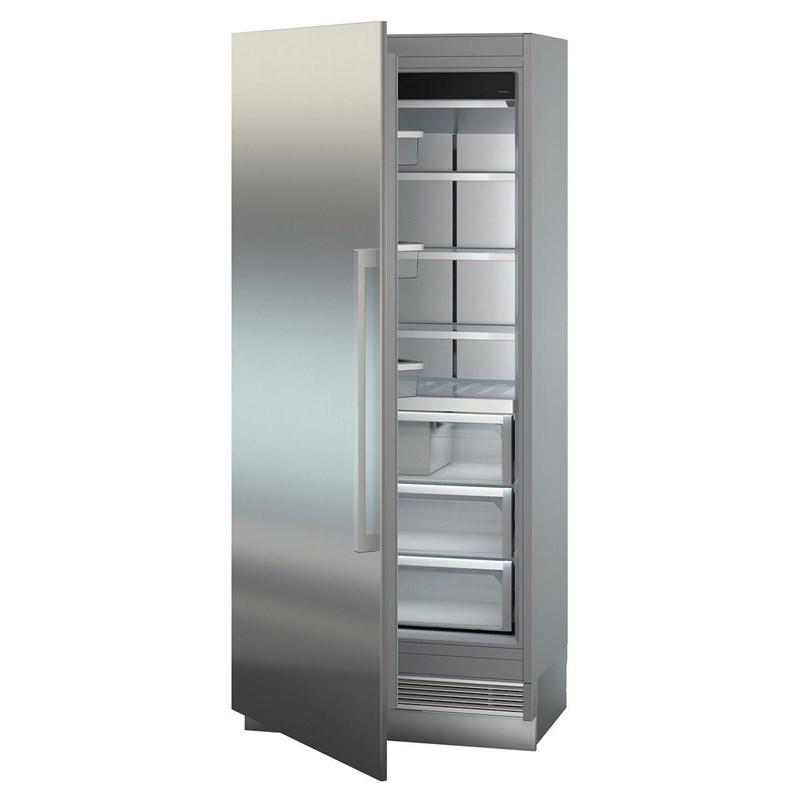

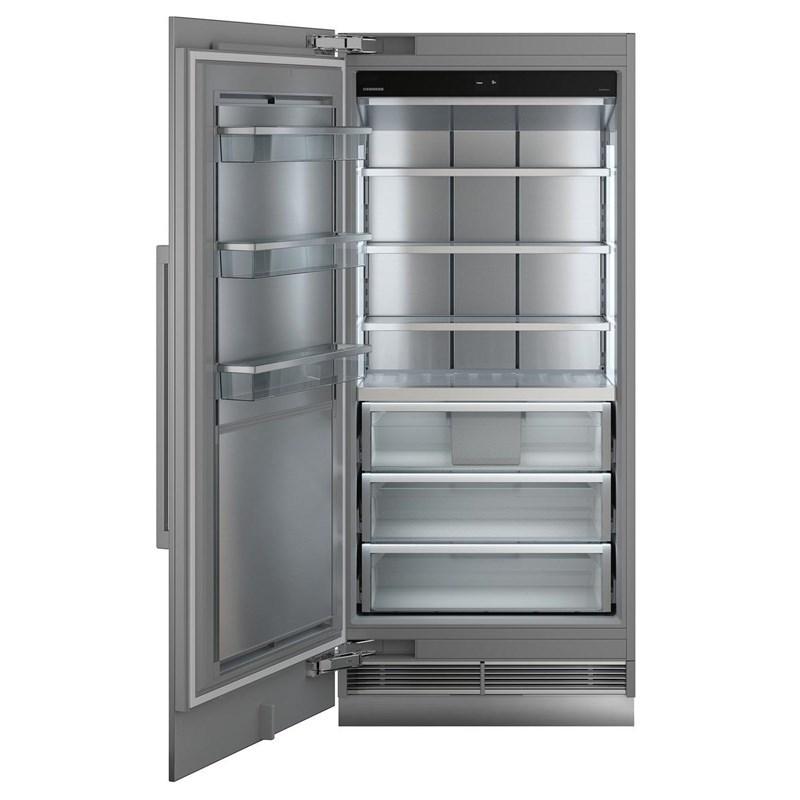

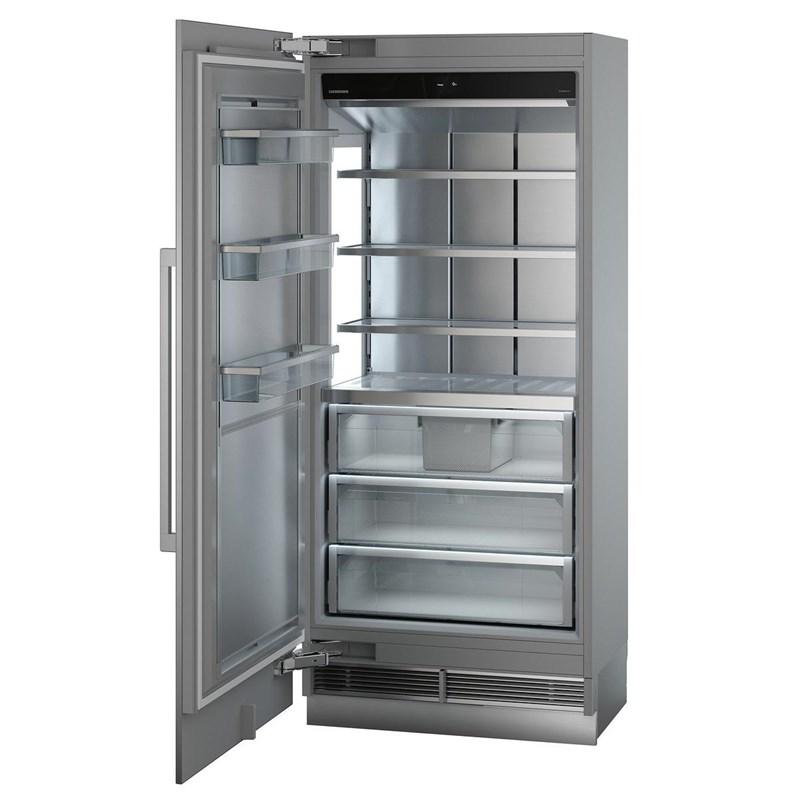

This 36-inch wide Liebherr, panel ready Monolith freezer is equipped with an internal ice maker. This model also features InfinitySwipe control, SuperFrost, InfinityLigh and automatic defrost. (Panel sold separately)
Features
- INFINITYSWIPE — InfinitySwipe: Monolith’s intuitive electronic touch-control panel features a full-color 2.4-inch touch & swipe screen that’s bright, clean, and wonderfully user-friendly. You’ll barely have to lift a finger to control every function.
- SUPERFROST — Simply quick freeze just-bought groceries to preserve optimum food freshness, while sealing in flavors and maintaining essential vitamins and minerals.
- ICE MAKER — The automatic IceMaker produces perfect halfmoon crescent ice cubes and keeps a constant supply on hand for every occasion. An activated carbon filter ensures that pure water is used for the production of clear ice.
- SUPERQUIET — Noise levels are kept to a minimum thanks to virtually silent, speed-controlled, and sound absorbing compressors.
- WATER FILTER — The activated carbon filter ensures pure water to produce perfectly fresh ice cubes. The precise electronic control will indicate when the filter needs to be replaced.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
4 Shelves | 3 Door Racks | 3 FrostSafe Drawers | Illuminated Side Wall Lighting | Freezer Temperature Range °F (°C): +7°F to -17°F (-14°C to -27°C)
Specifications
| Total Capacity | 18.9 cu. ft. | Style | Built-In | Manufacturer Color | Panel Ready |
| Size Range | 17 cu.ft. - 18 cu.ft. | Series Name | Monolith | Color | Panel Ready |
| Door Hinge | Left | Type | Upright | Energy Star Certified | Y |
| Sabbath Mode | Y | Defrost System / Frost Free | Y | Alarm | Y |
| Lighting | Y | Digital Temperature Display | Y | Height (With Hinge) | 212.6 cm |
| Width | 90.6 cm | Depth (Without Handles) | 61.0 cm | Weight | 197 kg |
| Additional Dimensions | Cutout Dimensions (H/W/D): 84" / 36" / 25" | Ice Machine | Y | UPC# | 9005382224632 |
| Technologies SmartDevice | SuperQuiet | SuperFrost | SoftSystem | InfinityLight | InfinitySwipe | |||||
| Additional Ice and Water Information Ice Cube Output lbs. (kg)/24h: 3.5 (1.6) | Ice Cube Stock lbs. (kg): 4.0 (1.8) | |||||
| Information 586 (kWh/y) | 115 V | 60 Hz | 15 or 20 A V | |||||
| Warranty Full Two Year Parts and Labor | Full Five Year Parts and Labor on Sealed System | Limited 6th Through 12th Year Parts Only on Sealed System | |||||
| Optional 9901 458 Stainless Steel Door Panel 36" | 9901 461 Monolith Brushed Aluminum Square Handle | 9901 489 Monolith Stainless Steel Round Handle | 9901 492 Monolith Brushed Aluminum Soft-Edge Handle | 9902 349 Stainless Steel Toe Kick 36" | 7440 002 Water Filter | 9902 399 Reverse Door Kit | 9901 428 Side-by-Side Kit (Includes Wall Heater) | 9902 390 Stainless Steel Toe Kick 72" | |||||
Accessories
• 9901 458 Stainless Steel Door Panel 36"
• 9901 461 Monolith Brushed Aluminum Square Handle
• 9901 489 Monolith Stainless Steel Round Handle
• 9901 492 Monolith Brushed Aluminum Soft-Edge Handle
• 9902 349 Stainless Steel Toe Kick 36"
• 7440 002 Water Filter
• 9902 399 Reverse Door Kit
• 9901 428 Side-by-Side Kit (Includes Wall Heater)
• 9902 390 Stainless Steel Toe Kick 72"
• 9901 461 Monolith Brushed Aluminum Square Handle
• 9901 489 Monolith Stainless Steel Round Handle
• 9901 492 Monolith Brushed Aluminum Soft-Edge Handle
• 9902 349 Stainless Steel Toe Kick 36"
• 7440 002 Water Filter
• 9902 399 Reverse Door Kit
• 9901 428 Side-by-Side Kit (Includes Wall Heater)
• 9902 390 Stainless Steel Toe Kick 72"
Door Hinge: Left
