Description
About this Product

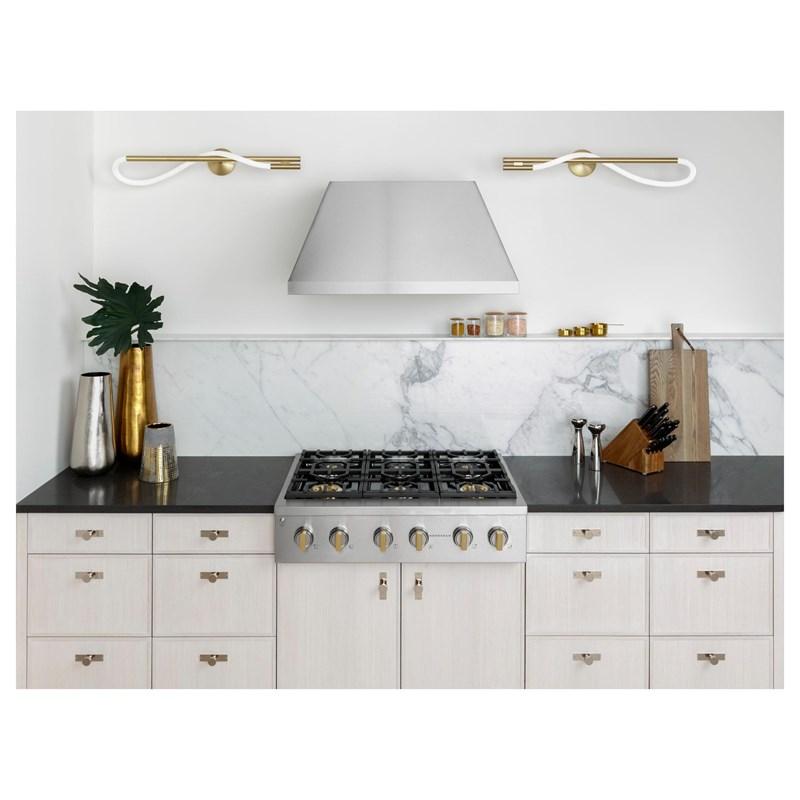

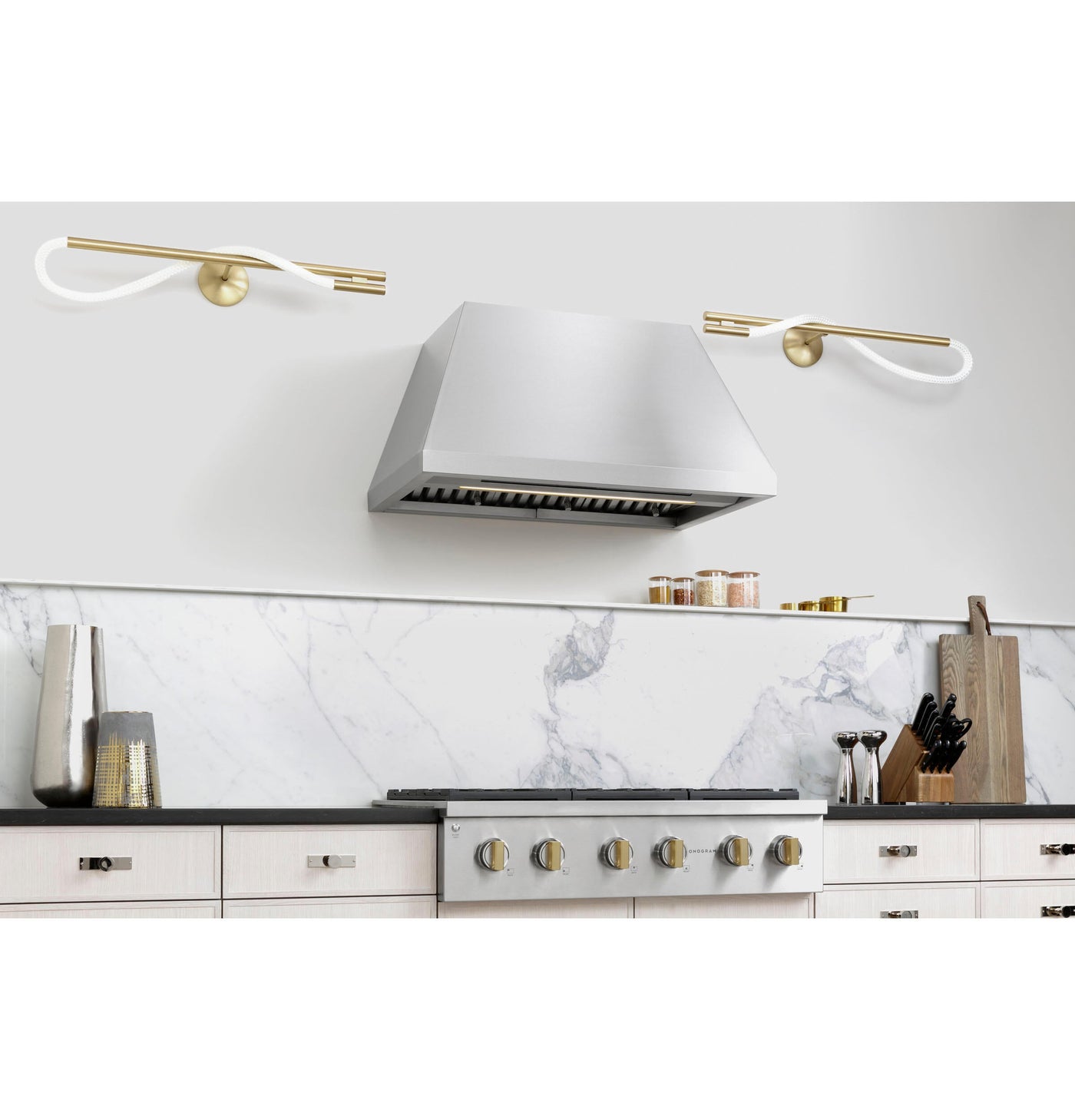

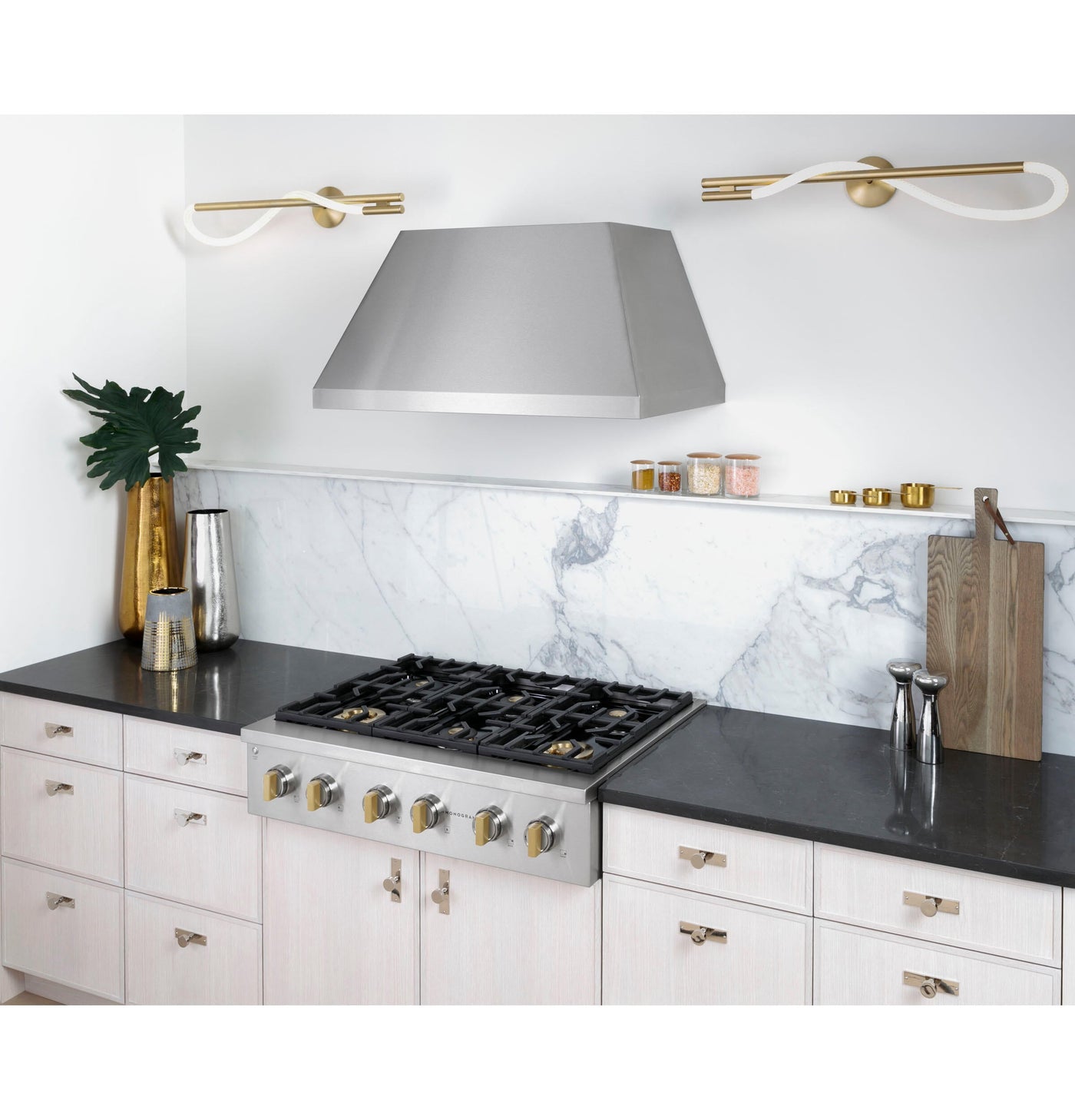

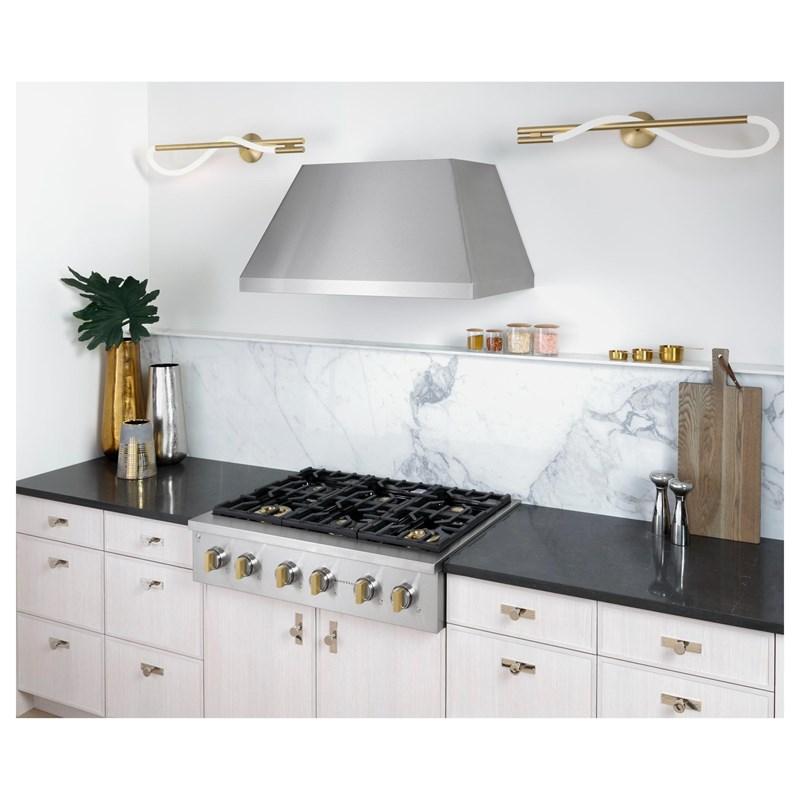

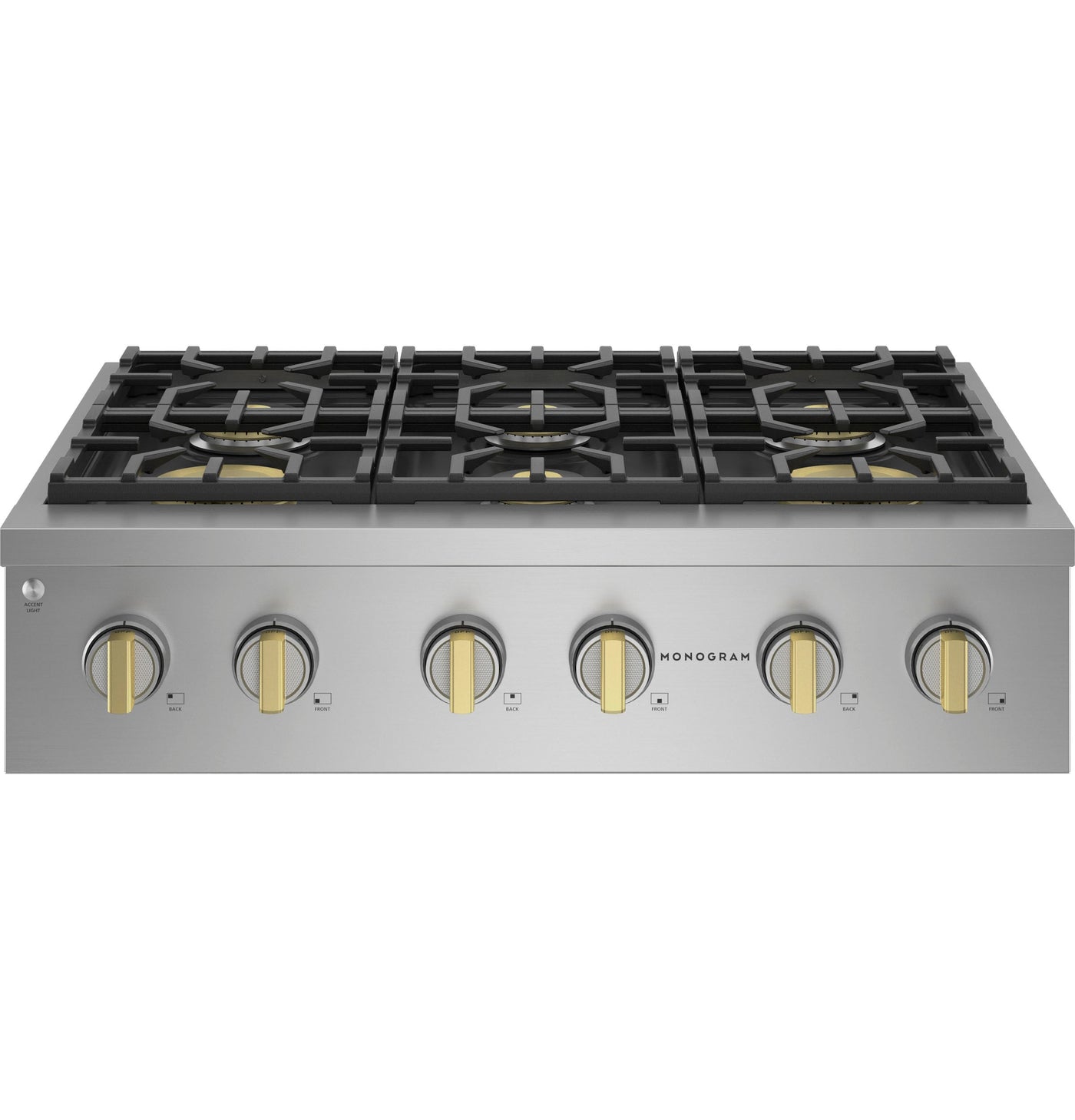

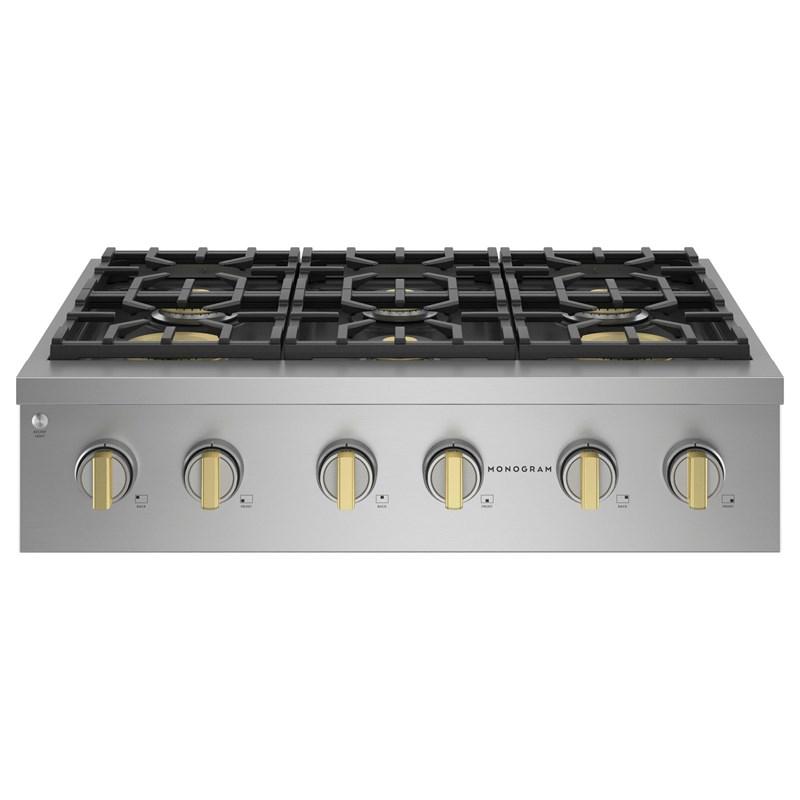

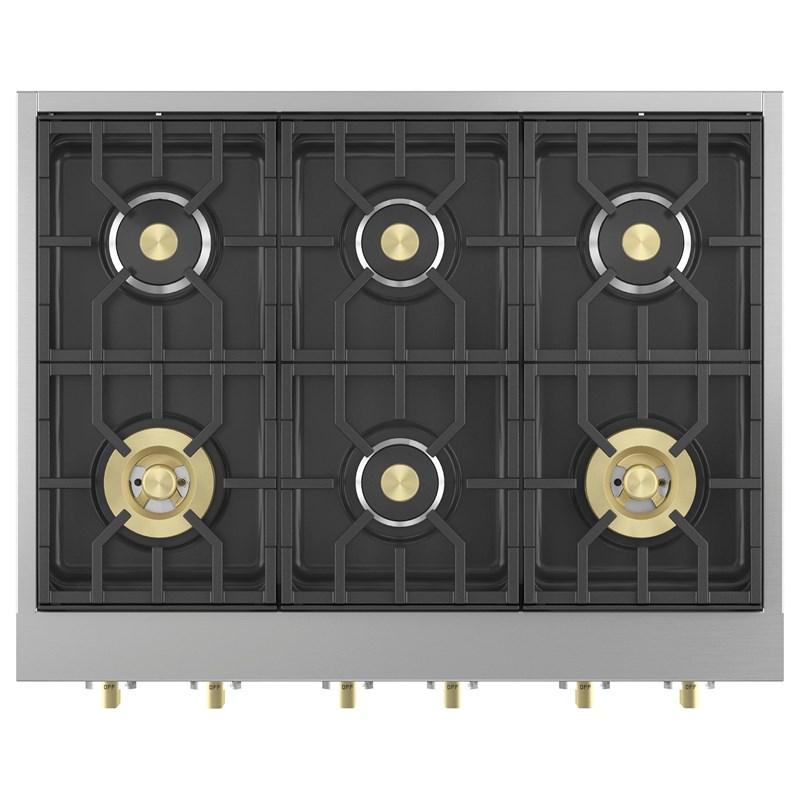

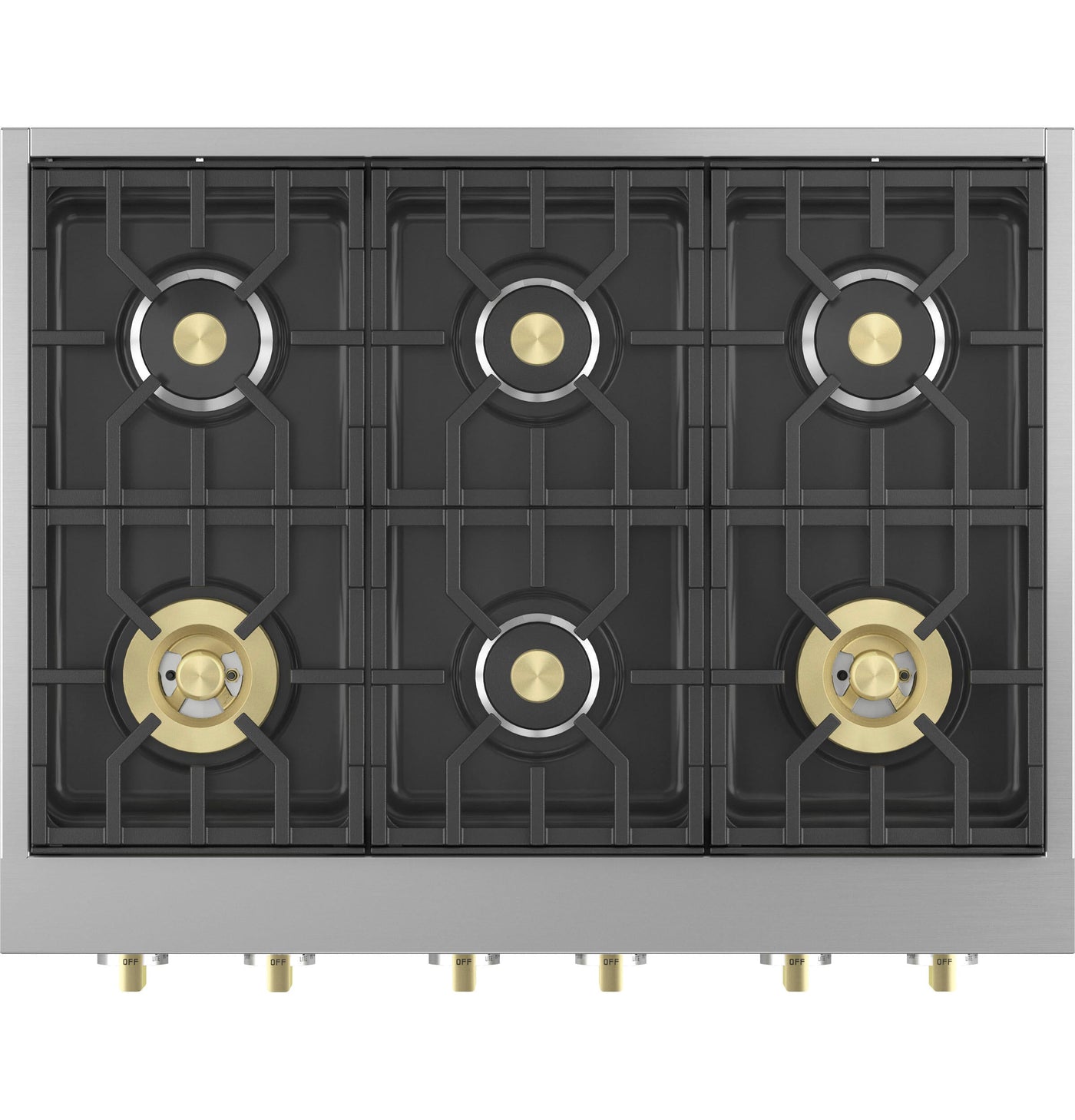

Monogram 36" Professional Gas Rangetop with 6 Burners. Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame. Features 3-piece grates with reversible wok feature and ring-lit knobs.
Features

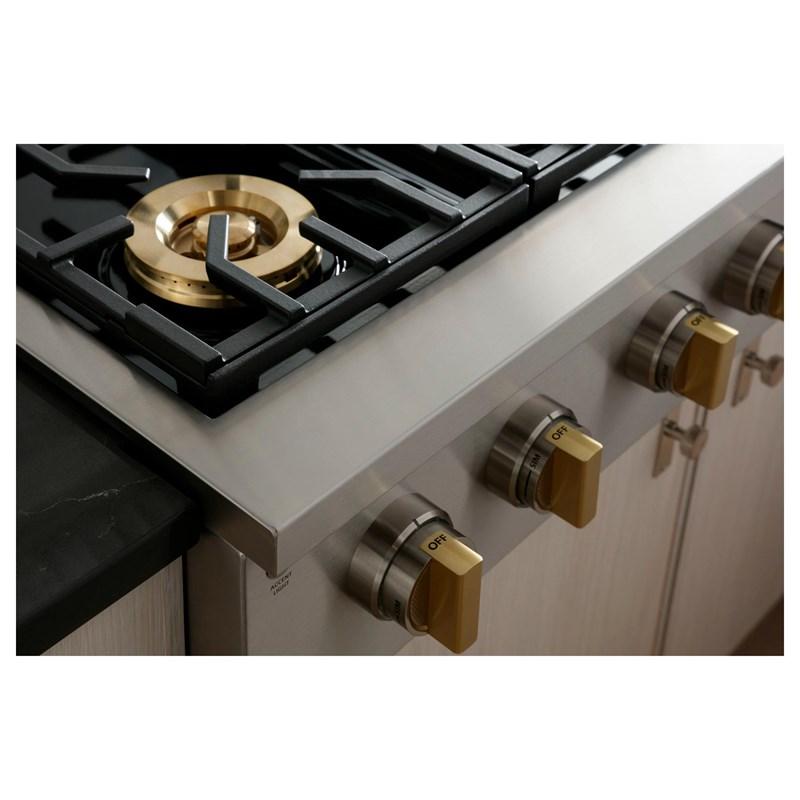

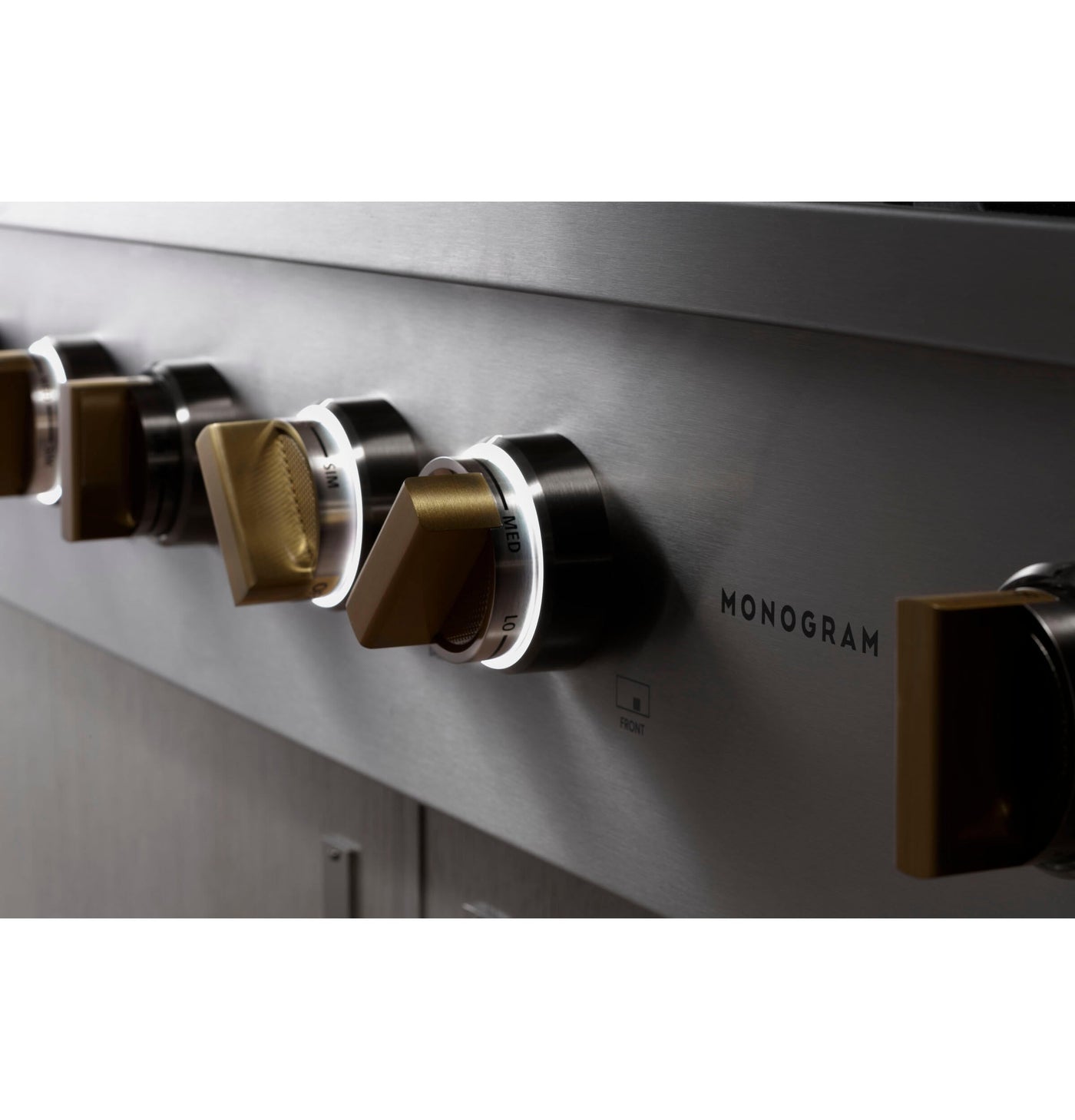

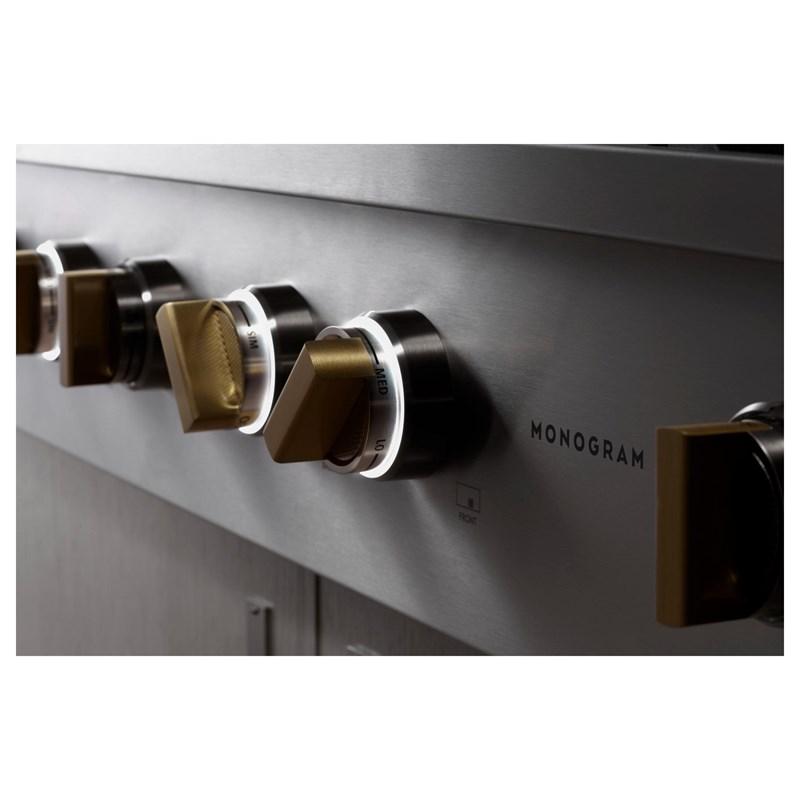

- RING-LIT KNOBS — Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use.
- LP CONVERSION KIT INCLUDED — Designed to deliver a seamless conversion experience, this self-contained kit includes everything needed to convert to liquid propane.

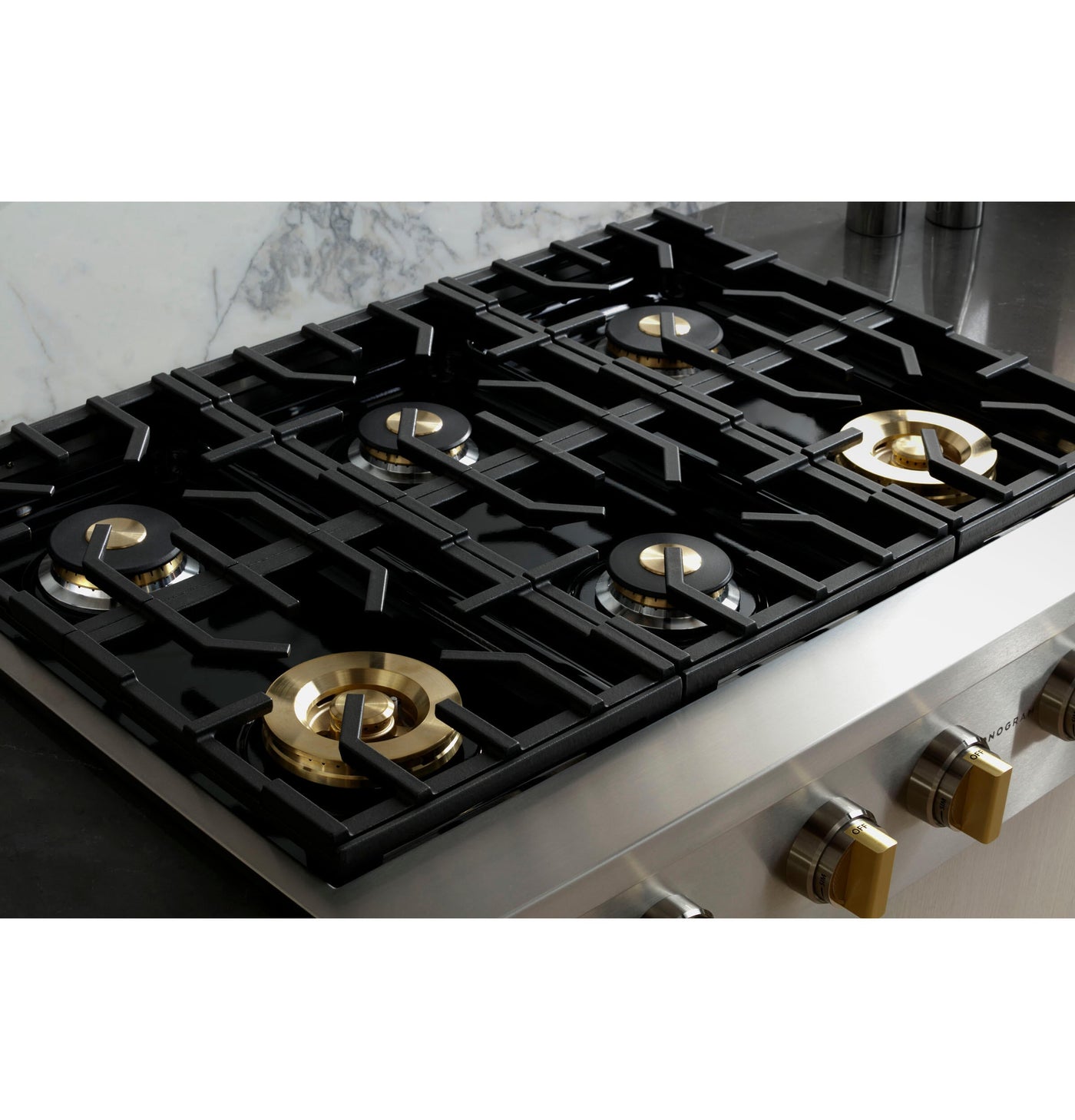

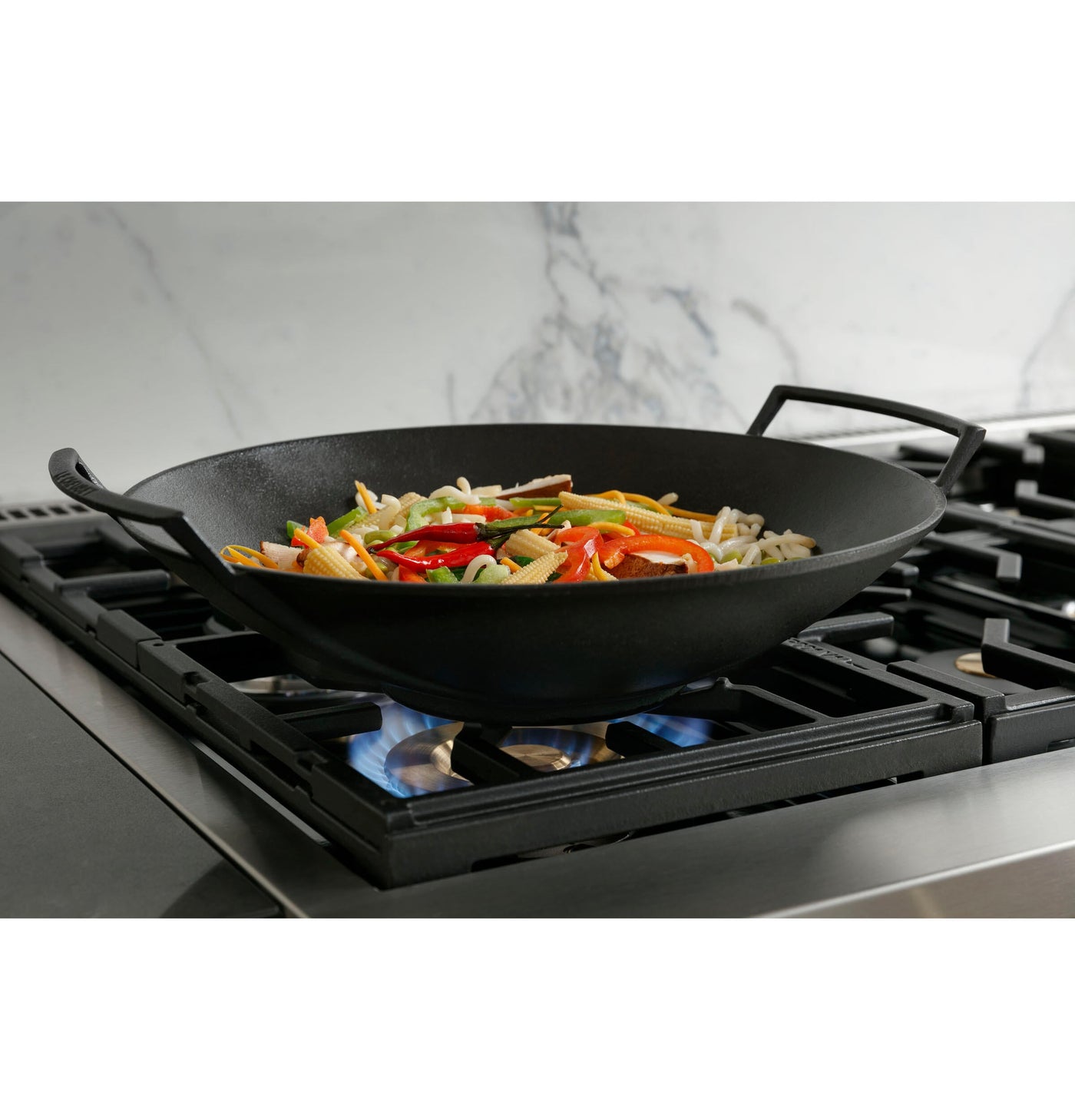

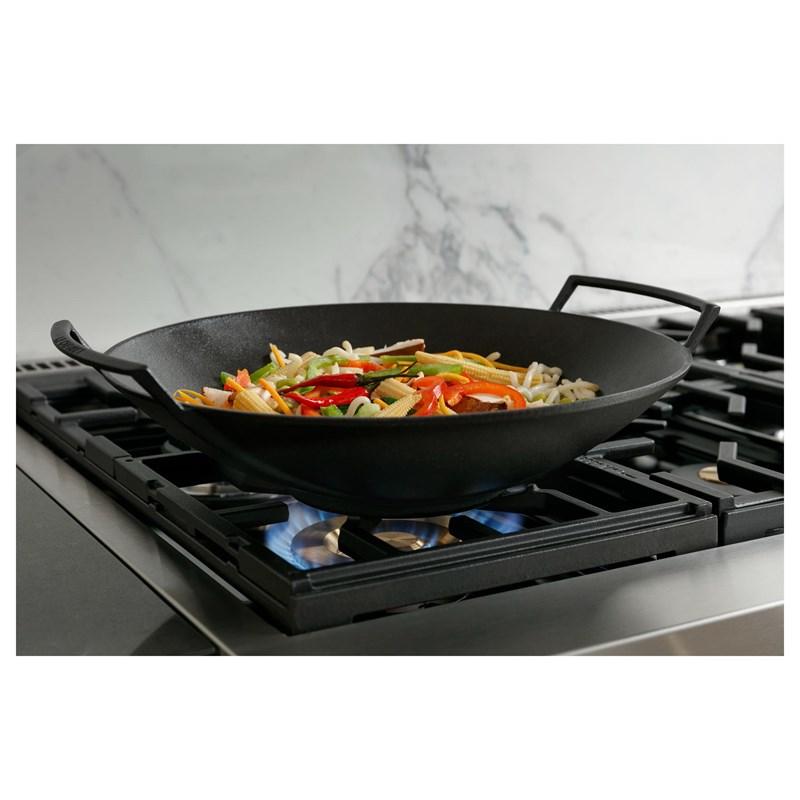

- REVERSIBLE BURNER GRATES — Flat on one side and uniquely contoured on the other to accommodate round-bottom woks

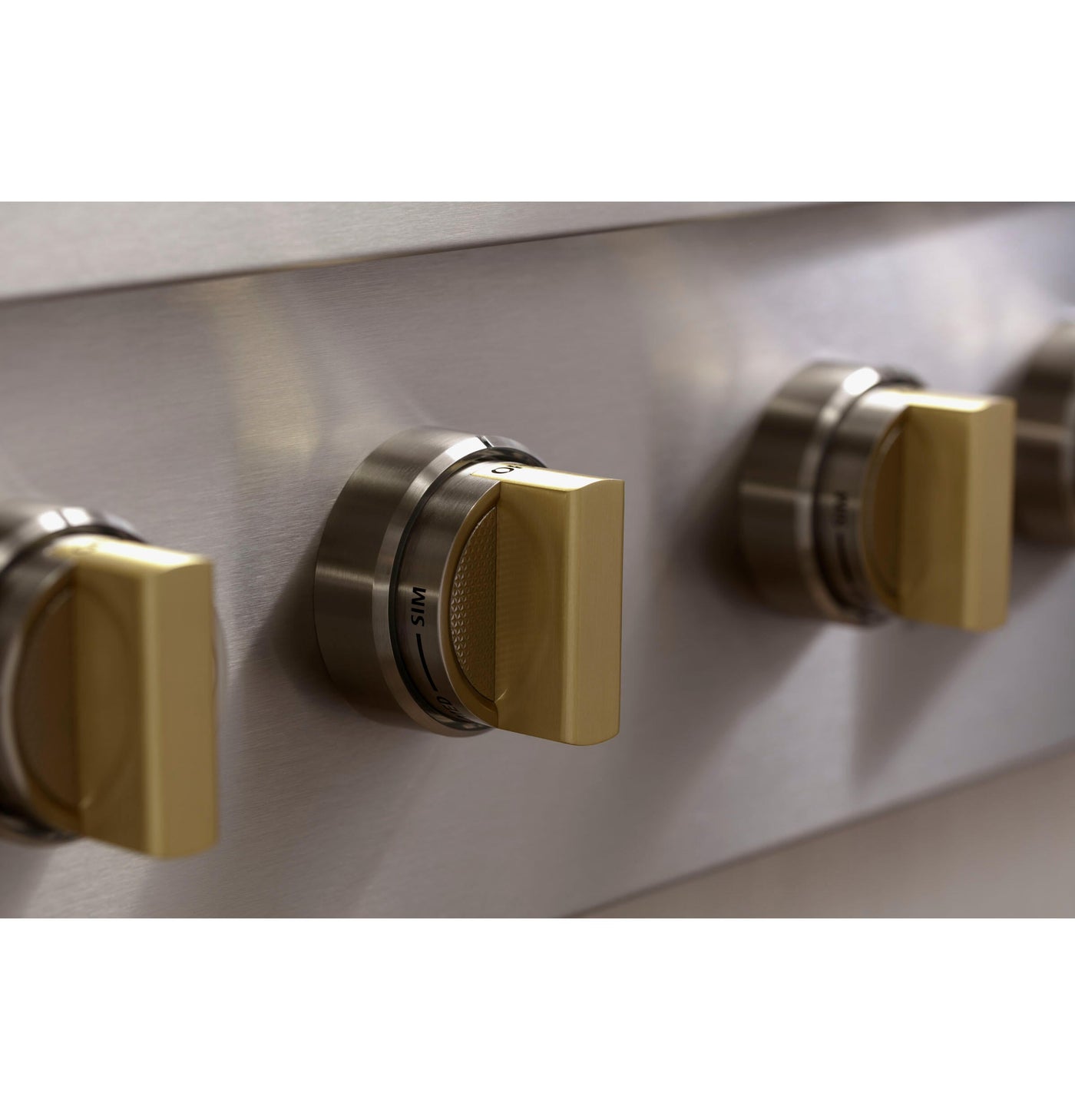

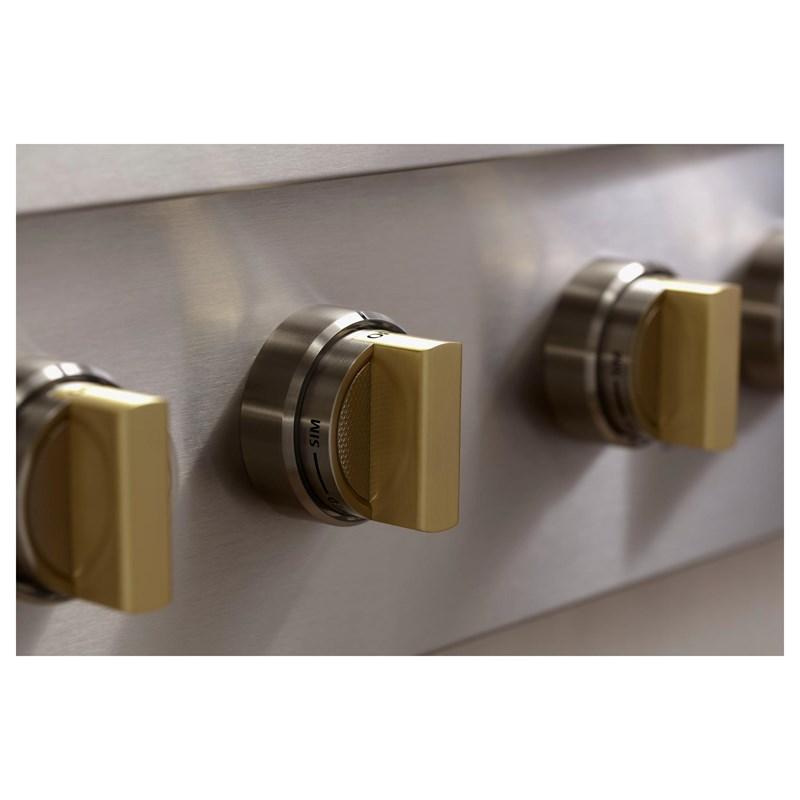

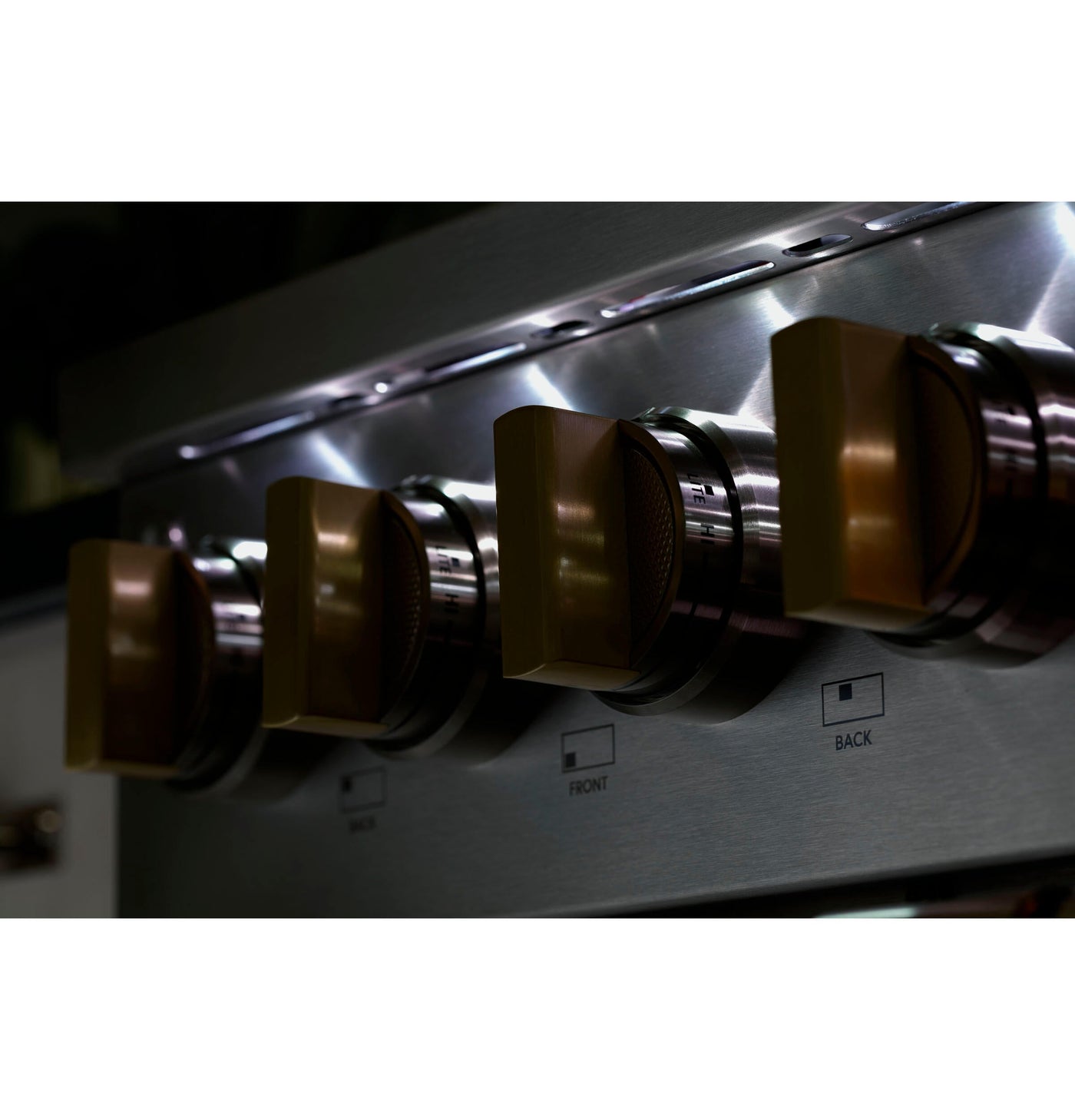

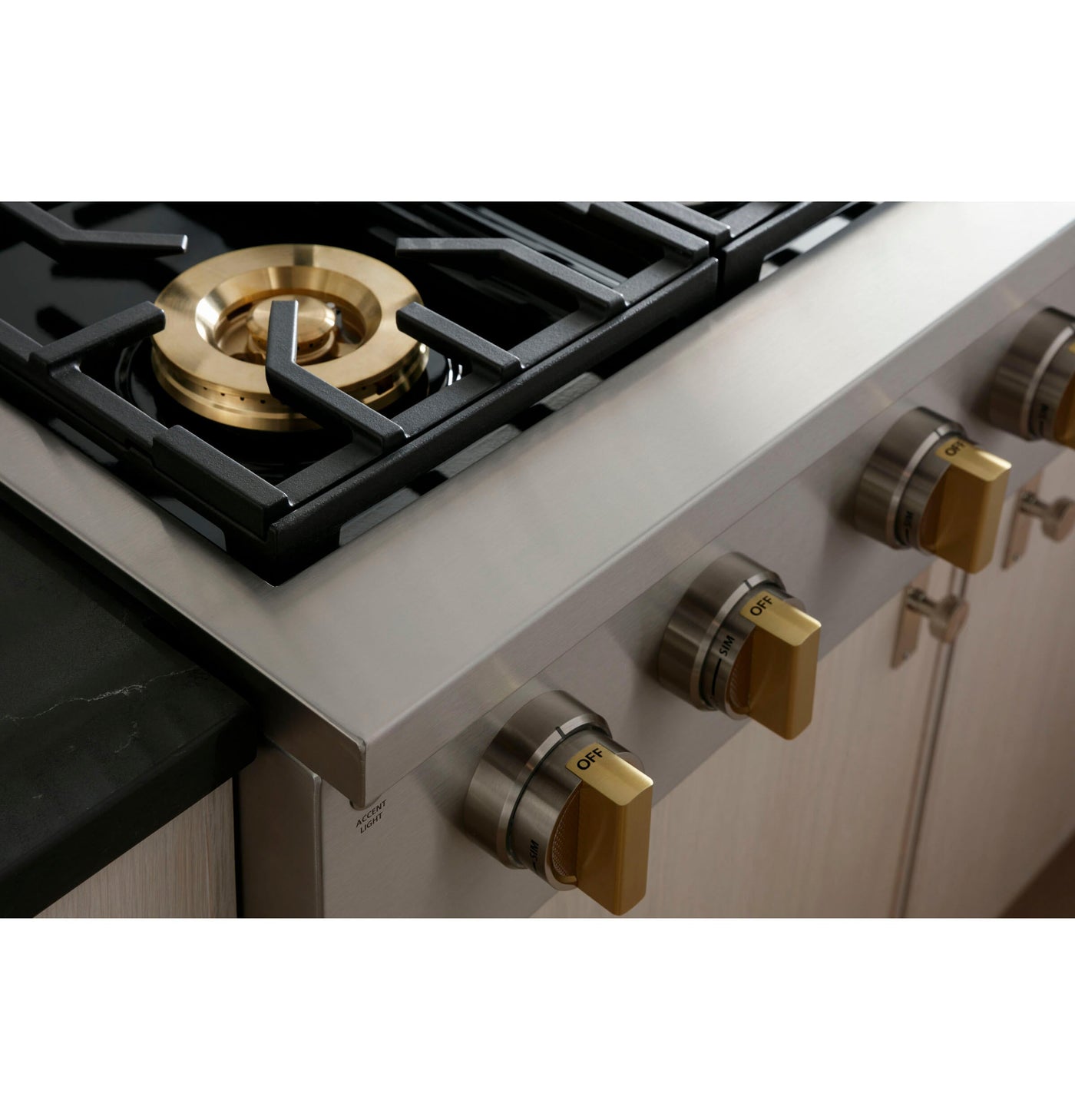

- SOLID BRASS BLADES ON PRECISION MACHINED KNOBS — With an unmatched attention to detail, all knobs on the Monogram Pro ranges and range tops come with solid brass accents.
- SEAMLESS STAINLESS TOP FRAME — Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.
- ADA COMPLIANT — Designed to be easily accessible.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Electronic Ignition System | Automatic Re-Ignition | Adjustable Extra Low Simmer on All Burners | Control Location: Upfront | Burner Indicator Light | Lighting: LED Bullnose Task Lighting | Control Knobs: Diecast Metallic (Included) Stainless Steel with Brass Accents
Specifications
| Burners/Elements | 6 | Burners | Sealed | Height | 21.59 cm |
| Width | 91.12 cm | Depth | 69.85 cm | Weight | 61.24 kg |
| Class Width | 36" | Fuel Type | Natural Gas | Type | Rangetop |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | UPC# | 084691851233 |
| ADA Compliant | Y | ||||
| Power Output Top Burner BTU Rating - Nat. Gas: | (2) 23,000 BTU | (2) 18,000 BTU | (2) 15,000 BTU | Top Burner BTU Rating - LP: | (2) 21,000 BTU | (2) 15,000 BTU | (2) 10,000 BTU | |||||

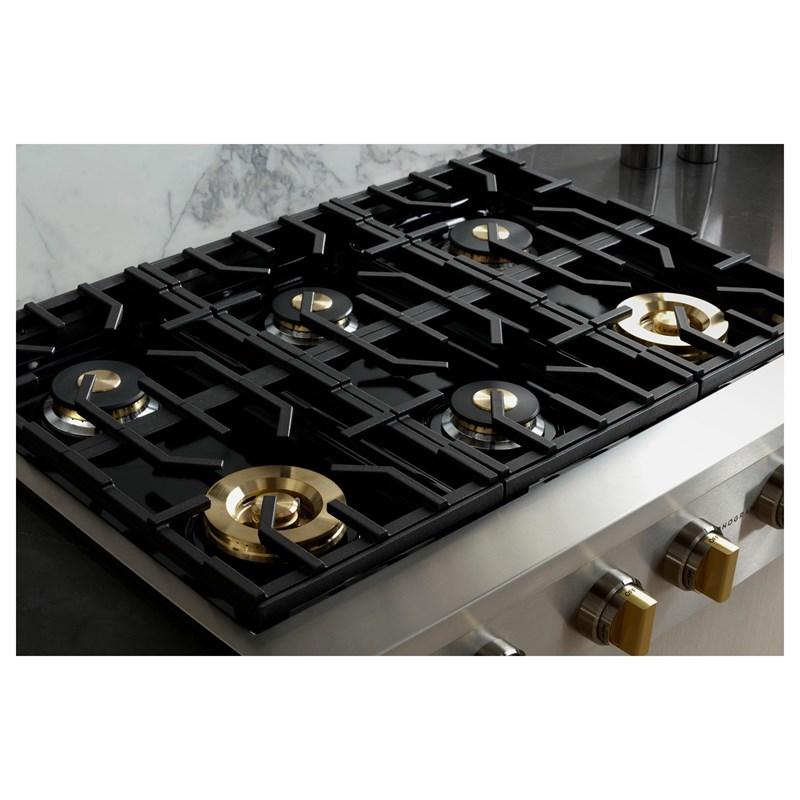

| Surface Features Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates | 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked Burners with Removable Brass Accents | |||||
| Information Volts: 120V | Hertz: 60Hz | Amps: 15A | |||||
| Series Name Professional | Design Style: Statement Collection | |||||
| Warranty 2-Year parts and labor for entire appliance | Limited 5-year for gas surface burners (parts only) | See written warranty for full details | |||||
| Included LP Conversion Kit | Factory-installed island backguard | |||||
| Optional 30/36" Monogram Knob Kit: ZXPR36KKTSS (SS, qty. 9) | High Altitude Kit: WB28K10553 | 12" Stainless steel backsplash: UX12B36PSS | 30"-36" Adjustable stainless steel backsplash with warming shelf: UXADBS48PSS | Grill Accessory (Cast Iron): UXPRRGG | |||||
Accessories
• Factory-installed island backguard
• High Altitude Kit: WB28K10553
• 12" Stainless steel backsplash: UX12B36PSS
• 30"-36" Adjustable stainless steel backsplash with warming shelf: UXADBS48PSS
• Grill Accessory (Cast Iron): UXPRRGG
