Description
About this Product

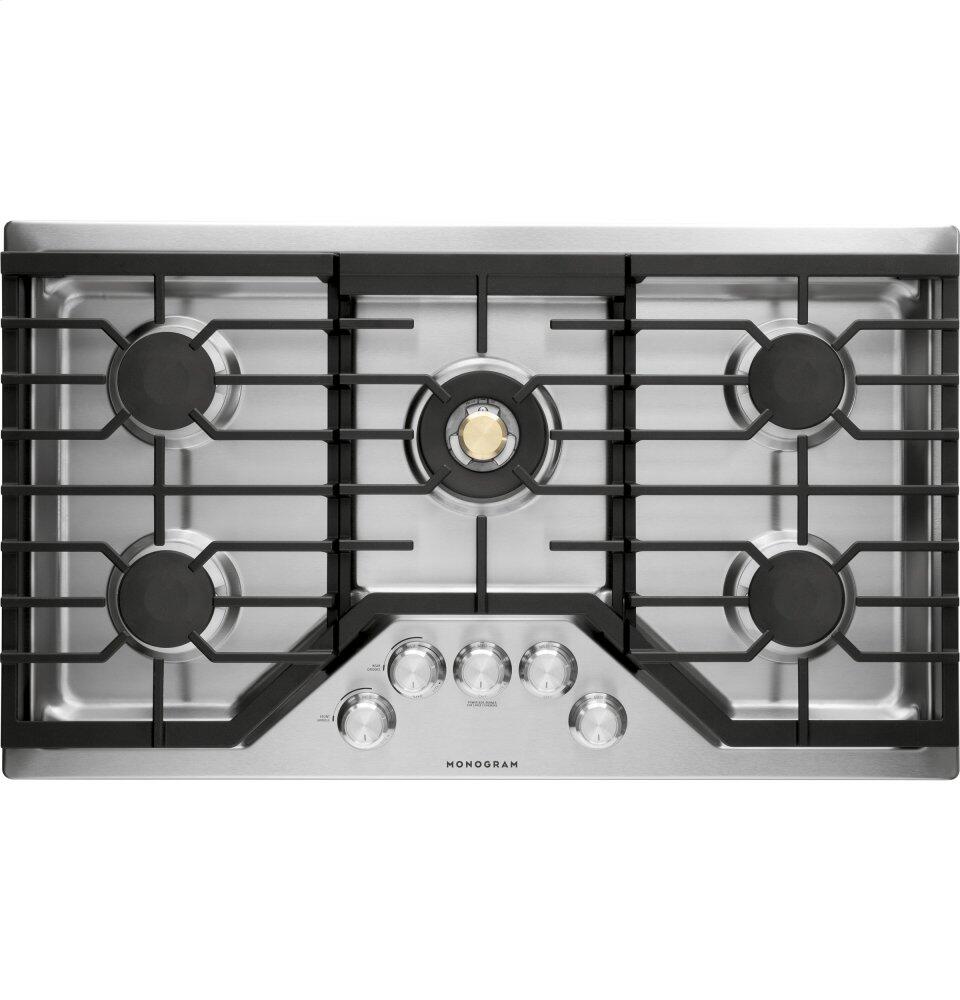

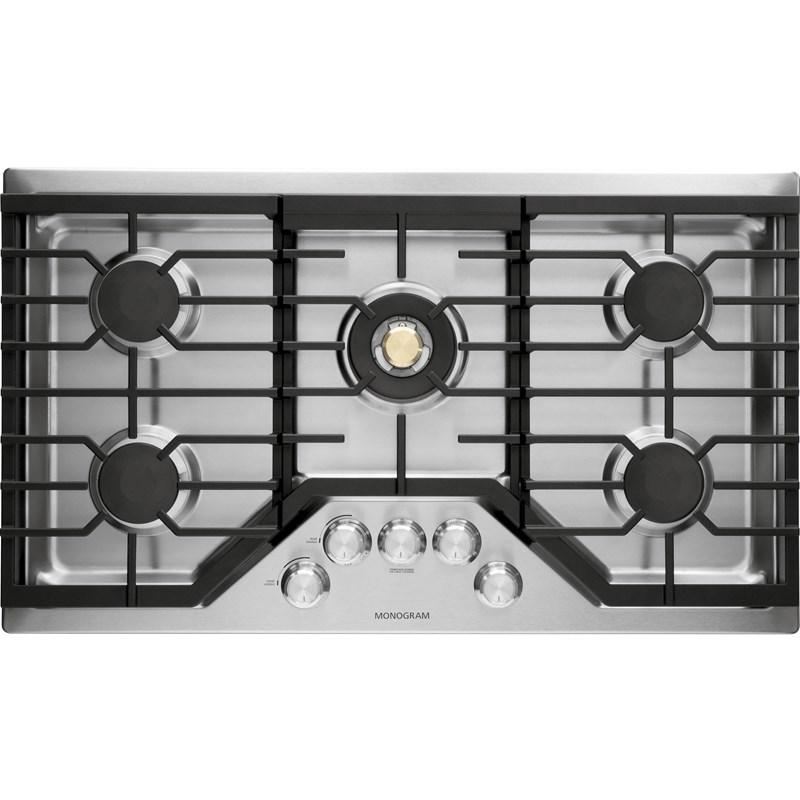

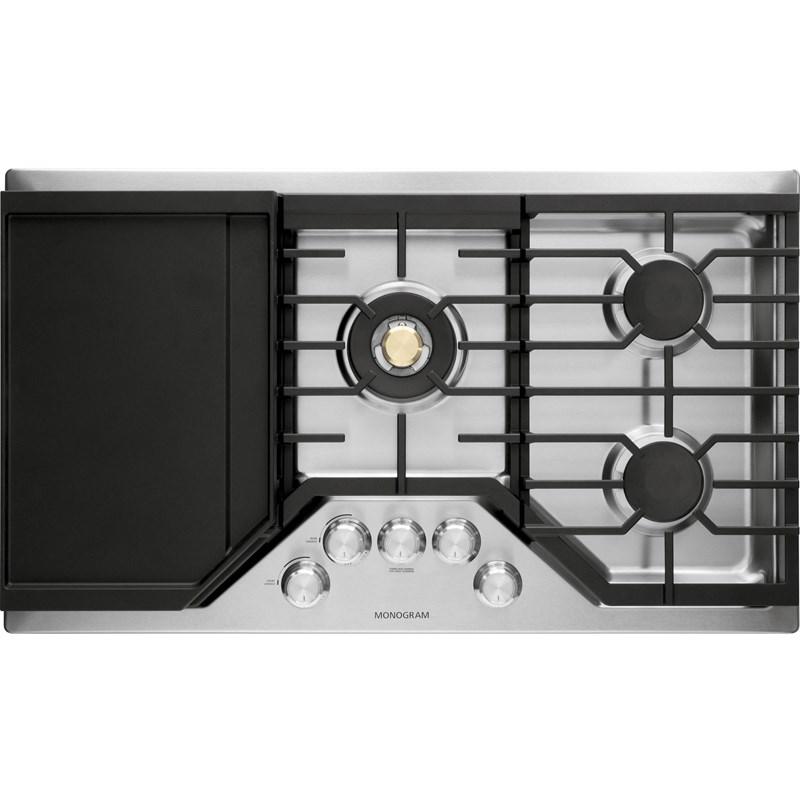

Monogram 36" deep-recessed gas cooktop with dual-flame stacked burners that provide complete 140F simmer-to-rapid-boil flexibility on all burners. The embedded sapphire glass illuminate each knob, making it easy to view and select heat settings. The continuous grates are designed for even cooking and simple movement of cookware across the surface.
Features

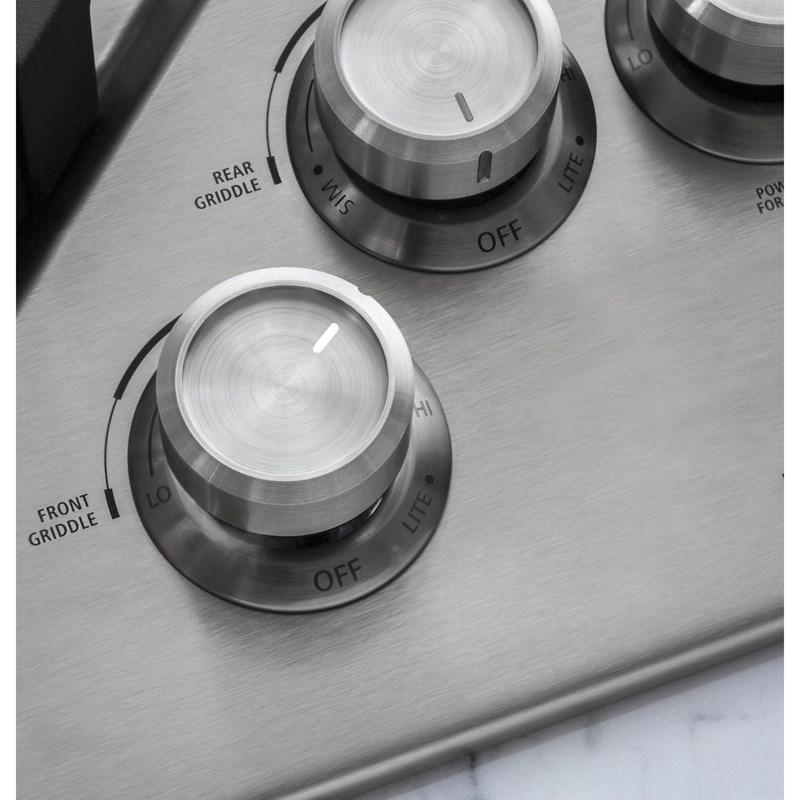

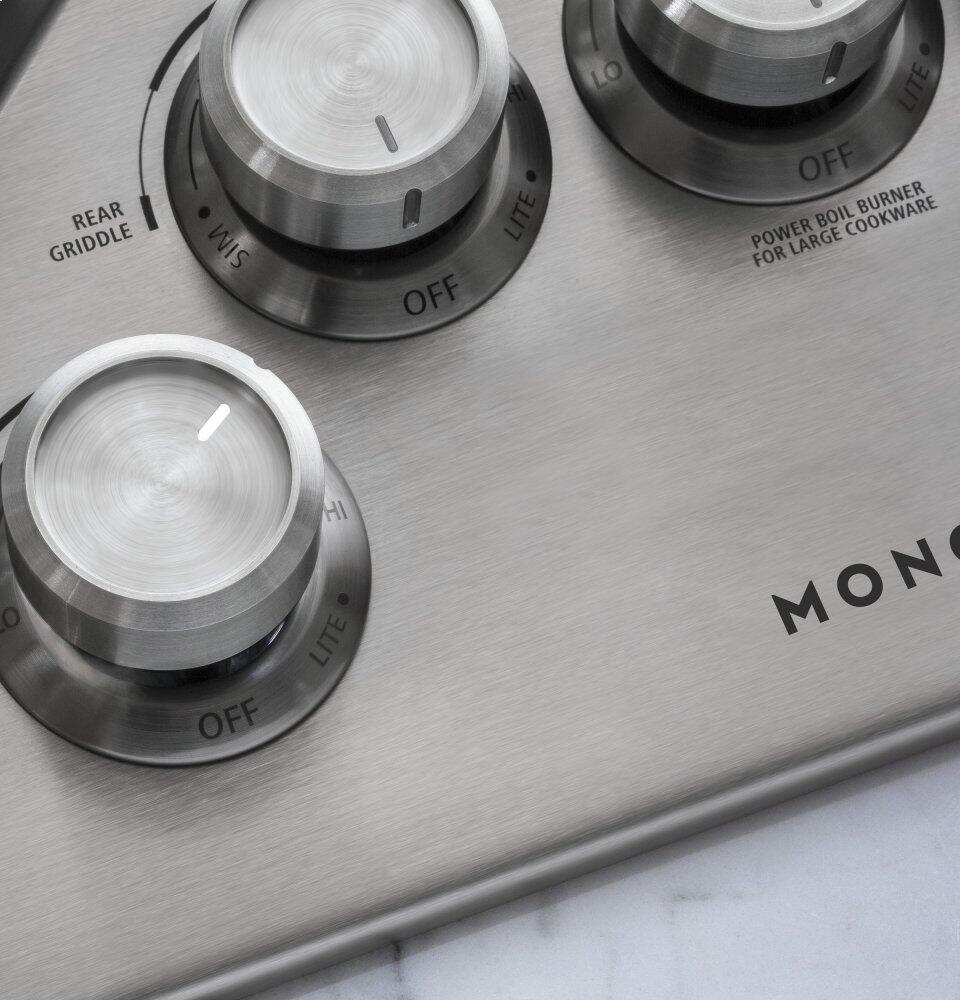

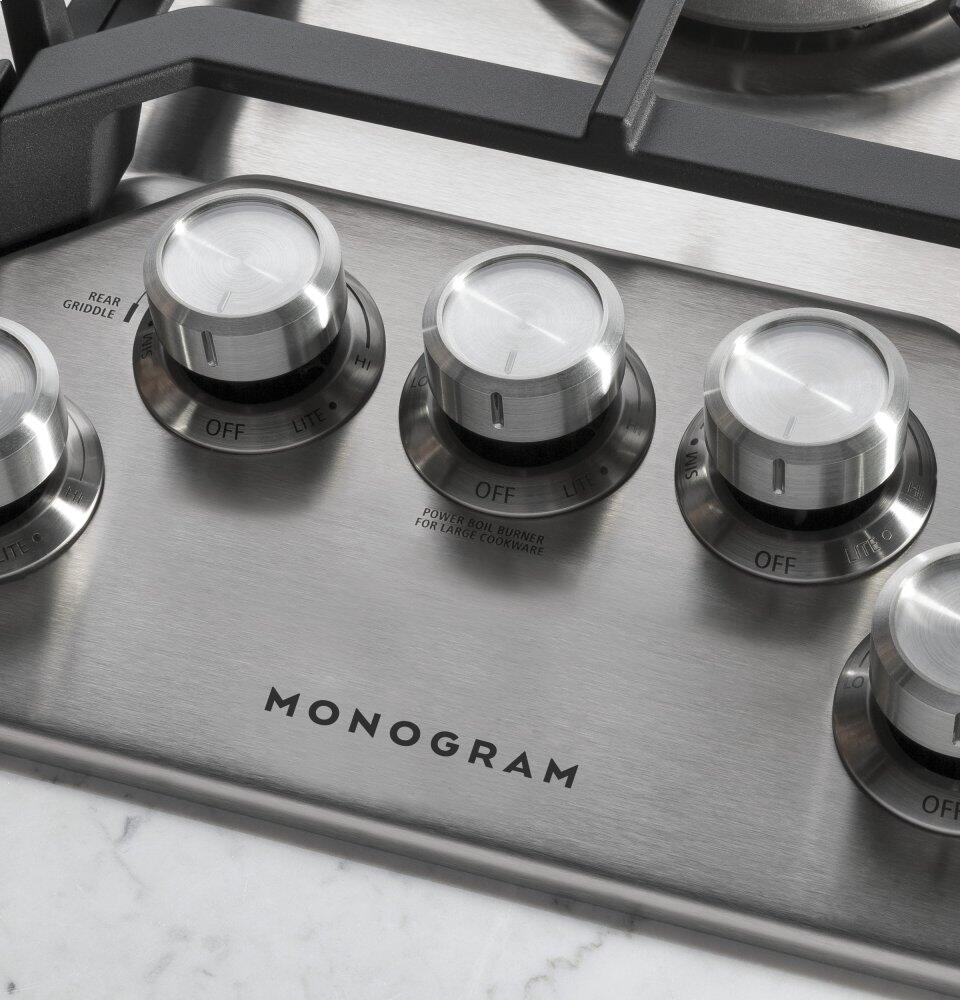

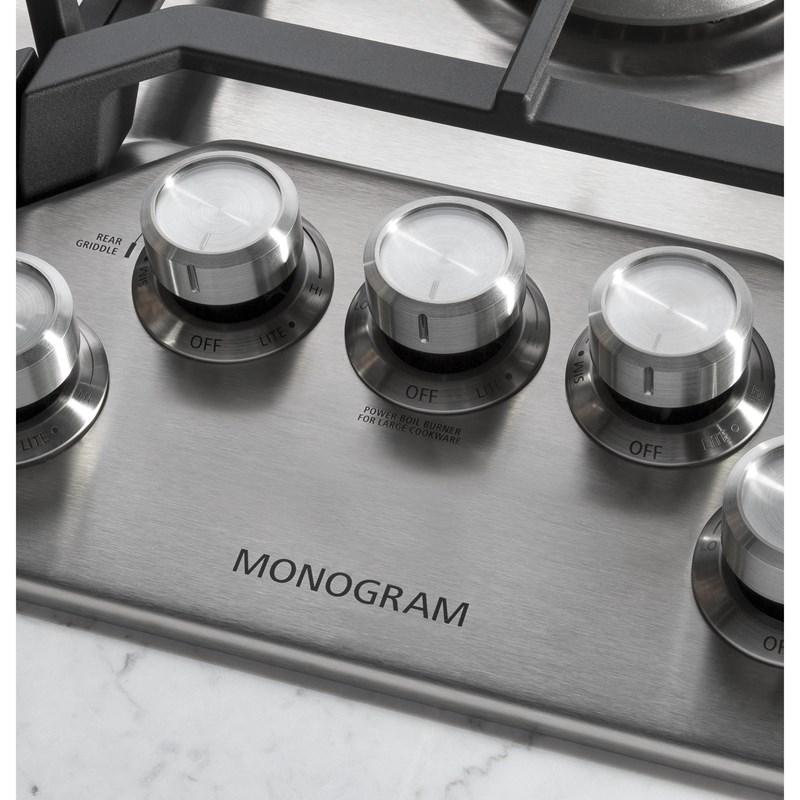

- PRECISION KNOBS — With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

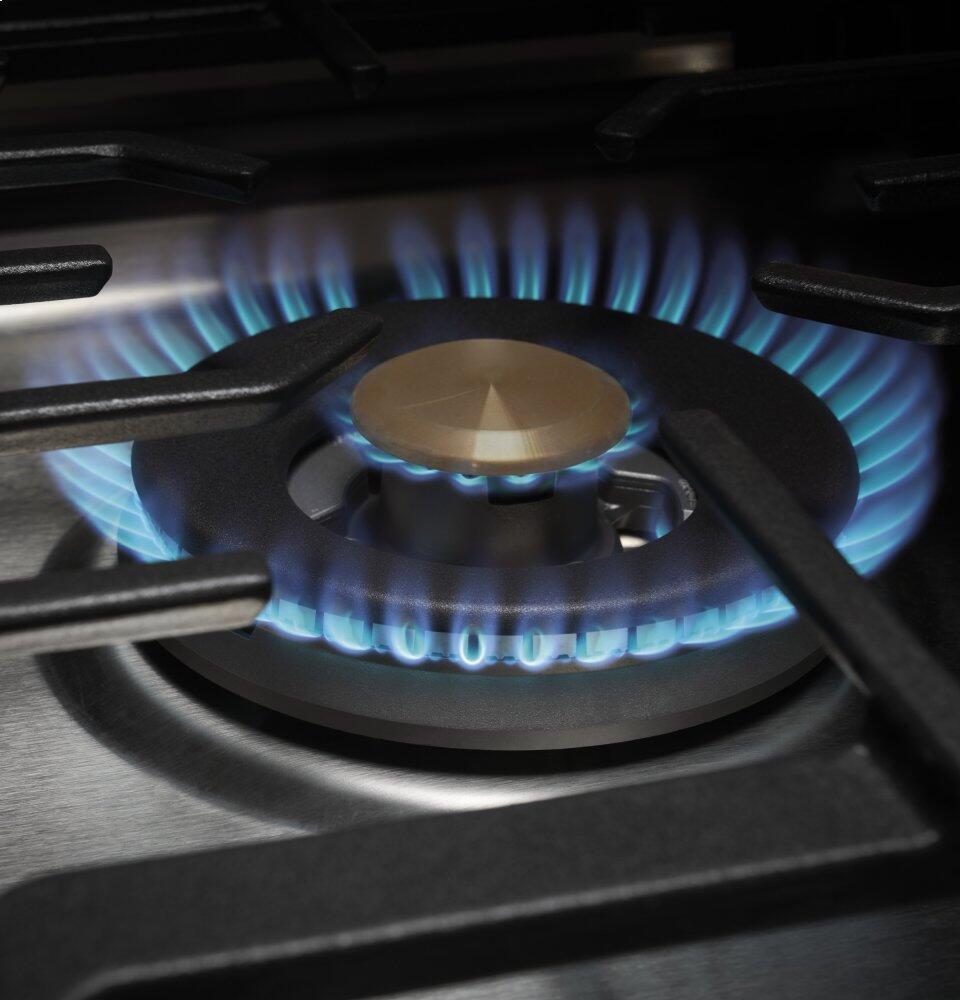

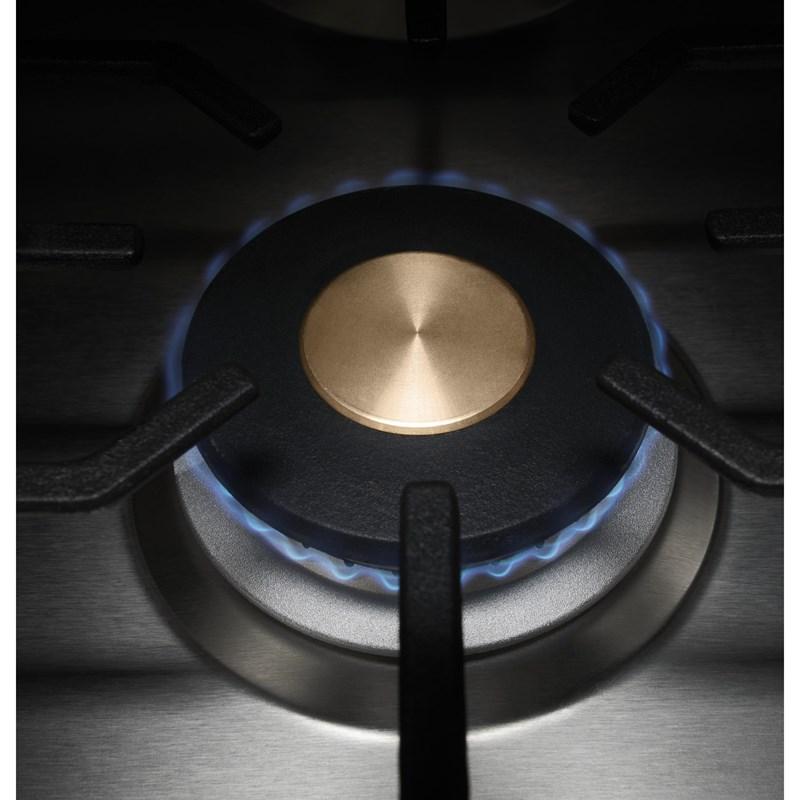

- DUAL-FLAME STACKED BURNERS — Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

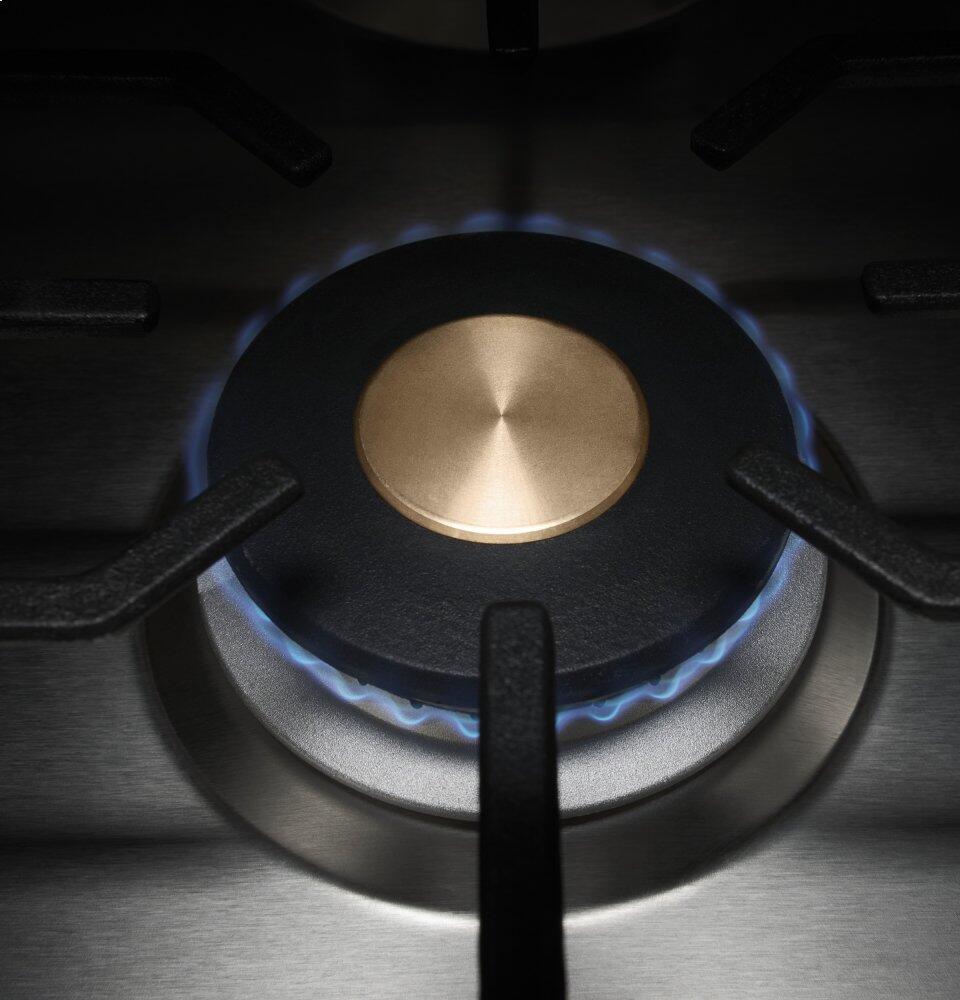

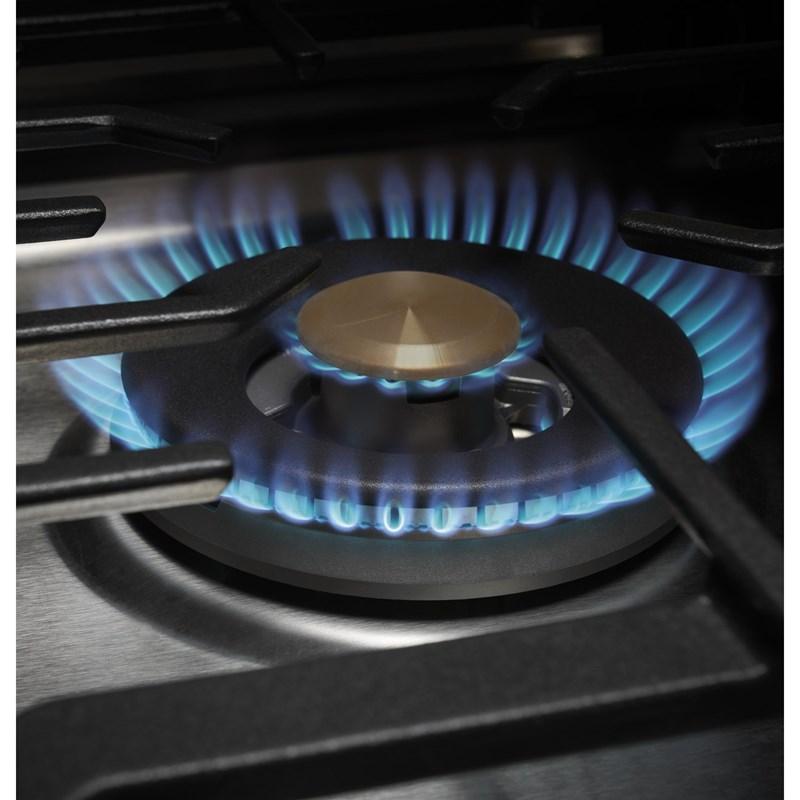

- TRI-RING BURNER — Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
- CONTINUOUS GRATES — Designed for even cooking and simple movement of cookware across the surface
- ELECTRONIC IGNITION — Ensures a continuous flame and reignites automatically if accidentally extinguished
- HIGH-OUTPUT COOKING — Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Direct electronic ignition system | Automatic re-ignition | Dual flame stacked burners | Burner indicator light | Valves (Degree of turn): 270 | White LED backlit knobs
Specifications
| Clock | N | Digital Display | N | Downdraft Ventilation | N |
| Control Lock | N | Wi-Fi | N | Burners/Elements | 5 |
| Surface Features | Cast-iron, porcelainized continuous grates | Burners | Sealed | Height | 20.00 cm |
| Width | 91.44 cm | Depth | 53.34 cm | Weight | 26.76 kg |
| Additional Dimensions | Cutout dimensions (WxD): 33-7/8" x 19-1/8" | Class Width | 36" | Fuel Type | Natural Gas |
| Type | Built-In | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| UPC# | 084691822516 | Warranty | Limited 2-year warranty on parts and labor for entire appliance | ADA Compliant | Y |
| Power Output Left front: 10,000 BTU Dual | Left rear: 10,000 BTU Dual | Right front: 12,000 BTU Dual | Right rear: 10,000 BTU Dual | Center: 20,000 BTU Tri-ring Brass Cap | |||||
| Information 120V | 60Hz | 5.0A | |||||

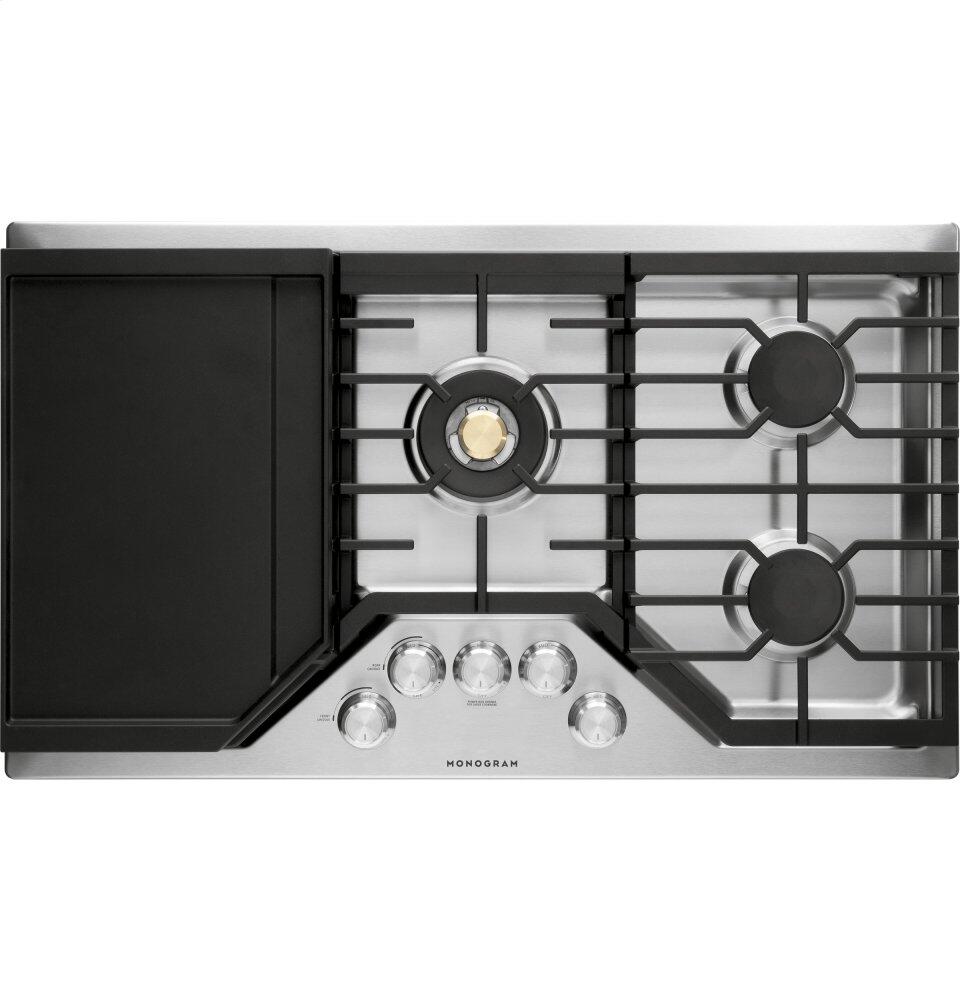

| Included Griddle: JXGRIDL236 | Nat. Gas to LP conversion kit | |||||
Accessories
• Griddle: JXGRIDL236
• Nat. Gas to LP conversion kit
• Nat. Gas to LP conversion kit
