Description
About this Product

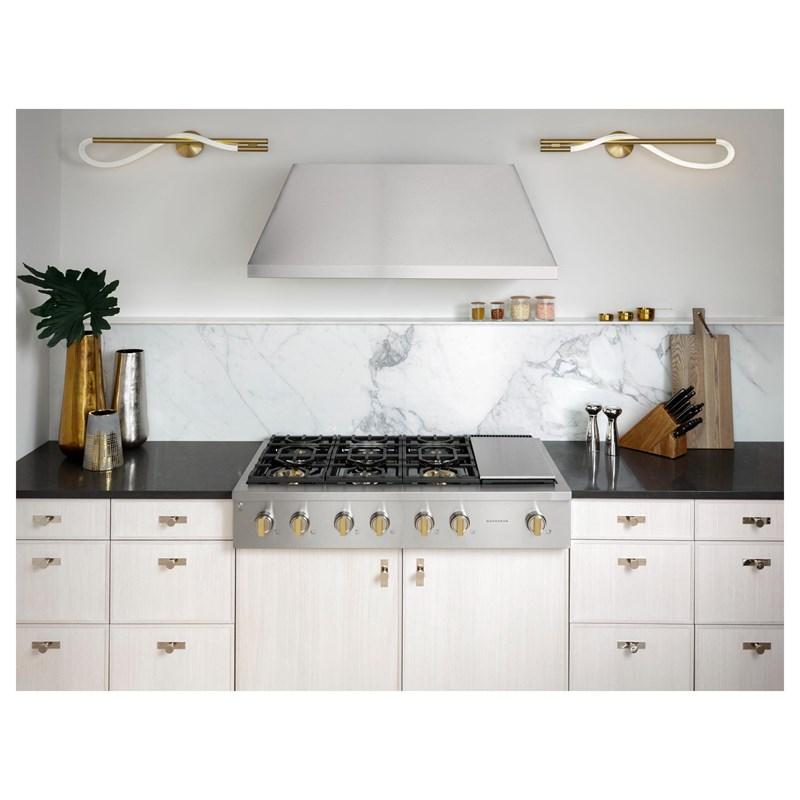

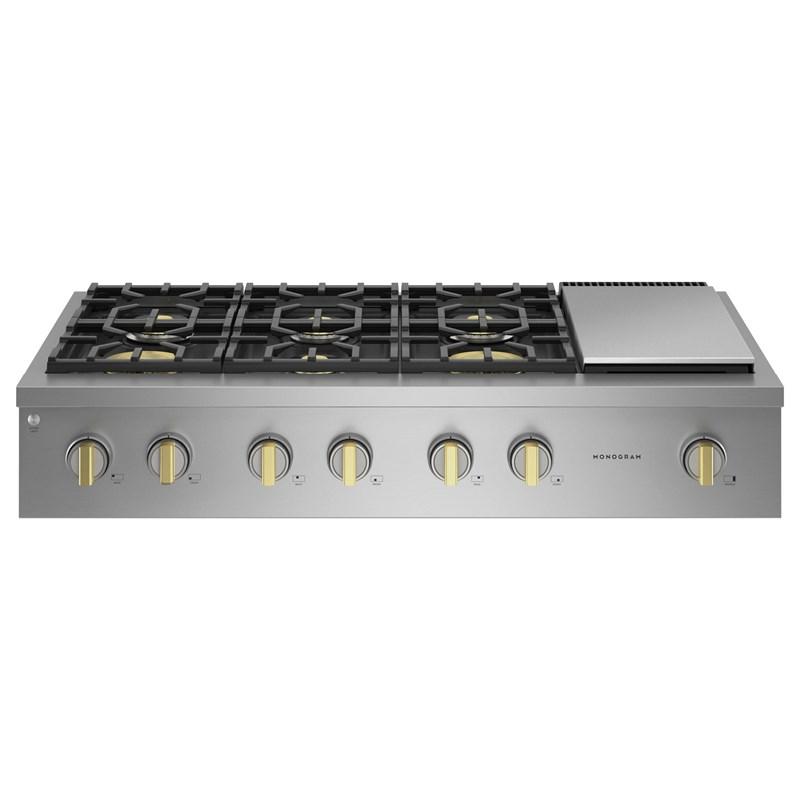

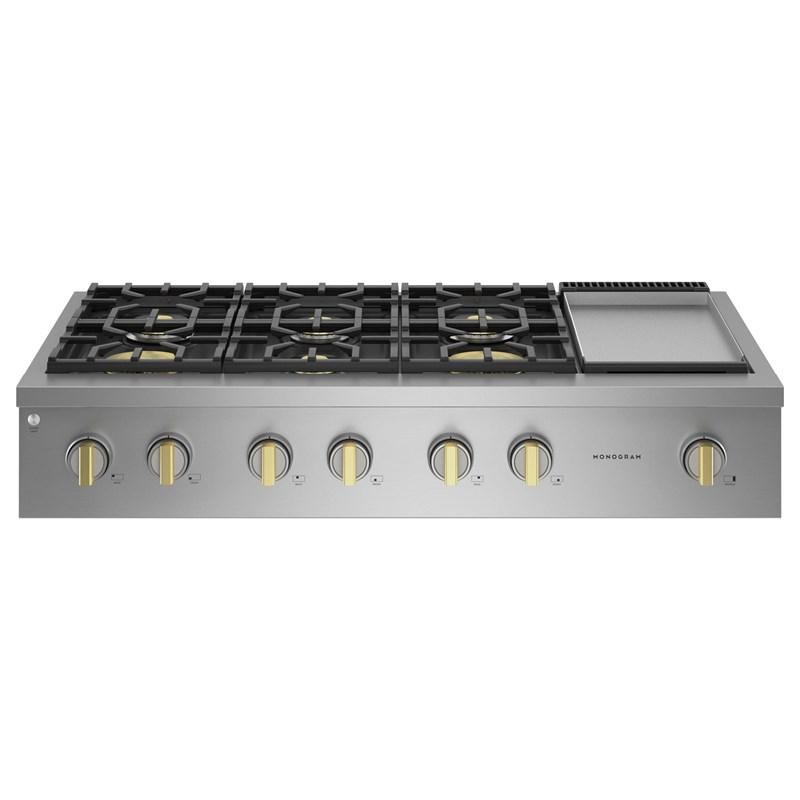

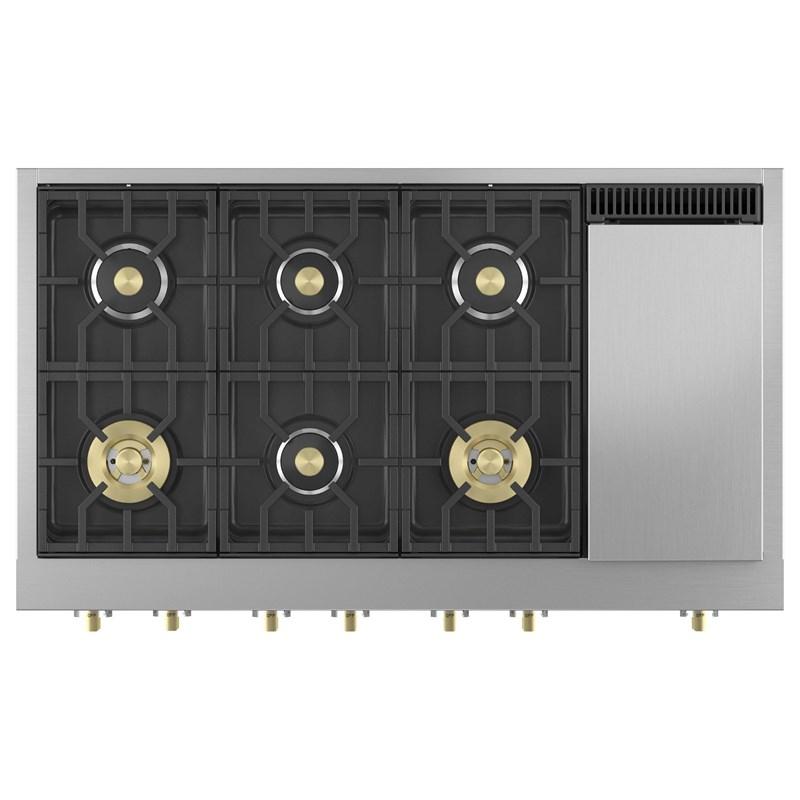

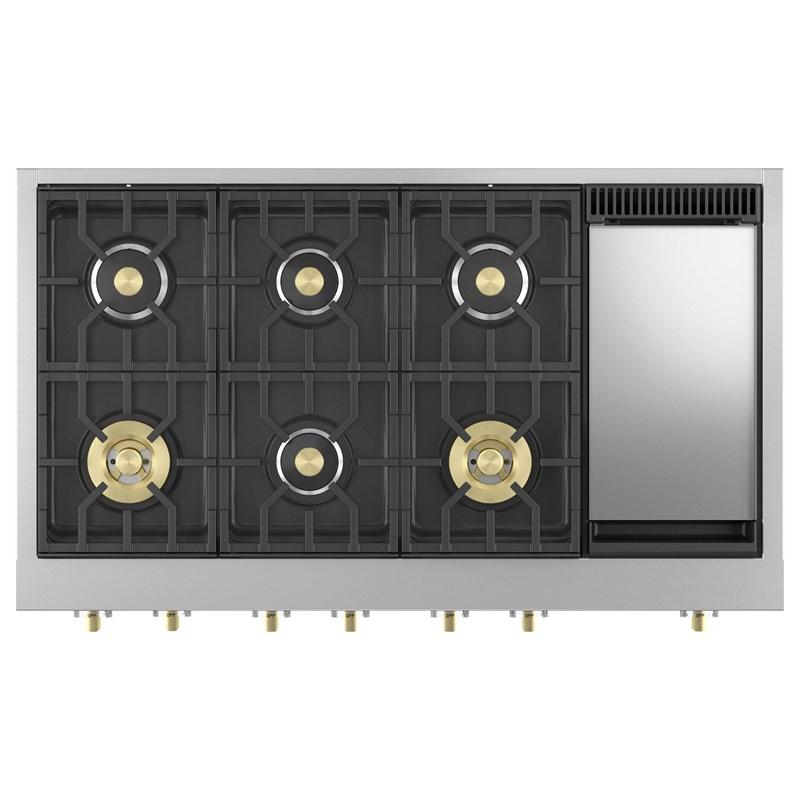

Monogram 48" Professional Gas Rangetop with 6 Burners and Griddle (Natural Gas). Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame. The versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface.
Features
- ADA COMPLIANT — Designed to be easily accessible.

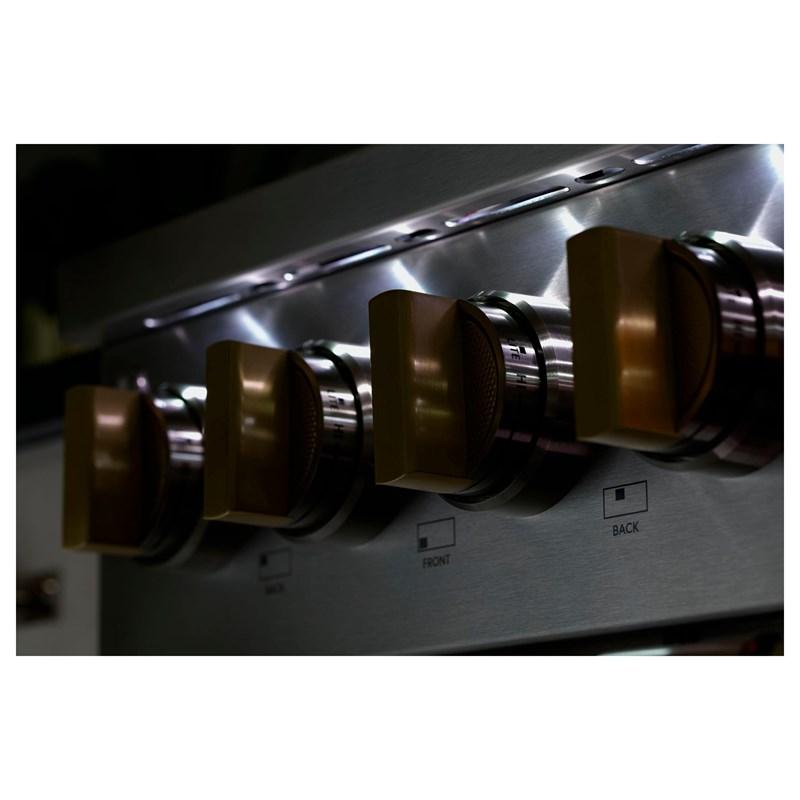

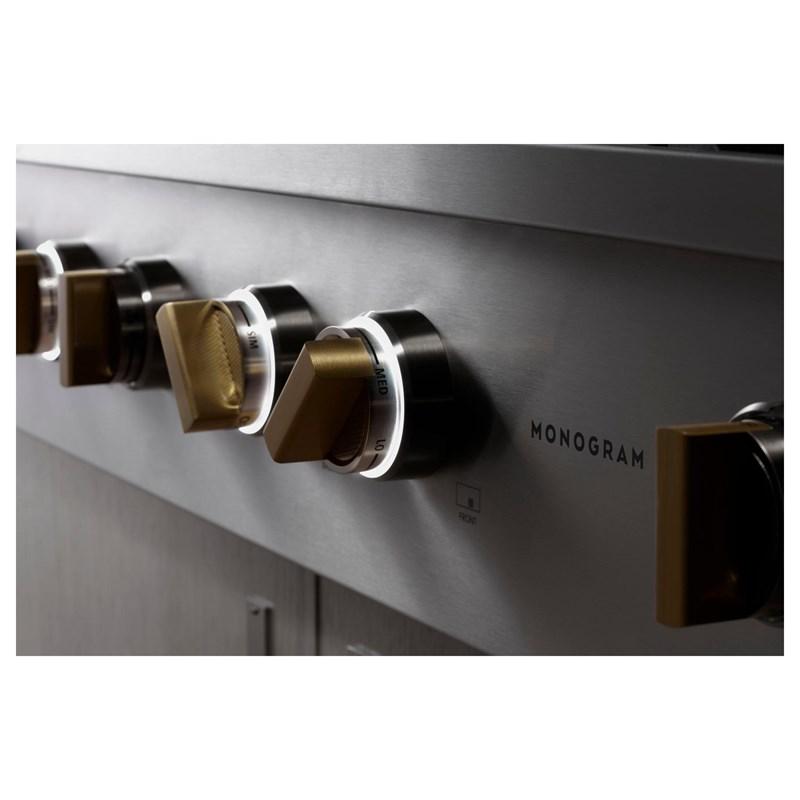

- RING-LIT KNOBS — Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use.

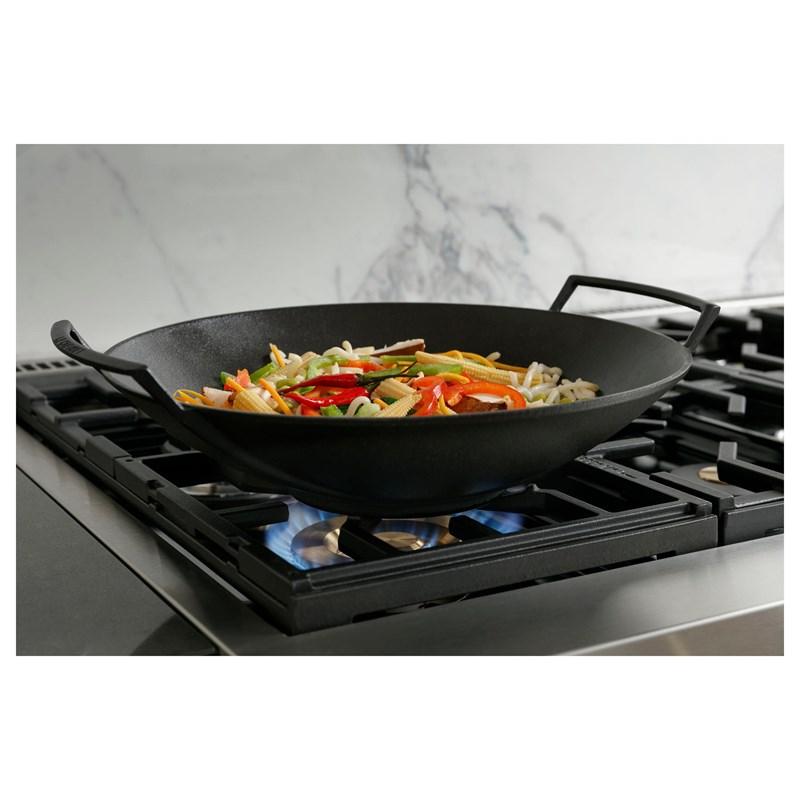

- 3-PIECE GRATES WITH REVERSIBLE WOK FEATURE — Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks.

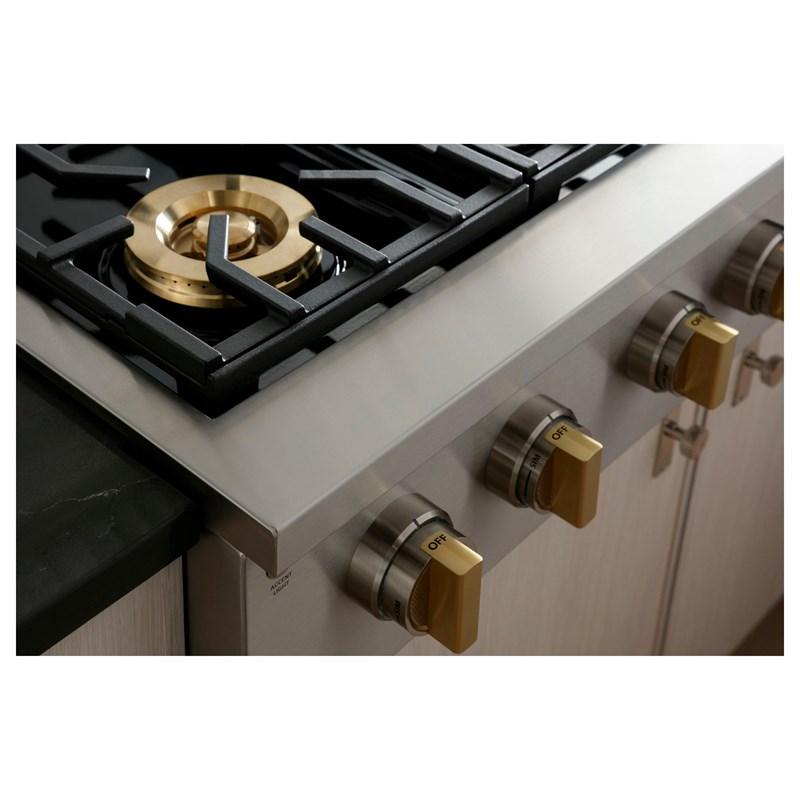

- SEAMLESS STAINLESS TOP FRAME — Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.

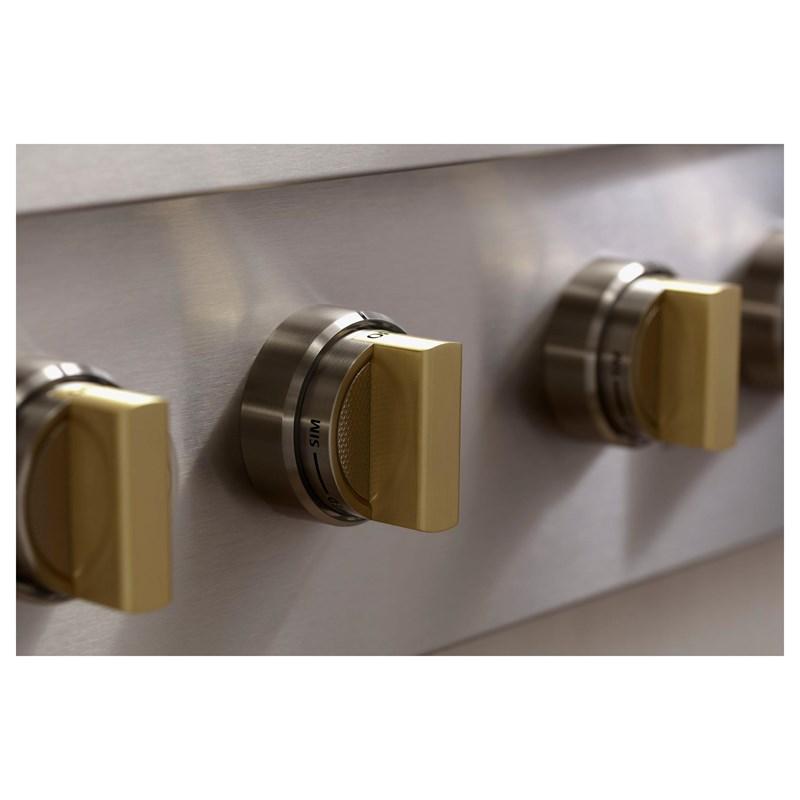

- SOLID BRASS BLADES ON PRECISION MACHINED KNOBS — With an unmatched attention to detail, all knobs on the Monogram Pro ranges and range tops come with solid brass accents.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Control Knobs: Diecast Metallic (Included) Stainless Steel with Brass Accents | Control Location: Upfront | Extra Low Simmer: All Burners - Adjustable | Burner Indicator Light | Lighting: LED Bullnose Task Lighting | Removable Drip Tray Liners: (1) Beneath Griddle
Specifications
| Burners | Sealed | Other | Griddle | Burners/Elements | 6 |
| Height | 21.59 cm | Width | 121.60 cm | Class Width | 48" or More |
| Weight | 77.56 kg | Depth | 69.85 cm | Type | Rangetop |
| Series Name | Design Style: Statement Collection | Fuel Type | Natural Gas | Color | Stainless Steel |
| Manufacturer Color | Stainless Steel | ADA Compliant | Y | Digital Display | N |
| Clock | N | UPC# | 084691851219 | ||
| Surface Features 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked with Removable Brass Accents | Stainless Steel and Aluminum Clad Thermostatically Controlled Griddle | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates | |||||
| Power Output Front Left Burner: 23,000-BTU | Back Left Burner: 18,000-BTU | Second From Left Front Burner: 15,000-BTU | Second From Left Back Burner: 15,000-BTU | Third From Left Front Burner: 23,000-BTU | Third From Left Back Burner: 18,000-BTU | Griddle: 18,000-BTU | |||||
| Information Volts/Hertz/Amps: 120 V/60 Hz/15 A | |||||
| Information cCSAus | |||||
| Included Stainless Steel No-Mark Griddle/Grill Cover | Factory-installed island backguard | LP Conversion Kit | |||||
| Optional 48" Monogram Knob Kit: ZXPR48KKTSS (SS, qty. 11) | High Altitude Kit: WB28K10553 | Optional 2" stainless steel backsplash: UX12B36PSS | 30"-36" adjustable stainless steel backsplash with warming shelf: UXADBS48PSS | Optional Grill Accessory (Cast Iron): UXPRRGG | |||||
| Warranty Limited 2-year entire appliance for parts and labor | Limited 5-year for gas surface burners (parts only) | See written warranty for full details | |||||
Accessories
• Factory-installed island backguard
• LP Conversion Kit
• High Altitude Kit: WB28K10553
• Optional 2" stainless steel backsplash: UX12B36PSS
• 30"-36" adjustable stainless steel backsplash with warming shelf: UXADBS48PSS
• Optional Grill Accessory (Cast Iron): UXPRRGG
