About this Product

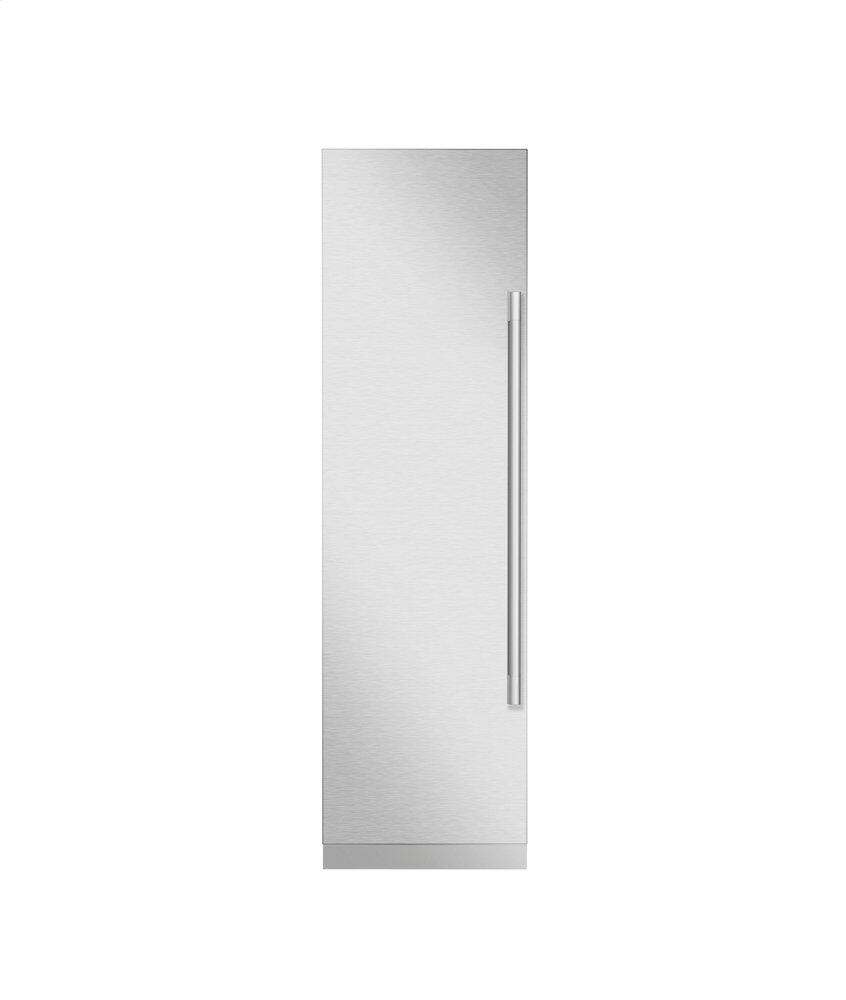

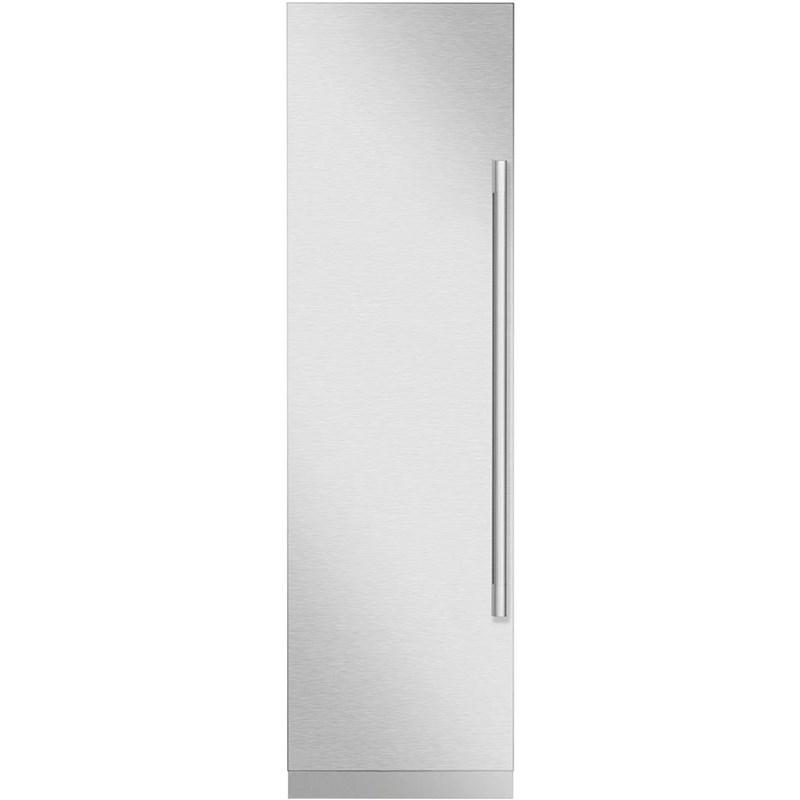

This Signature Kitchen Suite 24-inch integrated column freezer features Inverter Linear Compressor, adaptive defrost, WiFi-enabled for SmartThinQ™ control with iPhone / Android App, and interior ice maker. Image is shown with panel kit (Sold separately).
Features

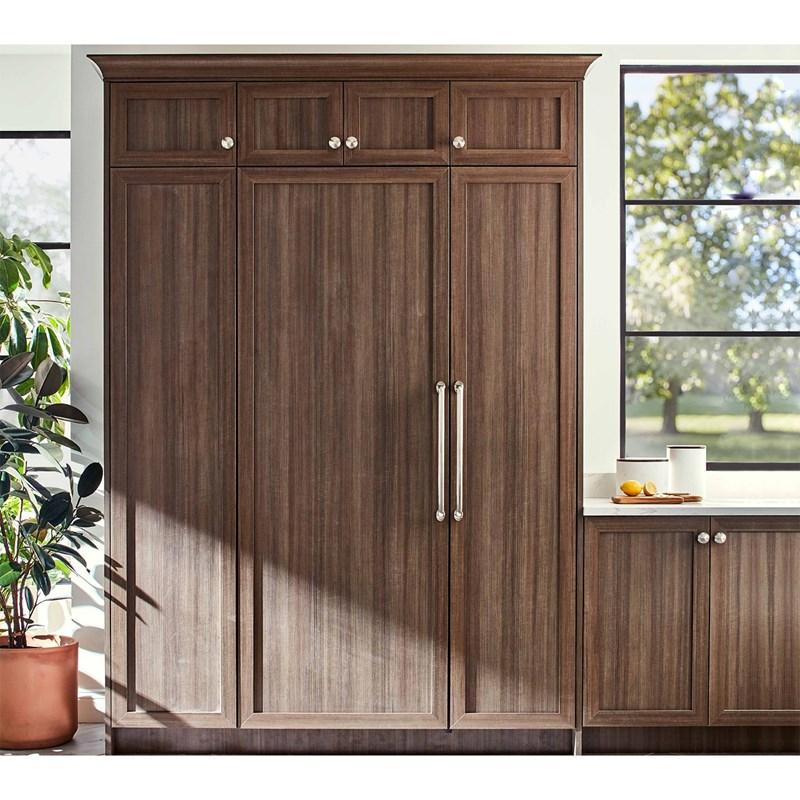

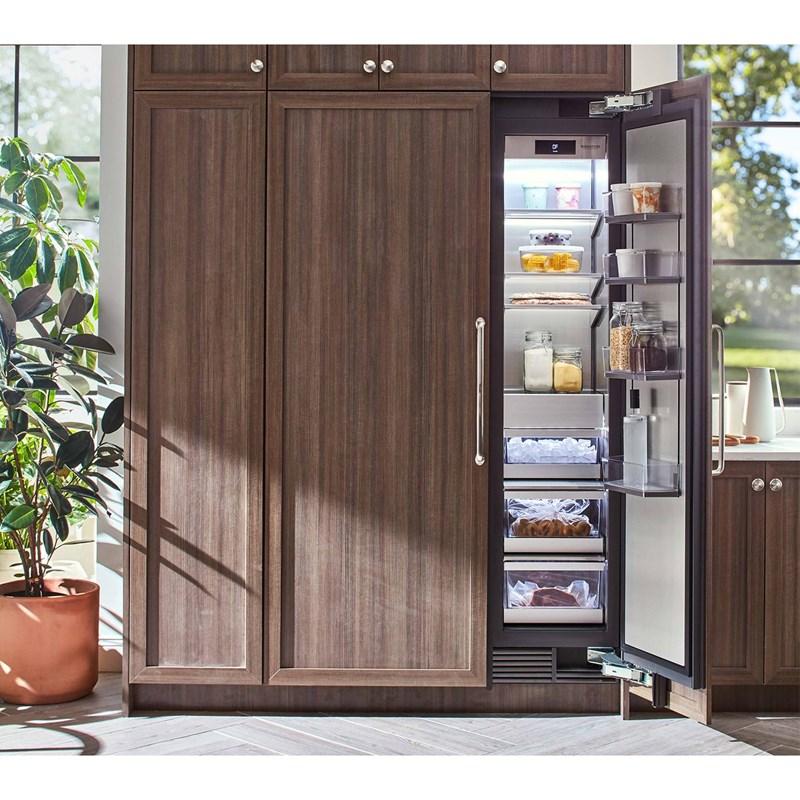

- TRUEFIT™ INTEGRATED DESIGN — Paired together, the Signature Kitchen Suite 30-inch Integrated Colum Refrigerator and 18-inch Integrated Column Freezer are brilliantly engineered to cleanly fit a 48-inch opening or an existing 47.5-inch opening-perfect for both new construction and replacement applications.
- BRILLIANT INTERIOR — The glass and engineered all-metal interior is not only beautiful, but designed to help the freezer stay within 1-degree of fluctuation of the set temperature by holding and transferring cold fast and efficiently.

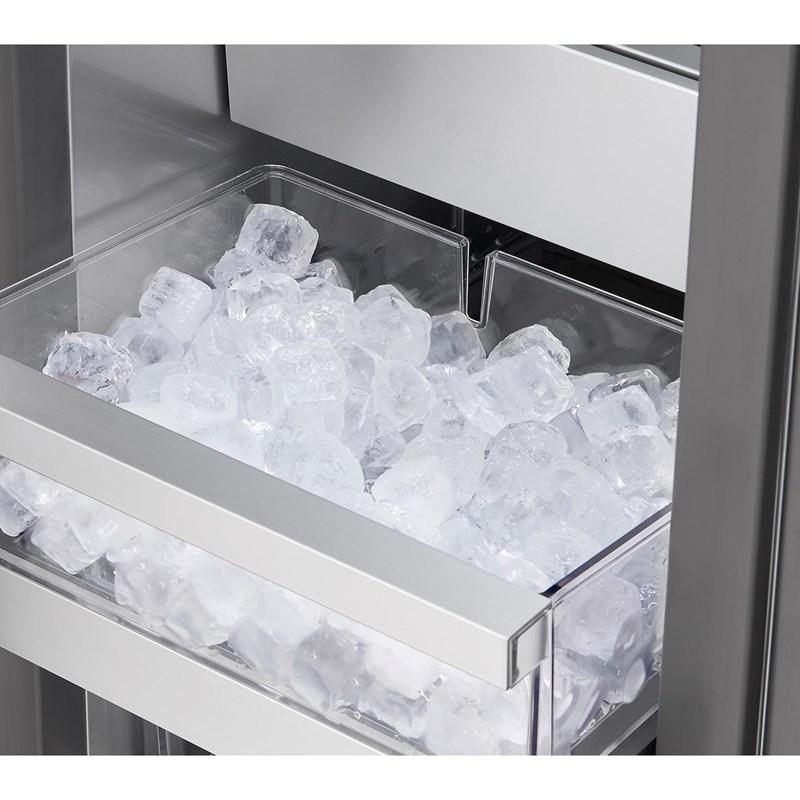

- DISTINCTIVE ICE — The square ice shape gives an air of distinction while the removable clear bin holds up to 6 lb, perfect for entertaining.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Highlights

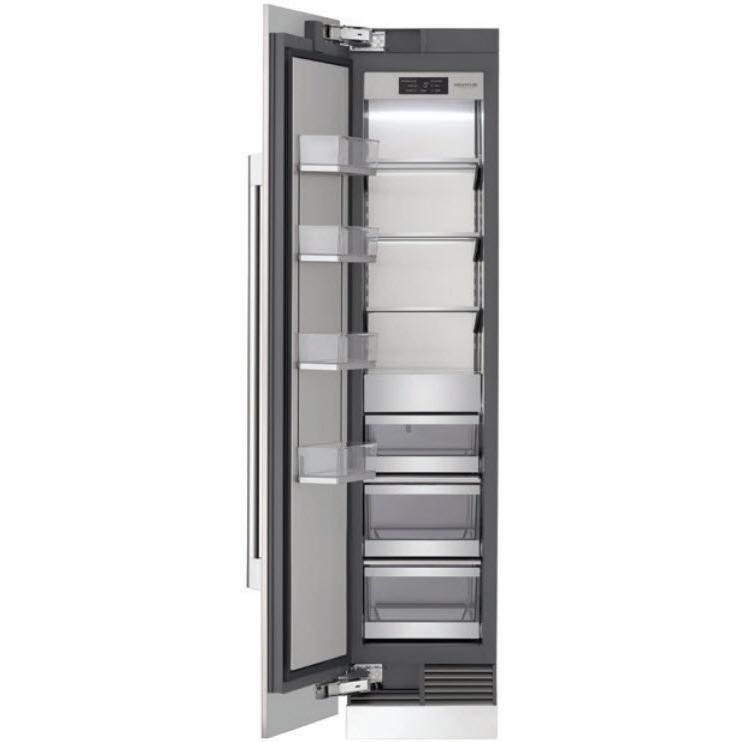

Reversible Door | Operating Temperatures: -6° to 8° F | Maximum Sound Level: 39 dBA | Hidden LED True-View™ Interior Lighting | Digital Controls with White LED Display | Lift and Go™ Storage Drawers: 2 Soft Close / Self Close | 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf | Temperature Control, Water Filter Reset | Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable | Speed Freeze
Specifications
| Total Capacity | 13.9 cu. ft. | Style | Built-In | Manufacturer Color | Panel Ready |
| Size Range | 16 Cu.Ft. and Below | Color | Panel Ready | Door Hinge | Left |
| Type | Upright | Energy Star Certified | Y | Sabbath Mode | Y |
| Defrost System / Frost Free | Y | Lighting | Y | Digital Temperature Display | Y |
| Baskets | Y | Wi-Fi | Y | Height (With Hinge) | 212.1 cm |
| Width | 60.33 cm | Depth (Without Handles) | 62.9 cm | Weight | 156.94 kg |
| Ice Machine | Y | UPC# | 48231798822 | Included | Anti-Tip Bracket |
| Technologies WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App | Inverter Linear Compressor | Smart Grid | Smart Diagnosis | TrueFit™ Integrated Design | Lift and Go™ Storage Drawers | Lift and Go™ Ice Drawer | Lift and Go™ Door | True-View™ Interior Lighting | |||||
| Additional Dimensions Overall Height: 83 1/2" Min. – 84 1/2" Max. | Overall Depth Without Panel or Handles: 23 7/8" | |||||
| Additional Ice and Water Information Water Filter Indicator | Ice Production (24 Hrs.): 3.5 lbs. | Icemaker On / Off | Removable Ice Bucket Storage Volume: 5.5 lbs. | Lift and Go™ Ice Drawer: 1 Soft Close / Self Close | |||||
| Information 115 V | 60 Hz | 15 or 20 A V | |||||
| Warranty Limited 3 Years Parts and Labor | Limited 5 Years on Sealed System, Parts and Labor | Limited 10 Years on Sealed System, Parts Only | |||||
| Optional Stainless Steel Panel / Handle / Toekick Kit SKSPK245CS | Retrofit Frame Kit SKSFK800CS | Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS | Replacement Water Filter LT1000P-S | |||||
Accessories
• Retrofit Frame Kit SKSFK800CS
• Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS
• Replacement Water Filter LT1000P-S
Door Hinge: Left
