Description
About this Product

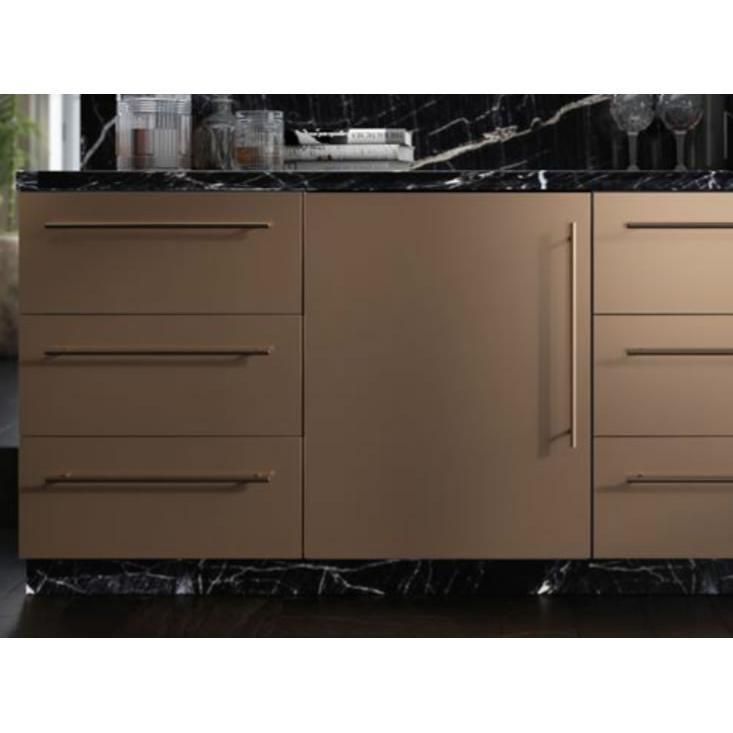

The Sub-Zero Designer Series Undercounter Refrigeration is a helpful addition to a master suite, bar, home office, or media room. This panel ready 24" undercounter compact refrigerator with ice maker features a fully customizable exterior, accepting custom panels for an integrated look within cabinetry or stainless steel accessory panels and handles to coordinate other Sub-Zero, Wolf, and Cove appliances. It offers precise temperature control within one degree of setpoint, preserving dairy, produce, and other perishables at their optimal temperature.
Features
- ENERGY STAR® QUALIFIED — Energy star® qualified
- STAR-K CERTIFIED — Star-K certified
- SPILL-PROOF — Adjustable spill-proof glass shelves.
- INTUITIVE TOUCH CONTROL — Touch control panel allows you to keep temperatures within one degree of set point.
- PANEL READY DESIGN — Just add your custom cabinetry panels and handles, and it blends into the décor of any room.
- SOFT-ON LED LIGHTING — Energy-efficient LEDs offer varying degrees of brightness, enabling you to customize preferences by controlling intensity levels.
- AUTOMATIC ICE MAKER WITH “MAX ICE” — Provides crescent-shaped ice cubes and includes a "max ice" feature capable of increasing ice production by an average of 30 percent for a 24-hour period – just the boost you need for parties and holidays.
Documents
Product Sheet (en)
Dimensions Guide (en)
Additional documents(en)
Specifications
| Manufacturer Color | Panel ready (custom panel required, sold separately) | Door Hinge | Left | Color | Panel Ready |
| Series Name | Designer Series | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | Compact | Interior Light | Y | Digital Display | Y |
| Wi-Fi | Y | Sabbath Mode | Y | Energy Star Certified | Y |
| Water System | None | Ice System | Interior | Freezer | 1.7 cu. ft. |
| Refrigerator | 3.0 cu. ft. | Total | 4.7 cu. ft. | Additional Dimensions | Door Clearance: 26 1/2" |
| Depth (Without Handles) | 58.74 cm | Class Width | 23" to 28.9" | Width | 60.96 cm |
| Height (With Hinge) | 87.63 cm | Class Height | 30" - 35" | ||
| Additional Freezer Information Removable ice storage bin | Plumbing Supply: 1/4" OD copper, braided stainless steel or PEX tubing | Plumbing Pressure: 20–100 psi | |||||
| Dispenser Features Stores fresh ice in a removable freezer storage bin | Yields extra cubes with Max Ice Mode | |||||
| Warranty Full 2-Year warranty for parts and labor | Full 5-Year warranty for sealed system | Limited 12-Year warranty for sealed system | |||||
| Optional Custom Panel Lock Kit | Dual Install Kit - Handle-to-Drawer | Dual Install Kit - Handle-to-Handle | Pro Handle | Stainless Steel Dual Kickplate | Tubular Handle | Stainless Steel Solid Door Panels | |||||
| Information Electrical Supply: 115 VAC, 60 Hz | Electrical Service: 15 amp dedicated circuit | Receptacle: 3-prong grounding-type | |||||
Accessories
• Custom Panel Lock Kit
• Dual Install Kit - Handle-to-Drawer
• Dual Install Kit - Handle-to-Handle
• Pro Handle
• Stainless Steel Dual Kickplate
• Tubular Handle
• Stainless Steel Solid Door Panels
• Dual Install Kit - Handle-to-Drawer
• Dual Install Kit - Handle-to-Handle
• Pro Handle
• Stainless Steel Dual Kickplate
• Tubular Handle
• Stainless Steel Solid Door Panels
Door Hinge: Left
