Description
About this Product

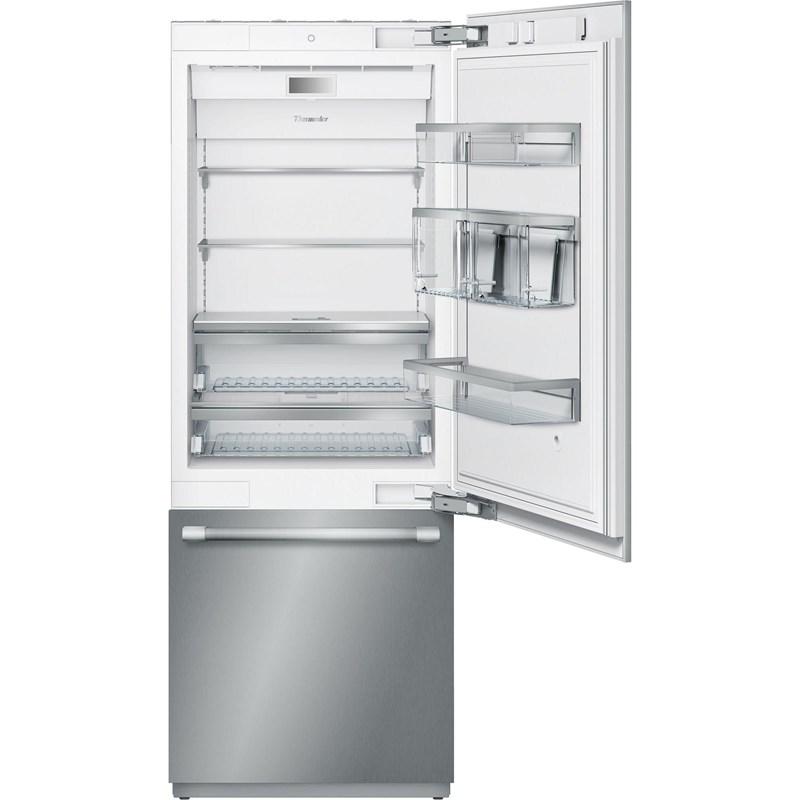

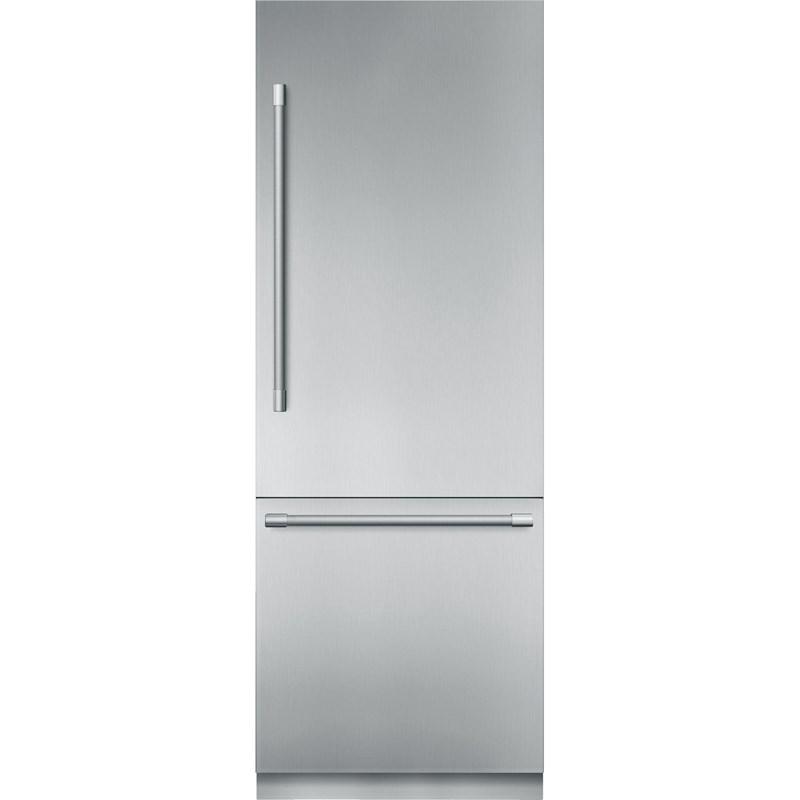

Thermador 30" Freedom® Collection, built-in bottom freezer refrigerator. This model features ThermaFresh system, SoftClose® doors and TFT control panel managing all your columns functions. (Panels sold separately).
Features
- FREEDOM® HINGE — Freedom® hinge enables true flush design
- OPEN DOOR ASSIST — Open door assist automatic door opening with just a slight push or a pull

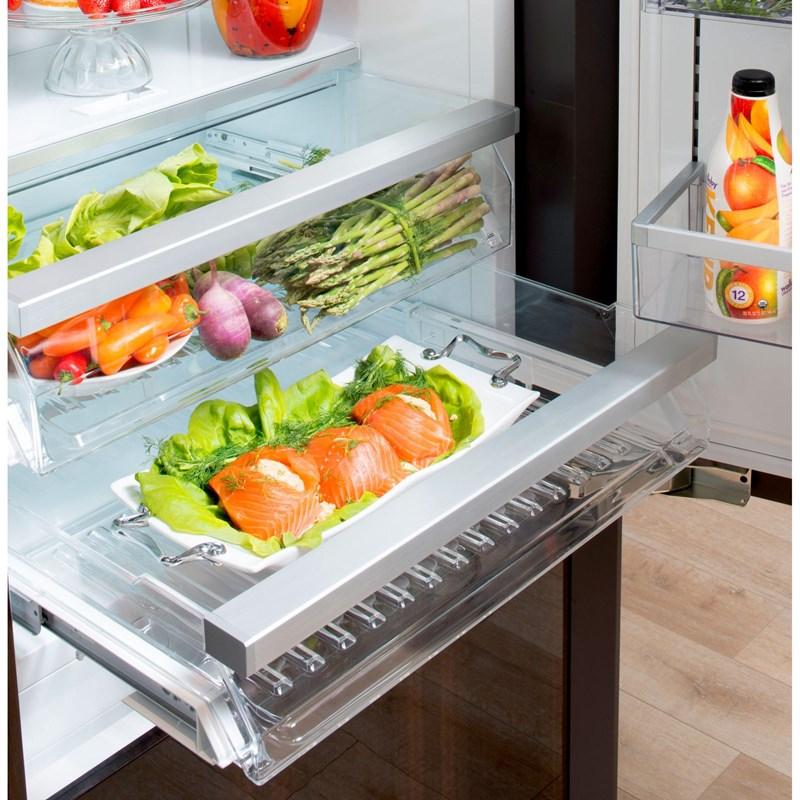

- THERMAFRESH SYSTEM — Thermafresh system, humidity and temperature controlled drawers
- SOFTCLOSE® DRAWERS — Softclose® drawers and produce bins for easy and controlled storage
- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Specifications
| Manufacturer Color | Custom Panels | Door Hinge | Right | Color | Panel Ready |
| Series Name | Freedom® | Installation Type | Built-In | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Interior Light | Y | Door Alarm | Y |
| Frost Free | Y | Digital Display | Y | Gallon Door | Y |
| Crisper Drawers | Y | Deli Drawer/Meat | Y | Wi-Fi | N |
| Weight | 185.07 kg | Additional Dimensions | Required Cutout Size (H x W x D): 84" x 30" x 25" | Depth (Without Handles) | 61.0 cm |
| Class Width | 29" to 31.9" | Width | 75.6 cm | Height (With Hinge) | 213.3 cm |
| Class Height | 70" and More | Sabbath Mode | Y | Energy Star Certified | Y |
| Water System | None | Ice System | Interior | Dispenser Features | Ice Maker with Diamond Ice System |
| UPC# | 825225919131 | Freezer | 4.5 cu. ft. | Refrigerator | 11.5 cu. ft. |
| Total | 16.0 cu. ft. | ||||
| Technologies ThermaFresh System | SoftClose® Drawers | Freedom® Hinge | SuperCool | SuperFreeze® | |||||
| Additional Freezer Information Freezer: -9°F (-23°C) to 7°F (14°C) | SuperFreeze®: -9°F (-23°C) for approximately 52 hours | 1 Drawer | |||||
| Optional TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel | PR36HNDL20: 36-Inch Professional Series Handle | MS36HNDL20: 36-Inch Masterpiece® Series Handle | PR30HNDL20: 30-Inch Professional Series Handle | MS30HNDL20: 30-Inch Masterpiece® Series Handle | PR36HNDL10: 36-Inch Professional Series Classic Handle | PR30HNDL10: 30-Inch Professional Series Classic Handle | MS36HNDL10: 36-Inch Masterpiece® Series Classic Handle | MS30HNDL10: 30-Inch Masterpiece® Series Classic Handle | REPLFLTR10: Freedom® Water Filter | HEATRKIT10 and HEATRKIT20: FREEDOM® Heater Kit | |||||
| Information 511 kWh | 588 W | 120 V | 60 Hz | 15 A | |||||
Accessories
• TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel
• PR36HNDL20: 36-Inch Professional Series Handle
• MS36HNDL20: 36-Inch Masterpiece® Series Handle
• PR30HNDL20: 30-Inch Professional Series Handle
• MS30HNDL20: 30-Inch Masterpiece® Series Handle
• PR36HNDL10: 36-Inch Professional Series Classic Handle
• PR30HNDL10: 30-Inch Professional Series Classic Handle
• MS36HNDL10: 36-Inch Masterpiece® Series Classic Handle
• MS30HNDL10: 30-Inch Masterpiece® Series Classic Handle
• REPLFLTR10: Freedom® Water Filter
• HEATRKIT10 and HEATRKIT20: FREEDOM® Heater Kit
• PR36HNDL20: 36-Inch Professional Series Handle
• MS36HNDL20: 36-Inch Masterpiece® Series Handle
• PR30HNDL20: 30-Inch Professional Series Handle
• MS30HNDL20: 30-Inch Masterpiece® Series Handle
• PR36HNDL10: 36-Inch Professional Series Classic Handle
• PR30HNDL10: 30-Inch Professional Series Classic Handle
• MS36HNDL10: 36-Inch Masterpiece® Series Classic Handle
• MS30HNDL10: 30-Inch Masterpiece® Series Classic Handle
• REPLFLTR10: Freedom® Water Filter
• HEATRKIT10 and HEATRKIT20: FREEDOM® Heater Kit
Door Hinge: Right
