Description
About this Product

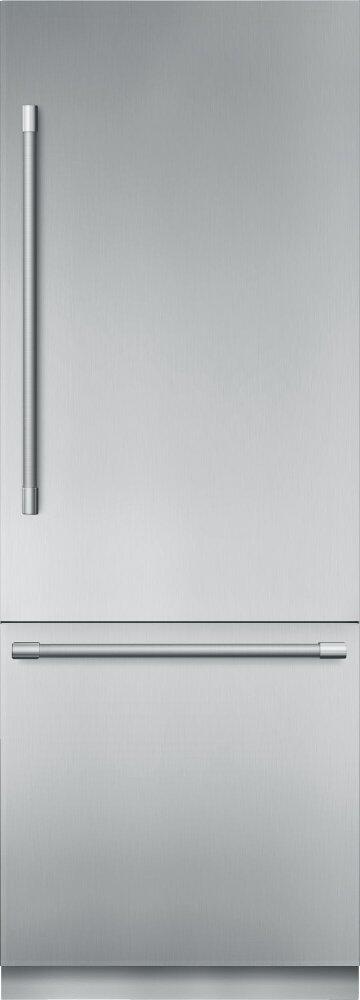

Thermador 30-inch Freedom® collection built-in panel-ready 2-door bottom freezer refrigerator. It features the Freedom® hinge that enables a true flush design, an auto door opening, the ThermaFresh system and SoftClose® drawers for an easy and controlled storage. This sleek clean design offers the perfect symmetry when paired with additional columns.
Features
- FREEDOM® HINGE — Engineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
- THERMAFRESH SYSTEM — Thermafresh system, humidity and temperature controlled drawers
- SOFTCLOSE® DRAWERS — Softclose® drawers and produce bins for easy and controlled storage
- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
- THEATER LIGHTING — See your ingredients in a new light. Theater-style, diffused and filtered lighting, ensures visibility while limiting hot spots.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Specifications
| Total | 16.0 cu. ft. | Refrigerator | 11.5 cu. ft. | Freezer | 4.5 cu. ft. |
| Installation Type | Built-In | Door Hinge | Right | Manufacturer Color | Panel Ready (custom panels sold separately) |
| Series Name | Freedom® Collection | Color | Panel Ready | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Energy Star Certified | Y | Sabbath Mode | Y |
| CSA Certified | Y | Frost Free | Y | Door Alarm | Y |
| Interior Light | Y | Digital Display | Y | Crisper Drawers | Y |
| Gallon Door | Y | Wi-Fi | Y | Height (With Hinge) | 212.73 cm |
| Width | 75.57 cm | Depth (Without Handles) | 60.96 cm | Weight | 184.61 kg |
| Class Width | 29" to 31.9" | Class Height | 70" and More | UPC# | 825225960461 |
| Ice System | Interior | Water System | None | ||
| Technologies Home Connect™ (Wi-Fi Enabled) | SoftClose® Door | SoftClose® Drawers | SuperCool | SuperFreeze® | |||||

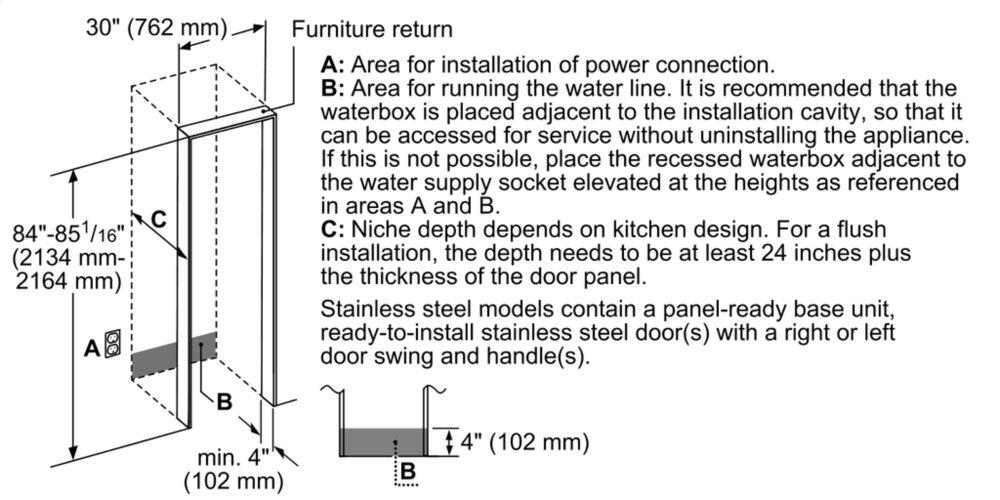

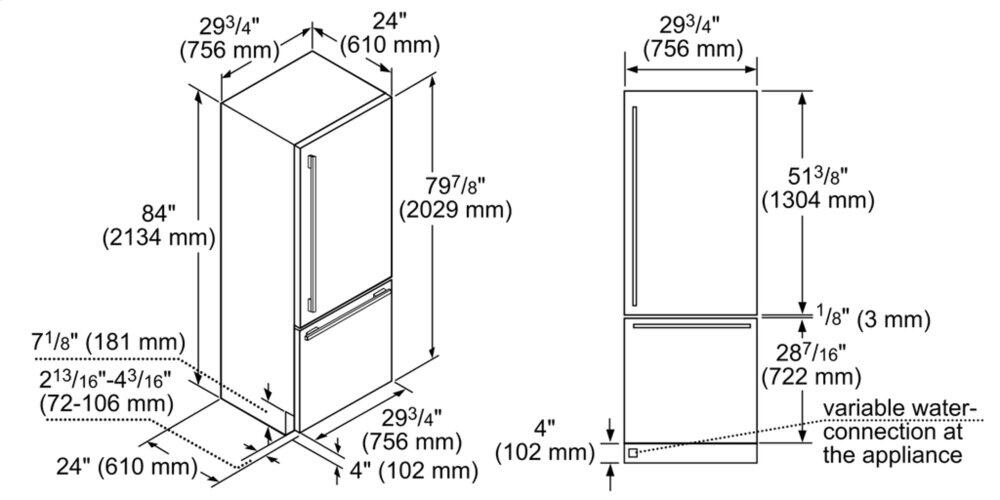

| Additional Dimensions Required cutout size (H x W x D): 84" x 30" x 25" | Power cord length: 118" | |||||
| Additional Freezer Information Freezer Baskets: 2 | Ice Maker with Diamond Ice System | |||||
| Information Watts: 350 W | Current: 15 A | Volts: 110-120 V | Frequency: 60 Hz | Plug type: 120V-3 Prong | |||||
| Warranty 2 Year: Limited, entire appliance, parts and labor on any part of the refrigerator that fails because of a manufacturing defect | 3rd to 6th Year: Limited warranty for sealed refrigeration system on parts and labor | 7th to 12th Year: Limited warranty for sealed refrigeration system on parts only | Lifetime: Limited warranty for stainless steel rust-through | |||||
| Optional TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel For use with Handle | TFL30IB905: 30-Inch 2-Door Flat Stainless Steel Door Panel, Handleless | PR36HNDL20: 36" Professional Series Handle | PR30HNDL20: 30" Professional Series Handle | MS36HNDL20: 36" Masterpiece® Series Handle | MS30HNDL20: 30" Masterpiece® Series Handle | FRAMEKIT10: Freedom® Frame Kit | 30HFGALBIN: 30-Inch Half Gallon Bin | SPRODBIN10: Small Produce Bin | LPRODBIN10: Large Produce Bin | 30PRODRAIL: 30-Inch Produce Railing | REPLFLTR55: Freedom® Water Filter Replacement | HEATRKIT20 – 13W @ 120V: Freedom® Heater Kit | |||||
Accessories
• TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel For use with Handle
• TFL30IB905: 30-Inch 2-Door Flat Stainless Steel Door Panel, Handleless
• PR36HNDL20: 36" Professional Series Handle
• PR30HNDL20: 30" Professional Series Handle
• MS36HNDL20: 36" Masterpiece® Series Handle
• MS30HNDL20: 30" Masterpiece® Series Handle
• FRAMEKIT10: Freedom® Frame Kit
• 30HFGALBIN: 30-Inch Half Gallon Bin
• SPRODBIN10: Small Produce Bin
• LPRODBIN10: Large Produce Bin
• 30PRODRAIL: 30-Inch Produce Railing
• REPLFLTR55: Freedom® Water Filter Replacement
• HEATRKIT20 – 13W @ 120V: Freedom® Heater Kit
• TFL30IB905: 30-Inch 2-Door Flat Stainless Steel Door Panel, Handleless
• PR36HNDL20: 36" Professional Series Handle
• PR30HNDL20: 30" Professional Series Handle
• MS36HNDL20: 36" Masterpiece® Series Handle
• MS30HNDL20: 30" Masterpiece® Series Handle
• FRAMEKIT10: Freedom® Frame Kit
• 30HFGALBIN: 30-Inch Half Gallon Bin
• SPRODBIN10: Small Produce Bin
• LPRODBIN10: Large Produce Bin
• 30PRODRAIL: 30-Inch Produce Railing
• REPLFLTR55: Freedom® Water Filter Replacement
• HEATRKIT20 – 13W @ 120V: Freedom® Heater Kit
Door Hinge: Right
