Description
About this Product

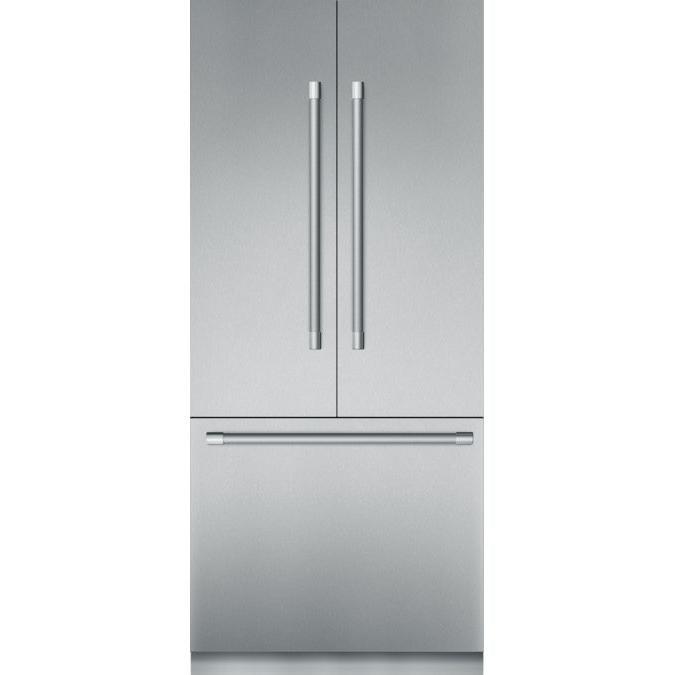

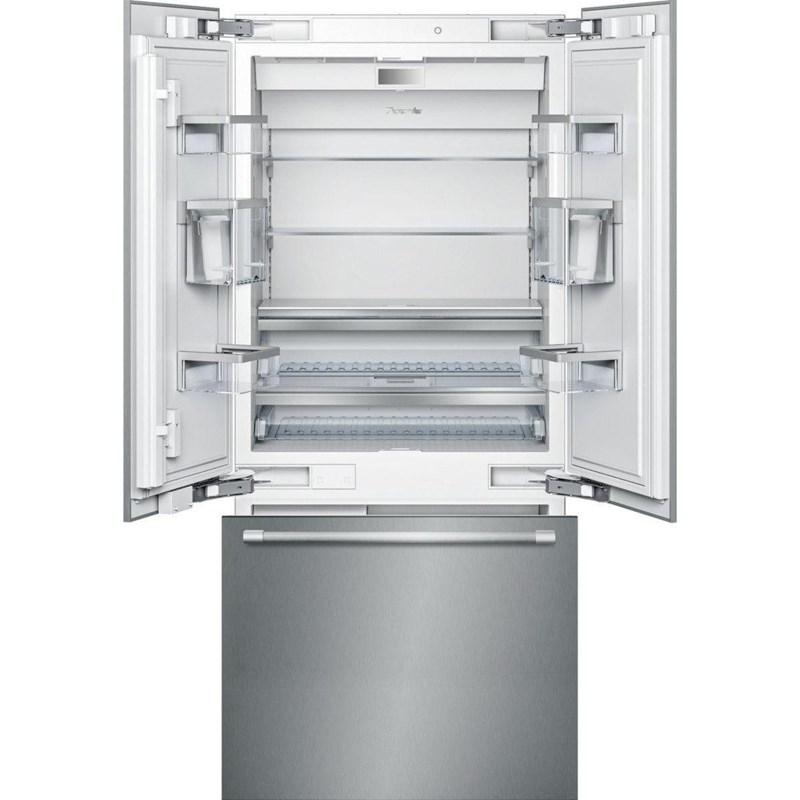

Thermador 36" custom panel ready, french-door bottom freezer refrigerator with SoftClose® drawers. This model features a Freedom® hinge, all-LED sidewall theater lighting, SuperFreeze® and a door alarm. Image shown with panels, sold separately.
Features
- SOFTCLOSE® DRAWERS — Softclose® drawers and produce bins for easy and controlled storage
- THERMAFRESH SYSTEM — Thermafresh system, humidity and temperature controlled drawers
- OPEN DOOR ASSIST — Open door assist automatic door opening with just a slight push or a pull
- FREEDOM® HINGE — Engineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
- DELICATE PRODUCE BINS — Avoid bruised produce and damaged herbs. Store your fresh-from-the-garden fruits and vegetables with removable and luxuriously soft-close Delicate Produce Bins.
- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Warranty Details (en)
Specifications
| Total | 19.4 cu. ft. | Refrigerator | 13.9 cu. ft. | Freezer | 5.5 cu. ft. |
| Installation Type | Built-In | Door Hinge | Left and Right | Manufacturer Color | Panel Ready |
| Series Name | Freedom® | Color | Panel Ready | Refrigerator Type | French 3-Door |
| Counter-Depth | N | Energy Star Certified | Y | Sabbath Mode | Y |
| Frost Free | Y | Door Alarm | Y | Interior Light | Y |
| Digital Display | Y | Crisper Drawers | Y | Gallon Door | Y |
| Wi-Fi | Y | Height (With Hinge) | 212.73 cm | Width | 90.8 cm |
| Depth (Without Handles) | 60.96 cm | Weight | 244.94 kg | Additional Dimensions | Required cutout size (HxWxD): 84" x 36" x 25" |
| Class Width | 35" to 37.9" | Class Height | 70" and More | Dispenser Features | Ice Maker with Diamond Ice System |
| Ice System | Interior | Water System | None | UPC# | 825225947387 |
| Technologies Freedom® Hinge | SoftClose® Drawers | SuperCool | ThermaFresh System | SuperFreeze® | Home Connect | |||||
| Additional Freezer Information Freezer: -11°F (-24°C) to 7°F (-14°C) | SuperFreeze®: -11°F (-24°C) for approximately 60 hours | 1 Freezer Drawer | |||||
| Information 350 W | 120 V | 60 Hz | 15 A | 585 kWh | |||||
| Warranty 2-Year Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect | 6-Year Limited Warranty for Sealed Refrigeration System**; Parts and Labor | 12-Year Limited Warranty for Sealed Refrigeration System**; Parts Only | Lifetime Warranty for Stainless Steel Rust-Through | **Sealed refrigeration system includes compressor, evaporator, condenser, dryer / strainer and connection tubing | |||||
| Optional TFL36IT800: 36-Inch French Door Flat Stainless Steel Door Panel | 3DHFGALBIN: French Door Half Gallon Bin | MS36HNDL10: 36-Inch Masterpiece® Handle | MS30HNDL10: 30-Inch Masterpiece® Handle | PR36HNDL20: 36-Inch Professional Series Handle | PR30HNDL20: 30-Inch Professional Series Handle | MS36HNDL20: 36-Inch Masterpiece® Series Handle | MS30HNDL20: 30-Inch Masterpiece® Series Handle | ICEBUCKETL: Large Ice Bucket | SPRODBIN10: Small Produce Bin | 3DPRODRAIL: French Door Produce Railing | REPLFLTR10: Freedom® Water Filter | SCRNFLTR10: By-Pass Filter for use with existing in-home water filtration systems | |||||
Accessories
• TFL36IT800: 36-Inch French Door Flat Stainless Steel Door Panel
• 3DHFGALBIN: French Door Half Gallon Bin
• MS36HNDL10: 36-Inch Masterpiece® Handle
• MS30HNDL10: 30-Inch Masterpiece® Handle
• PR36HNDL20: 36-Inch Professional Series Handle
• PR30HNDL20: 30-Inch Professional Series Handle
• MS36HNDL20: 36-Inch Masterpiece® Series Handle
• MS30HNDL20: 30-Inch Masterpiece® Series Handle
• ICEBUCKETL: Large Ice Bucket
• SPRODBIN10: Small Produce Bin
• 3DPRODRAIL: French Door Produce Railing
• REPLFLTR10: Freedom® Water Filter
• SCRNFLTR10: By-Pass Filter for use with existing in-home water filtration systems
• 3DHFGALBIN: French Door Half Gallon Bin
• MS36HNDL10: 36-Inch Masterpiece® Handle
• MS30HNDL10: 30-Inch Masterpiece® Handle
• PR36HNDL20: 36-Inch Professional Series Handle
• PR30HNDL20: 30-Inch Professional Series Handle
• MS36HNDL20: 36-Inch Masterpiece® Series Handle
• MS30HNDL20: 30-Inch Masterpiece® Series Handle
• ICEBUCKETL: Large Ice Bucket
• SPRODBIN10: Small Produce Bin
• 3DPRODRAIL: French Door Produce Railing
• REPLFLTR10: Freedom® Water Filter
• SCRNFLTR10: By-Pass Filter for use with existing in-home water filtration systems
Door Hinge: Left and Right
