Description
About this Product

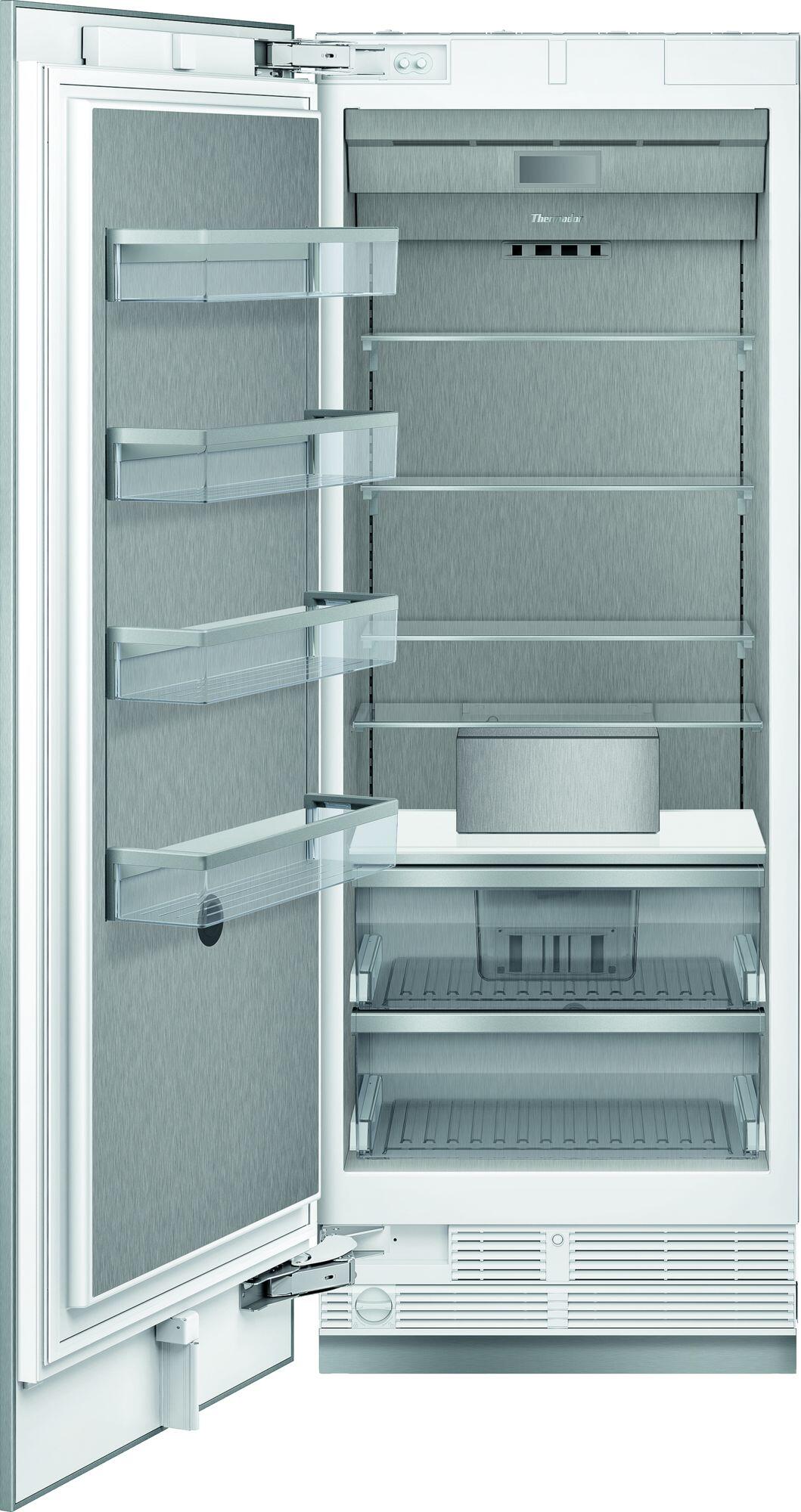

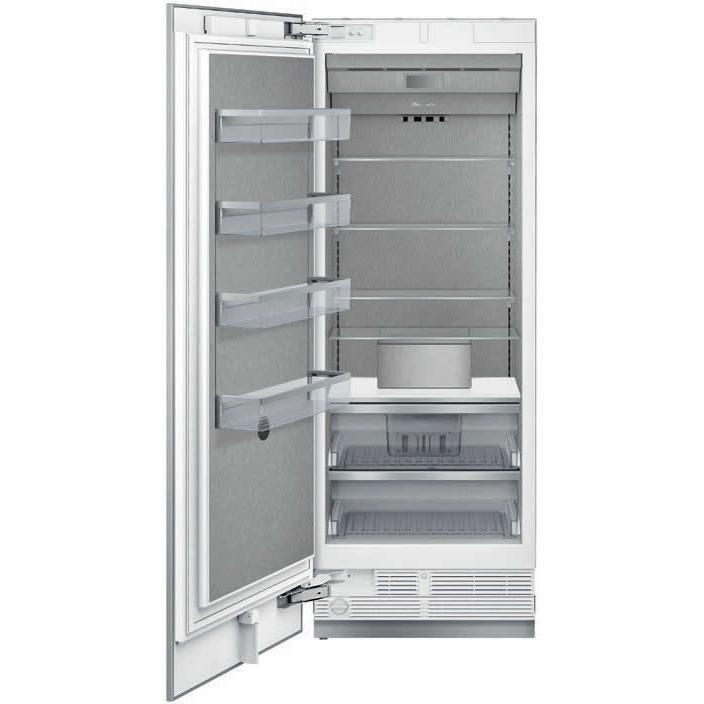

Thermador 30-inch Freedom® Collection Built-in Panel-Ready Freezer Column with internal ice maker. It features the Freedom® Hinge that enables true flush design, Auto Door Opening, full stainless steel inner liner and SoftClose® Drawers for easy and controlled storage. This sleek clean design offers the perfect symmetry when paired with additional columns.
Features
- DIAMOND ICE — An eye-catching addition to any party, Thermador Diamond Ice features a unique shape that keeps drinks cold, longer. Use Diamond Ice in your favorite craft cocktails to make a lasting impression.
- FREEDOM® HINGE — Engineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
- SOFTCLOSE® DRAWERS — Softclose® drawers for easy and controlled storage

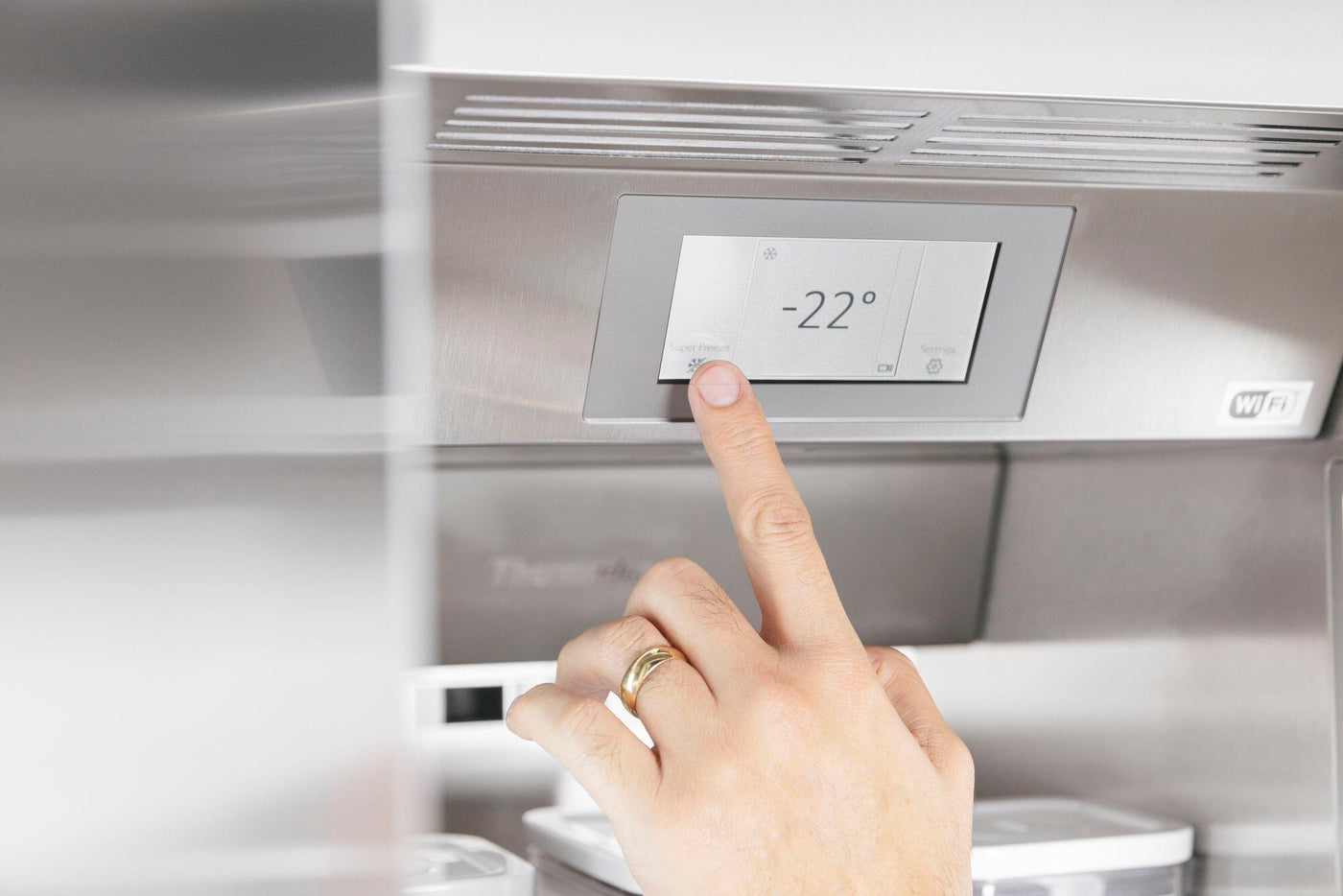

- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
- THEATER LIGHTING — See your ingredients in a new light. Theater-style, diffused lighting, ensures visibility while limiting hot spots.
- OPEN DOOR ASSIST — Let your favorite bottles catch the eye. A prominent display section allows you to place select wines front and center, so you can easily share with guests.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Additional documents(en)
Highlights
LED sidewall and Theater lighting | Freezer shelves: 4 | Adjustable shelves: 3 | Shelf material glass with aluminum profile | Full extension drawers @ 115° door opening angle | General use drawers: 2 | Door bins: 4 | Ice maker with Diamond ice system | Door open alarm | Open door assist | Dedicated evaporator and compressor system | Freezer temperature range: -11°F (-24°C) to 7°F (-14°C) | SuperFreeze® temperature range: -22°F (-30°C) for approximately 52 hours | Energy Saving (Economy) Mode temperature range: 3°F (-16°C) | Plug type: 120V-3 Prong
Specifications
| Size Range | 16 Cu.Ft. and Below | Series Name | Freedom® Collection | Color | Panel Ready |
| Type | Upright | Reversible Door | Y | Door Hinge | Left |
| Manufacturer Color | Panel Ready (custom panels sold separately) | Style | Built-In | Total Capacity | 15.8 cu. ft. |
| Lighting | Y | Defrost System / Frost Free | Y | Digital Temperature Display | Y |
| Wi-Fi | Y | Alarm | Y | Ice Machine | Y |
| Ice and Water Dispenser | Interior Ice Maker | Weight | 180.53 kg | Energy Star Certified | Y |
| Additional Certifications and Approvals | CSA | Sabbath Mode | Y | Width | 75.57 cm |
| Height (With Hinge) | 213.36 cm | Depth (Without Handles) | 60.96 cm | UPC# | 825225959519 |
| Technologies Home Connect™ (Wi-Fi Enabled) | Freedom® Hinge | SoftClose® Door | SoftClose® Drawers | SuperFreeze® | |||||
| Information Watts: 350 W | Current: 15 A | Volts: 110-120 V | Frequency: 60 Hz V | |||||
| Warranty 2 Year: Limited, entire appliance, parts and labor on any part of the refrigerator that fails because of a manufacturing defect | 3rd to 6th Year: Limited warranty for sealed refrigeration system on parts and labor | 7th to 12th Year: Limited warranty for sealed refrigeration system on parts only | Lifetime: Limited warranty for stainless steel rust-through | |||||

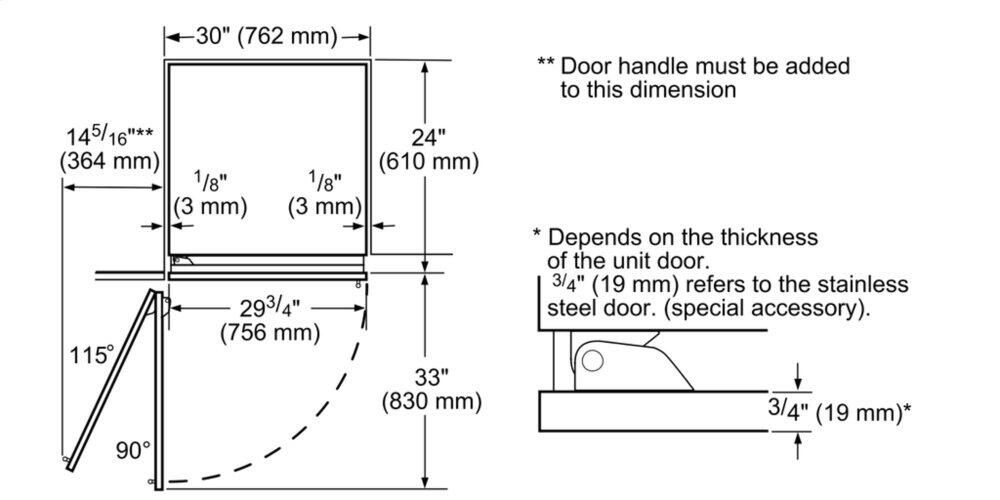

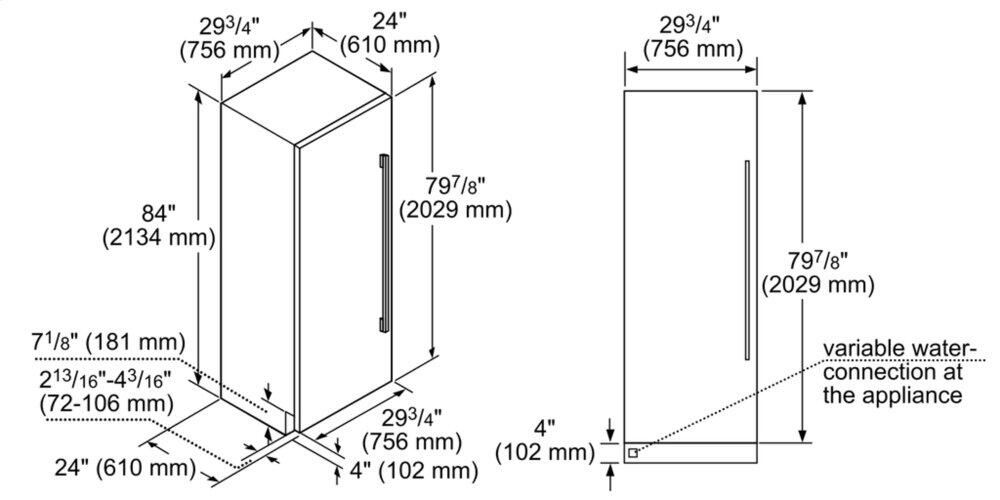

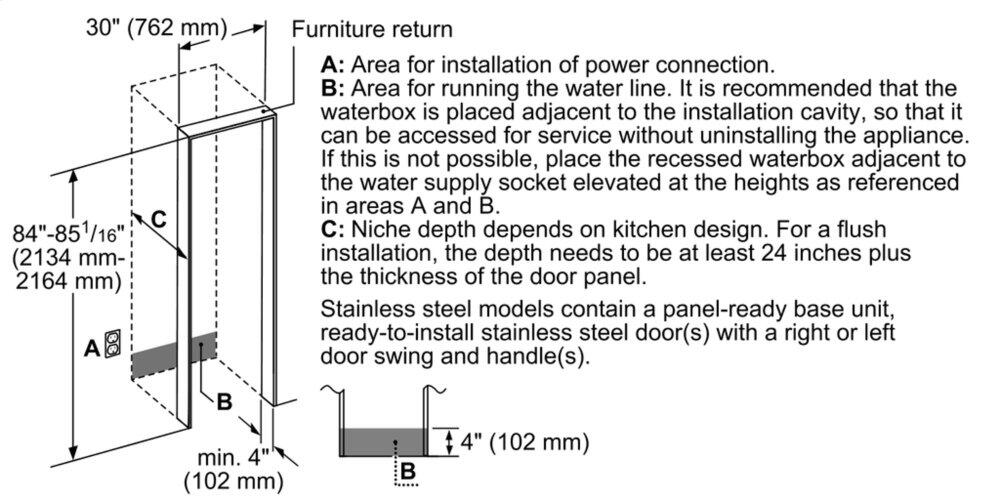

| Additional Dimensions Required cutout size (H x W x D): 84" x 30" x 25" | Power cord length: 118" | |||||
Door Hinge: Left
