Description
About this Product

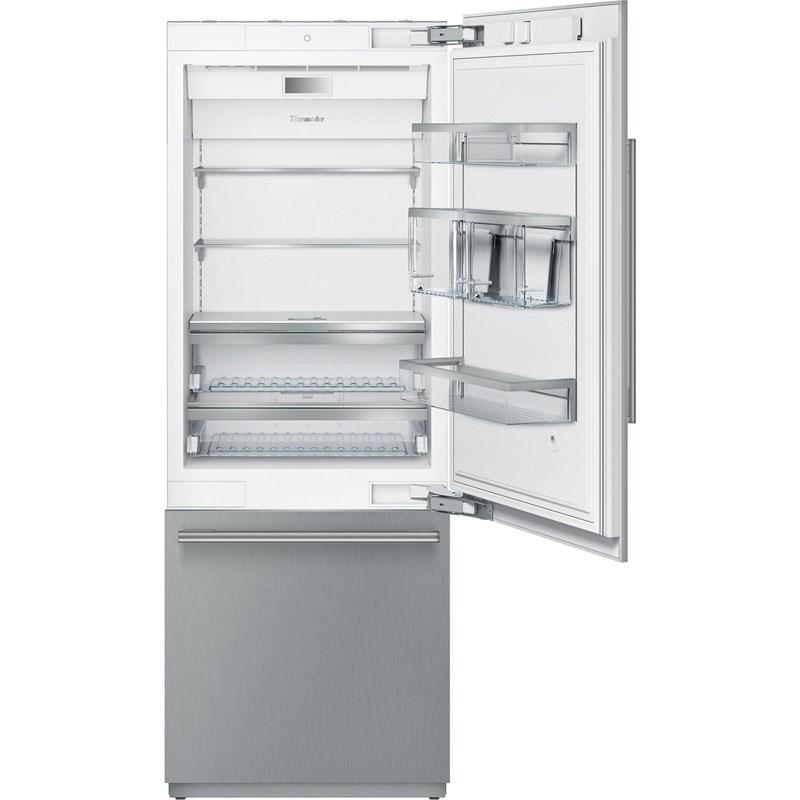

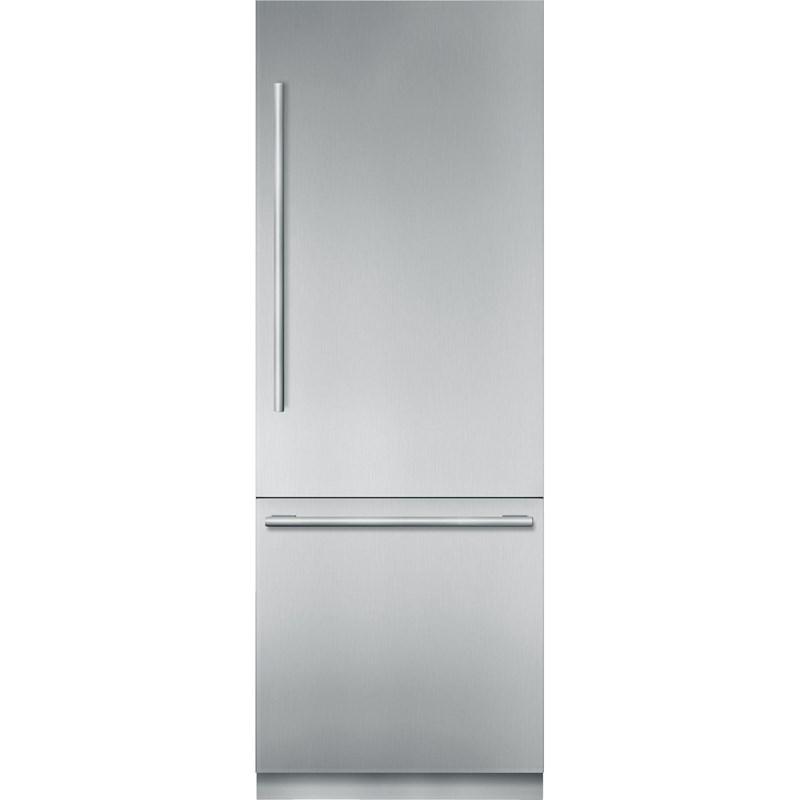

This Thermador 30" built-in, bottom freezer with Masteriece® handles features a Freedom® hinge, the ThermaFresh System, SuperFreeze® and a TFT control panel.
Features
- FREEDOM® HINGE — Freedom® hinge enables true flush design
- OPEN DOOR ASSIST — Open door assist automatic door opening with just a slight push or a pull
- THERMAFRESH SYSTEM — Thermafresh system, humidity and temperature controlled drawers
- SOFTCLOSE® DRAWERS — Softclose® drawers and produce bins for easy and controlled storage
- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
- COOL AIR FLOW TECHNOLOGY — Thermador refrigerators and freezers have never been more energy efficient. Cool Air Flow—upgraded with a new, quieter fan—is proprietary Thermador technology that optimizes and evenly distributes cold air throughout all parts of the unit.

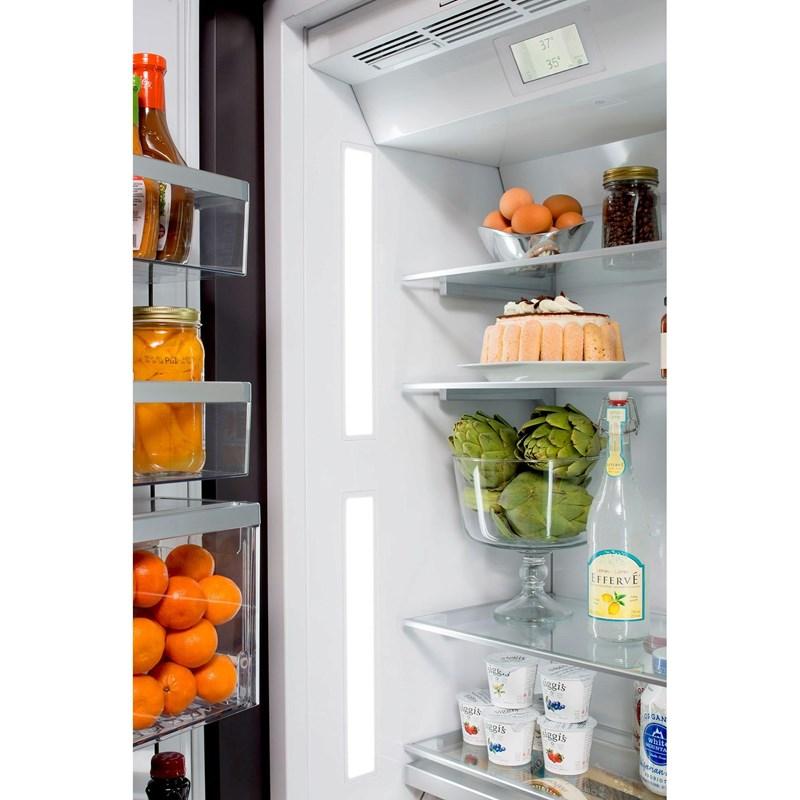

- THEATER LIGHTING — See your ingredients in a new light. Theater-style, diffused and filtered lighting, ensures visibility while limiting hot spots.
- ALL LEG LEVELING — All-leg leveling allows for quicker and faster installation.
Documents
Product Sheet (en)
Dimensions Guide (en)
Warranty Details (en)
Specifications
| Total | 16.2 cu. ft. | Refrigerator | 11.4 cu. ft. | Freezer | 4.8 cu. ft. |
| Installation Type | Built-In | Door Hinge | Right | Manufacturer Color | Stainless Steel |
| Series Name | Freedom® | Color | Stainless Steel | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Energy Star Certified | Y | Sabbath Mode | Y |
| Frost Free | Y | Door Alarm | Y | Interior Light | Y |
| Deli Drawer/Meat | Y | Crisper Drawers | Y | Gallon Door | Y |
| Wi-Fi | N | Height (With Hinge) | 213.4 cm | Width | 75.6 cm |
| Depth (Without Handles) | 61.0 cm | Weight | 185.07 kg | Additional Dimensions | Required Cutout Size (H x W x D): 84" x 30" x 25" |
| Class Width | 29" to 31.9" | Class Height | 70" and More | Dispenser Features | Ice Maker with Diamond Ice System |
| Ice System | Interior | Water System | None | UPC# | 825225919148 |
| Technologies Freedom® Hinge | ThermaFresh System | SoftClose® Drawers | SuperCool | SuperFreeze® | |||||
| Additional Freezer Information Freezer: -9°F (-23°C) to 7°F (14°C) | SuperFreeze®: -9°F (-23°C) for approximately 52 hours | 1 Drawer | |||||
| Information 511 kWh | 588 W | 120 V | 60 Hz | 15 A | |||||
Door Hinge: Right
