Description
About this Product

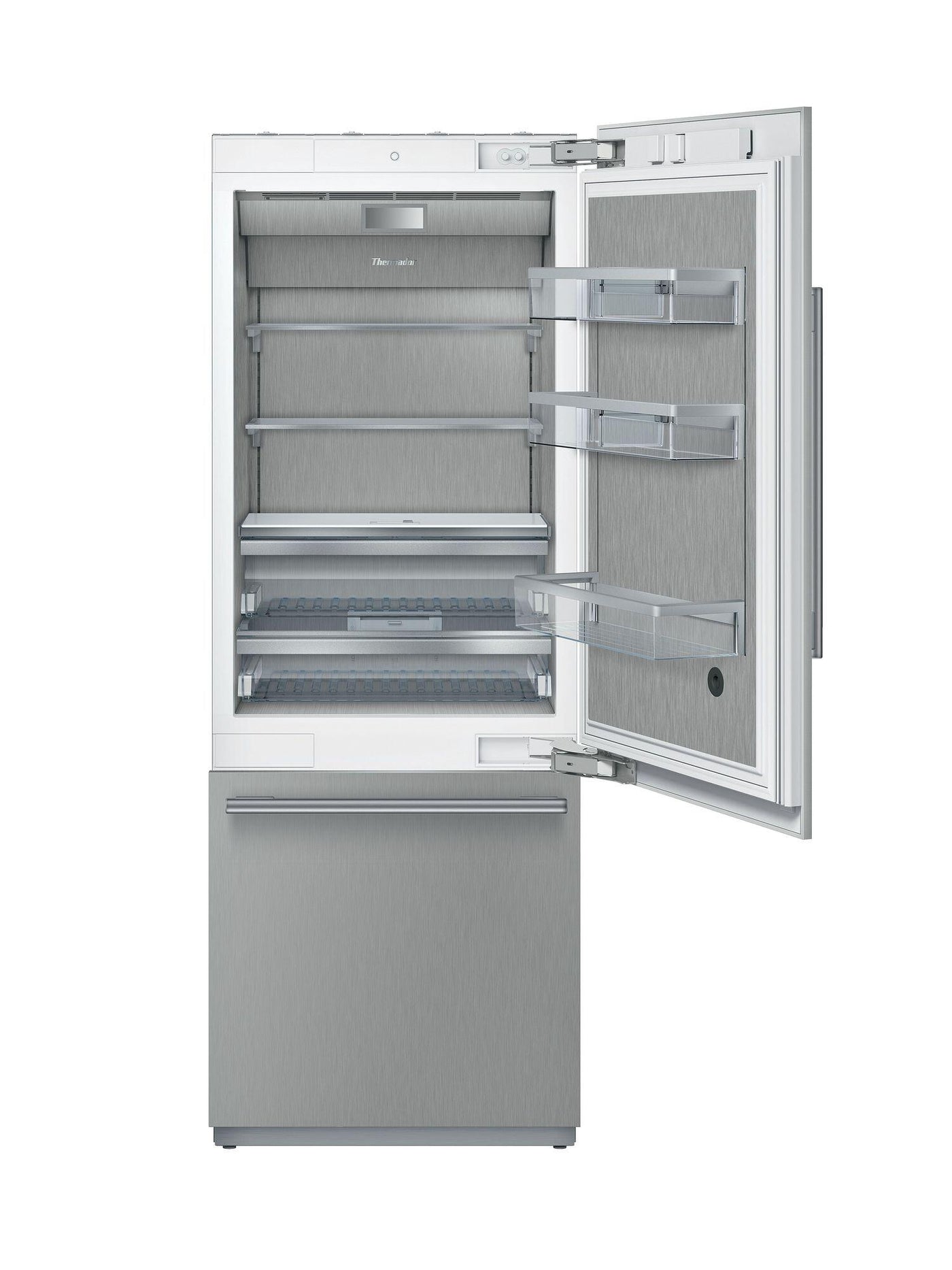

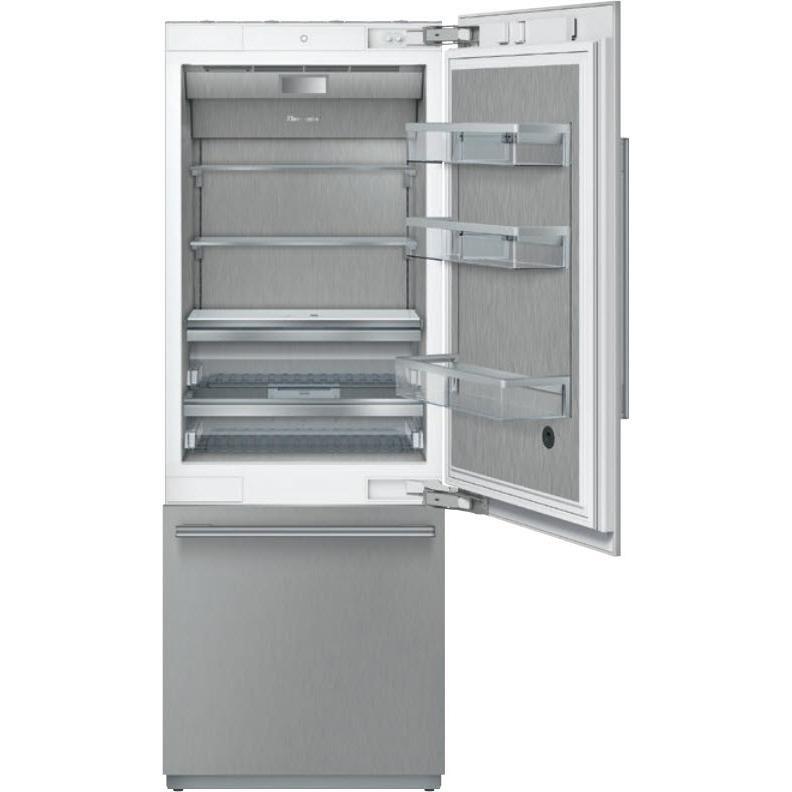

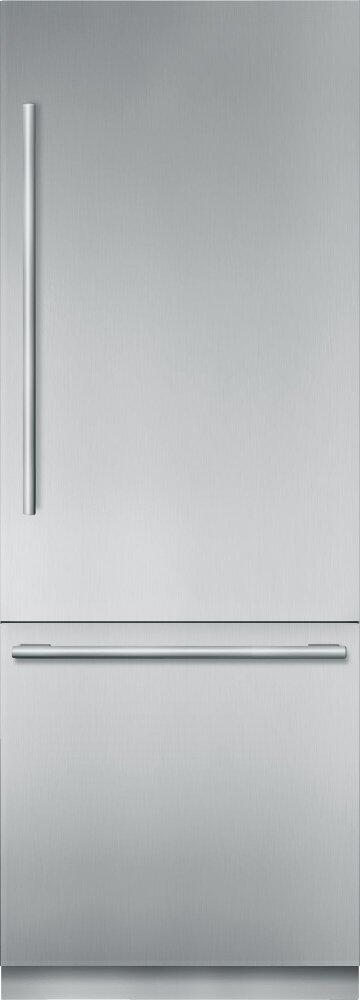

This 30-inch wide Thermador bottom freezer refrigerator features Home Connect™ (Wi-Fi Enabled), LED sidewall and theater lighting, a TFT control panel and a total capacity of 16.0 cu.ft.
Features
- FREEDOM® HINGE — Engineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
- OPEN DOOR ASSIST — Open door assist automatic door opening with just a slight push or a pull
- SOFTCLOSE® DRAWERS — Softclose® drawers and produce bins for easy and controlled storage
- TFT DISPLAY — A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
Documents
Product Sheet (en)

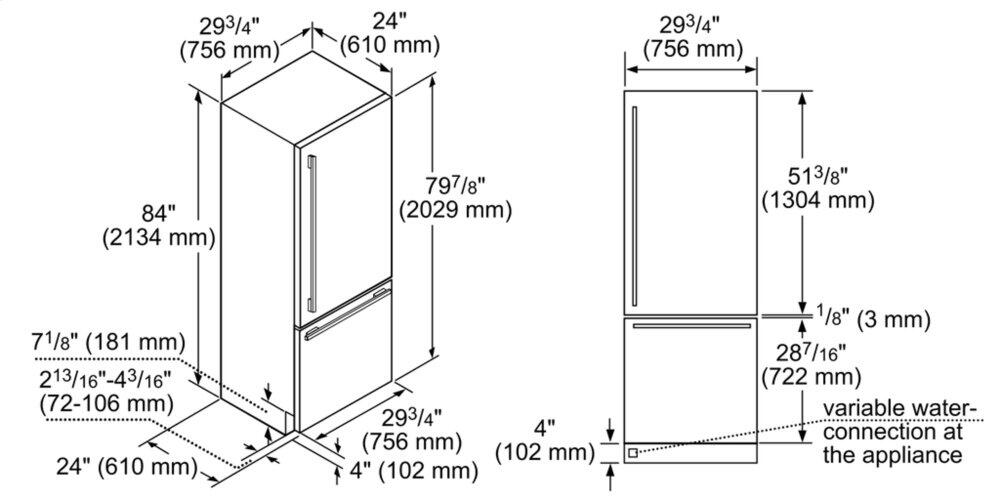

Dimensions Guide (en)
Energy Guide (en)
Specifications
| Total | 16.0 cu. ft. | Refrigerator | 11.5 cu. ft. | Freezer | 4.5 cu. ft. |
| Installation Type | Built-In | Door Hinge | Right | Manufacturer Color | Stainless Steel |
| Series Name | Freedom® Collection, Masterpiece® Series Handles | Color | Stainless Steel | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Energy Star Certified | Y | Sabbath Mode | Y |
| Frost Free | Y | Interior Light | Y | Electronic Sensors | Y |
| Digital Display | Y | Crisper Drawers | Y | Gallon Door | Y |
| Wi-Fi | Y | Height (With Hinge) | 202.9 cm | Width | 75.6 cm |

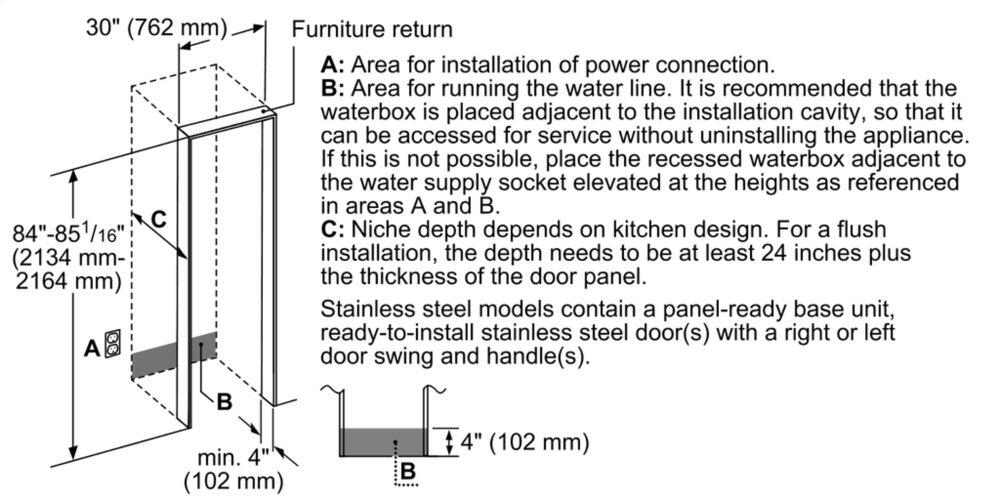

| Depth (Without Handles) | 61.0 cm | Weight | 218.18 kg | Additional Dimensions | Required Cutout Size (H x W x D): 84" x 30" x 25" |
| Class Width | 29" to 31.9" | Class Height | 70" and More | Filtration | Y |
| Dispenser Features | Ice Maker with Diamond Ice System | Ice System | Interior | Water System | None |
| UPC# | 825225960447 | ||||
| Technologies Home Connect™ (Wi-Fi Enabled) | SoftClose® Door | SoftClose® Drawers | Carbon Air Filter | SuperCool | SuperFreeze® | Freedom® Hinge | ThermaFresh System | |||||
| Additional Freezer Information 2 Baskets | Energy Saving (Economy) Mode: Freezer 3°F (-16°C) | SuperFreeze® -22°F (-30°C) for Approximately 52 Hours | |||||
| Information 470 kWh | 110 V - 120 V | 60 Hz | 15 A | |||||
| Warranty Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect 2 Year | Limited Warranty for Sealed Refrigeration System; Parts and Labor 3rd to 6th Year | Limited Warranty for Sealed Refrigeration System; Parts Only 7th to 12th Year | Limited Warranty for Stainless Steel Rust-Through Lifetime | |||||
| Optional 30-Inch Half Gallon Bin 30HFGALBIN | Large Produce Bin LPRODBIN10 | 30-Inch Produce Railing 30PRODRAIL | Freedom® Water Filter REPLFLTR55 | Freedom® Frame Kit FRAMEKIT10 | Freedom® Heater Kit HEATRKIT20 | |||||
Accessories
• 30-Inch Half Gallon Bin 30HFGALBIN
• Large Produce Bin LPRODBIN10
• 30-Inch Produce Railing 30PRODRAIL
• Freedom® Water Filter REPLFLTR55
• Freedom® Frame Kit FRAMEKIT10
• Freedom® Heater Kit HEATRKIT20
• Large Produce Bin LPRODBIN10
• 30-Inch Produce Railing 30PRODRAIL
• Freedom® Water Filter REPLFLTR55
• Freedom® Frame Kit FRAMEKIT10
• Freedom® Heater Kit HEATRKIT20
Door Hinge: Right
