Description
About this Product

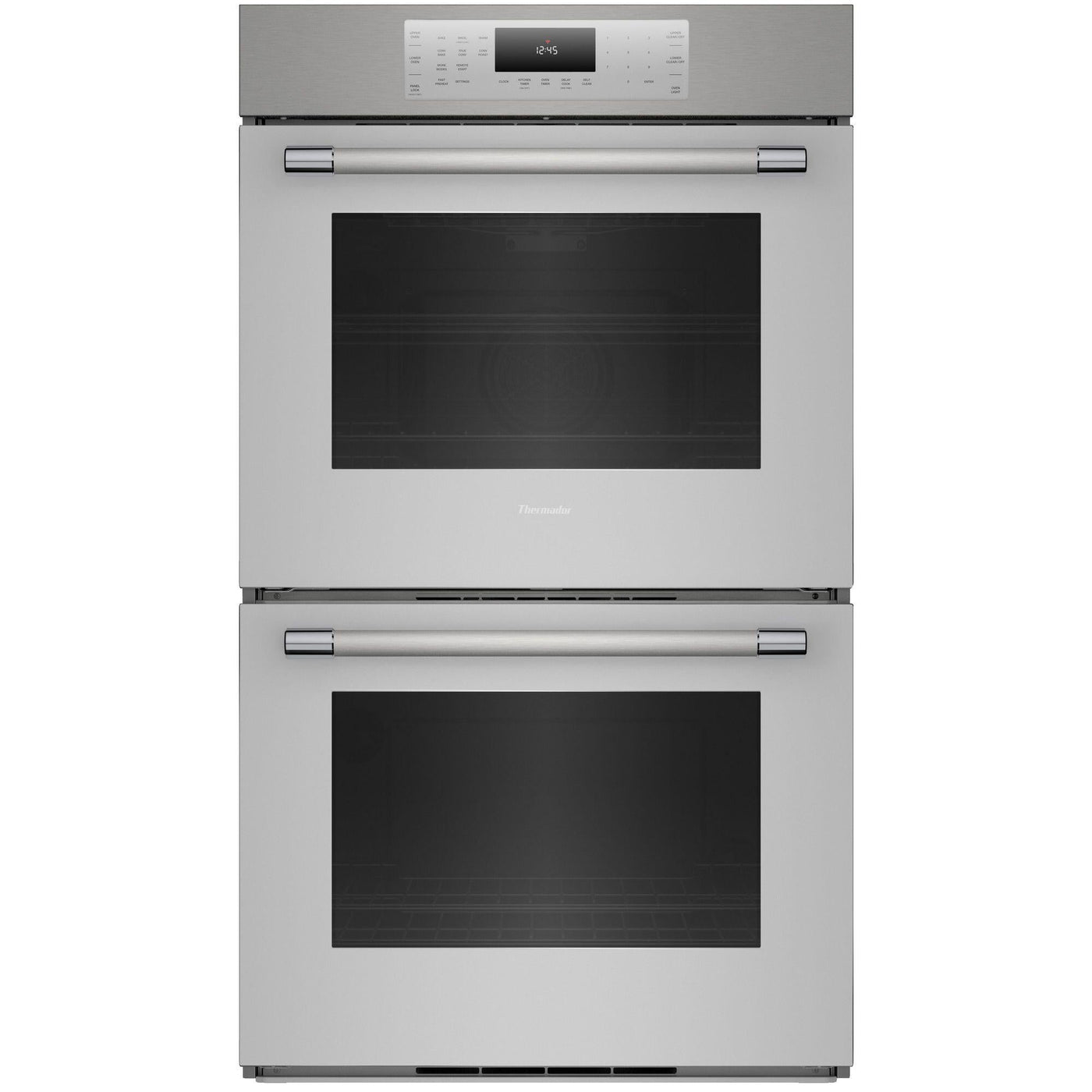

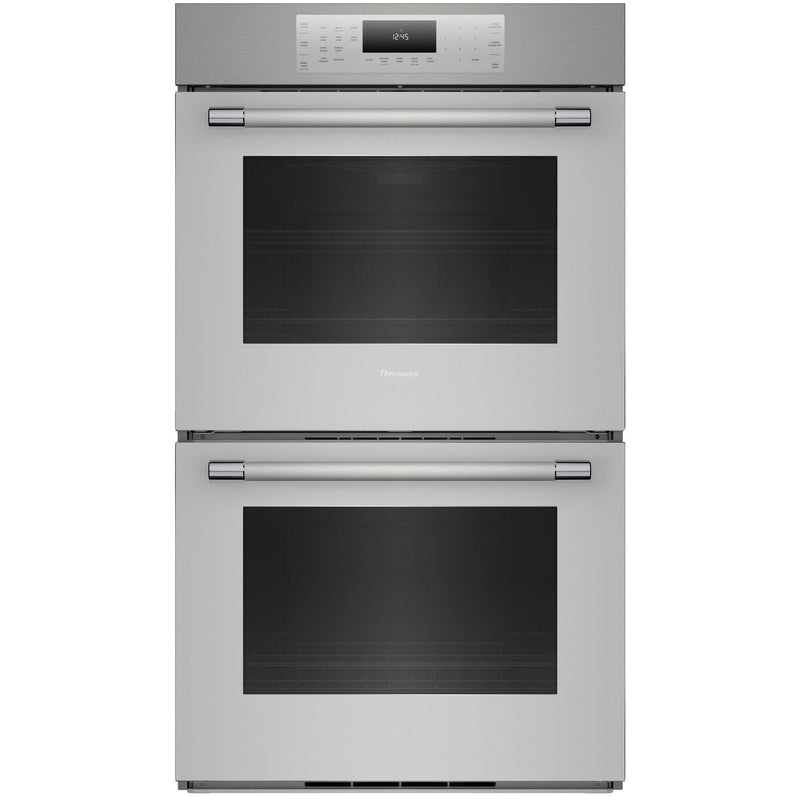

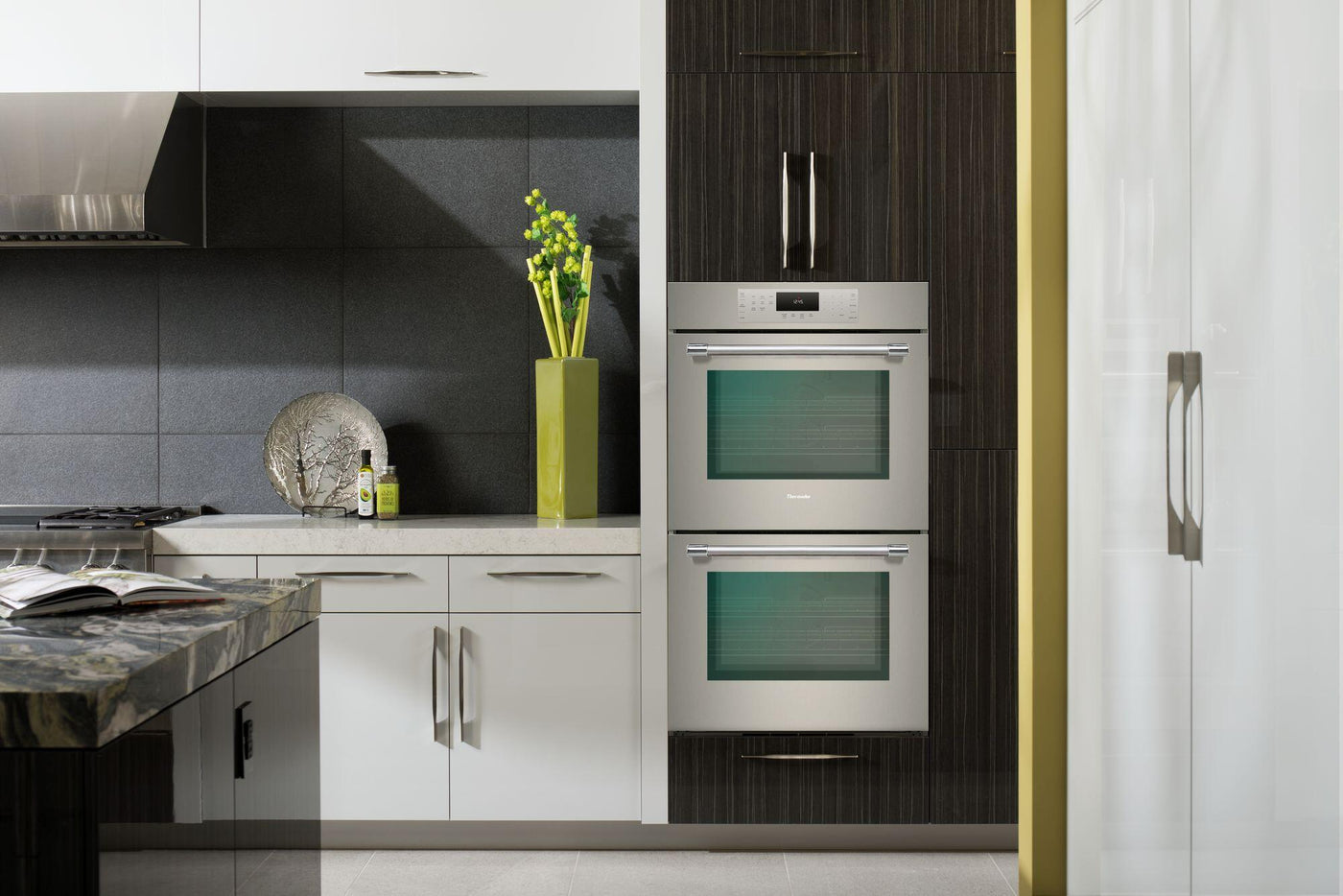

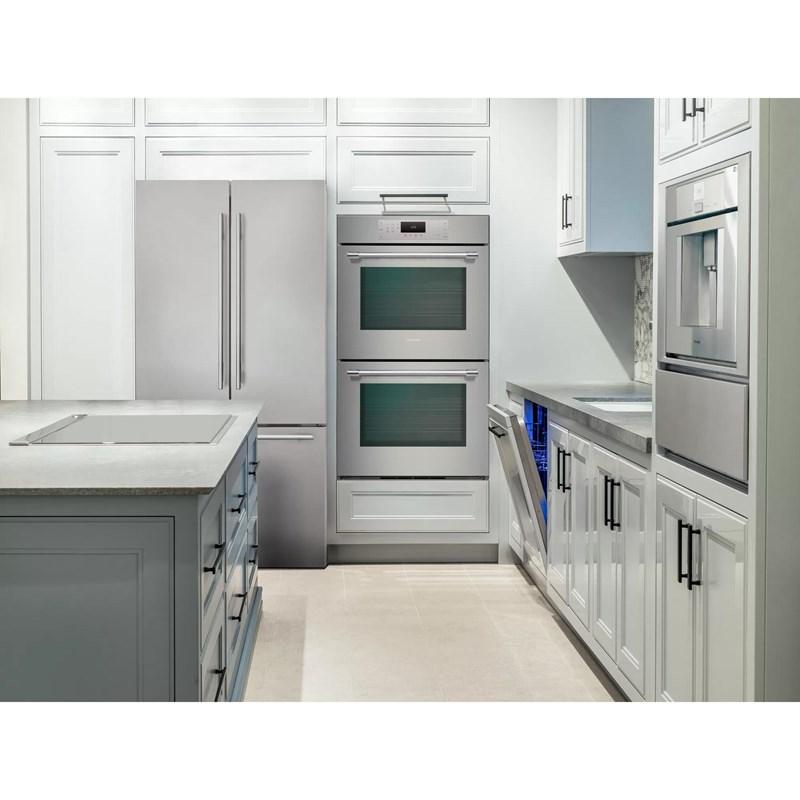

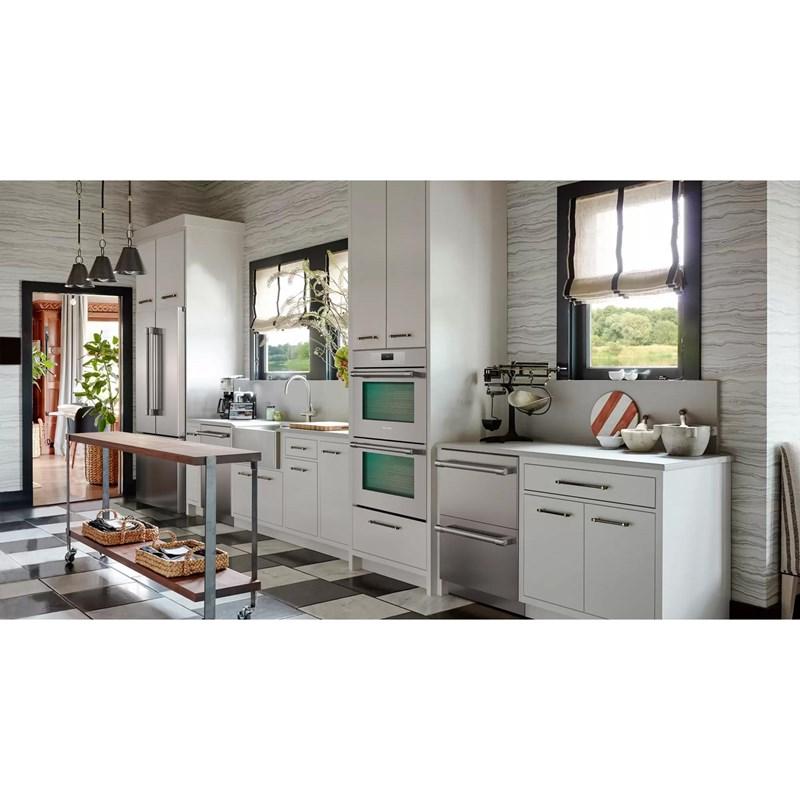

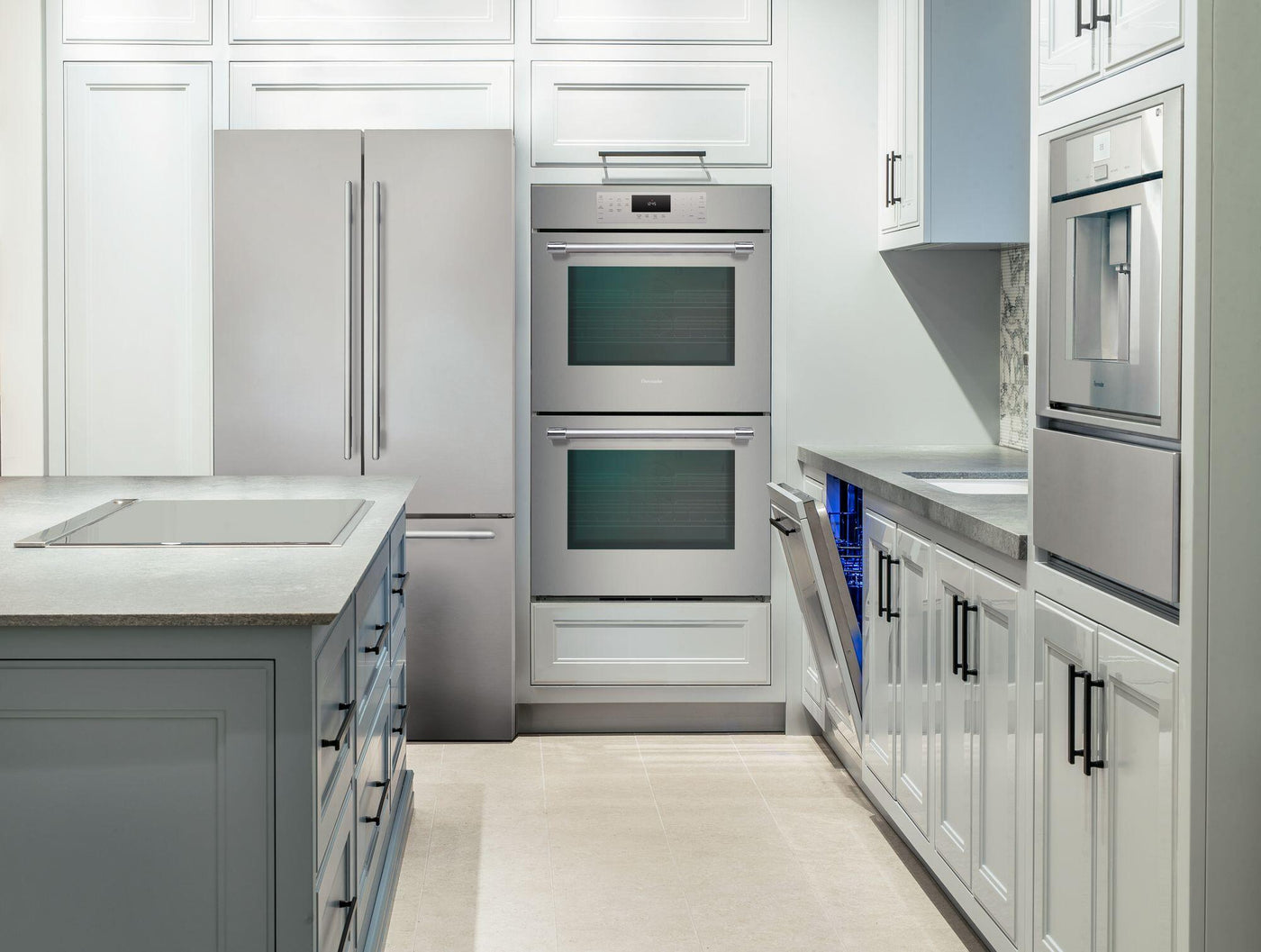

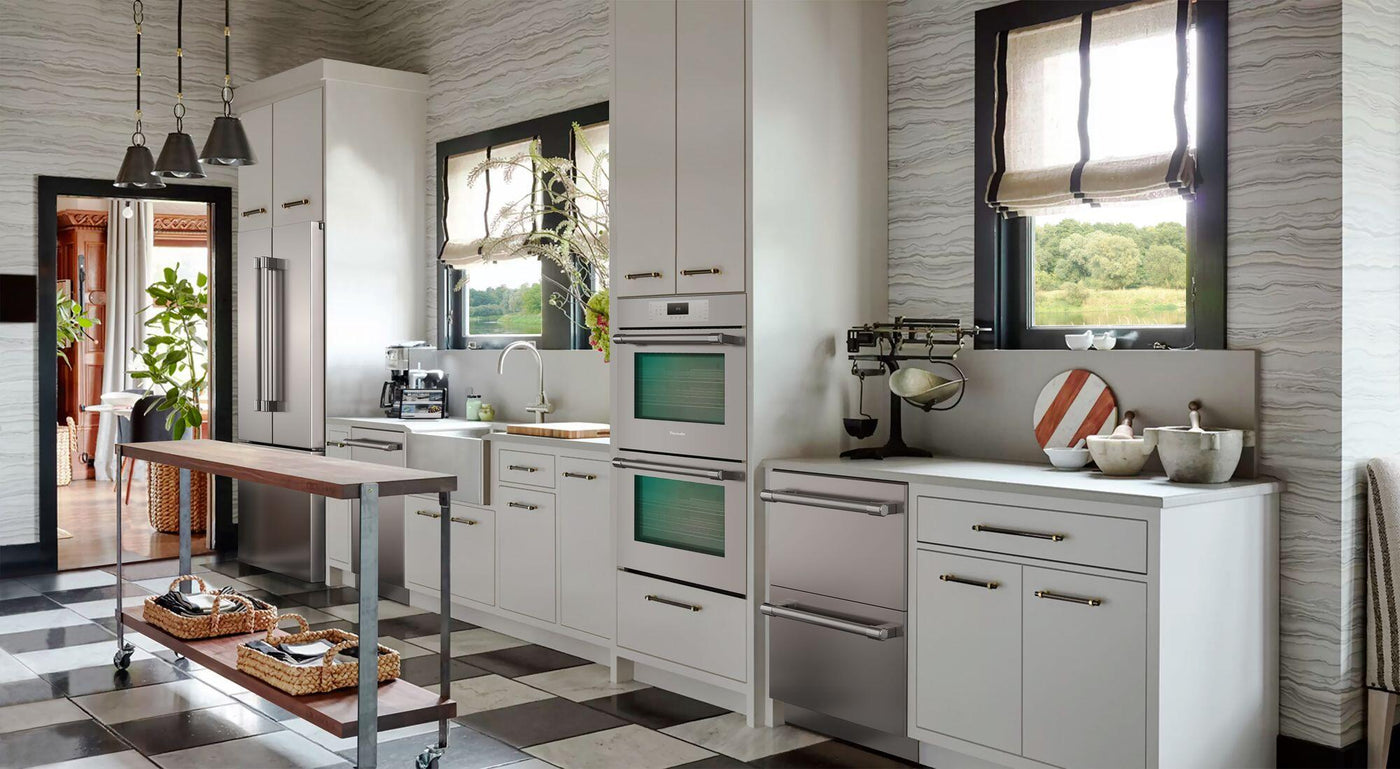

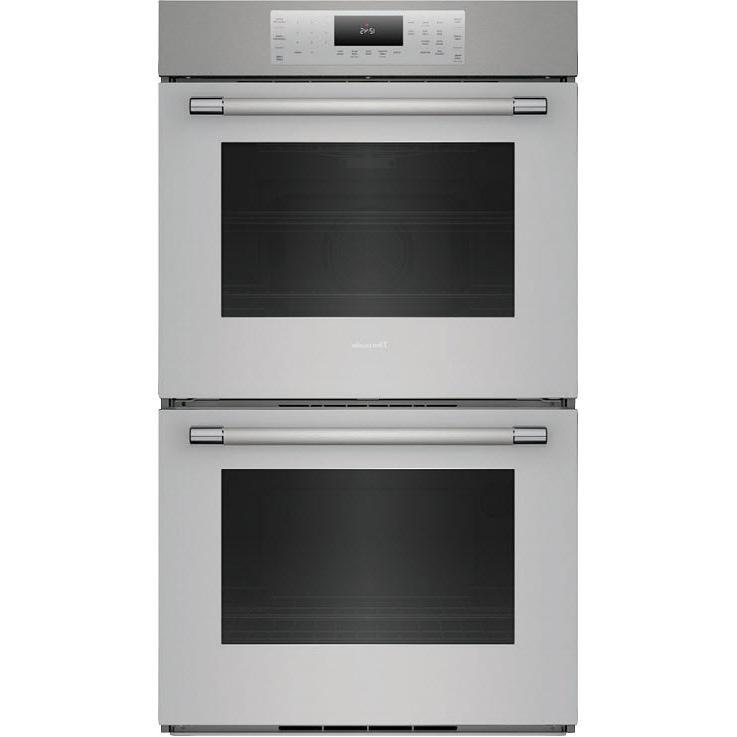

This 30-inch wide Thermador wall oven features true convection technology, a self-cleaning oven, Wi-Fi connectivity and a total oven capacity of 9.2 cu.ft. (both ovens)
Features
- SOFTCLOSE® DOOR — SoftClose® hinges prevent slamming and ensure ultra smooth closing of the oven door.
- TRUE CONVECTION — The thoughtfully engineered and perfectly executed True Convection baffle system allows hot air to flow precisely and evenly around food for perfect results and no flavor transfer.
- ACCESS® TELESCOPIC RACKS — Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access to your meal. Plus, their robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Specifications
| UPC# | 825225964148 | Digital Temperature Display | Y | Convection | Y |
| Wi-Fi | Y | Clock | Y | Oven Light | Y |
| Self-Cleaning | Y | Main Oven Capacity | 4.6 cu. ft. | Total Capacity | 9.2 cu. ft. |
| Fuel Type | Electric | Secondary Oven Capacity | 4.6 cu. ft. | Series Name | Masterpiece® |
| Appliance Care | Self-clean mode cleans interior walls and rack supports in aslittle as 2 hours (Upper and lower oven) | Color | Stainless Steel | Manufacturer Color | Stainless Steel |

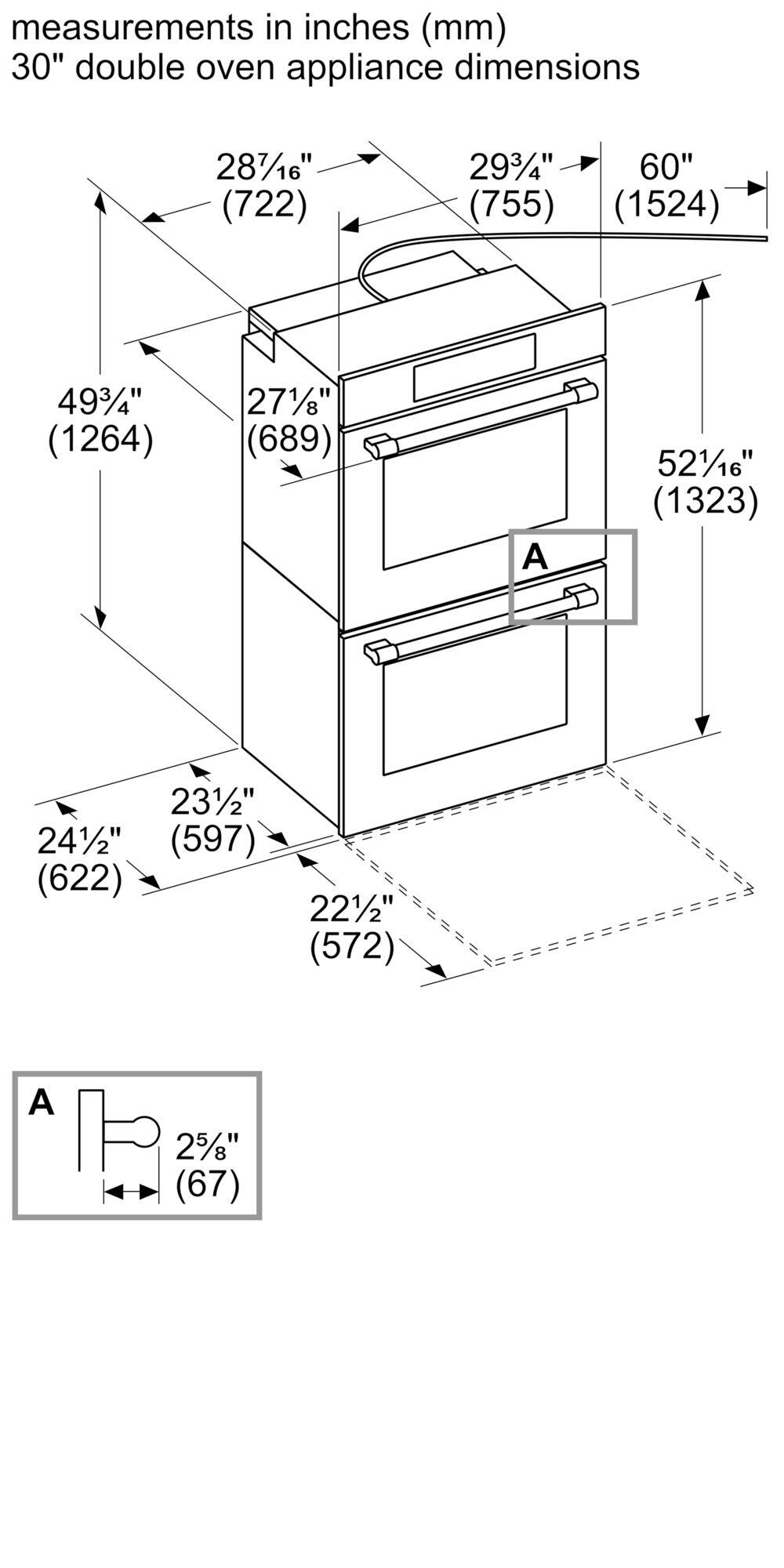

| Class Width | 30" | Width | 75.57 cm | Weight | 134.26 kg |
| Height | 132.3 cm | Depth | 62.23 cm | Warranty | Limited 2 Years Parts and Labor |
| Programs Upper Oven: | Bake | Variable Broil (hi & low) | Roast | Warm | Proof Dough | Convection Bake | Convection Broil | Convection Roast | Pizza | True Convection | Fast Preheat | Lower Oven: | Bake | Variable Broil (hi & low) | Roast | Warm | Sabbath | |||||
| Technologies True Convection Technology | Home Connect (Wi-Fi Enabled) | SoftClose® Hinges | |||||

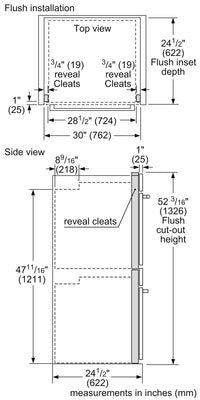

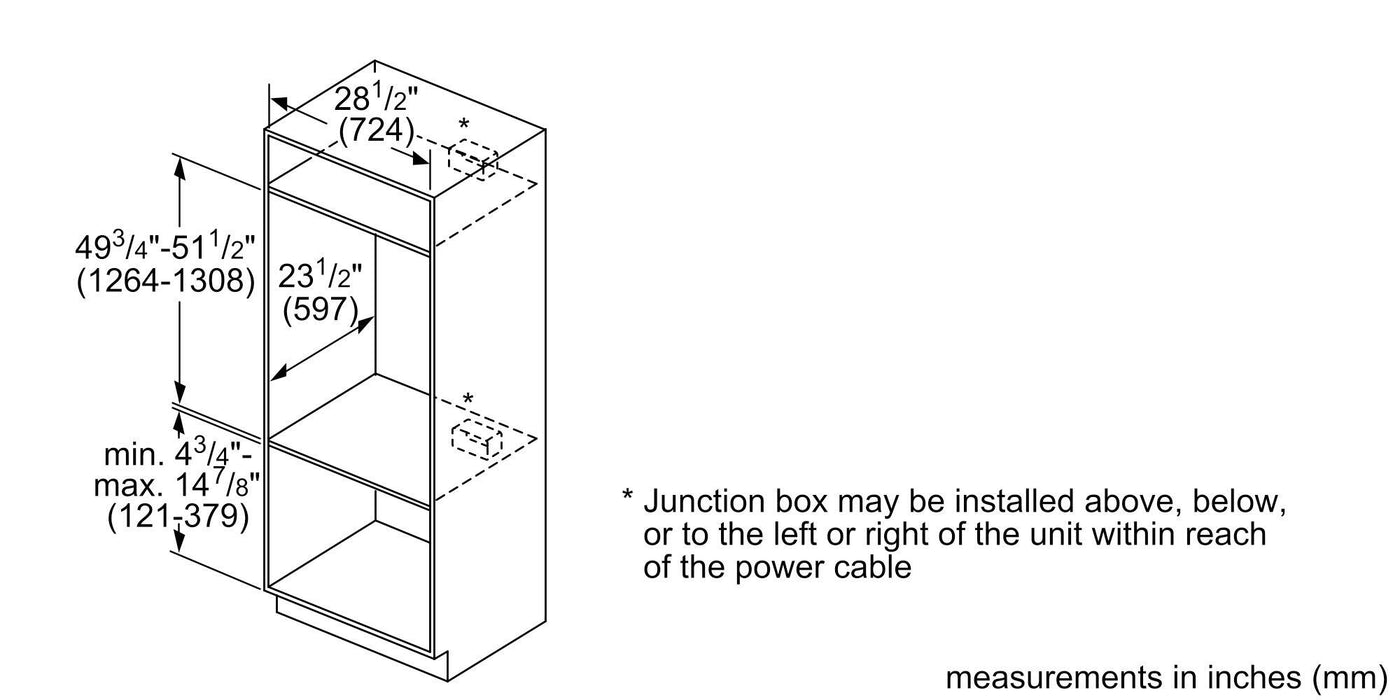

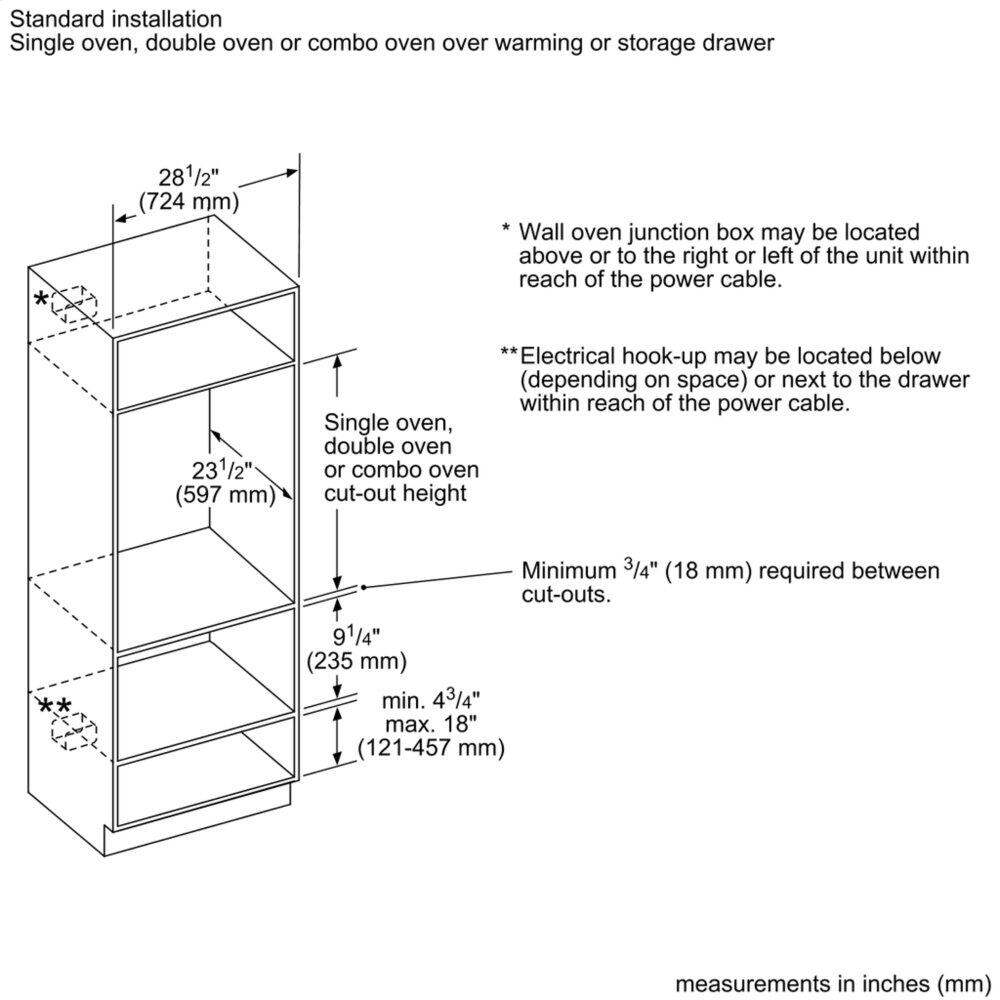

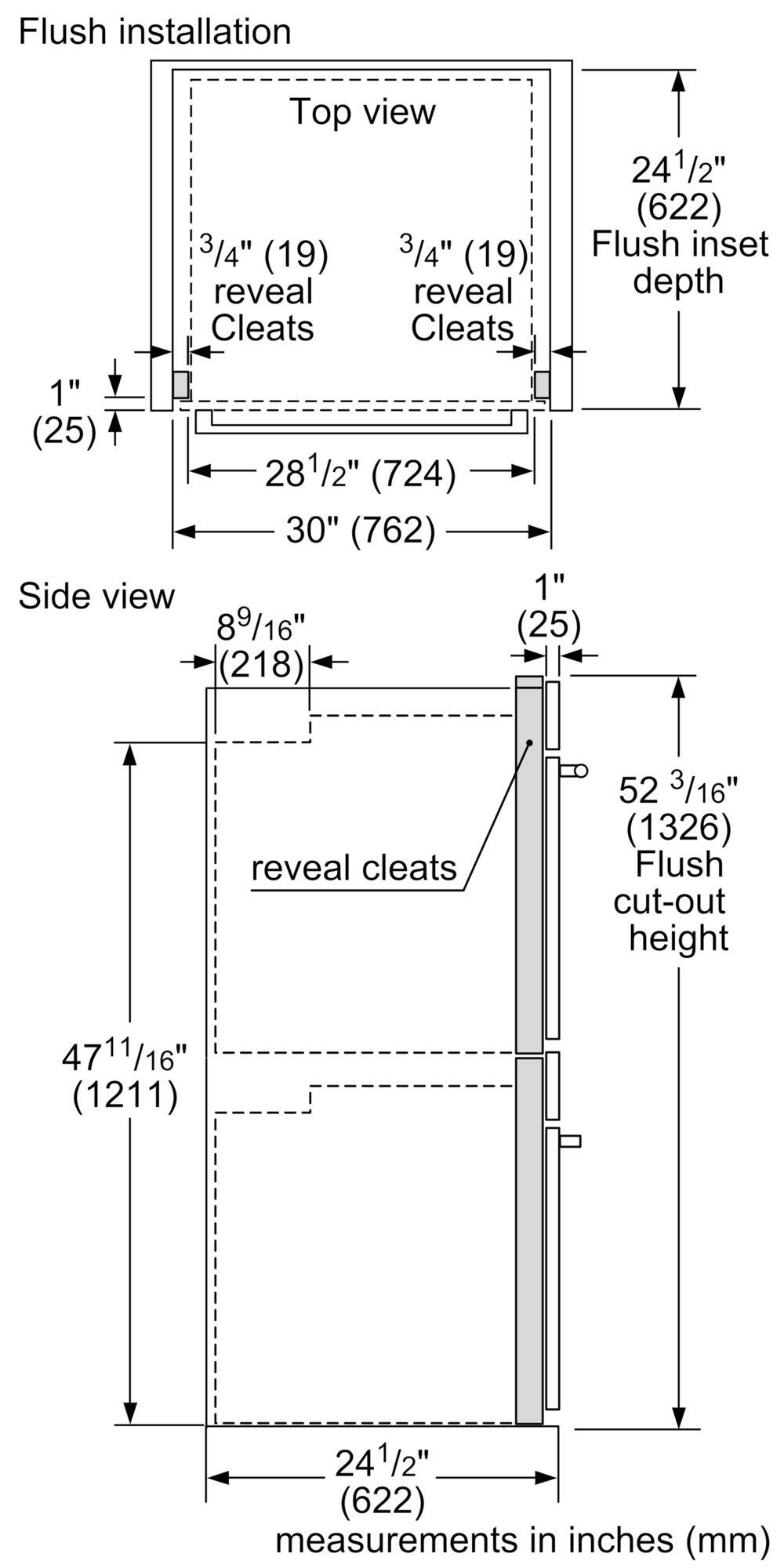

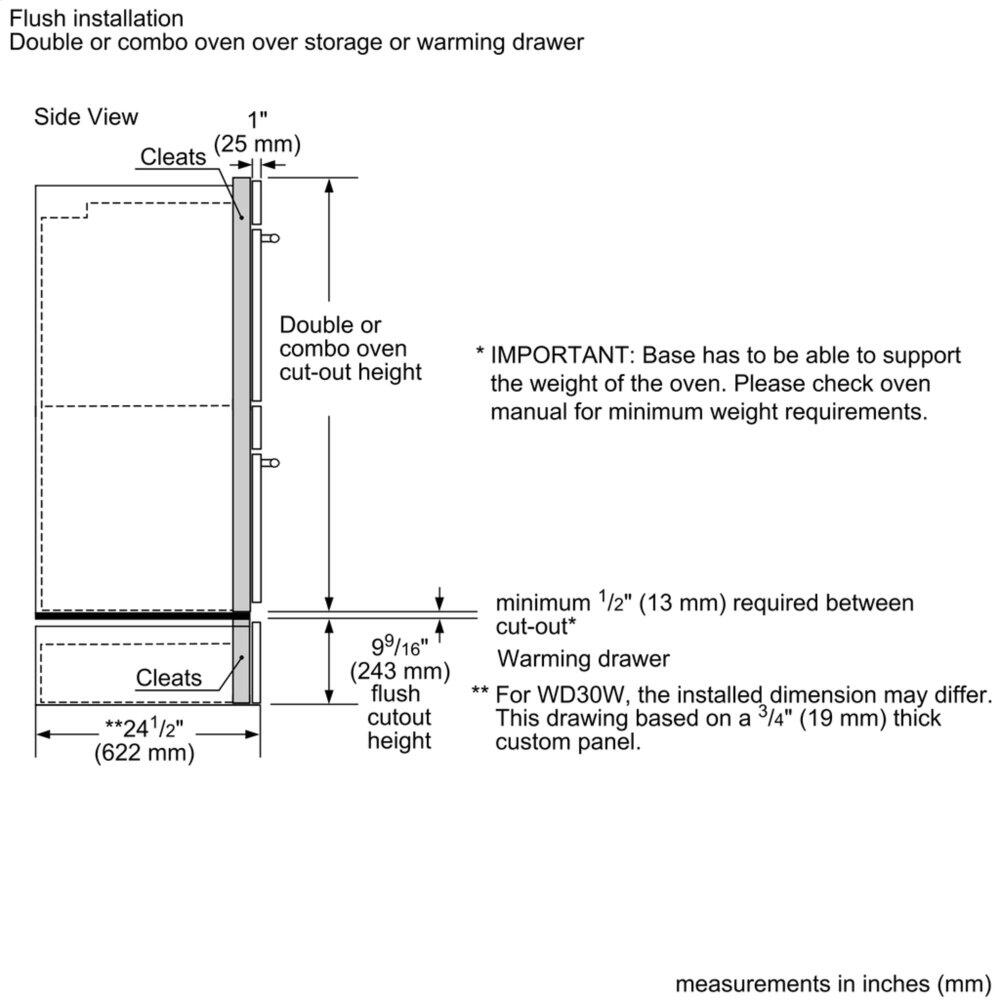

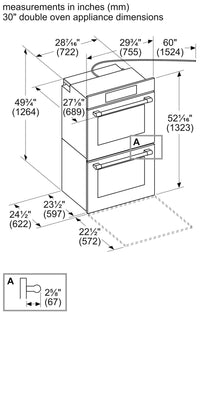

| Additional Dimensions Trim Overlaps (Top – Sides – Bottom): 3/8" to 2" – 9/16" – 0" | Required Cutout Size (HxWxD) – Standard: 49 3/4" – 51 1/2" x 28 1/2" x 23 1/2" | Required Cutout Size (HxWxD) – Flush: 52 3/16" x 30" x 24 1/2" | Overall Oven Interior Dimensions (HxWxD): 17 13/16" x 24 1/8" x 17 13/16" | Usable Oven Interior Dimensions (HxWxD): 12 5/16" x 23 1/4" x 15 1/4" | |||||

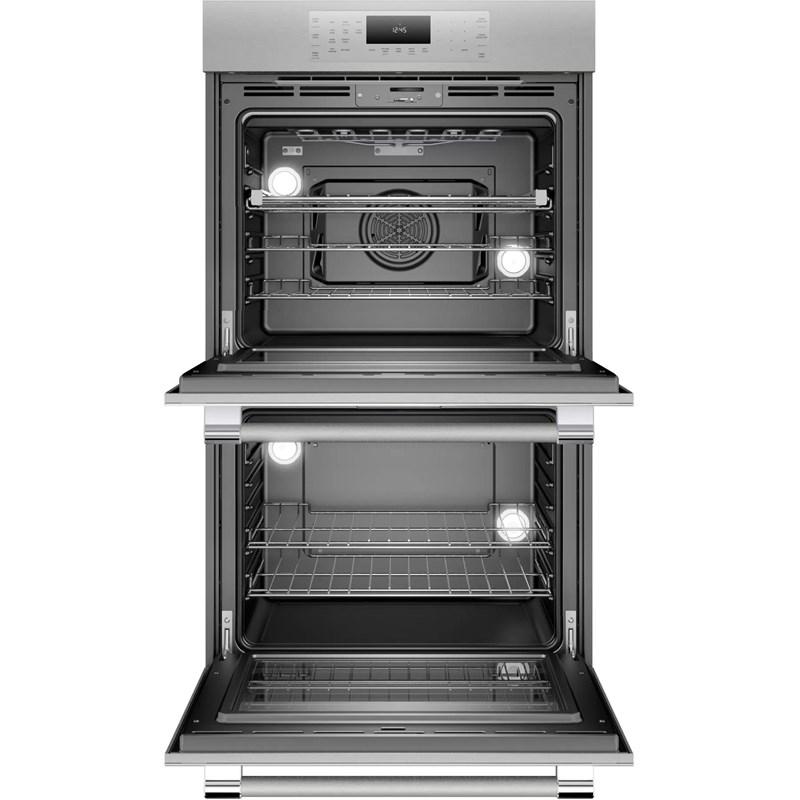

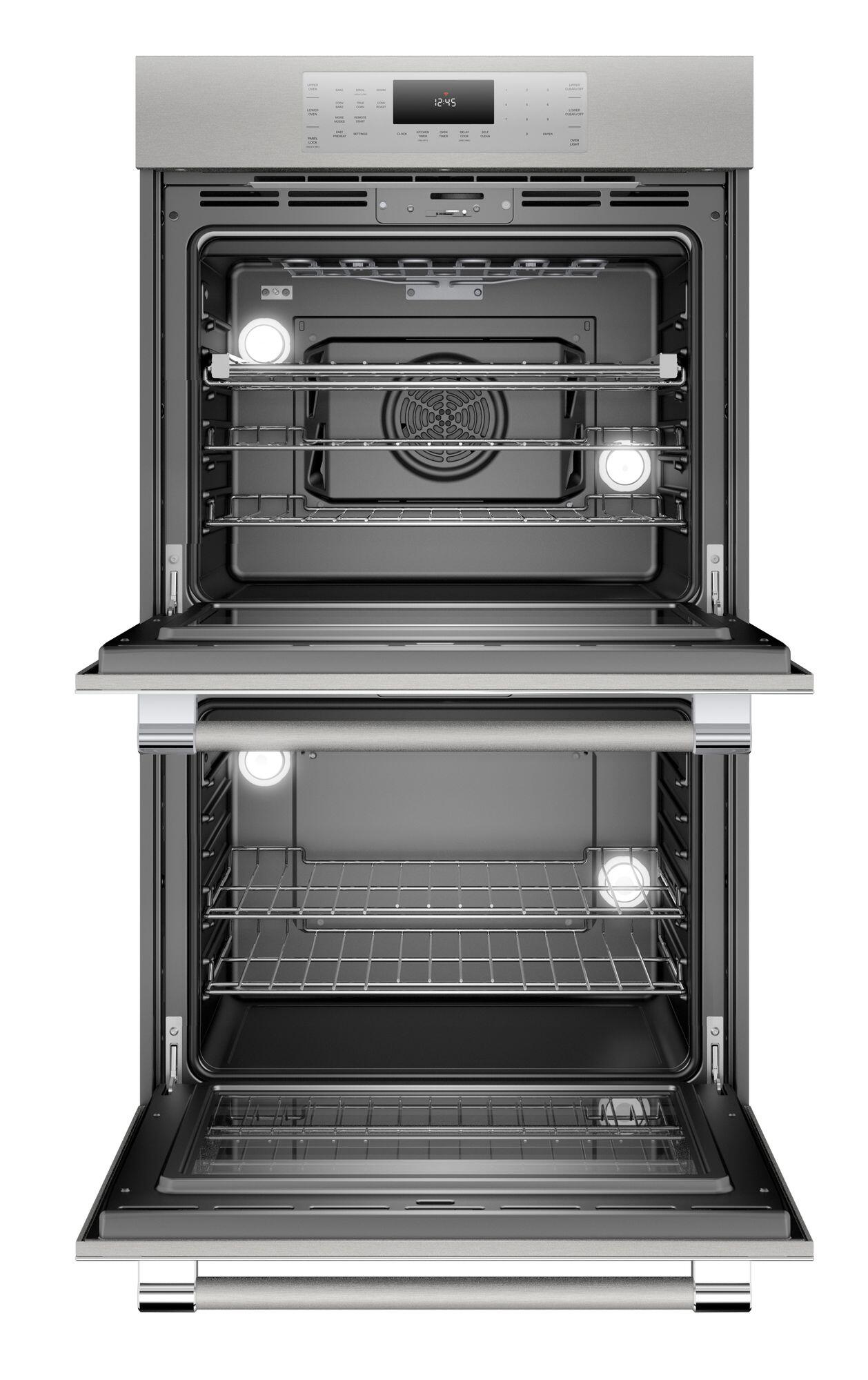

| Included Upper Oven: 1 Telescopic and 2 Standard Oven Racks | Lower Oven: 2 Standard Oven Racks | |||||
| Certifications Sabbath Mode | ADA Compliant | CSA | |||||
| Information 240 V / 208 V | 60 Hz | 40 A | |||||
Accessories
• Upper Oven: 1 Telescopic and 2 Standard Oven Racks
• Lower Oven: 2 Standard Oven Racks
• Lower Oven: 2 Standard Oven Racks
