Description
About this Product

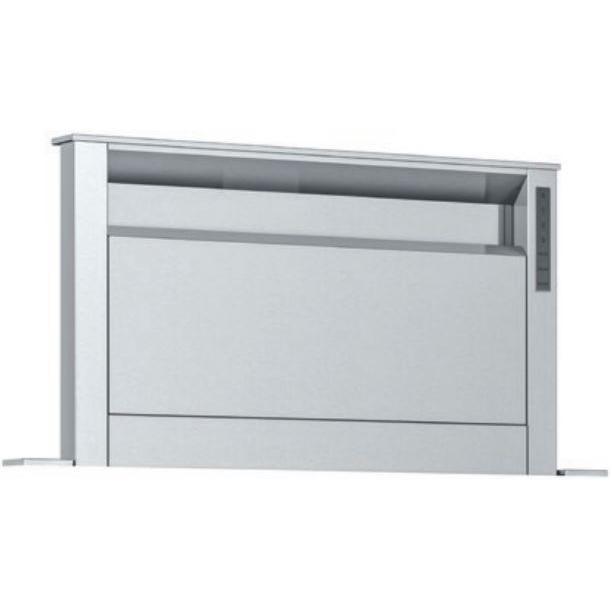

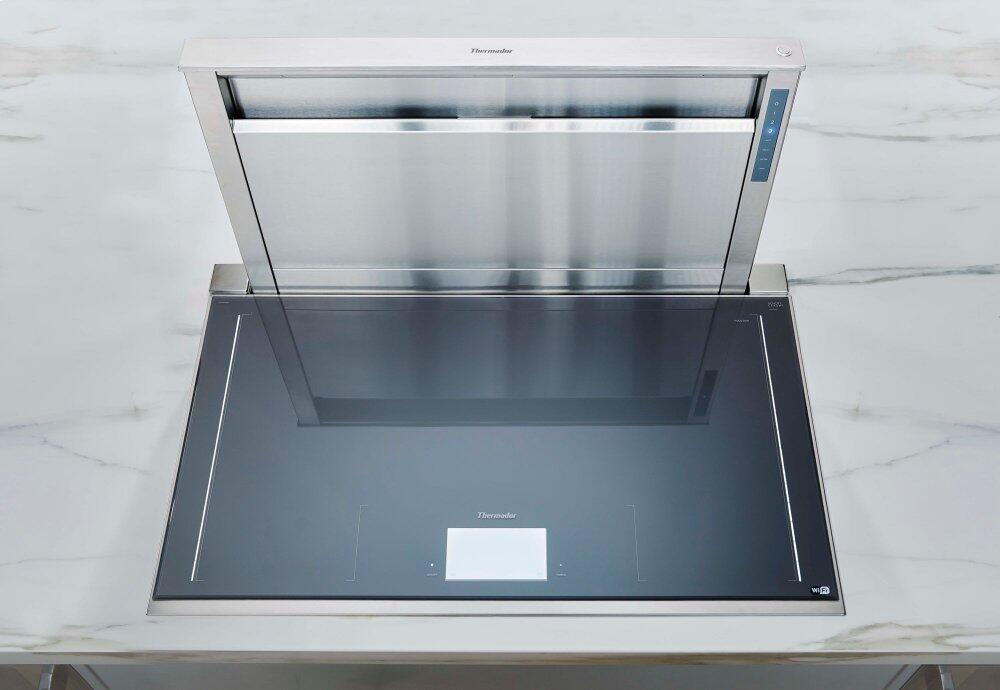

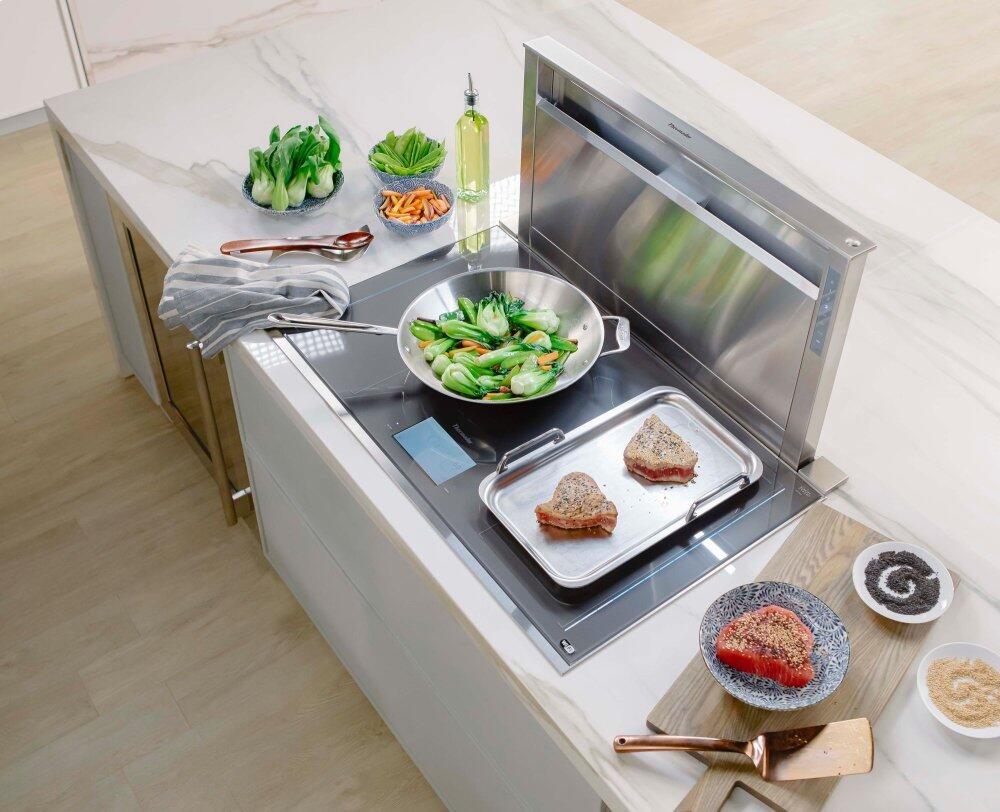

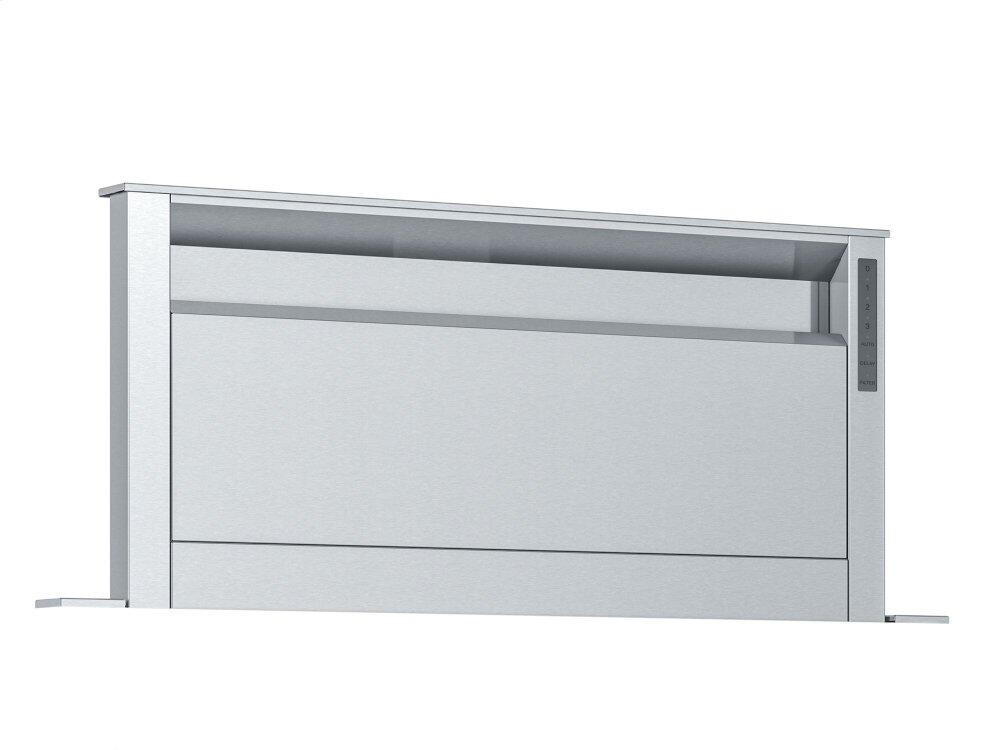

This Thermador 36" Masterpiece Downdraft features an automatic mode, a delay shut-off, a check filter light, and 15" telescopic design that rises to capture heat, smoke, grease, and steam.
Documents
Product Sheet (en)

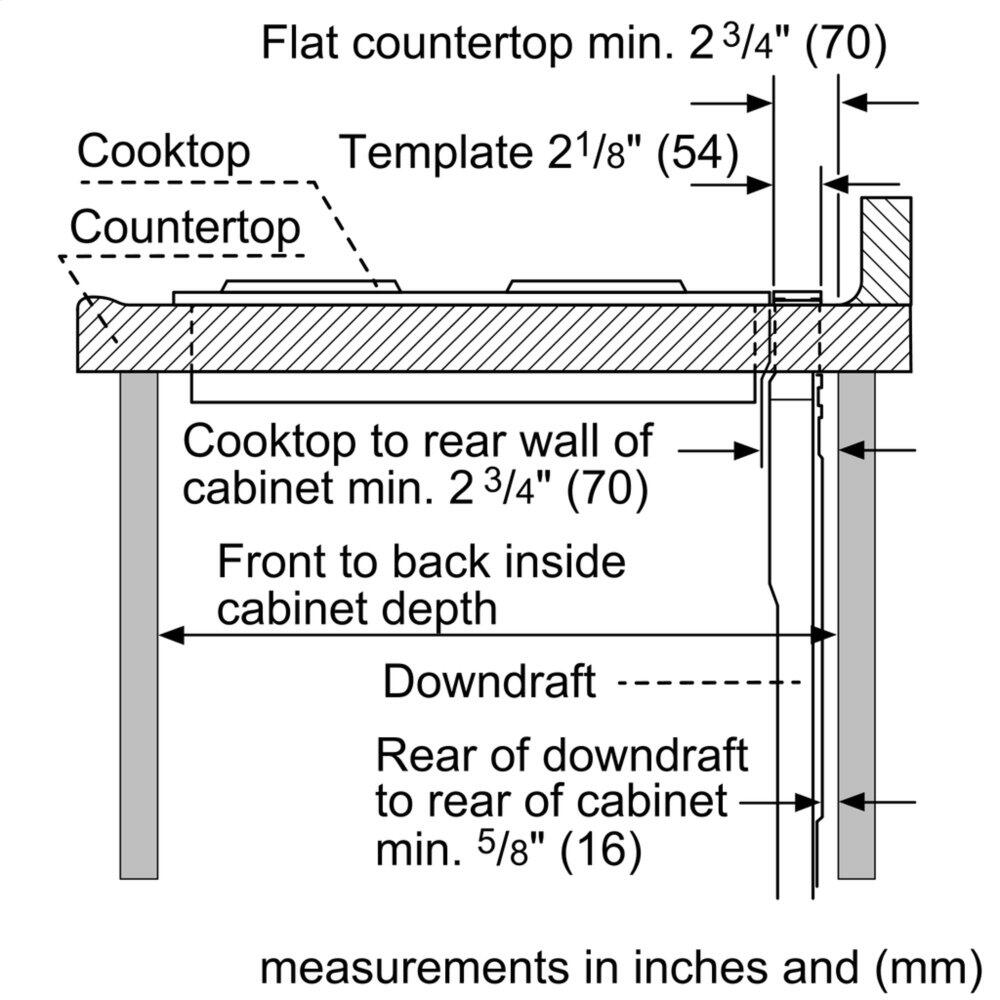

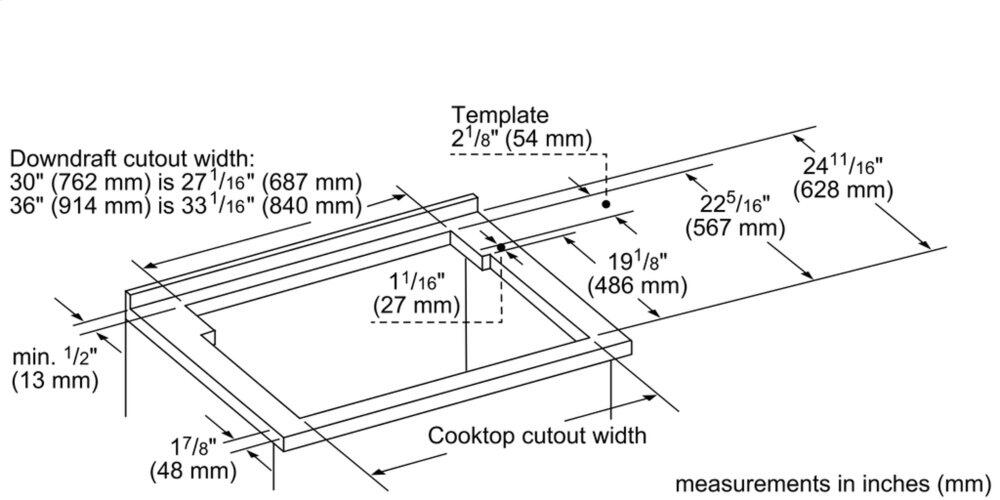

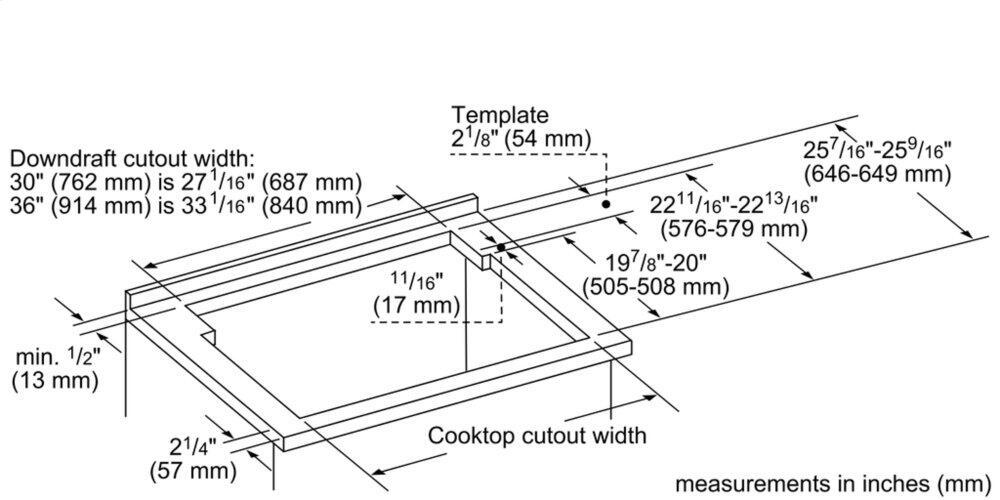

Dimensions Guide (en)
Highlights
15" telescopic design rises to capture heat, smoke, grease, and steam | Flexible discharge design gives 6 configurations to maximize space | Remote or inline blowers to reduce noise, integral for topperformance | Features automatic mode, delay shut-off, and check filter light | Recirculation kit available, use with induction/electric cooktops only
Specifications

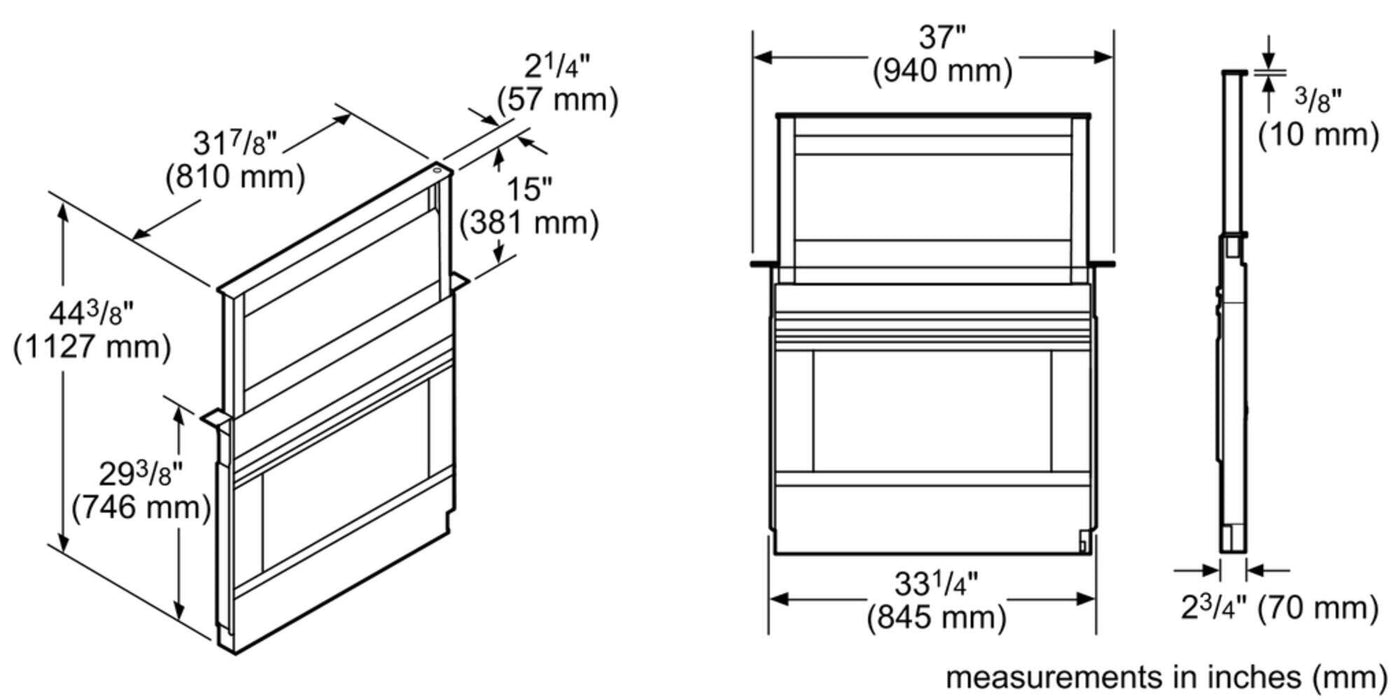

| UPC# | 825225960898 | Warranty | Limited 2 Years Parts and Labor | Depth | 6.99 cm |
| Width | 93.98 cm | Class Width | 36" | Additional Dimensions | Height of the rise: 15" |
| Series Name | Masterpiece | Style | Downdraft | Color | Stainless Steel |
| Installation | Built-In | Dishwasher-Proof Filters | Y | Speeds | 3-stage settings |
| Optional CVTSIDE6 – 6" Side / Rear Transition | CVTSIDE8 – 8" Side / Rear Transition | CVTSIDE10 – 10" Side / Rear Transition | CVTFRONT6 – 6" Round Front Plate | CVTFRONT8 – 8" Round Front Plate | CVTFRONT10 – 10" Round Front Plate | CVDUCT2 – 2' Rectangular Duct | CVTRECT2 – Transition for Rectangular Duct | |||||

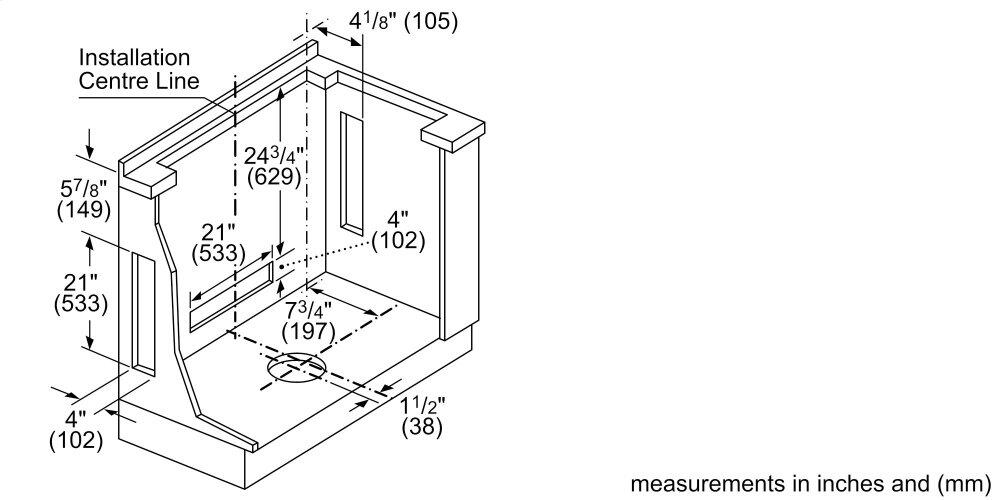

| Ducting Information Diameter of air duct - internal: 8" | Diameter of air duct - external: 6", 8" or 10" | |||||
| Information 120 V | 60 Hz | 10 A | |||||
Accessories
• CVTSIDE6 – 6" Side / Rear Transition
• CVTSIDE8 – 8" Side / Rear Transition
• CVTSIDE10 – 10" Side / Rear Transition
• CVTFRONT6 – 6" Round Front Plate
• CVTFRONT8 – 8" Round Front Plate
• CVTFRONT10 – 10" Round Front Plate
• CVDUCT2 – 2' Rectangular Duct
• CVTRECT2 – Transition for Rectangular Duct
• CVTSIDE8 – 8" Side / Rear Transition
• CVTSIDE10 – 10" Side / Rear Transition
• CVTFRONT6 – 6" Round Front Plate
• CVTFRONT8 – 8" Round Front Plate
• CVTFRONT10 – 10" Round Front Plate
• CVDUCT2 – 2' Rectangular Duct
• CVTRECT2 – Transition for Rectangular Duct
