Thermador-Stainless Steel-Downdraft UCVP36XS

Sku: 90T5250S






Maximum quantity available reached.

Description

About this Product

Control every aspect of your exceptional ventilation system. This Masterpiece® Series downdraft ventilation seamlessly integrates within your countertop when not in use, and when raised all the way, restores previous control functions. It also features LED light bars with two different light levels, providing optimal illumination for cooking or reading recipes. With Masterpiece downdraft ventilation, you can make as bold or quiet a statement as you'd like.

Features

  • LED LIGHTING — Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.

Documents

Product Sheet (en)

Product Sheet (en)

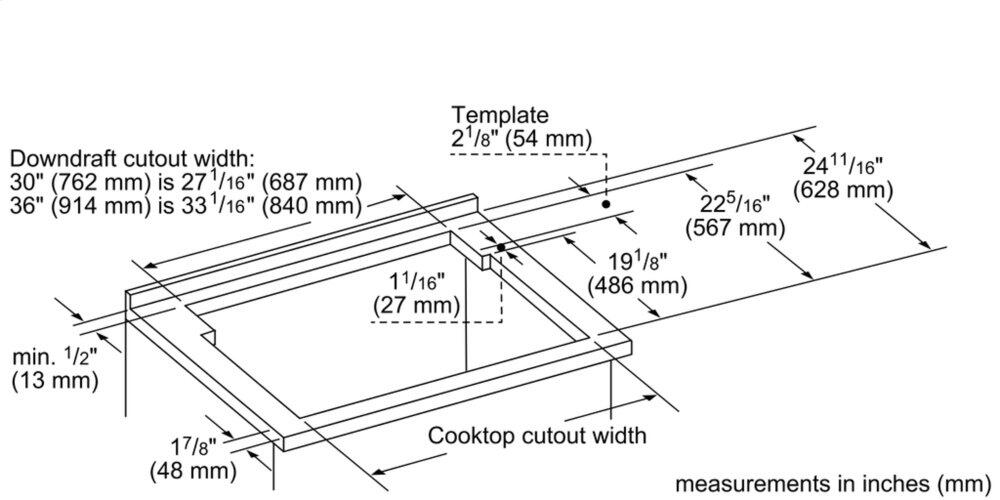

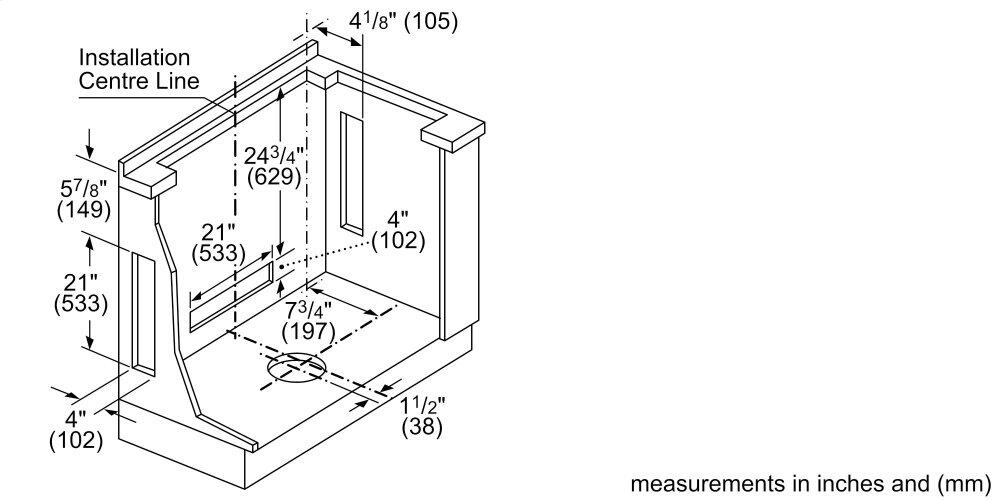

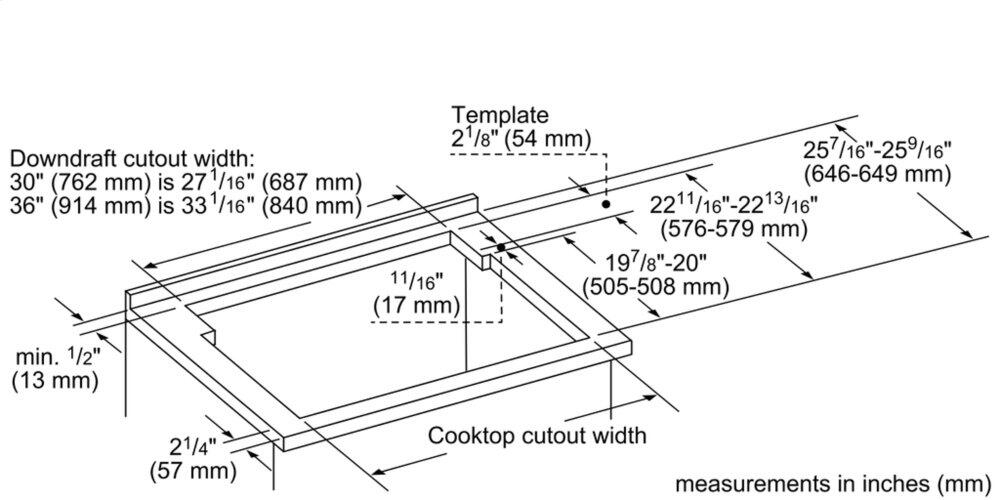

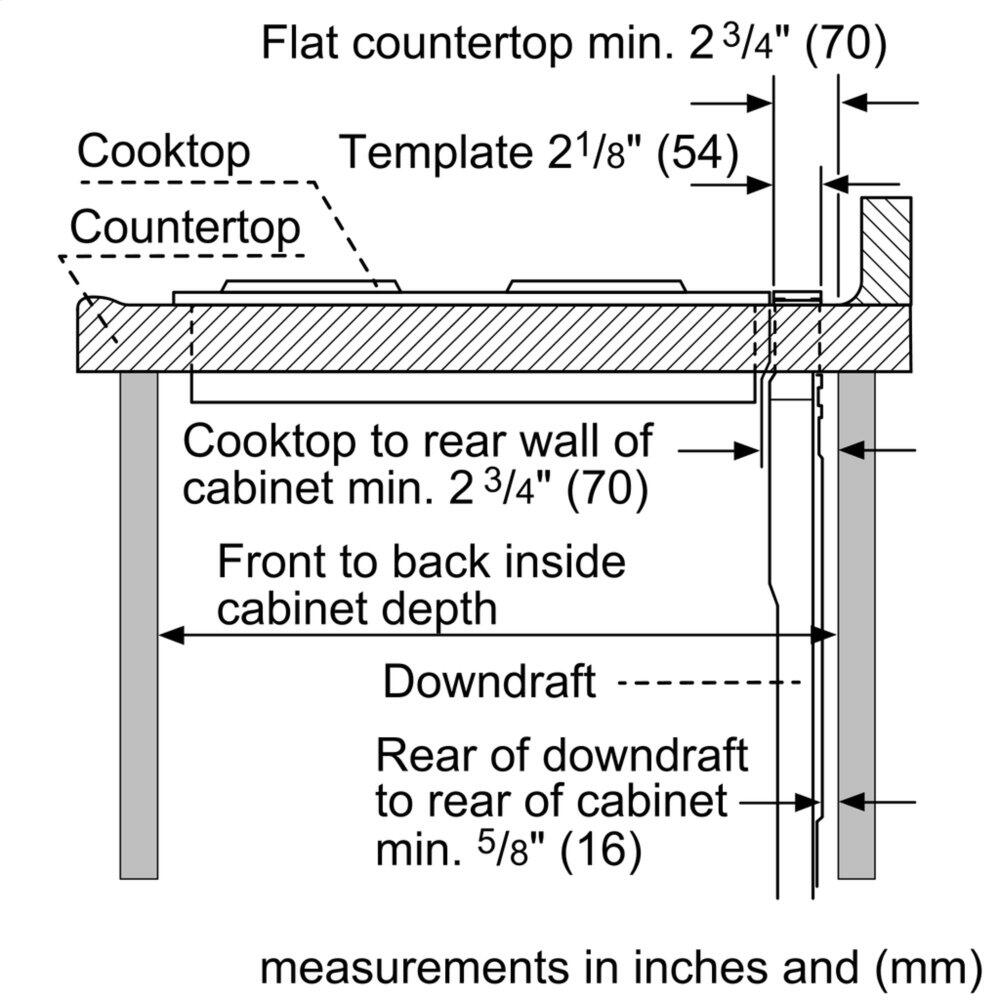

Dimensions Guide (en)

Dimensions Guide (en)

Highlights

18" telescopic design rises to capture heat, smoke, grease, and steam | White multiple level LED lighting | Flexible discharge design gives 6 configurations to maximize space | Remote or inline blowers to reduce noise, integral for topperformance | Features automatic mode, delay shut-off, and check filter light

Specifications

Style Downdraft Series Name Masterpiece Color Stainless Steel
Installation Built-In Speeds 3-stage settings Dishwasher-Proof Filters Y

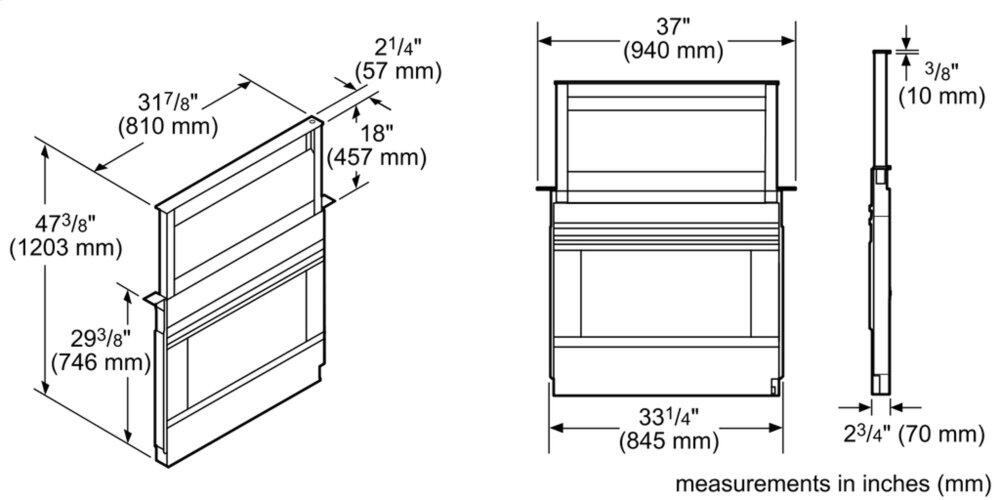

Width 93.98 cm Height 120.33 cm Depth 6.99 cm
Weight 19.05 kg Additional Dimensions Height of the rise: 18" Class Width 36"
UPC# 825225960904 Warranty Limited 2 Years Parts and Labor
Ducting Information
Diameter of air duct - internal: 8" | Diameter of air duct - external: 6", 8" or 10"
Information
120 V | 60 Hz | 10 A
Optional
CVTSIDE6 – 6" Side / Rear Transition | CVTSIDE8 – 8" Side / Rear Transition | CVTSIDE10 – 10" Side / Rear Transition | CVTFRONT6 – 6" Round Front Plate | CVTFRONT8 – 8" Round Front Plate | CVTFRONT10 – 10" Round Front Plate | CVDUCT2 – 2' Rectangular Duct | CVTRECT2 – Transition for Rectangular Duct

Accessories

CVTSIDE6 – 6" Side / Rear Transition
CVTSIDE8 – 8" Side / Rear Transition
CVTSIDE10 – 10" Side / Rear Transition
CVTFRONT6 – 6" Round Front Plate
CVTFRONT8 – 8" Round Front Plate
CVTFRONT10 – 10" Round Front Plate
CVDUCT2 – 2' Rectangular Duct
CVTRECT2 – Transition for Rectangular Duct
