Description
About this Product

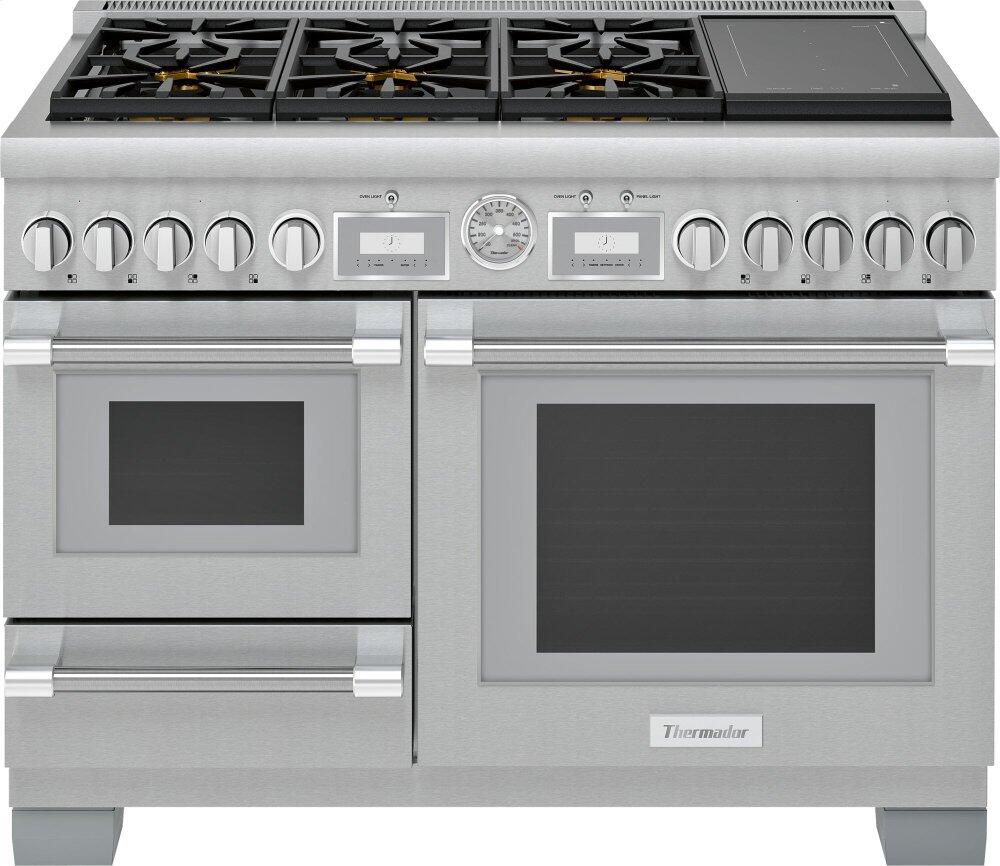

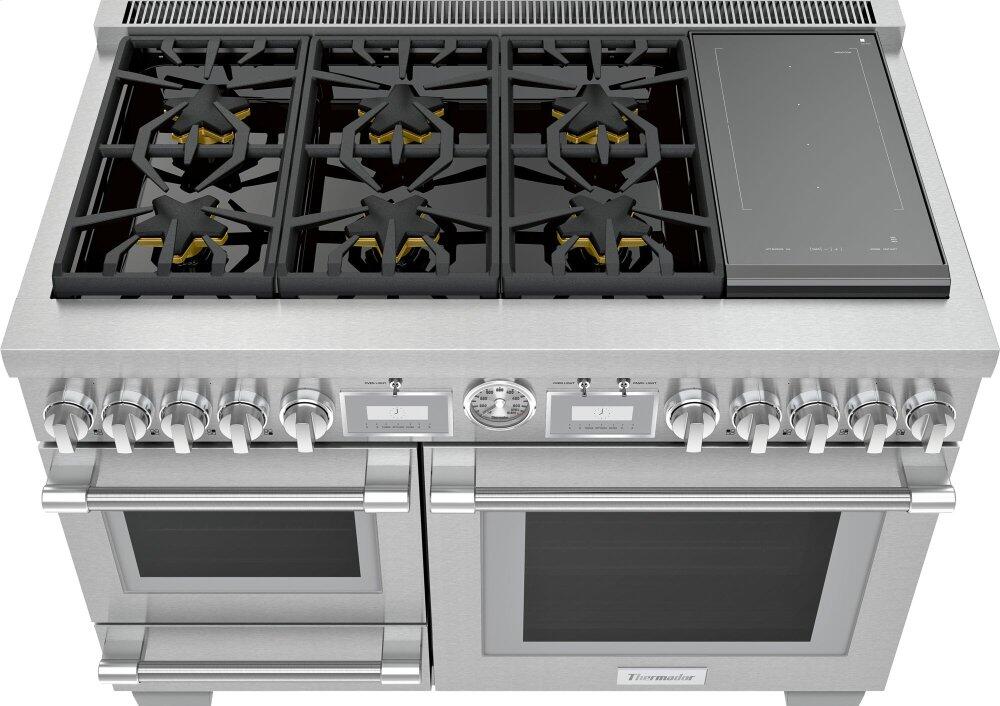

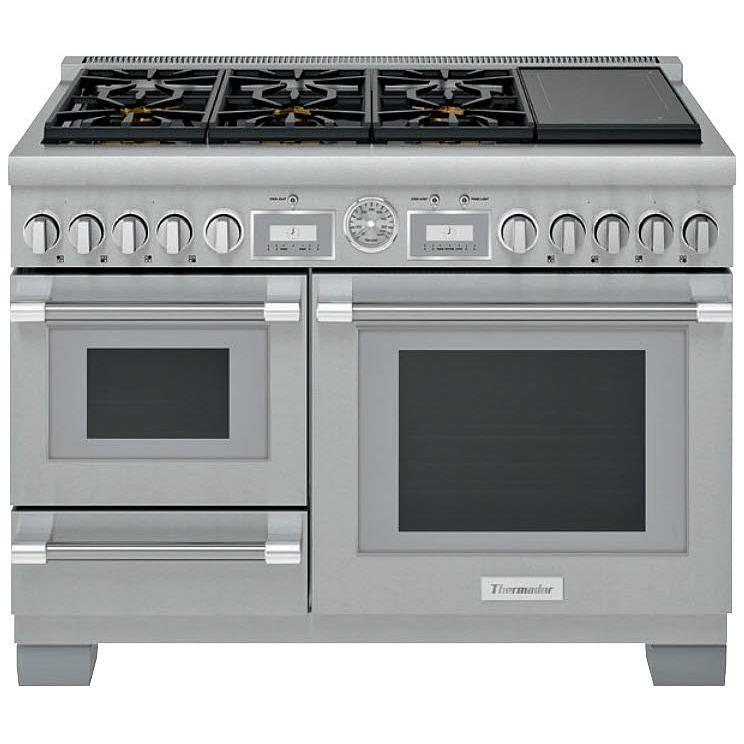

This Thermador 48-inch dual-fuel range is equipped with 6 burners and a 12" induction surface. This model also features ExtraLow® burners, a patented Pedestal Star® burner and Home Connect™ (Wi-Fi enabled).
Features
- EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
- STAR-K CERTIFIED — Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.

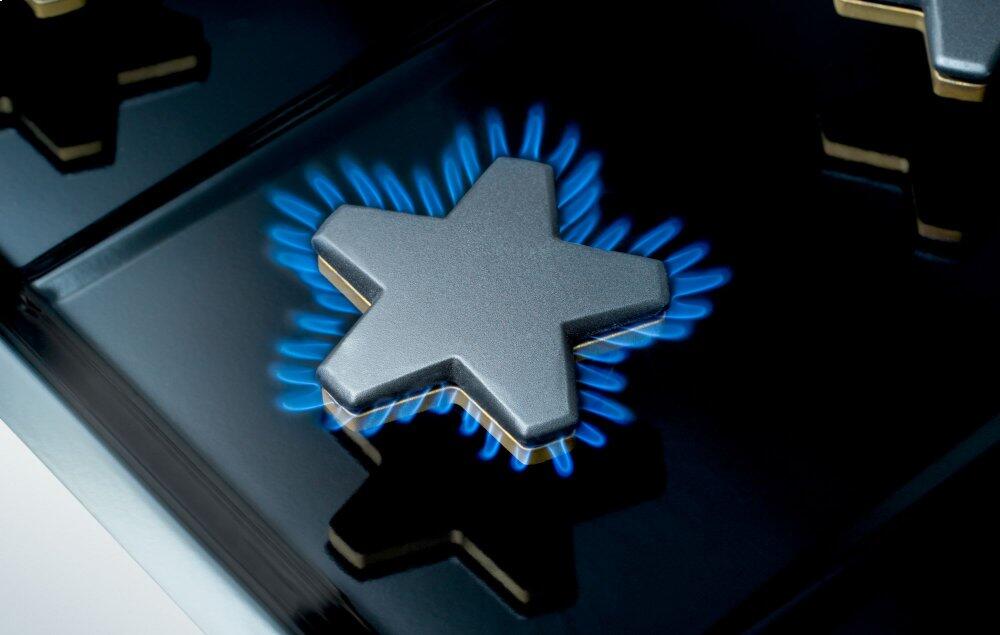

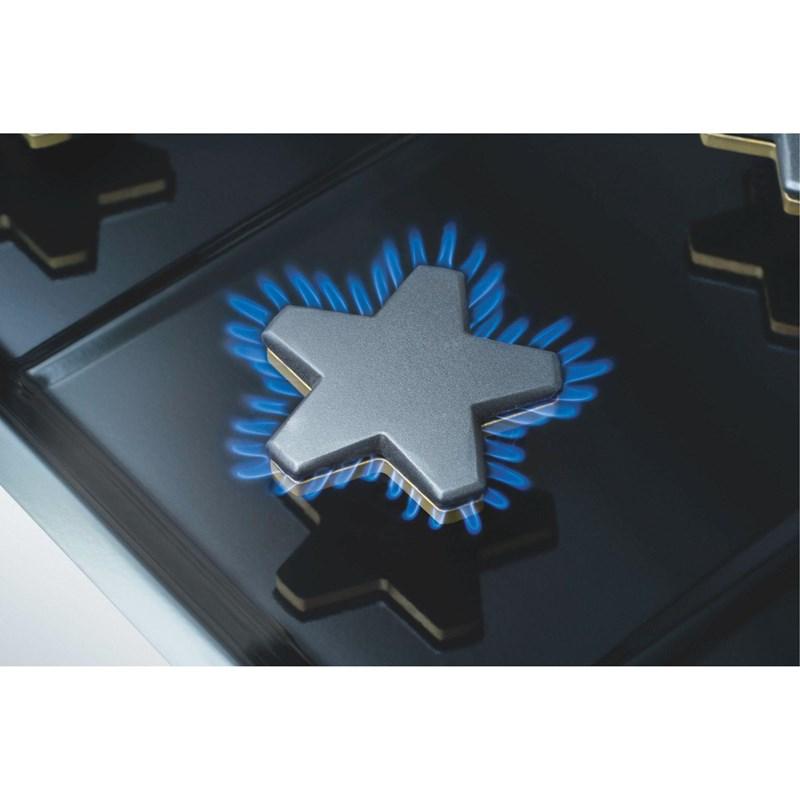

- STAR® BURNERS — The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
- TRUE CONVECTION — offers precise airflow for cooking on multiple levels without flavor transfer.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Sabbath (Large Oven and Small Oven) | Self-Clean(Large Oven and Small Oven) | Telescopic Racks (Large Oven): 3 | Interior Lights(Large Oven/ Small Oven): 2 / 1 | Bake Power(Large Oven): 2,000 W | Broil Power (Large Oven): 4,000 W | Convection Power (Large Oven): 2,750 W
Specifications
| Number of Ovens | Double | Burners/Elements | 7 | Burner/Element Size | 12" Induction Surface |
| Burners | Sealed | Elements | Induction | Other | Griddle |
| Sabbath/Star-K | Y | Self-Cleaning | Y | Digital Temperature Display | Y |
| Oven Light | Y | Convection | Y | Wi-Fi | Y |
| Height | 90.8 cm | Width | 121.8 cm | Depth (Without Handles) | 73.7 cm |

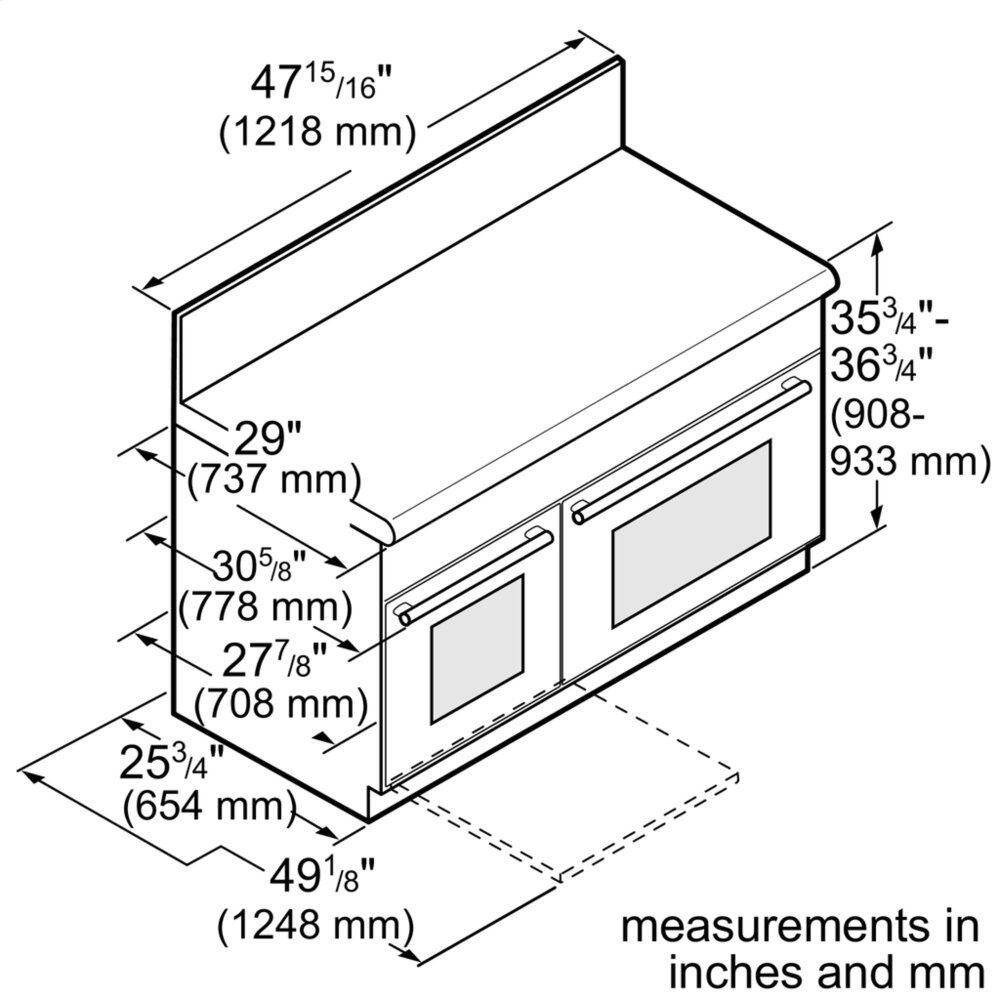

| Weight | 211.37 kg | Additional Dimensions | Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8" | Class Width | 48" |
| Depth (Including Handles) | 77.8 cm | Fuel Type | Dual Fuel - Natural Gas | Installation Type | Freestanding |
| Manufacturer Color | Stainless Steel | Series Name | Pro Grand® Professional | Color | Stainless Steel |
| Warming | Y | Power | 400 W | UPC# | 825225933755 |
| Warranty | Limited 2 Years Parts and Labor | ||||
| Capacity (cu. ft.) Total Capacity: 6.5 cu.ft. | Large Oven: 4.9 cu.ft. | Small Oven: 1.6 cu.ft. | |||||
| Programs Large Oven: | Bake | Convection Bake | True Convection | Convection Roast | Roast | Convection Broil | Broil | Small Oven: | Proof | Keep Warm | Steam Programs | True Convection | Slow Cook | Defrost | Reheat | Steam Convection | Steam | |||||
| Burners/Elements Output Power of Back Left Burner BTU: 15,000 and XLO | Power of Front Left Burner BTU: 22,000 and XHI / XLO | Power of Back Center Burner BTU: 15,000 | Power of Front Center Burner BTU: 18,000 | Power of Right Back Center Burner BTU: 15,000 and XLO | Power of Right Front Center Burner BTU: 18,000 and XLO | Power of Far Right Induction: 3,600 W | |||||
| Information 240 V / 208 V | 60 Hz | 50 A | |||||
| Technologies ExtraLow® Burners | ExtraHigh Star® Burner | Hydraulic SoftClose® Hinges | Induction Technology | True Convection Technology | Home Connect™ (Wi-Fi Enabled) (Large Oven Only) | |||||
| Optional PWOKRINGHC Wok Ring | PAGRIDDLE Professional Griddle, Sits on Top of Grates Over | PA48WLBSG 7" Low Back Backguard* | PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner) | PAKNOBLUWG Metallic Blue Knob Kit | PA48WTKG Toekick | PAALTKITGW Natural Gas Models from 5,400 ft.–10,200 ft. | TROASTERT Stainless Steel Roaster Pan | CHEFSPAN08 10" Stainless Steel Pan | TEPPAN1016 Liberty™ Induction Teppan-Yaki | CS2XLH Cooking Pan, Full Size, 1 5/8" Deep | CS2LH Baking Tray, Full Size, 1 1/4" Deep | CS1XLPH Perforated Cooking Pan, Half Size, 1 5/8" Deep | CSRACKH Wire Rack | CS2XLPH Perforated Cooking Pan, Full Size, 1 5/8" Deep | CS1XLH Cooking Pan, Half Size, 2 1/2" Deep | |||||
| Included 3 Telescopic Racks | 1 Steam Pan | 1 Sm. Telescopic Racks | Multi-Point Meat Probe | 1 Lg Broil Pan | 1 Sm. Broil Pan | Island Trim | |||||
