Description
About this Product

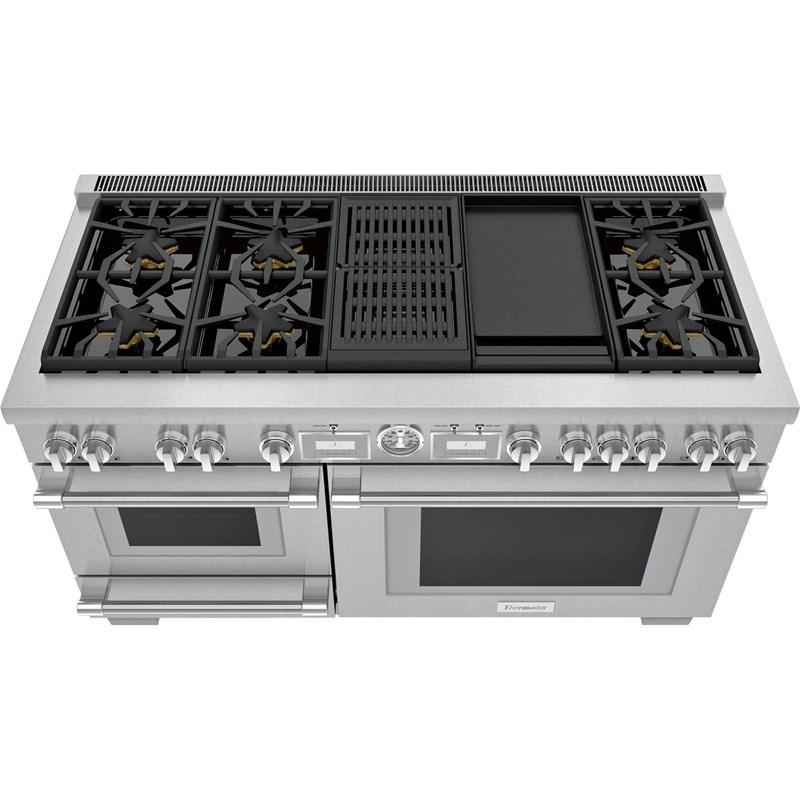

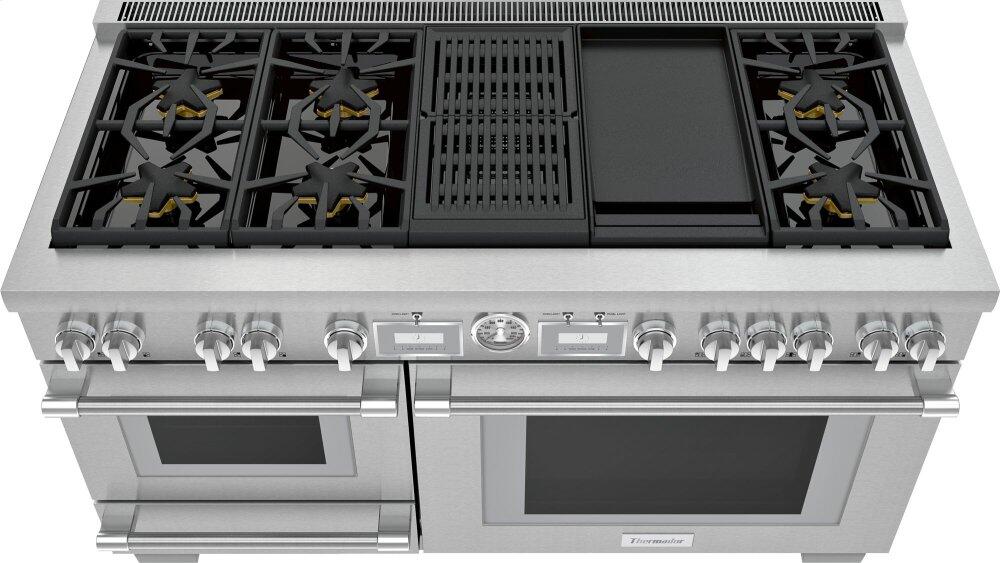

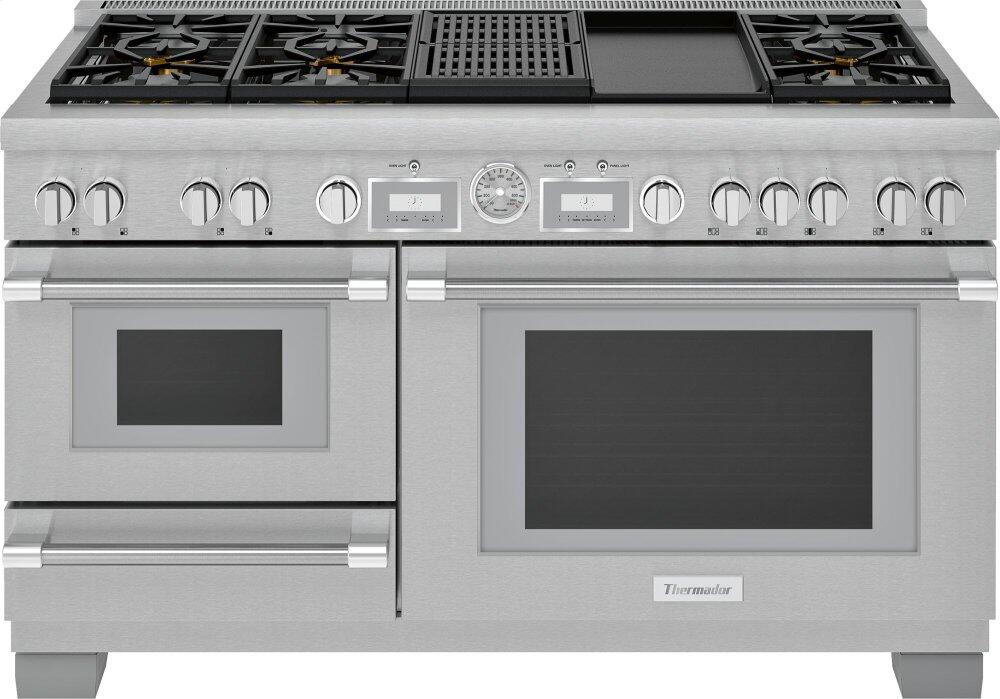

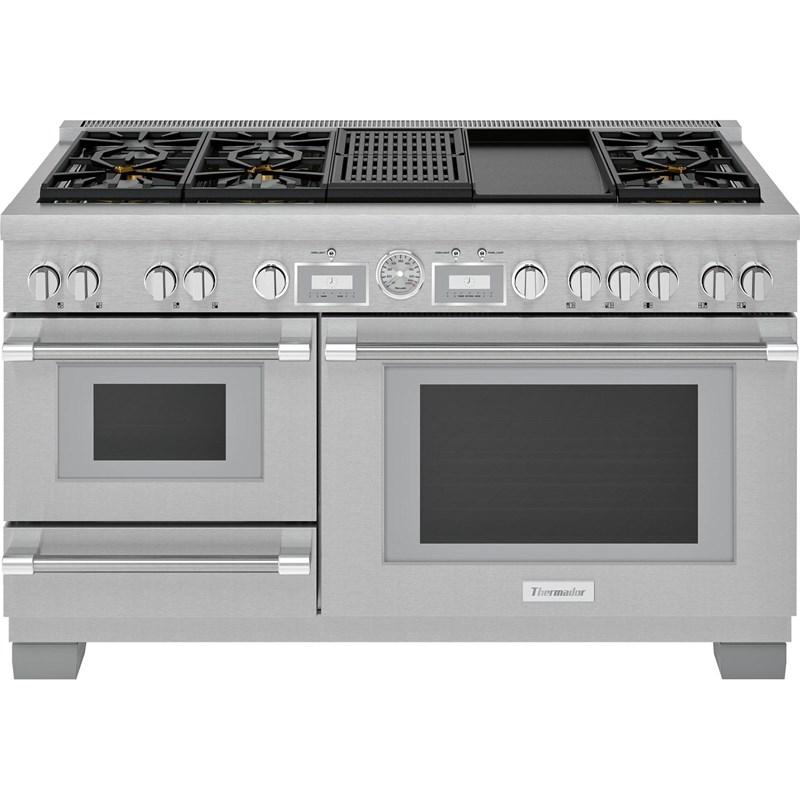

This Thermador Pro Grand® Professional Series, dual-fuel range with grill and griddle features Steam and Convection technology, a self-cleaning large oven, an ExtraHigh Star® burner and is equipped with 6 burners.
Features
- EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
- WARMING DRAWER — This spacious drawer can hold and warm up dinner plates
- STEAM AND CONVECTION — Steam and Convection Cooking provides unrivaled taste and quality. Food stays moist on the inside and is perfect on the outside.

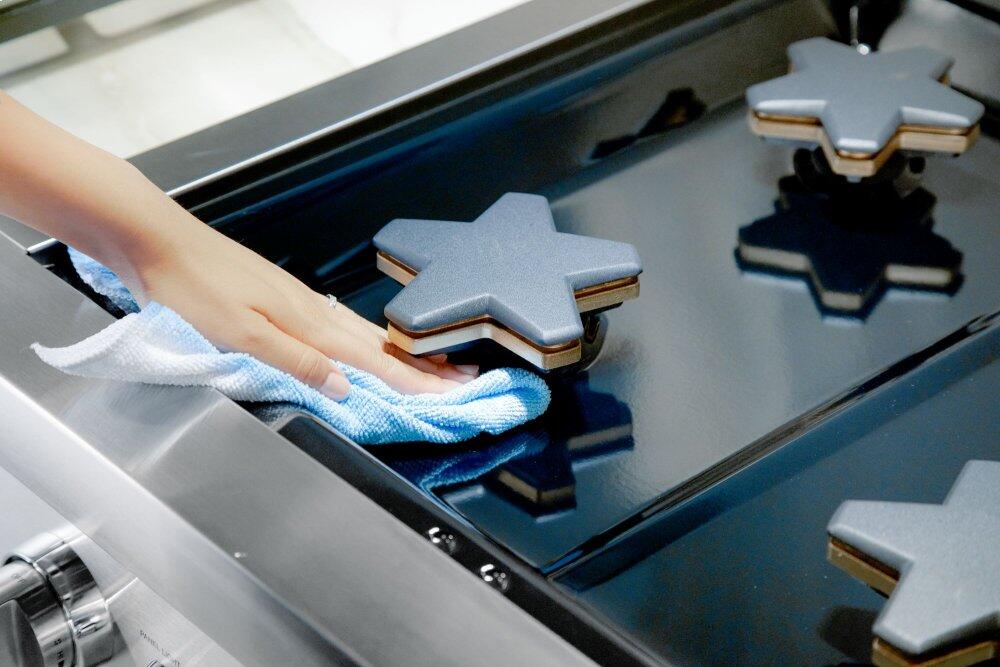

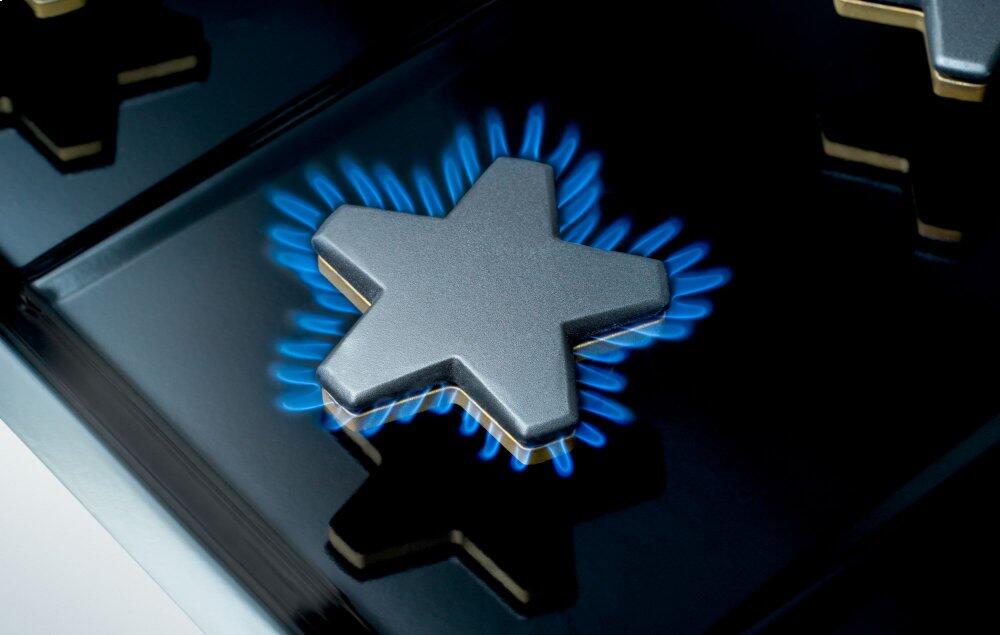

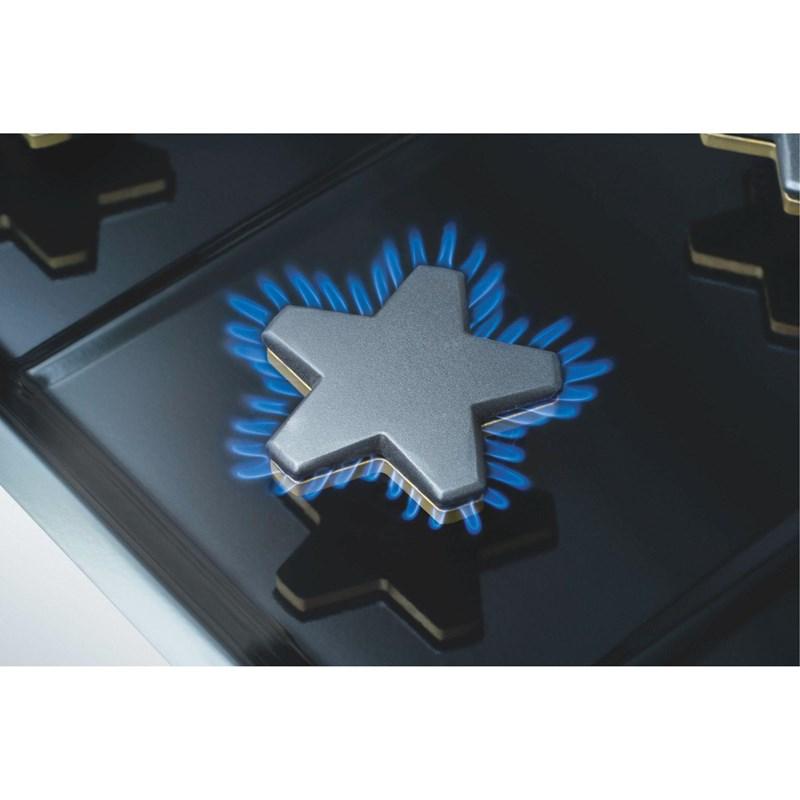

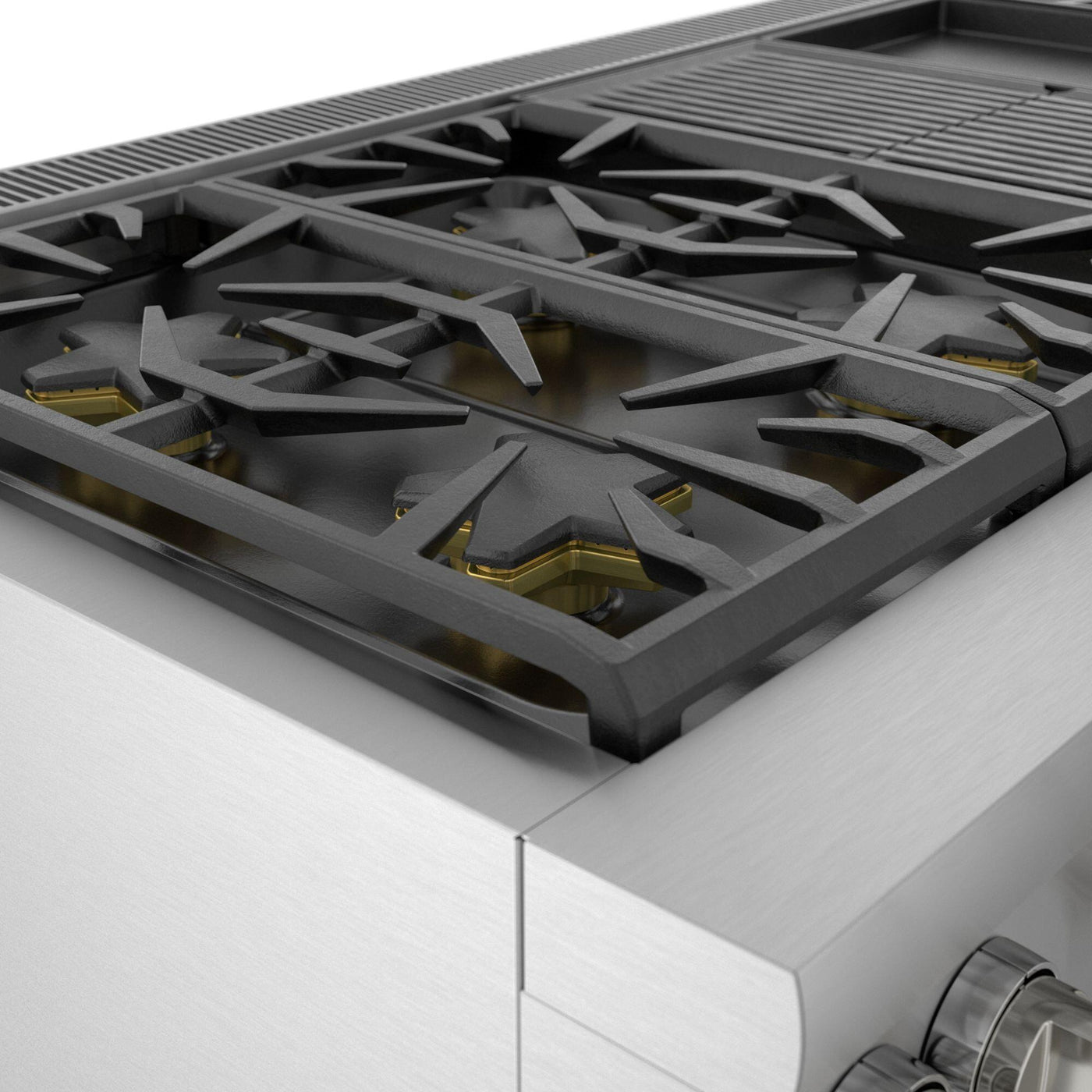

- PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner.
- TRUE CONVECTION — offers precise airflow for cooking on multiple levels without flavor transfer.
- STAR-K CERTIFIED — Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights

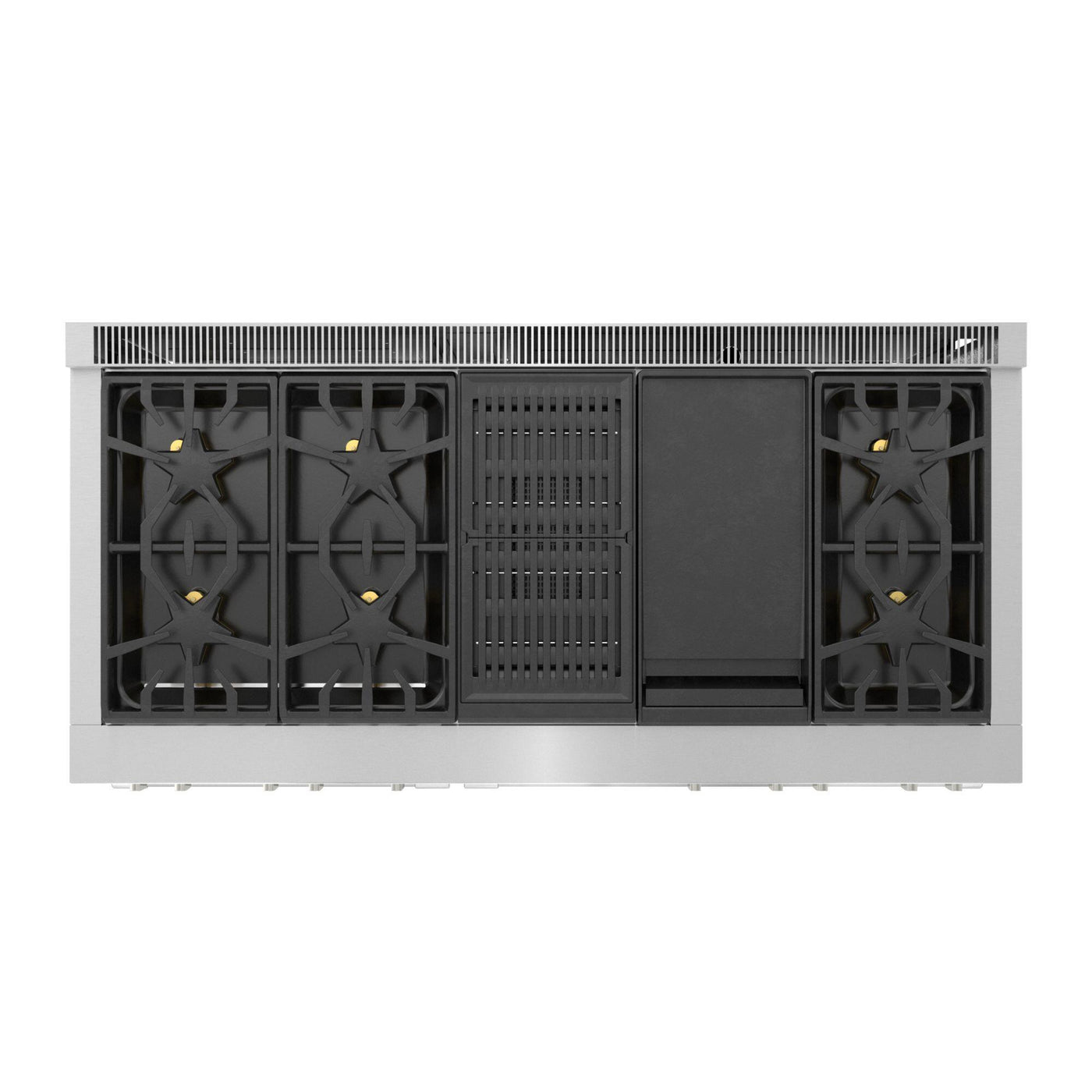

Telescopic rack(s) (Lg / Sm): 3 / 0 | Interior lights (Lg / Sm): 2 / 1 | Bake power (Lg / Sm): 2,000 W / NA | Broil power (Lg / Sm): 4,000 W / NA | Convection power (Lg / Sm): 2,750 W / NA | Steam bowl element: 1,800 W | Steam convection: 2,750 W | Non-stick griddle and 2 zone grill—the flexibility to do everything | Porcelain cooktop surface | Interior lights (Lg / Sm): 2 / 1
Specifications
| Number of Ovens | Double | Burners/Elements | 8 | Burners | Sealed |
| Other | Griddle,Grill | Sabbath/Star-K | Y | Self-Cleaning | Y |
| Digital Temperature Display | Y | Oven Light | Y | Convection | Y |

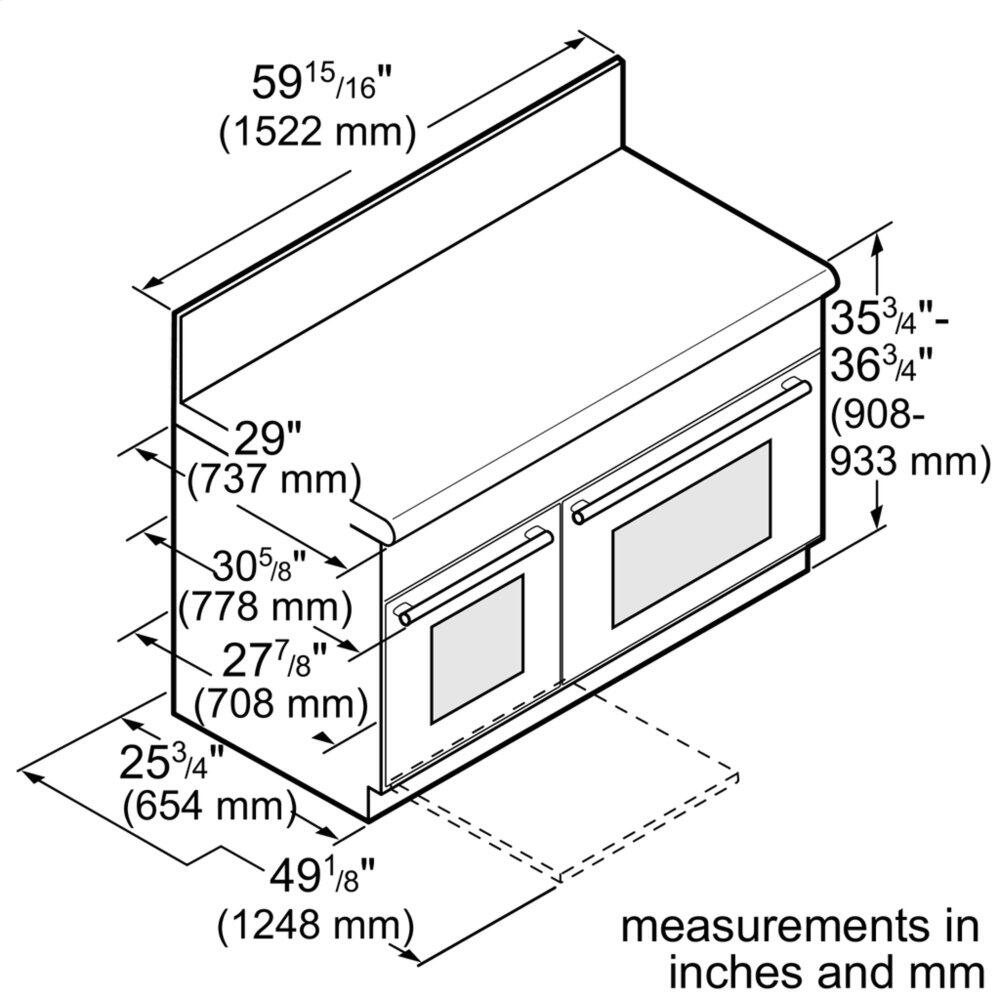

| Wi-Fi | Y | Height | 90.81 cm | Width | 152.2 cm |

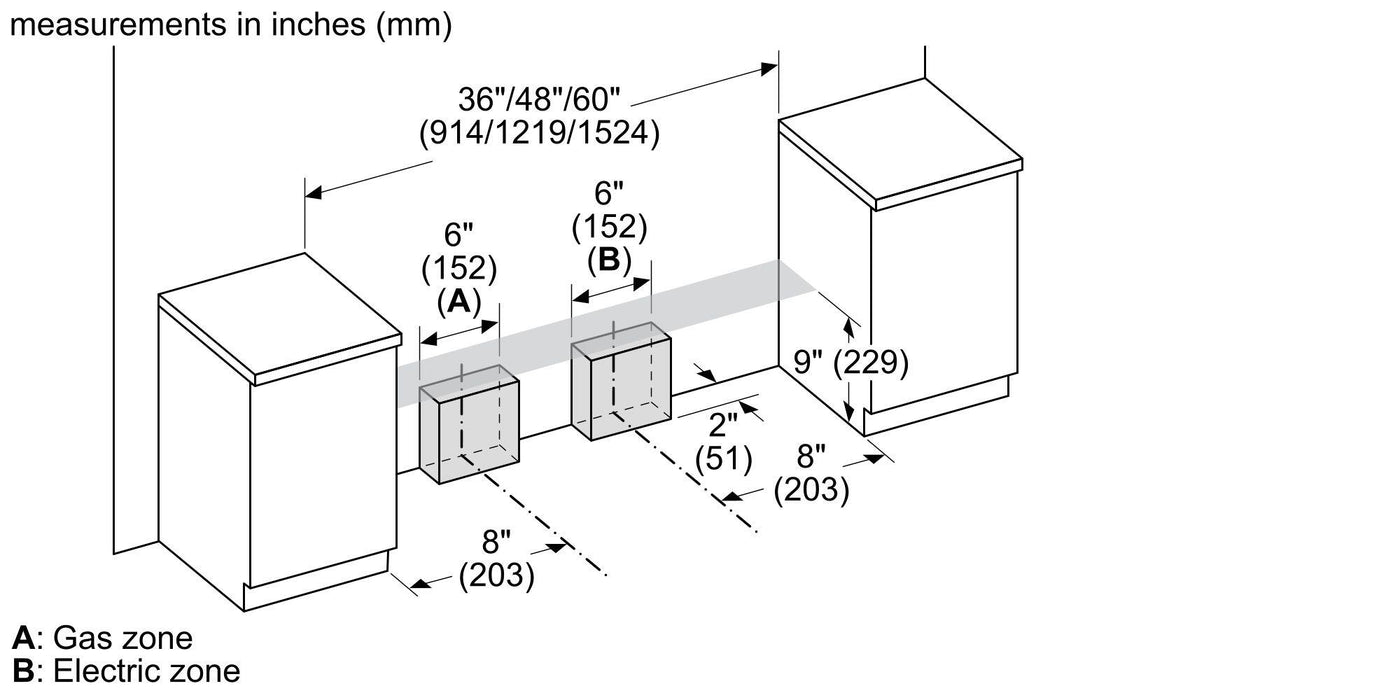

| Depth (Without Handles) | 74.6 cm | Weight | 276.69 kg | Additional Dimensions | Required cutout size (HxWxD): 35 3/4" – 36 3/4" x 60" x 24" – 25 1/8" |
| Class Width | 60" | Depth (Including Handles) | 77.8 cm | Fuel Type | Dual Fuel - Natural Gas |
| Installation Type | Freestanding | Manufacturer Color | Stainless Steel | Series Name | Pro Grand® Professional |
| Color | Stainless Steel | Warming | Y | Capacity | 0.8 cu. ft. |
| Power | 550 W | UPC# | 825225933939 | Warranty | Limited 2 years parts and labor |
| Capacity (cu. ft.) Total capacity: 7.3 cu.ft. | Large oven: 5.7 cu.ft. | Small oven: 1.6 cu.ft. | |||||
| Programs Large Cavity: | Bake | Convection Bake | True Convection | Convection Roast | Roast | Convection Broil | Broil | Small Cavity: | Proof | Keep Warm | Steam Programs | True Convection | Slow Cook | Defrost | Reheat | Steam Convection | Steam | |||||
| Burners/Elements Output Power of back left burner BTU: 12,500 and XHI / XLO | Power of front left burner BTU: 22,000 and XHI / XLO | Power of back center burner BTU: 15,000 | Power of front center burner BTU: 18,000 | Power of center electric griddle: 1,630 W (6-Pass) | Power of center electric grill: 1,630 W (6-Pass) | Power of back right burner BTU: 15,000 and XLO | Power of front right burner BTU: 18,000 and XLO | |||||
| Information 240 V / 208 V | 60 Hz | 50 A | |||||
| Technologies ExtraLow® burners | ExtraHigh Star® burner | Home Connect™ (Wi-Fi Enabled) | True Convection | |||||
| Optional Briquettes with basket: PABRICKBKW | Briquettes without basket: PABRICKW | Wok ring: PWOKRINGHC | Cutting board: PA12CHPBLK | Griddle: PAGRIDDLE | 12" grill plate with tray, (for griddle models), non-fusion coating: PA12GRILLW | 12" griddle with tray, (fusion coating option for griddle models): PAGRIDLFW | 12" griddle plate (for briquette grill models), fusion coating: PAGRIDDLEW | 12" indoor grill cover: PA12LCVRN | 7" backguard: PA60WLBG | Metallic blue knob kit: PAKNOBLUWG | 12" griddle cover: PA12LCVRW | 24" for grill / griddle combination models: PA24CVRW | Toekick: PA60WTKG | LP conversion kit (4 and 6 burner): PALPKITHW | Metallic blue knob kit: PAKNOBLUWG | Perforated cooking pan, full size, 1 5/8" deep: CS2XLPH | Pan, half size, 2 1/2" deep: CS1XLH | Pan, full size, 1 5/8" deep: CS2XLH | Tray, full size, 1 1/4" deep: CS2LH | Perforated pan, half size, 1 5/8" deep: CS1XLPH | |||||
| Included 3 telescopic racks | 1 sm. std. rack | Multi-point meat probe | 1 griddle plate | 1 grease tray | 2 grill grates | 1 bx. ceramic briquettes | 1 steam pan | 2 lg broil pan | Island trim | |||||
Accessories
• Briquettes with basket: PABRICKBKW
• Briquettes without basket: PABRICKW
• Wok ring: PWOKRINGHC
• Cutting board: PA12CHPBLK
• Griddle: PAGRIDDLE
• 12" grill plate with tray, (for griddle models), non-fusion coating: PA12GRILLW
• 12" griddle with tray, (fusion coating option for griddle models): PAGRIDLFW
• 12" griddle plate (for briquette grill models), fusion coating: PAGRIDDLEW
• 12" indoor grill cover: PA12LCVRN
• 7" backguard: PA60WLBG
• Metallic blue knob kit: PAKNOBLUWG
• 12" griddle cover: PA12LCVRW
• 24" for grill / griddle combination models: PA24CVRW
• Toekick: PA60WTKG
• LP conversion kit (4 and 6 burner): PALPKITHW
• Metallic blue knob kit: PAKNOBLUWG
• Perforated cooking pan, full size, 1 5/8" deep: CS2XLPH
• Pan, half size, 2 1/2" deep: CS1XLH
• Pan, full size, 1 5/8" deep: CS2XLH
• Tray, full size, 1 1/4" deep: CS2LH
• Perforated pan, half size, 1 5/8" deep: CS1XLPH
• Briquettes without basket: PABRICKW
• Wok ring: PWOKRINGHC
• Cutting board: PA12CHPBLK
• Griddle: PAGRIDDLE
• 12" grill plate with tray, (for griddle models), non-fusion coating: PA12GRILLW
• 12" griddle with tray, (fusion coating option for griddle models): PAGRIDLFW
• 12" griddle plate (for briquette grill models), fusion coating: PAGRIDDLEW
• 12" indoor grill cover: PA12LCVRN
• 7" backguard: PA60WLBG
• Metallic blue knob kit: PAKNOBLUWG
• 12" griddle cover: PA12LCVRW
• 24" for grill / griddle combination models: PA24CVRW
• Toekick: PA60WTKG
• LP conversion kit (4 and 6 burner): PALPKITHW
• Metallic blue knob kit: PAKNOBLUWG
• Perforated cooking pan, full size, 1 5/8" deep: CS2XLPH
• Pan, half size, 2 1/2" deep: CS1XLH
• Pan, full size, 1 5/8" deep: CS2XLH
• Tray, full size, 1 1/4" deep: CS2LH
• Perforated pan, half size, 1 5/8" deep: CS1XLPH
• 3 telescopic racks
• 1 sm. std. rack
• Multi-point meat probe
• 1 griddle plate
• 1 grease tray
• 2 grill grates
• 1 bx. ceramic briquettes
• 1 steam pan
• 2 lg broil pan
• Island trim
• 1 sm. std. rack
• Multi-point meat probe
• 1 griddle plate
• 1 grease tray
• 2 grill grates
• 1 bx. ceramic briquettes
• 1 steam pan
• 2 lg broil pan
• Island trim
