Description
About this Product

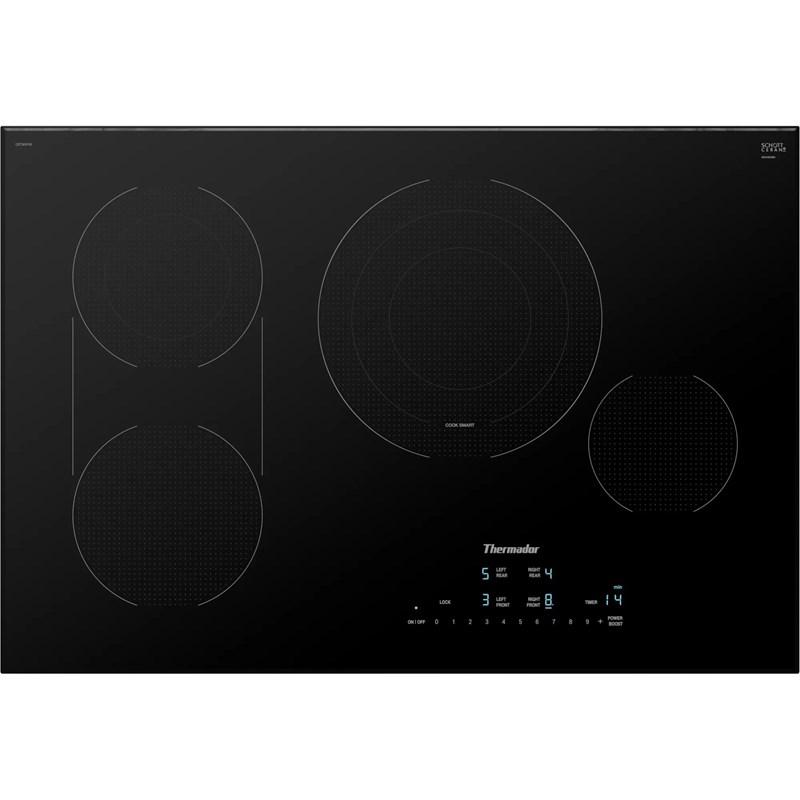

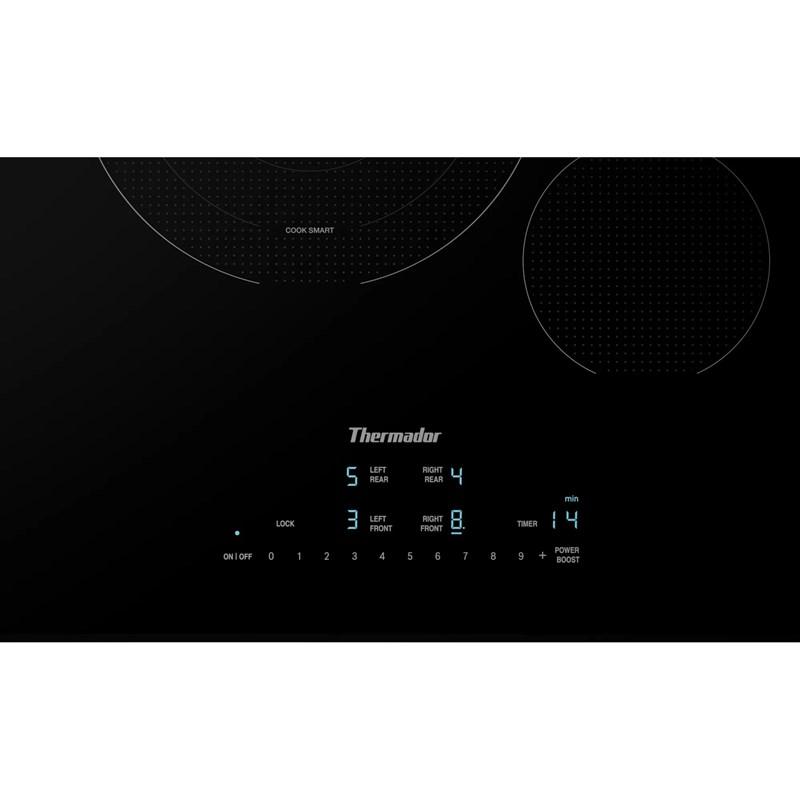

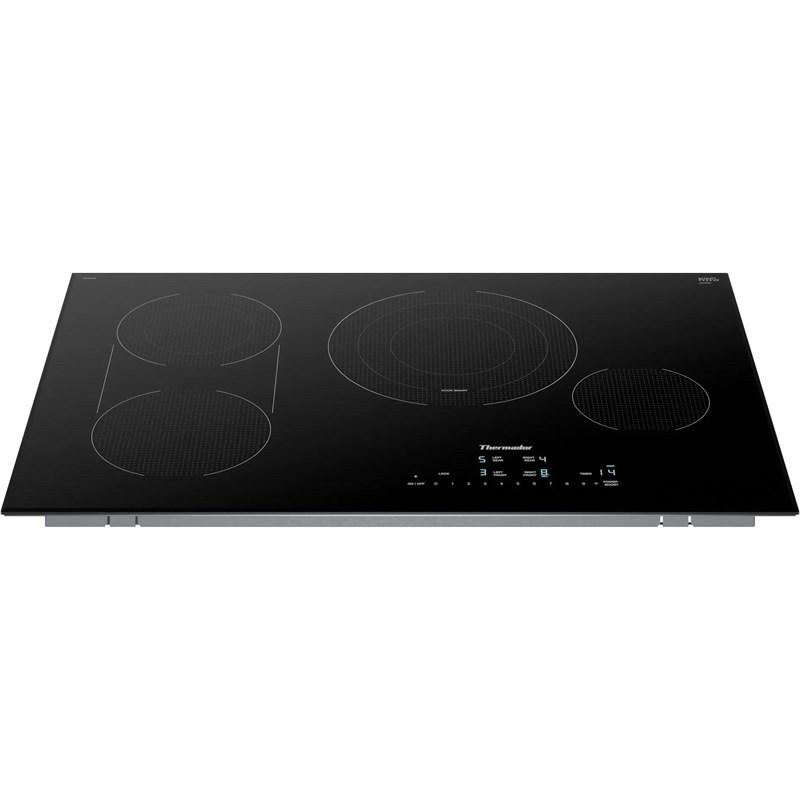

Thermador 30-inch Built-in Electric Cooktop features CookSmart®, dual zone bridge element and 4 cooktop elements. The CookSmart® offers 4 preset frying levels and a sensor that controls the temperature of the pan, taking the guesswork out of temperature selection. The Dual zone bridge element accomodates oblong cookware and multiple diameter sizes. Triple zone center element allows you to match element size to various sized cookware. The illuminated touch control panel has intuitively simple selection of power levels and allows for easy cleaning.
Features
- COOKSMART® — Never guess a cooking time or temperature again. With 9 pre-programmed modes and auto-shutoff, you’ll get the perfect results every time you cook. Cooking modes include: pasta, potatoes, rice, dumplings, vegetables, sausages, milk, rice pudding and deep frying. *THERMADOR EXCLUSIVE
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Dual zone bridge element accommodates oblong cookware and multiple diameter sizes | Triple zone center element allows you to match element size to various sized cookware | Illuminated touch control panel offers intuitively simple selection of power levels and allows for easy cleaning
Specifications
| Height | 7.62 cm | Width | 78.8 cm | Class Width | 30" |
| Weight | 12.25 kg | Depth | 54.0 cm | Type | Built-In |
| Fuel Type | Electric | Color | Stainless Steel | Manufacturer Color | Black without frame |
| ADA Compliant | Y | Included | 1 x glass scraper | Warranty | Limited 2 Years Parts and Labor |
| Digital Display | Y | UPC# | 825225960232 | Elements | Smoothtop |
| Burners/Elements | 4 | ||||
| Information 7800 W | 40 / 30 A | 240 / 208 V | 60 Hz | |||||
| Additional Dimensions Required Cutout Size (HxWxD): 3 15/16" x 28 3/4" x 19 7/8" | Minimum Distance From Counter Front: 2 1/4" | Minimum Distance From Rear Wall: 2 3/4" | |||||
| Optional CHEFSPAN08: 10" Stainless Steel Pan | |||||
| Technologies CookSmart® | |||||

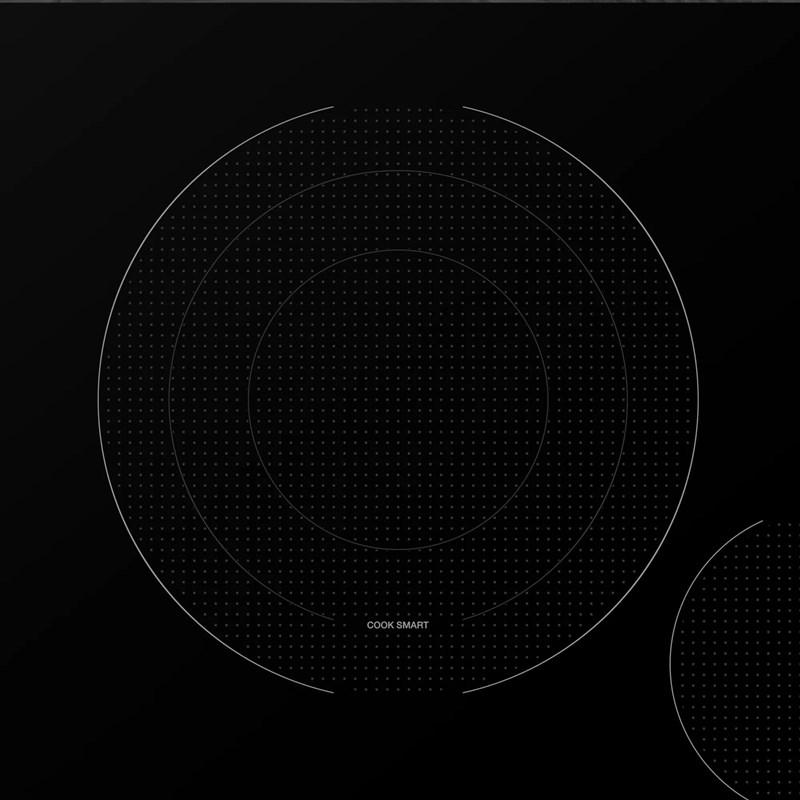

| Burner/Element Size Dimension of Front Left Heating Element: 7" | Dimension of Back Left Heating Element: 7", 5" | Dimension of Center Heating Element: 11", 8", 6" | Dimension of Front Right Heating Element: 6" | |||||
| Power Output Power of Front Left Heating Element: 1,700 W | Power of Back Left Heating Element: 1,700 / 700 W | Power of Bridge Element: 4,000 W | Power of Center Heating Element: 3,080 / 2,200 / 1,050 W | Power of Front Right Heating Element: 1,200 W | |||||
