Description
About this Product

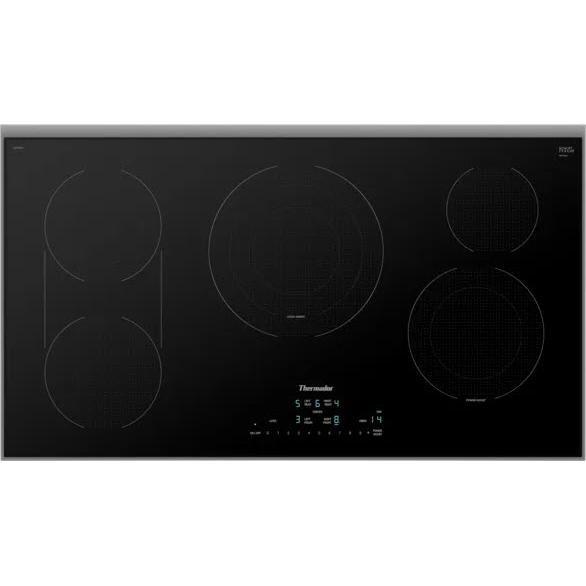

Thermador 36-inch Built-in Electric Cooktop features CookSmart®, dual zone bridge element and 5 cooktop elements.
Features
- COOKSMART® — Never guess a cooking time or temperature again. With 9 pre-programmed modes and auto-shutoff, you’ll get the perfect results every time you cook. Cooking modes include: pasta, potatoes, rice, dumplings, vegetables, sausages, milk, rice pudding and deep frying. *THERMADOR EXCLUSIVE
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights

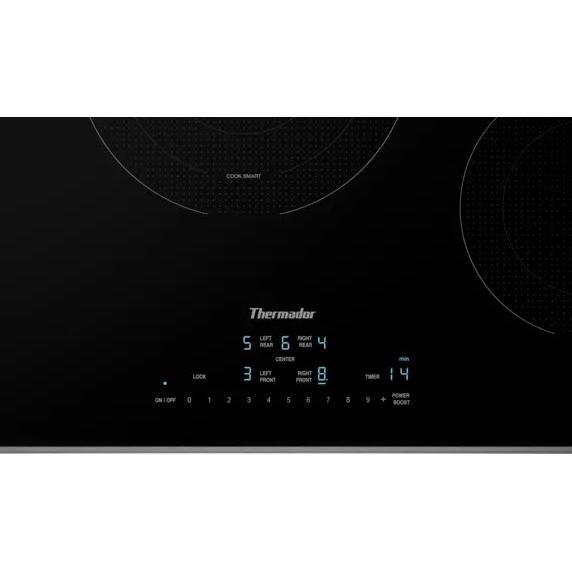

Dual zone bridge element accommodates oblong cookware and multiple diameter sizes | Triple zone center element allows you to match element size to various sized cookware | Illuminated touch control panel offers intuitively simple selection of power levels and allows for easy cleaning | Full stainless steel frame surrounds the cooktop surface
Specifications
| Height | 7.62 cm | Width | 94.0 cm | Class Width | 36" |
| Weight | 15.42 kg | Depth | 54.0 cm | Type | Built-In |
| Fuel Type | Electric | Color | Stainless Steel | Manufacturer Color | Black with Stainless Steel Frame |
| ADA Compliant | Y | Included | 1 x glass scraper | Warranty | Limited 2 Years Parts and Labor |
| Digital Display | Y | UPC# | 825225960249 | Elements | Smoothtop |
| Burners/Elements | 5 | ||||
| Information 10,520 W | 50 / 40 A | 240 / 208 V | 60 Hz | |||||
| Additional Dimensions Required Cutout Size (HxWxD): 3 15/16" x 34 3/4" x 19 7/8" | Minimum Distance From Counter Front: 2 1/4" | Minimum Distance From Rear Wall: 2 3/4" | |||||
| Technologies CookSmart® | |||||
| Burner/Element Size Dimension of Front Left Heating Element: 7" | Dimension of Back Left Heating Element: 7", 5" | Dimension of Center Heating Element: 11", 8", 6" | Dimension of Back Right Heating Element: 6" | Dimension of Front Right Heating Element: 8", 6" | |||||
| Power Output Front Left Heating Element: 1,700 W | Front Left Heating Element (In Boost): 3,000 W | Back Left Heating Element: 1,700 / 700 W | Bridge Element: 4,000 W | Center Heating Element: 3,080 / 2,200 / 1,050 W | Back Right Heating Element: 1,200 W | Front Right Heating Element: 2,100 / 1,200 W | |||||
Accessories
1 x glass scraper
