Thermador-Stainless Steel-Gas PCG486GD

Sku: 90T4193D






Maximum quantity available reached.

Description

About this Product

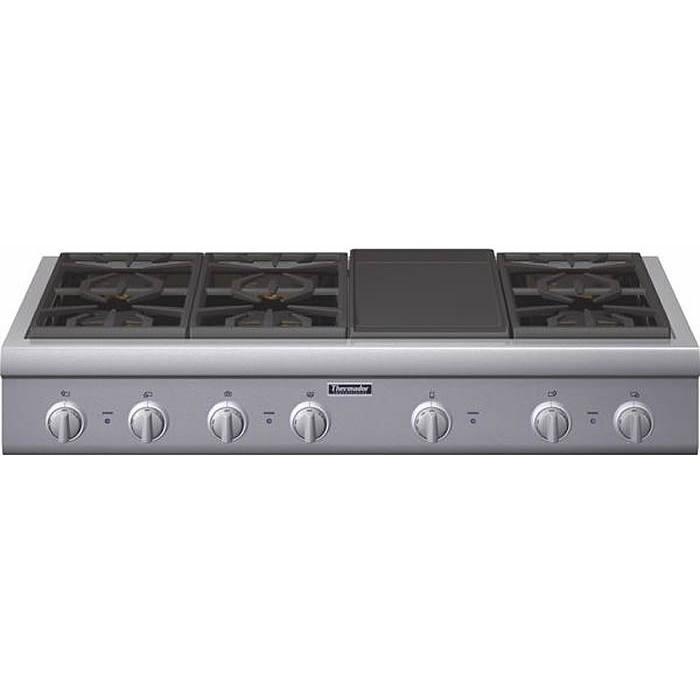

This Thermador 48" Professional Series rangetop gives you the convenience of Thermador's fourth-generation pedestal Star® burners for the highest standard in performance and convenience. It also offers 6 Star® burners and an electric griddle.

Features

  • EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
  • FASTEST TIME TO BOIL — The unique five-point design of our patented Star® Burners directs heat evenly from the center of the pan to its edges for faster time to boil. It boils water over 50% faster than leading competitors.

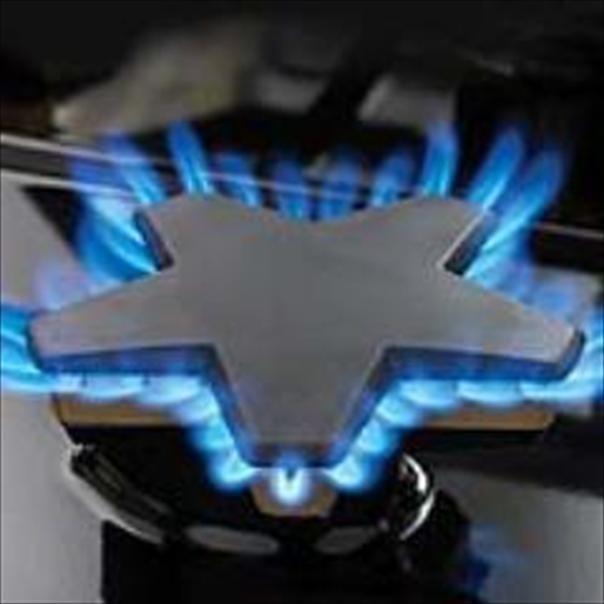

  • PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE

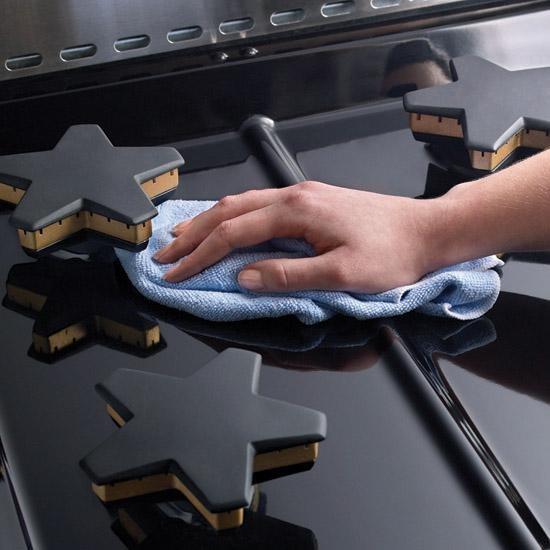

  • QUICKCLEAN BASE — The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge fit easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base. THERMADOR EXCLUSIVE

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Warranty Details (en)

Warranty Details (en)

Highlights

Signature blue indicator lighting | Island trim shipped standard with rangetop

Specifications

Fuel Type Natural Gas Type Rangetop Series Name Professional
Color Stainless Steel Manufacturer Color Stainless Steel Burners Sealed
Burners/Elements 7 Burner/Element Size 12" Griddle Other Griddle
Sabbath Mode N Downdraft Ventilation N Wi-Fi N
Height 20.5 cm Width 121.8 cm Depth 65.3 cm
Weight 78.02 kg Class Width 48" or More Warranty Limited 2 years parts and labor
UPC# 825225881520
Power Output
Front Left Burner: 18,000 BTU and XLO | Back Left Burner : 18,000 BTU and XLO | Back Center Burner: 18,000 BTU | Front Center Burner: 18,000 BTU | Center Griddle: 1,630 W | Back Right Burner: 18,000 BTU | Power of Front Right Burner: 18,000 BTU
Surface Features
Bold Professional design | Patented Pedestal Star® Burner with QuickClean Base® | Restaurant style metal knobs | Non-stick, rust-proof cast-aluminum griddle with fusion coated surface, removable for easy cleanup
Information
120 V | 60 Hz | 15 A
Technologies
Patented Pedestal Star® Burner | Quick Clean Base™ | ExtraLow® Simmer
Additional Dimensions
Required Cutout Size (HxWxD): 7 11/16" x 46 1/4" x 22 13/16" | Minimum Distance From Rear Wall: 12" min to combustible surface with Flush Island Trim
Optional
PA12GRILLN: Pro Grill | PA12CVRJ: 12" Griddle Cover | PAGRIDDLE: Griddle | PA48GLBC: 12" Low Backguard | PWOKRINGHC: Wok Ring | PAKNOBLUNH: Blue Knob Kit | PALPKITHN: LP Conversion Kit | PA12CHPBLK: 12" Cutting Board

Accessories

• PA12GRILLN: Pro Grill
• PA12CVRJ: 12" Griddle Cover
• PAGRIDDLE: Griddle
• PA48GLBC: 12" Low Backguard
• PWOKRINGHC: Wok Ring
• PAKNOBLUNH: Blue Knob Kit
• PALPKITHN: LP Conversion Kit
PA12CHPBLK: 12" Cutting Board
