Description
About this Product

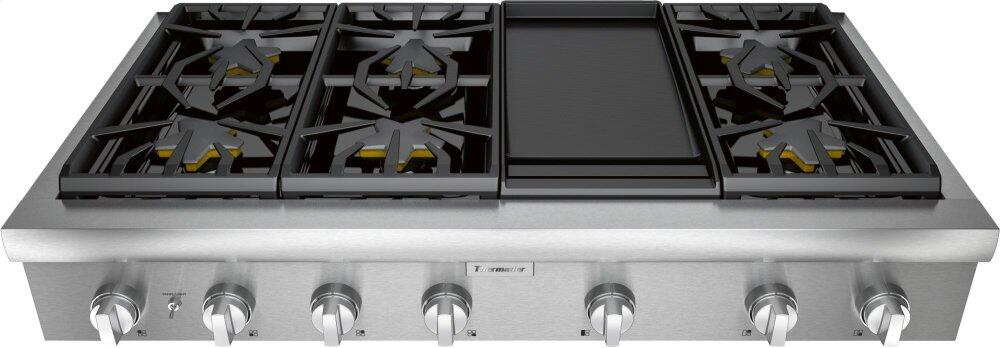

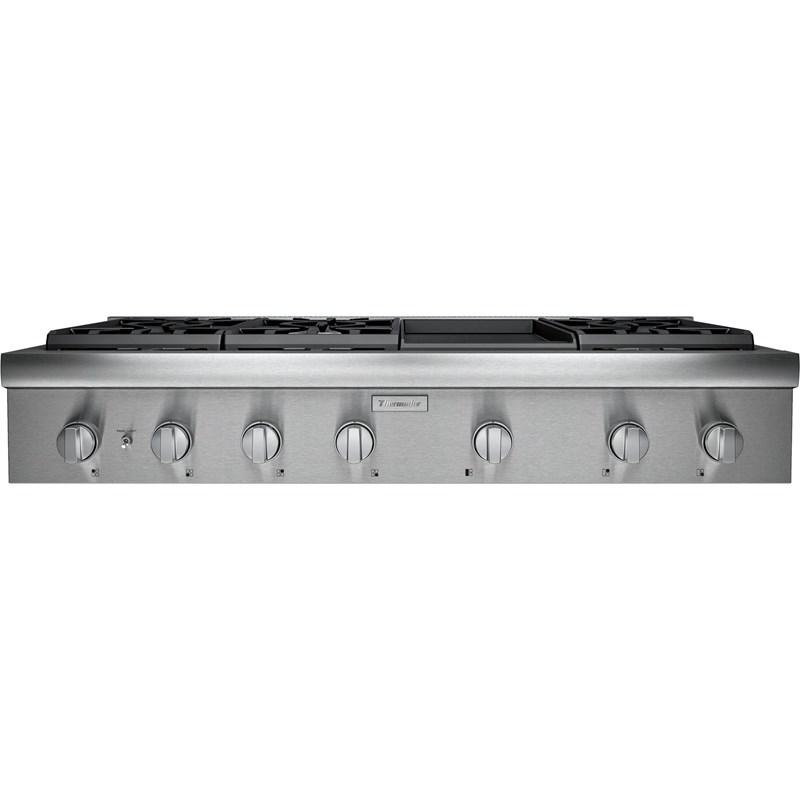

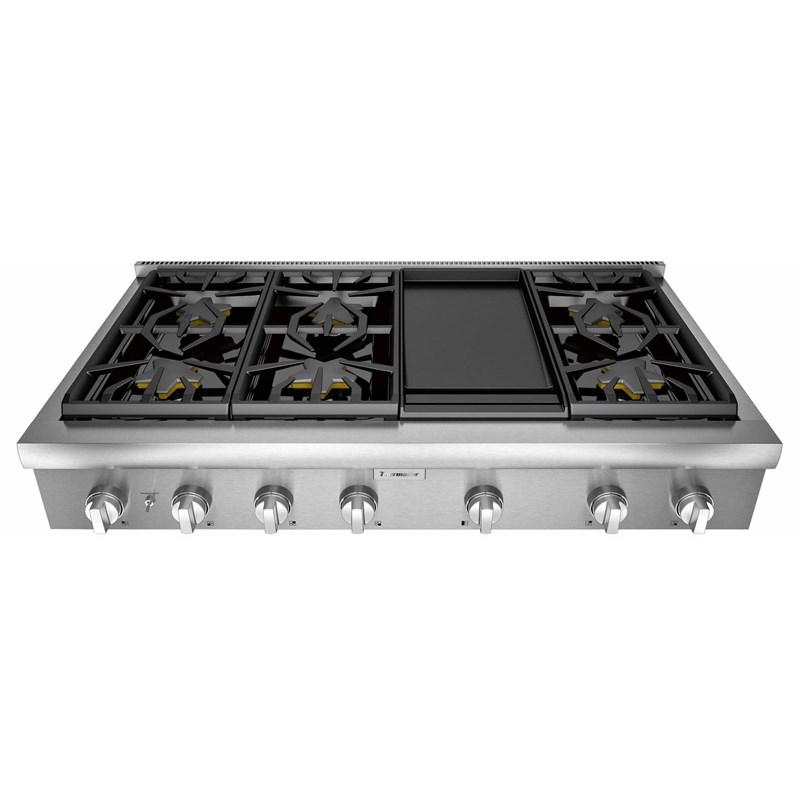

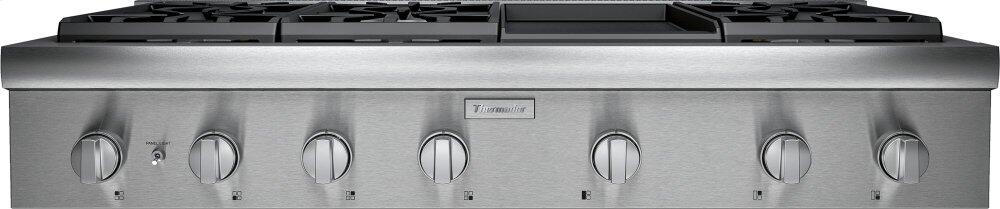

This Thermador 48-inch gas rangetop features 6 burners, a griddle, metal knobs and LED downlighting. It also offers precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® simmer burners.
Features
- EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
- PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
- QUICKCLEAN BASE — The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge fit easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base. THERMADOR EXCLUSIVE
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan | Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners | LED Downlighting—hidden discreetly above the control panel provides functional and stylish illumination | Superior griddle results—6 pass, 1,630 Watt thermostatically controlled griddle | Non-stick, rust-proof cast-aluminum griddle, removable for easy cleanup | Cast iron grates
Specifications
| Burners/Elements | 7 | Burner/Element Size | 12" Griddle | Burners | Sealed |
| Other | Griddle | Height | 18.4 cm | Width | 121.76 cm |

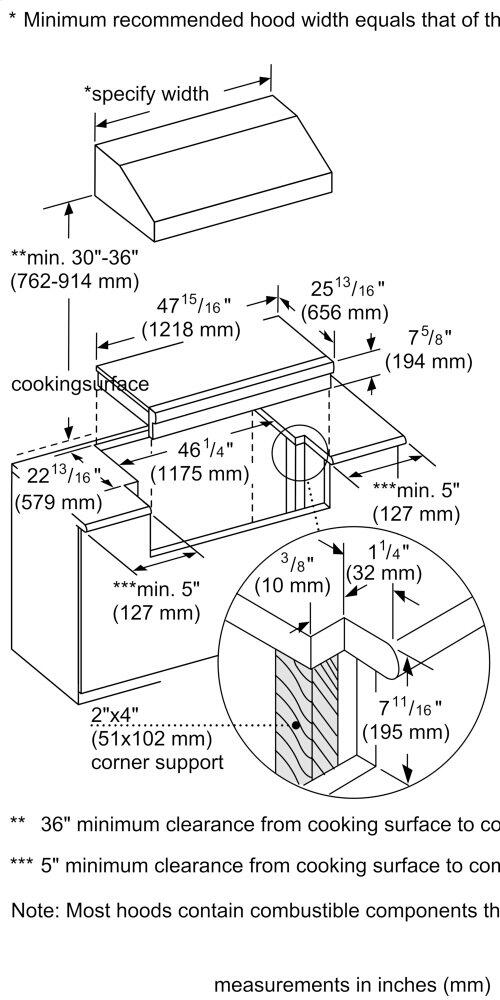

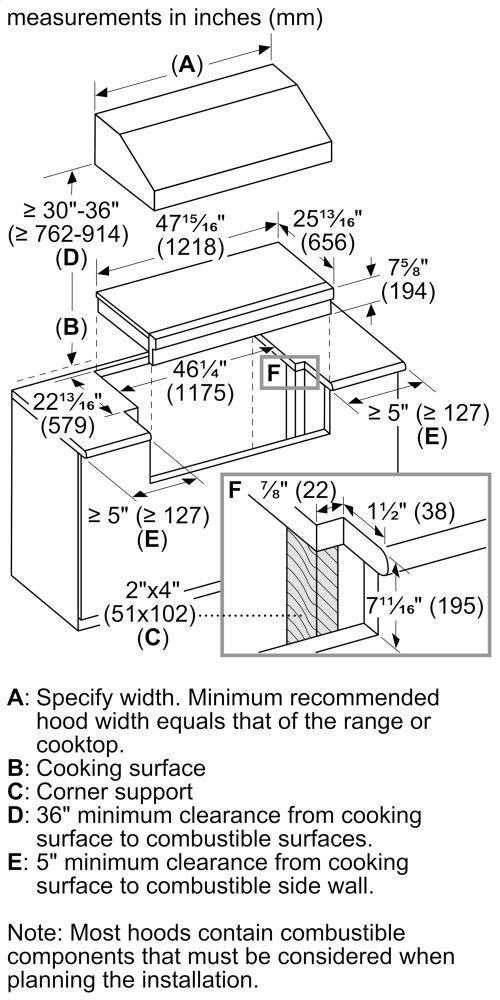

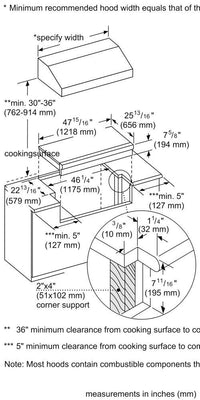

| Depth | 66.0 cm | Weight | 78.02 kg | Additional Dimensions | Required Cutout Size (HxWxD): 7 11/16" x 46 1/4" x 22 13/16" |
| Class Width | 48" or More | Fuel Type | Natural Gas | Type | Rangetop |
| Series Name | Professional | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| UPC# | 825225935537 | Warranty | Limited 2 Years Parts and Labor | ||
| Power Output Power of Front Left Burner: 18,000 and XLO BTU | Power of Back Left Burner: 15,000 and XLO BTU | Power of Back Center Burner: 15,000 BTU | Power of Front Center Burner: 18,000 BTU | Power of Center Griddle: 1,630 W | Power of Back Right Burner: 15,000 BTU | Power of Front Right Burner: 18,000 BTU | |||||
| Information 120 V | 60 Hz | 15 A | |||||
| Technologies Patented Pedestal Star® Burner | QuickClean Base® | ExtraLow® Simmer Burners | |||||
| Optional 12" Grill Plate: PA12GRILLW | 12" Grill Plate with Fusion Coating: PA12GRILFW | 12" Pro Griddle Plate with Fusion Coating: PAGRIDLFW | Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE | 12" Pro Grill Cover: PA12LCVRW | 12" Cutting Board: PA12CHPBLK | Metallic Blue Knob Kit: PAKNOBLUWR | Wok Ring: PWOKRINGHC | LP Conversion Kit: PALPKITHW | 10" Low Backguard: PA36WLBC | |||||
Accessories
• 12" Grill Plate with Fusion Coating: PA12GRILFW
• 12" Pro Griddle Plate with Fusion Coating: PAGRIDLFW
• Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE
• 12" Pro Grill Cover: PA12LCVRW
• 12" Cutting Board: PA12CHPBLK
• Metallic Blue Knob Kit: PAKNOBLUWR
• Wok Ring: PWOKRINGHC
• LP Conversion Kit: PALPKITHW
• 10" Low Backguard: PA36WLBC
