Description
About this Product

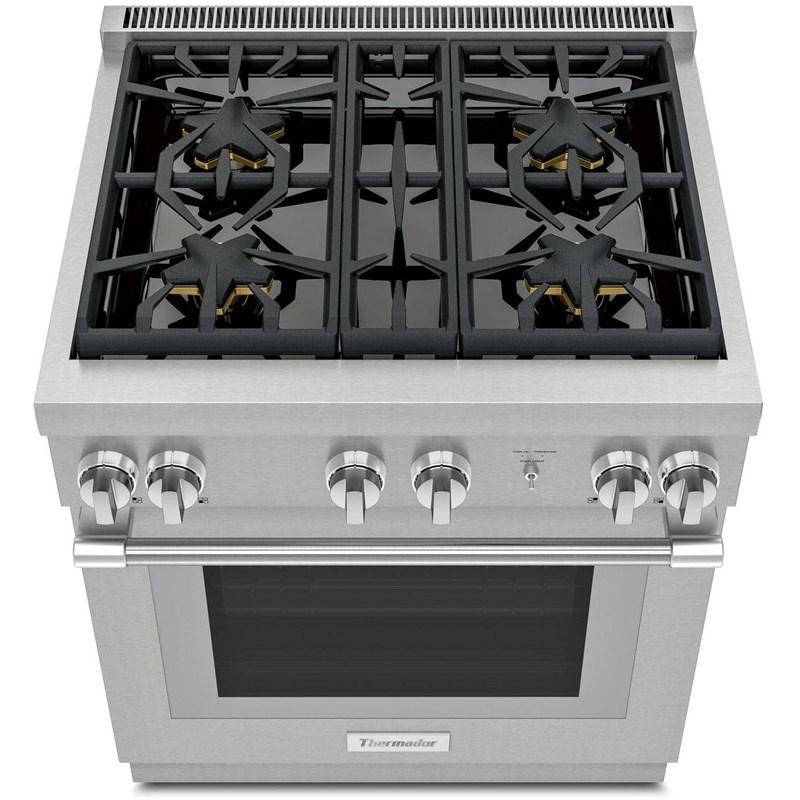

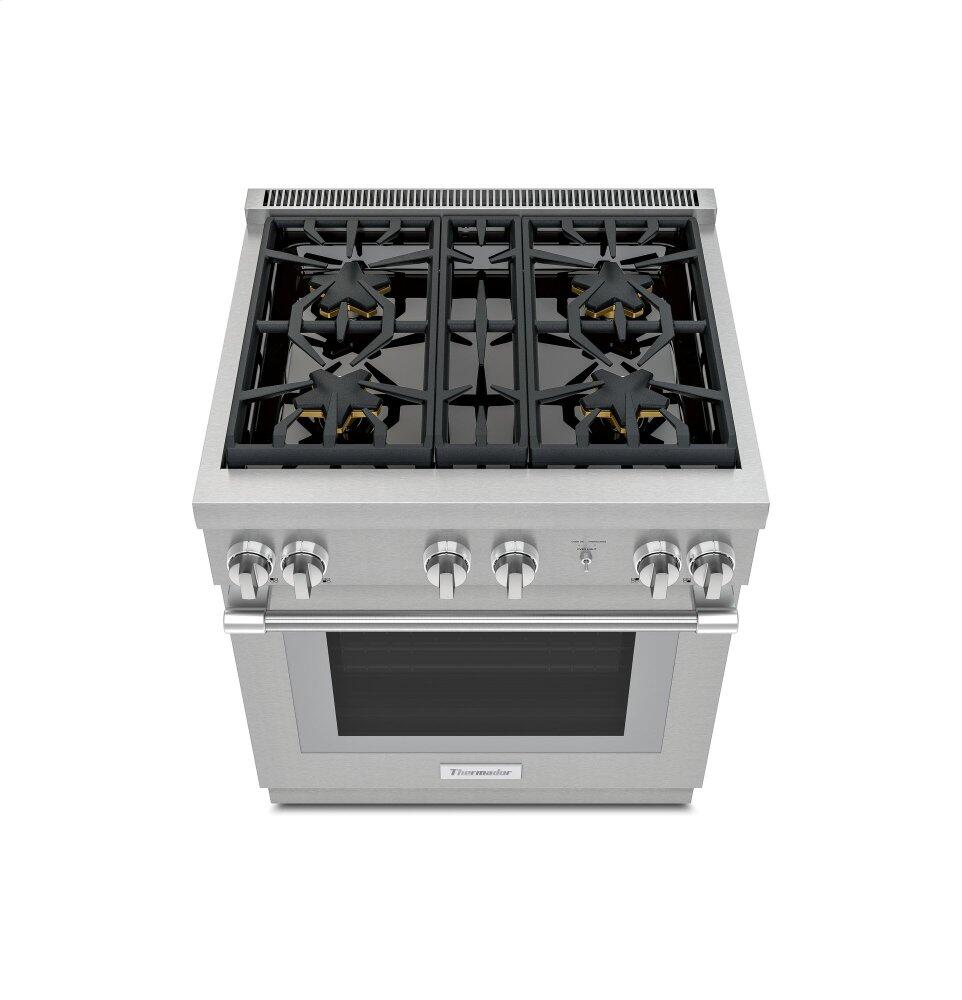

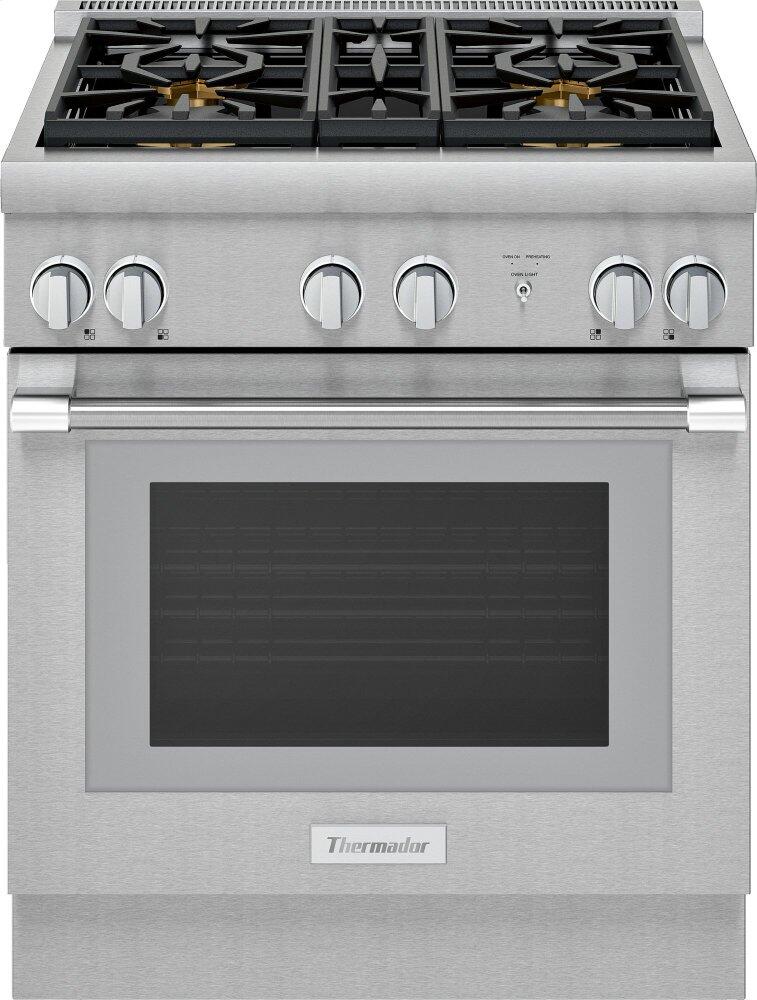

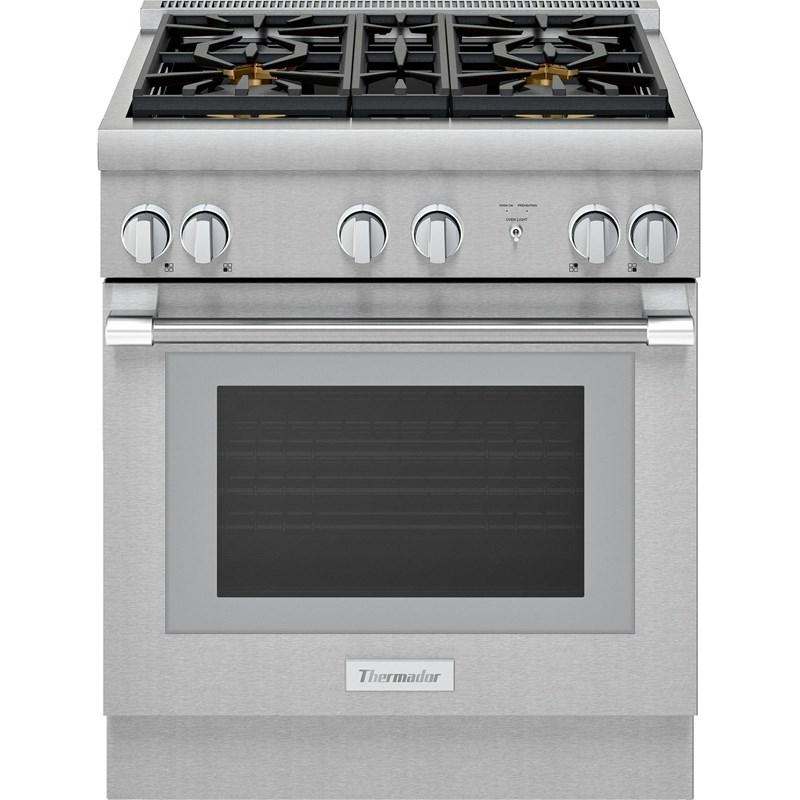

Thermador Professional Series 30-inch standard-depth Harmony gas range with a porcelain cooktop surface. It features the Star® Burner for most even heating, unsurpassed flame coverage, ExtraLow® simmer, 4 burners and the QuickClean Base® which is designed for easy surface cleaning.
Features
- EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
- STAR-K CERTIFIED — Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.

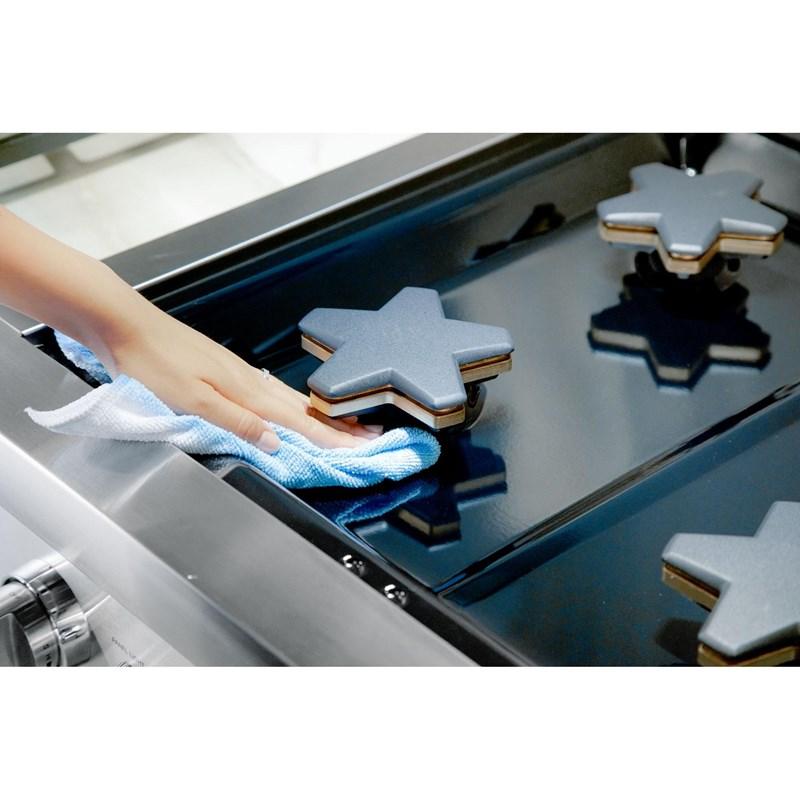

- QUICKCLEAN BASE® — The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge fit easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base. THERMADOR EXCLUSIVE
- PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner.
Documents
Product Sheet (en)
Owner's manual (en)
Installation guide (en)
Highlights
Bake power 20,500 BTU | Broil power 17,500 BTU | Porcelain cooktop surface | 2 interior lights
Specifications
| Class Width | 30" | Depth (Including Handles) | 69.53 cm | Weight | 138.8 kg |
| Width | 76.04 cm | Depth (Without Handles) | 62.55 cm | Height | 90.81 cm |
| Downdraft Ventilation | N | Self-Cleaning | N | Digital Temperature Display | N |
| Convection | Y | Burners | Sealed | Burners/Elements | 4 |
| Warranty | 2-Year limited warranty on entire appliance for parts and labor | UPC# | 825225935582 | Appliance Care | QuickClean Base® designed for easy surface cleaning |
| Fuel Type | Natural Gas | Series Name | Professional Series Harmony® | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation Type | Freestanding | Number of Ovens | Single |
| Capacity (cu. ft.) | 4.6 | Sabbath/Star-K | Y | ||

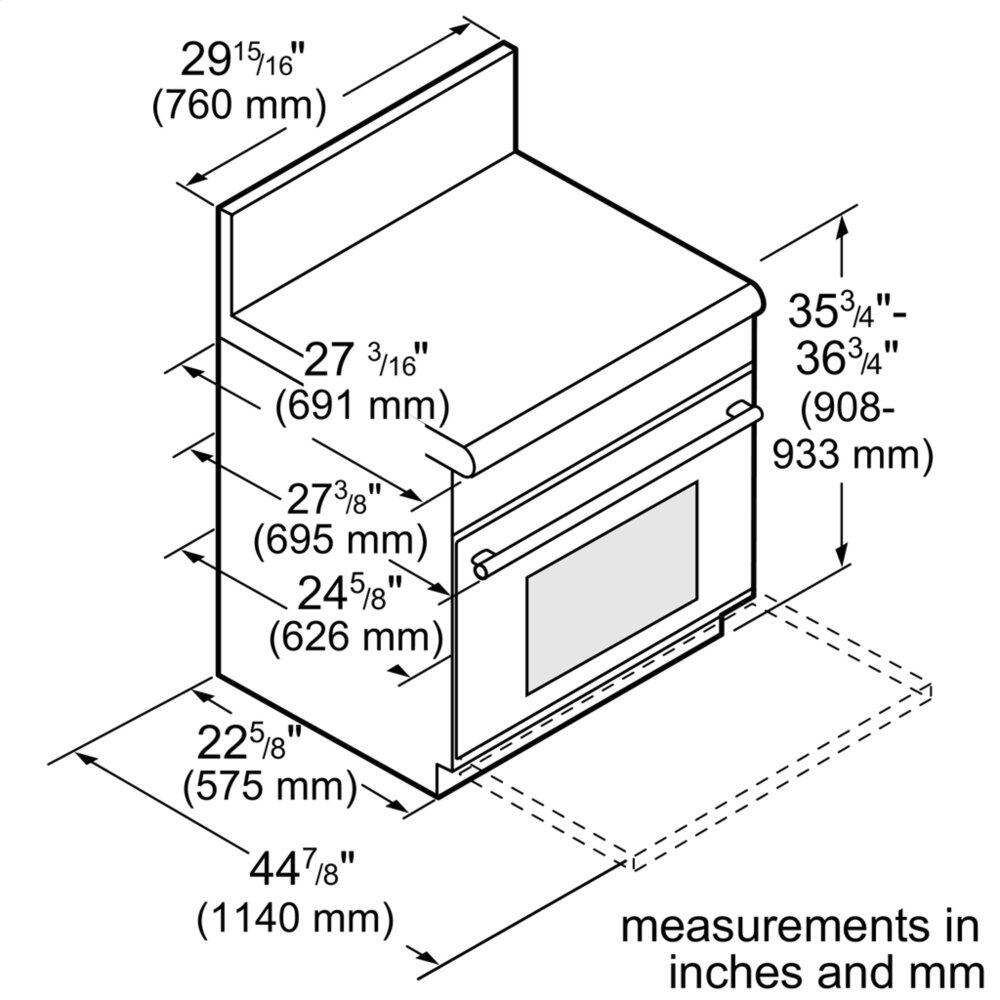

| Additional Dimensions Power cord length: 65" (1,651mm) | Gas supply: 3/4" | Cavity interior (HxWxD): 16-1/2" x 26" x 18-5/8" | Cavity usable (HxWxD): 11-1/4" x 22-3/8" x 16-3/4" | Required cutout size (HxWxD): 35-3/4" – 36-3/4" x 30" x 24" | |||||
| Technologies Star® Burner – most even heating, unsurpassed flame coverage | ExtraLow®, the widest simmer temperature control as low as 100°F | 2 ExtraLow® burners for simmering, melting, or holding long durations | |||||
| Burners/Elements Output Back left: 15,000 BTU (XLO) | Front left: 18,000 BTU (XLO) | Back right: 15,000 BTU | Front right: 18,000 BTU | |||||
| Included 1 telescopic rack | 2 standard racks | 1 large broil pan | Island trim | |||||
| Optional PWOKRINGHC: Wok ring | PAKNOBLUWH: Metallic blue knob kit | PAGRIDDLE: Professional griddle | PAALTKITGW: Natural gas models from 5,400 ft.–10,200 ft | PA12CHPBLK: Chopping block / cutting board | PA30WLBH: Pro Harmony 7" low back backguard | PALPKITGW: LP conversion kit gas Pro ranges (4 and 6 burner) | |||||
| Information Volts: 120 V, 60Hz | Circuit breaker: 15 A | Plug type: USA 120V - 3 Prong | |||||
| Programs Bake | Convection bake | Roast | Broil | Extended bake | |||||
Accessories
• 1 telescopic rack
• 2 standard racks
• 1 large broil pan
• Island trim
• 2 standard racks
• 1 large broil pan
• Island trim
• PWOKRINGHC: Wok ring
• PAKNOBLUWH: Metallic blue knob kit
• PAGRIDDLE: Professional griddle
• PAALTKITGW: Natural gas models from 5,400 ft.–10,200 ft
• PA12CHPBLK: Chopping block / cutting board
• PA30WLBH: Pro Harmony 7" low back backguard
• PALPKITGW: LP conversion kit gas Pro ranges (4 and 6 burner)
• PAKNOBLUWH: Metallic blue knob kit
• PAGRIDDLE: Professional griddle
• PAALTKITGW: Natural gas models from 5,400 ft.–10,200 ft
• PA12CHPBLK: Chopping block / cutting board
• PA30WLBH: Pro Harmony 7" low back backguard
• PALPKITGW: LP conversion kit gas Pro ranges (4 and 6 burner)
