Thermador-Stainless Steel-Gas SGS305TS

Sku: 90T4813S

Maximum quantity available reached.

Description

About this Product

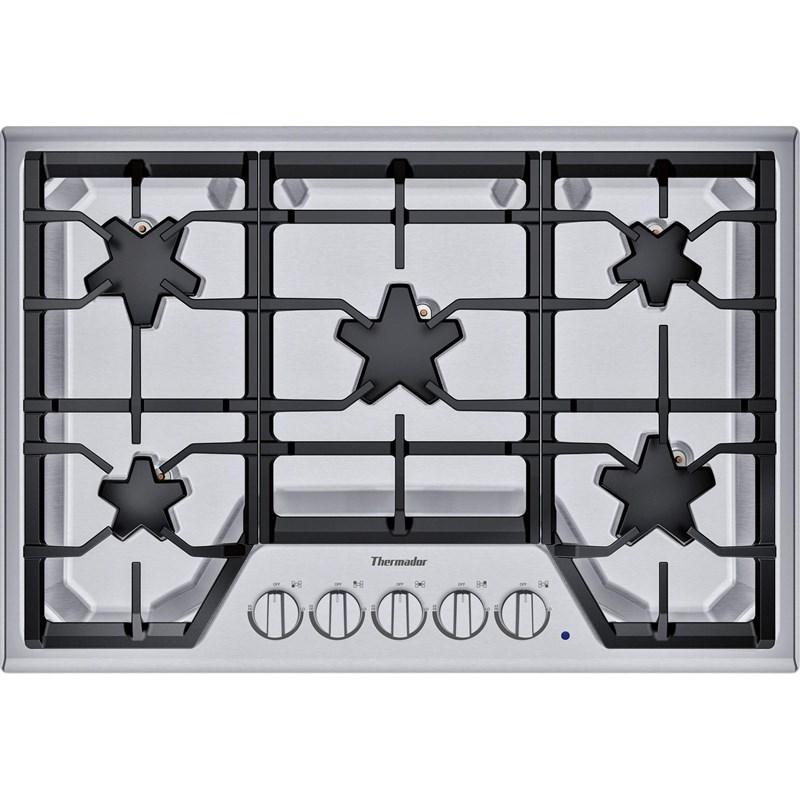

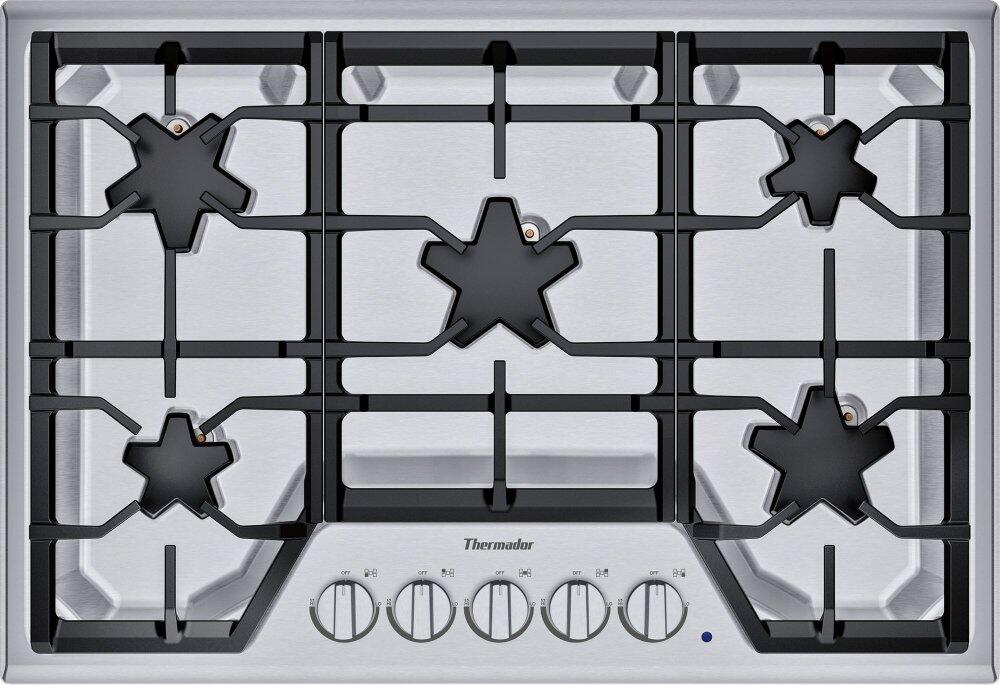

This Thermador 30-inch gas cooktop features Patented Star® burners, cast iron grates, and electric re-ignition.

Features

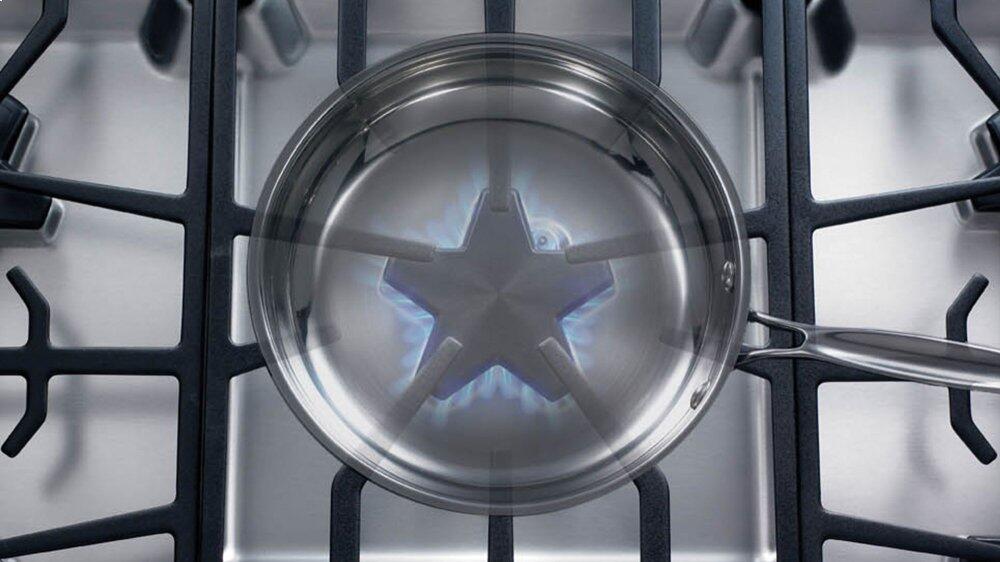

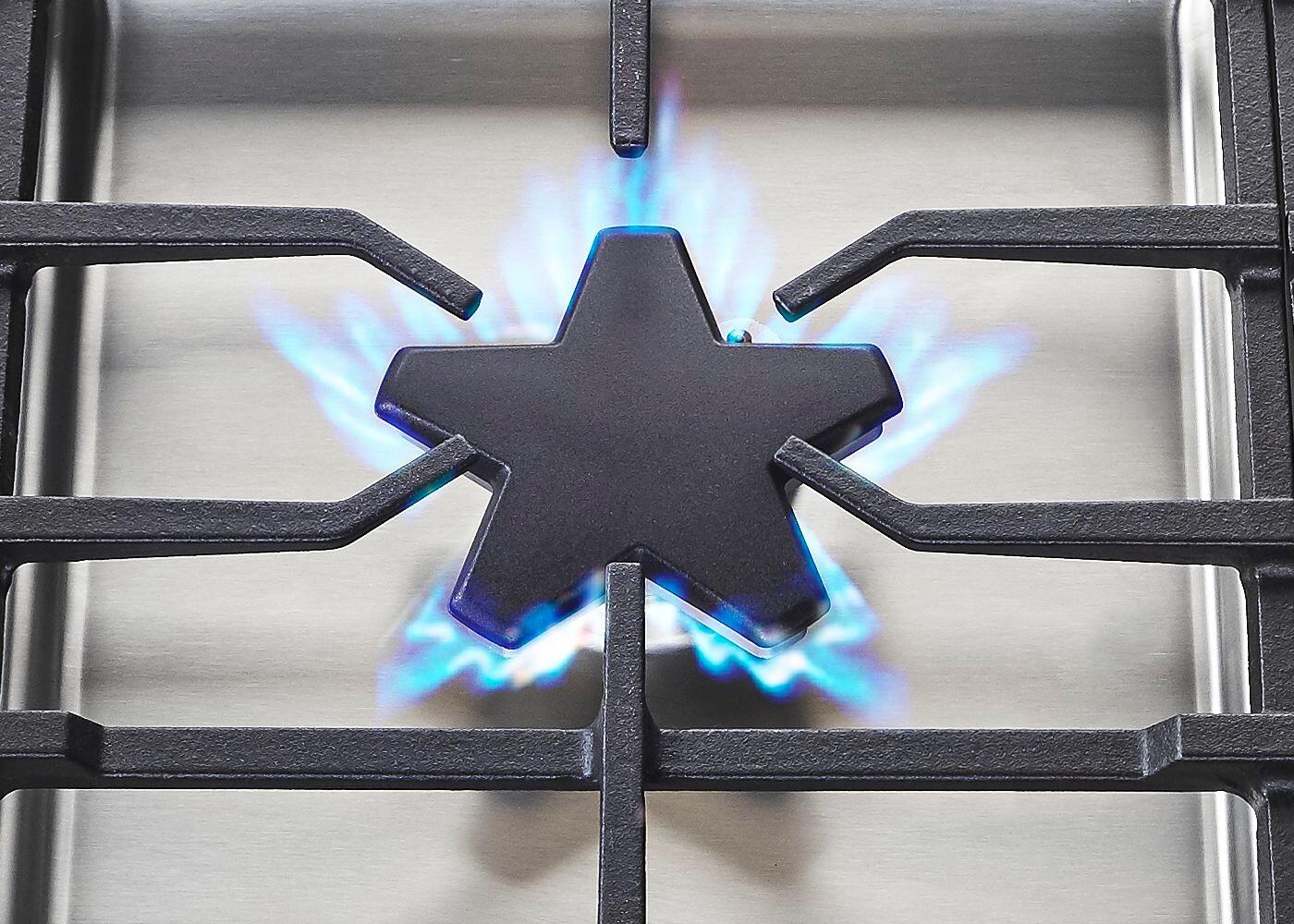

PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE

Documents

Product Sheet (en)

Dimensions Guide (en)

Owner's manual (en)

Installation guide (en)

Warranty Details (en)

Highlights

Cast Iron Grates | Metal Knobs | Electronic Re-Ignition

Specifications

Burners/Elements	5	Burners	Sealed	Height	13.65 cm
Width	78.74 cm	Depth	53.98 cm	Weight	16.33 kg
Class Width	30"	Fuel Type	Natural Gas	Type	Built-In
Series Name	Masterpiece® Star® Burner	Manufacturer Color	Stainless Steel	Color	Stainless Steel
UPC#	825225933069	Warranty	Limited 2 Years Parts and Labor	ADA Compliant	Y
Power Output Total BTU Load (NG / LP): 52,000 / 45,200 BTU \| Power of Front Left Burner (NG / LP): 8,000 / 6,000 BTU \| Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU \| Power of Center Burner (NG / LP): 16,000 / 15,000 BTU \| Power of Back Right Burner (NG / LP): 8,000 / 6,000 BTU \| Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU
Information 1,800 W \| 120 V \| 60 Hz \| 15 A

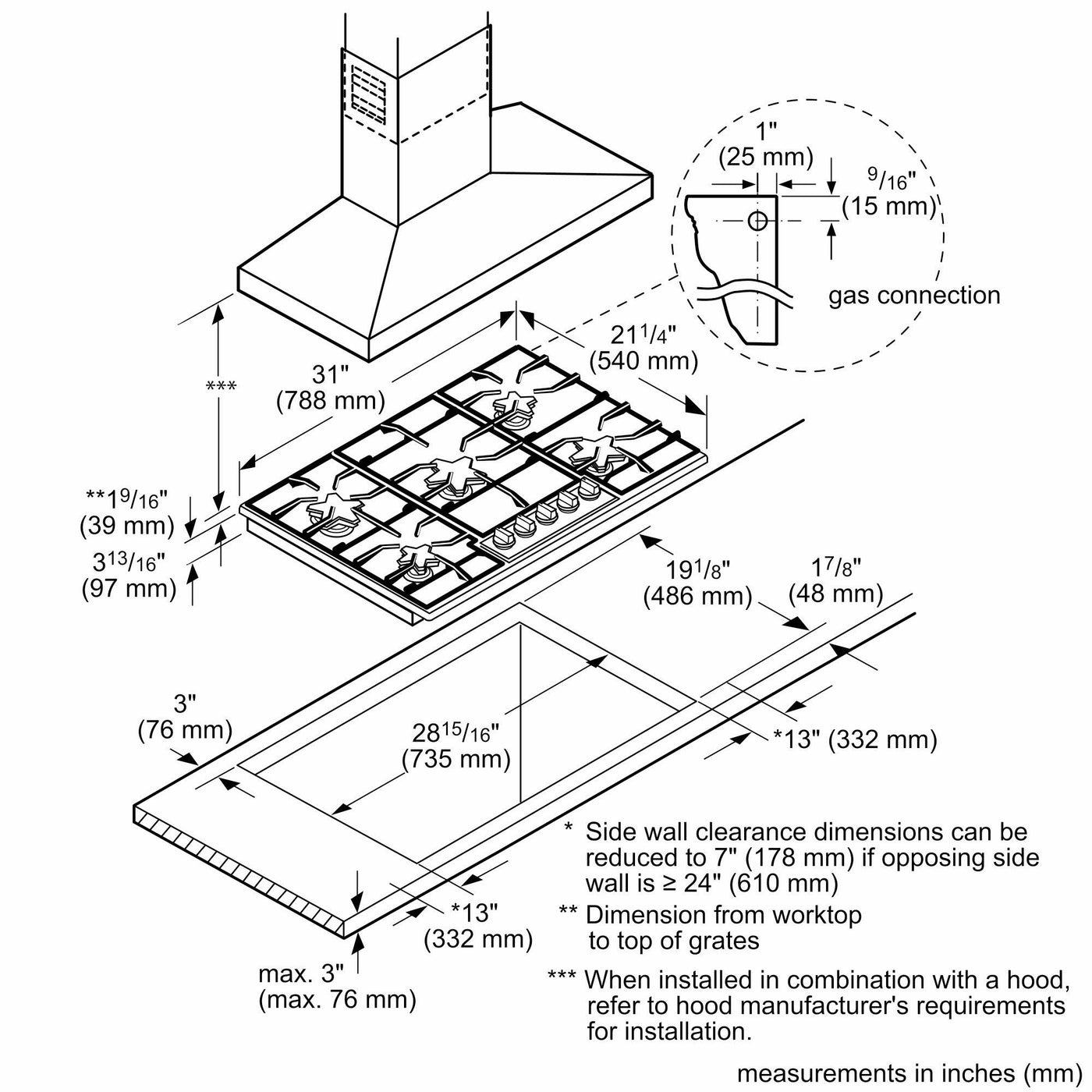

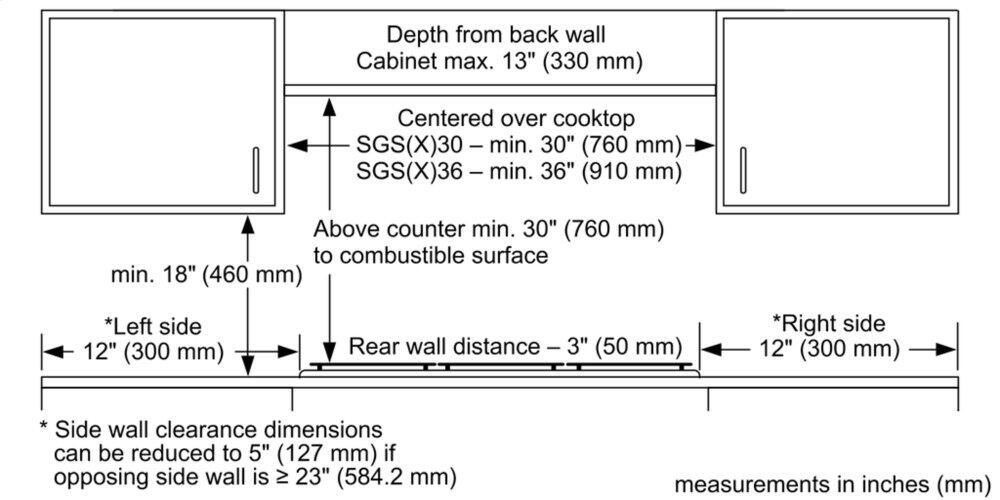

Additional Dimensions Required Cutout Size (HxWxD): 3 13/16" x 28 15/16" x 19 1/8" \| Minimum Distance From Counter Front: 1 1/2" \| Minimum Distance From Rear Wall: 3"
Technologies Patented Star® Burners
Optional SWOKRINGW Wok Ring \| SGRIDDLEW Griddle \| SLPKITW LP Conversion Kit

Accessories

• SWOKRINGW Wok Ring
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
