Description
About this Product

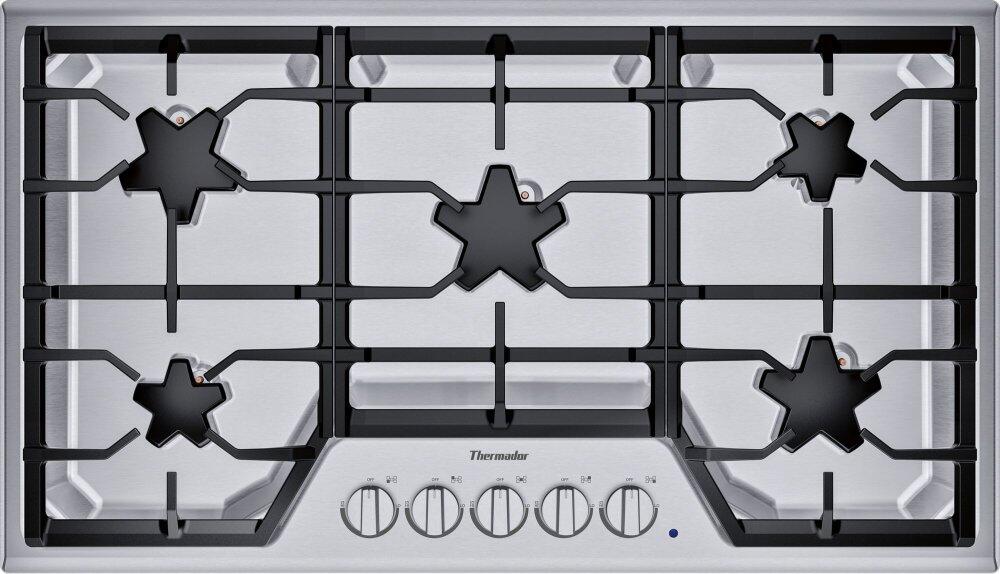

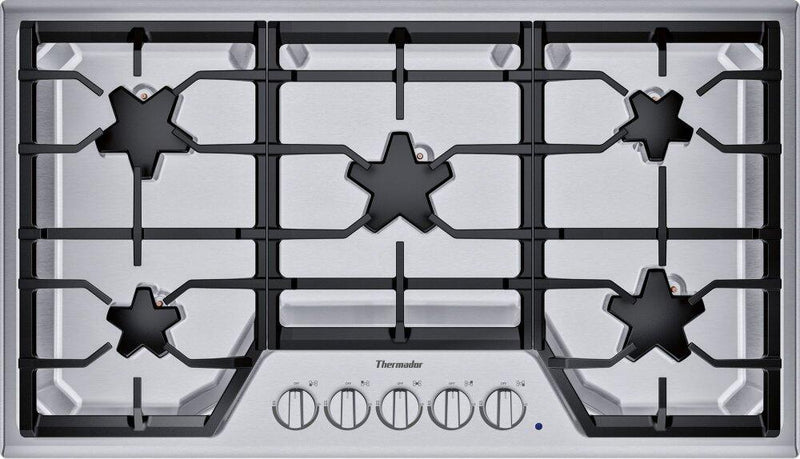

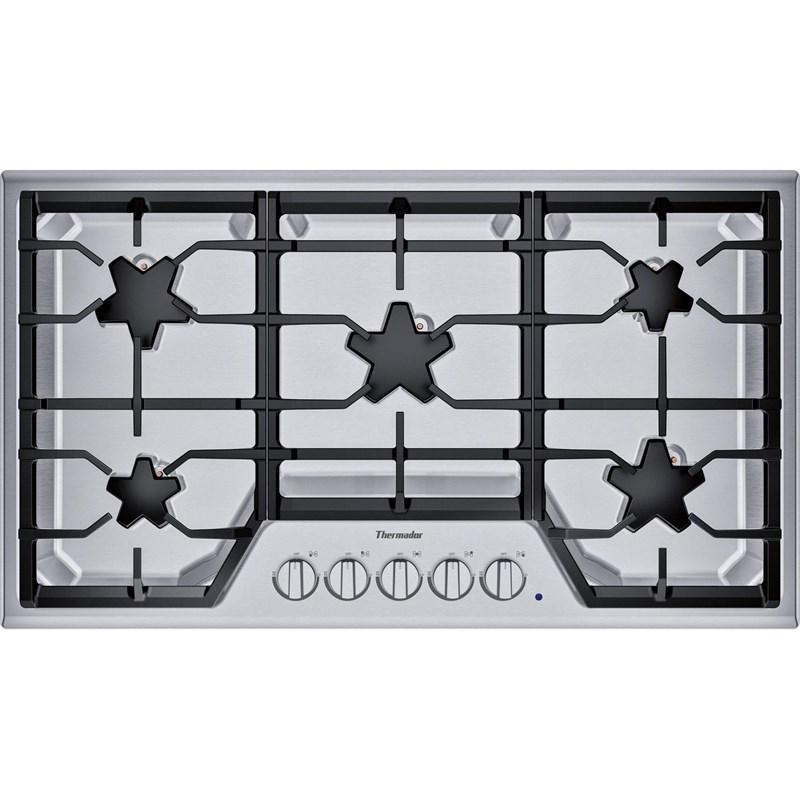

This Thermador 36-inch gas cooktop features Patented Star® burners, cast iron grates, and electric re-ignition.
Features
- PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Cast Iron Grates | Metal Knobs | Electronic Re-Ignition
Specifications
| Burners/Elements | 5 | Burners | Sealed | Sabbath Mode | Y |
| ADA Compliant | Y | Height | 13.65 cm | Width | 93.98 cm |
| Depth | 53.98 cm | Weight | 17.69 kg | Class Width | 36" |
| Fuel Type | Natural Gas | Type | Built-In | Series Name | Masterpiece® Star® Burner |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | UPC# | 825225933045 |
| Warranty | Limited 2 Years Parts and Labor | ||||
| Power Output Total BTU Load (NG / LP): 58,200 / 45,200 BTU | Power of Front Left Burner (NG / LP): 9,100 / 6,000 BTU | Power of Back Left Burner (NG / LP): 12,000 / 9,100 BTU | Power of Center Burner (NG / LP): 16,000 / 15,000 BTU | Power of Back Right Burner (NG / LP): 9,100 / 6,000 BTU | Power of Front Right Burner (NG / LP): 12,000 / 9,100 BTU | |||||
| Information 1,800 W | 120 V | 60 Hz | 15 A | |||||

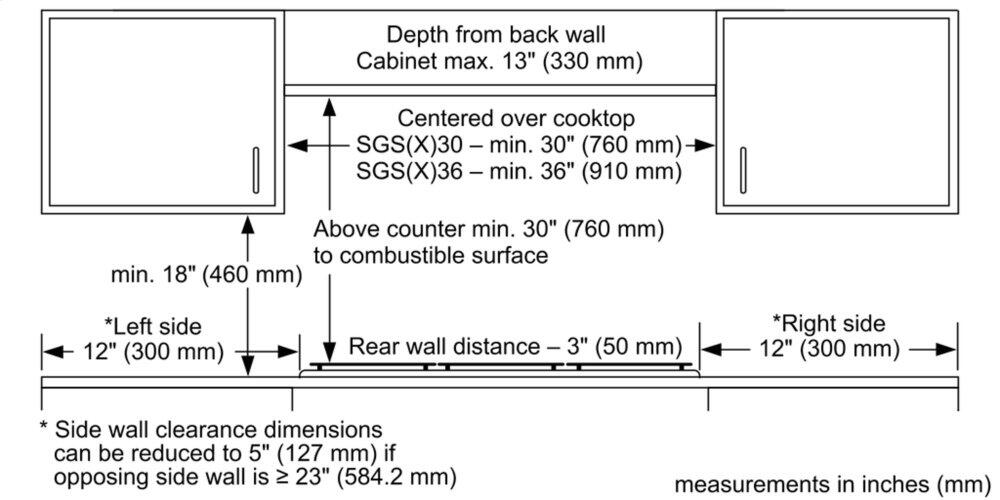

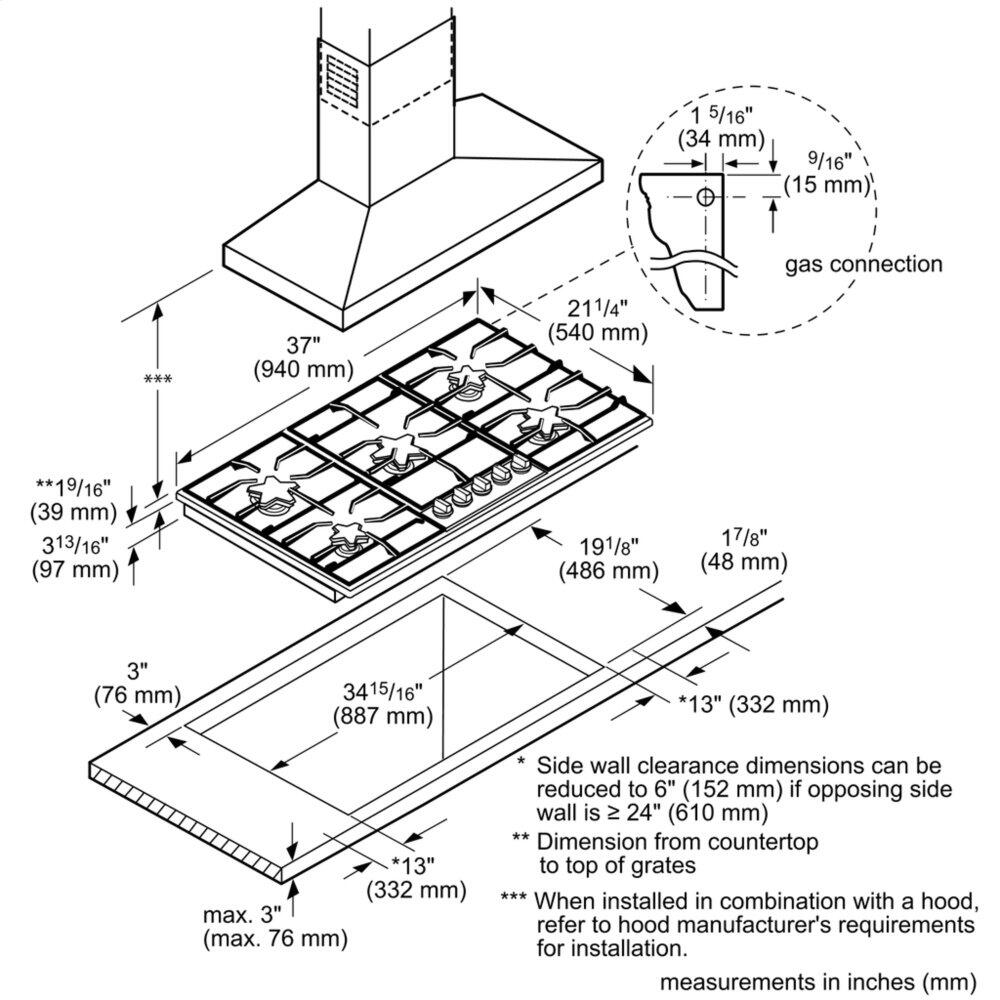

| Additional Dimensions Required Cutout Size (HxWxD): 3 13/16" x 34 15/16" x 19 1/8" | Minimum Distance From Counter Front: 1 1/2" | Minimum Distance From Rear Wall: 3" | |||||
| Technologies Patented Star® Burners | |||||
| Optional SWOKRINGW Wok Ring | SGRIDDLEW Griddle | SLPKITW LP Conversion Kit | |||||
Accessories
• SWOKRINGW Wok Ring
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
