Thermador-Stainless Steel-Gas SGSX305TS

Sku: 90T4819S






Maximum quantity available reached.

Description

About this Product

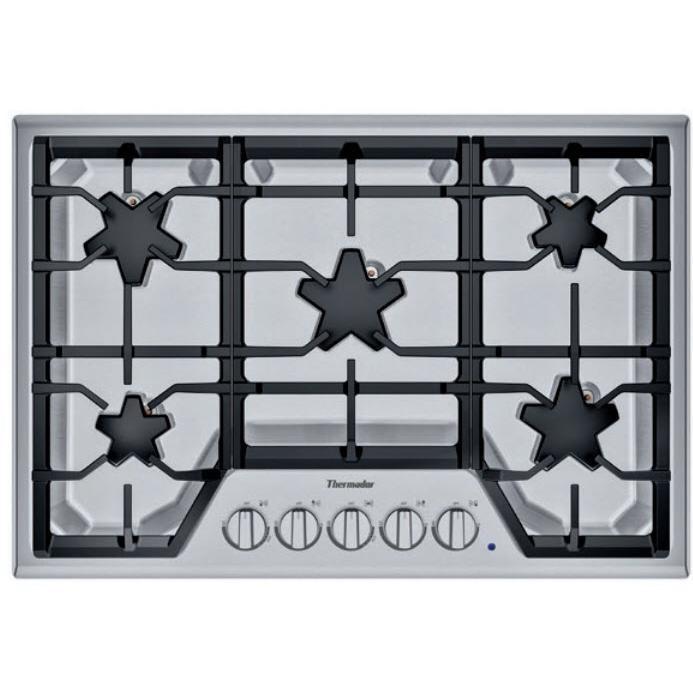

This Thermador 30-inch gas cooktop features Patented Star® burners, cast iron grates, and an ExtraLow® Select burner.

Features

  • PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
  • EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Warranty Details (en)

Warranty Details (en)

Highlights

Cast Iron Grates | Metal Knobs

Specifications

Height 13.65 cm Width 78.74 cm Class Width 30"
Weight 17.24 kg Depth 53.98 cm Type Built-In
Series Name Masterpiece® Star® Burner Fuel Type Natural Gas Manufacturer Color Stainless Steel
Color Stainless Steel ADA Compliant Y Warranty Limited 2 Years Parts and Labor
UPC# 825225933052 Burners Sealed Burners/Elements 5
Information
1,800 W | 120 V | 60 Hz | 15 A
Additional Dimensions
Required Cutout Size (HxWxD): 3 13/16" x 28 15/16" x 19 1/8" | Minimum Distance From Counter Front: 1 1/2" | Minimum Distance From Rear Wall: 3"
Optional
SWOKRINGW Wok Ring | SGRIDDLEW Griddle | SLPKITW LP Conversion Kit
Technologies
Patented Star® Burners | ExtraLow® Select Burner
Power Output
Total BTU Load (NG / LP): 52,000 / 45,200 BTU | Power of Front Left Burner (NG / LP): 8,000 / 6,000 BTU | Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU | Power of Center Burner (NG / LP): 16,000 / 15,000 BTU | Power of Back Right Burner (NG / LP): 8,000 / 6,000 BTU | Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU

Accessories

• SWOKRINGW Wok Ring
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
