Description
About this Product

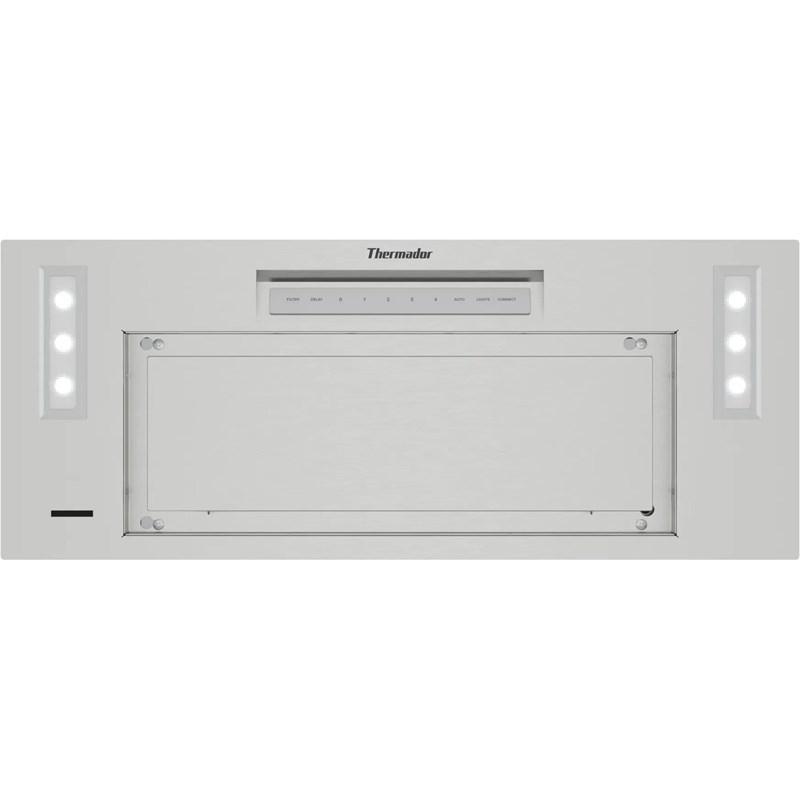

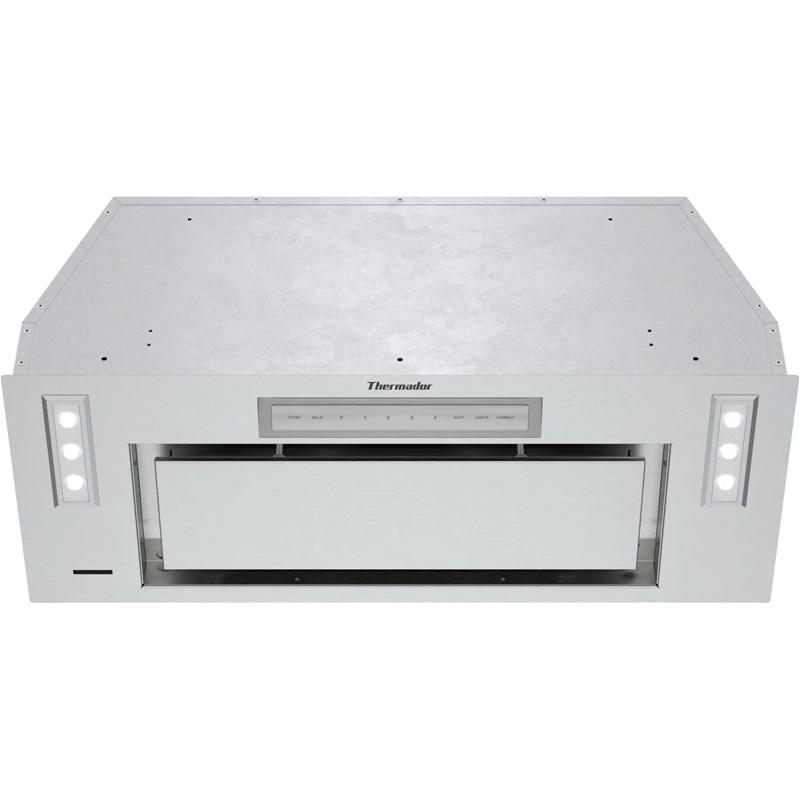

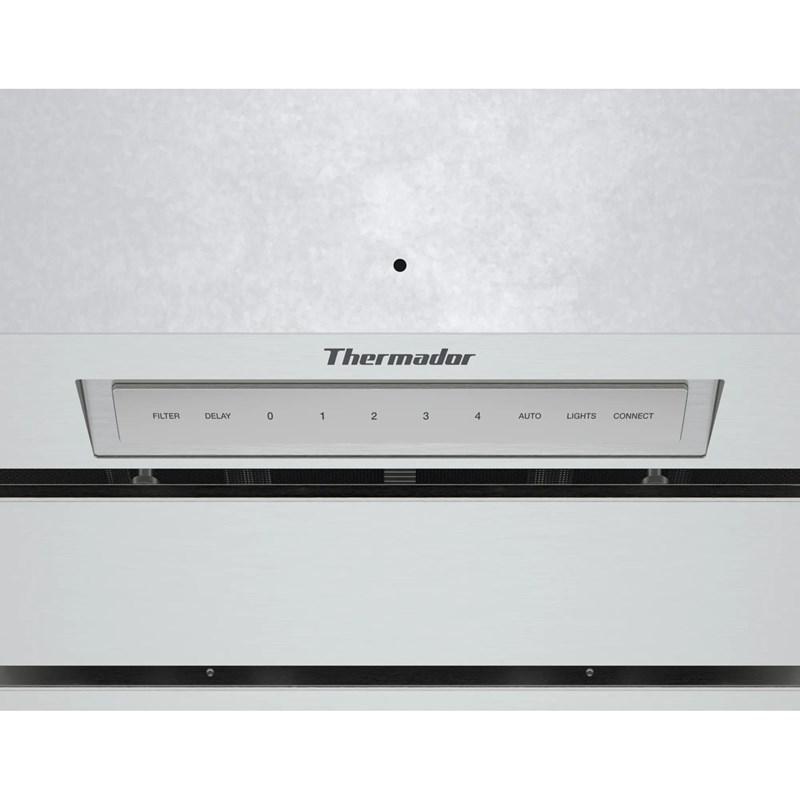

Thermador 30-inch custom insert features LED touch control, auto function, a 300 CFM blower and 4 fan speeds.
Features
- AUTO FUNCTION — Auto function senses heat from the cooking surface and adjusts fan speed.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
CFM (HVI) 260 HS / 100 WS | Sones (HVI) 3.5 HS / 0.3 WS | Motor Location: Integrated Motor | 2 LED Lights | Light Lumens 100 – 150 | Light Color 3500 – 4000°K | Total Power of the Lamps 6 W | Damper Included | Grease Filter Type Perimetric | Auto mode | Delayed shut-off
Specifications
| Style | Custom Insert | Airflow | 300 CFM | Series Name | Masterpiece |
| Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Speeds | 4 Speeds | Dishwasher-Proof Filters | Y | Ducting Information | Ducted or Recirculating |
| Wi-Fi | Y | Width | 67.31 cm | Height | 26.67 cm |
| Depth | 26.98 cm | Weight | 10.89 kg | Class Width | 30" |
| UPC# | 825225961260 | Warranty | 2 Years Parts and Labor | ||
| Technologies Home Connect™ (Wi-Fi Enabled) | Powerfully Quiet® Ventilation Systems | |||||
| Information 159 W | 120 V | 60 Hz | 15 A | |||||
| Optional Replenishment Charcoal Filter Set CHFVCI30ZS | |||||
Accessories
Replenishment Charcoal Filter Set CHFVCI30ZS
