Description
About this Product

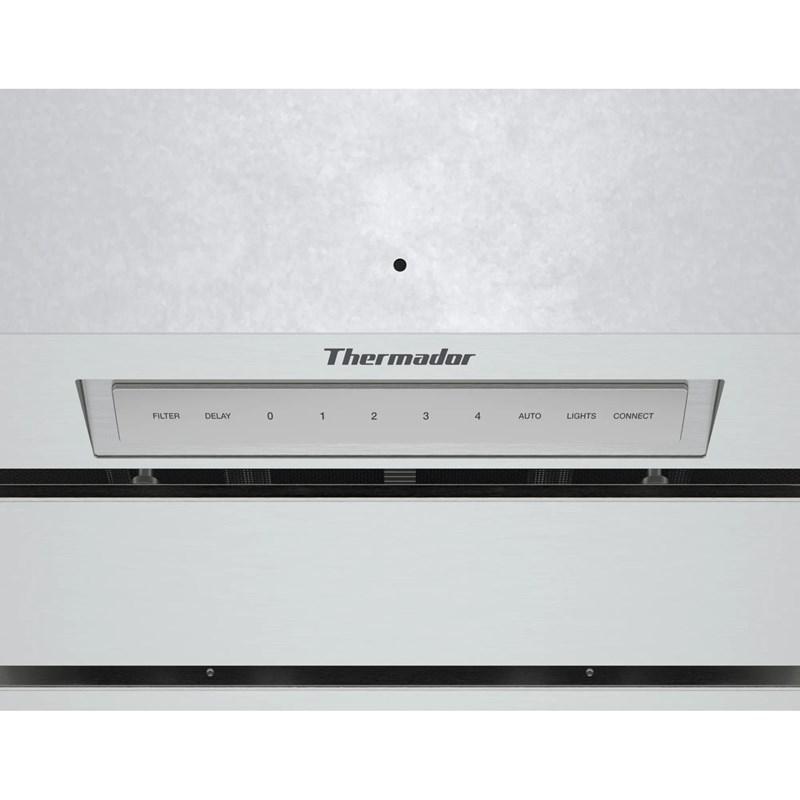

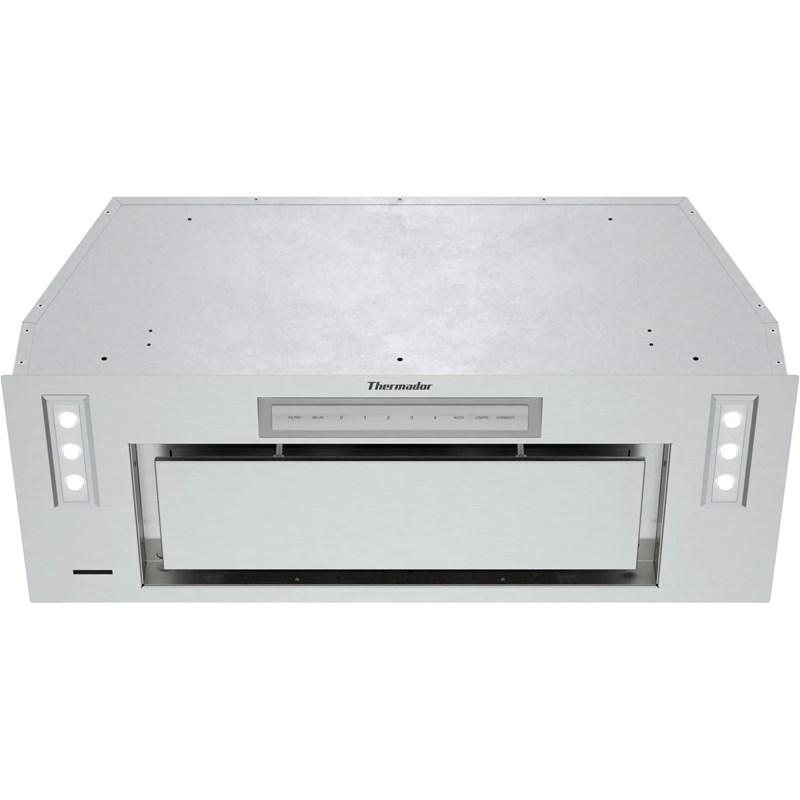

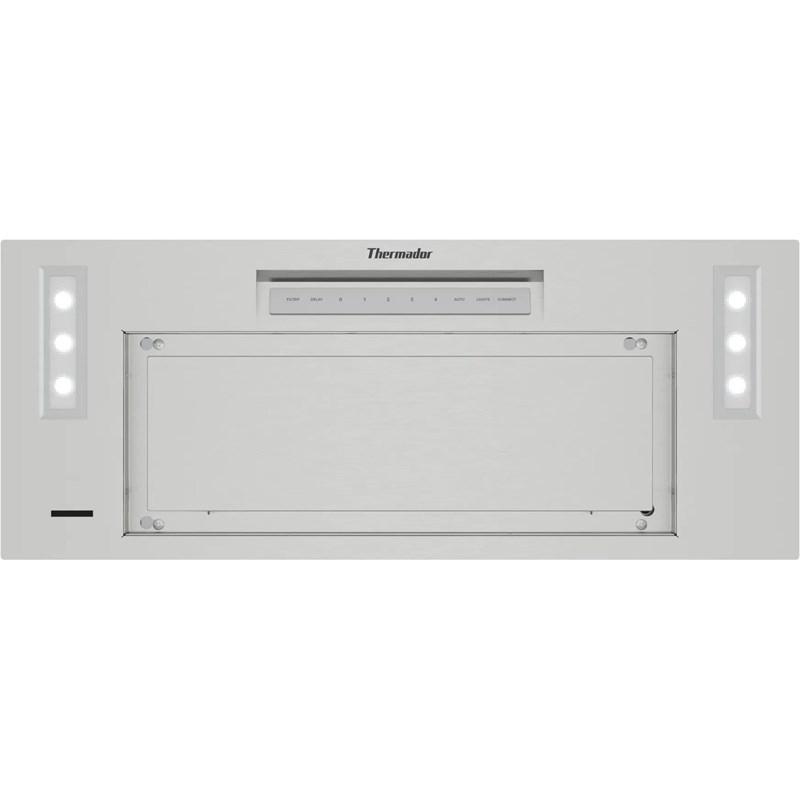

Thermador 30-inch custom insert features LED touch control, auto function, a 600 CFM blower and 4 fan speeds.
Features
- AUTO FUNCTION — Auto function senses heat from the cooking surface and adjusts fan speed.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
CFM (HVI) 520 HS / 170 WS | Sones (HVI) 10.5 HS / 0.8 WS | Motor Location: Integrated Motor | 2 LED Lights | Light Lumens 100 – 150 | Light Color 3500 – 4000°K | Total Power of the Lamps 6 W | Damper Included | Grease Filter Type Perimetric | Auto mode | Delayed shut-off
Specifications
| UPC# | 825225961284 | Weight | 10.89 kg | Depth | 26.98 cm |
| Height | 26.67 cm | Width | 67.31 cm | Class Width | 30" |
| Warranty | 2 Years Parts and Labor | Series Name | Masterpiece | Style | Custom Insert |
| Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Airflow | 600 CFM | Ducting Information | Ducted or Recirculating | Wi-Fi | Y |
| Dishwasher-Proof Filters | Y | Speeds | 4 Speeds | ||
| Optional Replenishment Charcoal Filter Set CHFVCI30ZS | |||||
| Technologies Home Connect™ (Wi-Fi Enabled) | Powerfully Quiet® Ventilation Systems | |||||
| Information 338 W | 120 V | 60 Hz | 15 A | |||||
Accessories
Replenishment Charcoal Filter Set CHFVCI30ZS
