Description
About this Product
This Thermador Professional® Series 48-inch wide chimney wall hood creates a crafted, sculpted focal point and is designed to complete the ultimate Thermador cooking system. It features the Powerfully Quiet® system that accepts integral, inline, and remote blowers, dishwasher-safe stainless steel commercial-style baffle filters and beautiful illumination with multi-level, vivid LED lights.
Features
- LED LIGHTING — Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.
- BAFFLE FILTERS — Stainless steel commercial-style baffle filters maximize grease capture and they're dishwasher safe for easy clean-up.(VCIN and VCIB Series)
- POWERFULLY QUIET® OPERATION — Steam, smoke and odors are no problem for Thermador ducted ventilation systems.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Multi-level LED lights with fading transitions | Automatic mode | Check filter reminder light | Delay shut-off | Number of lights: 4 | Stainless-steel commercial style baffle filter

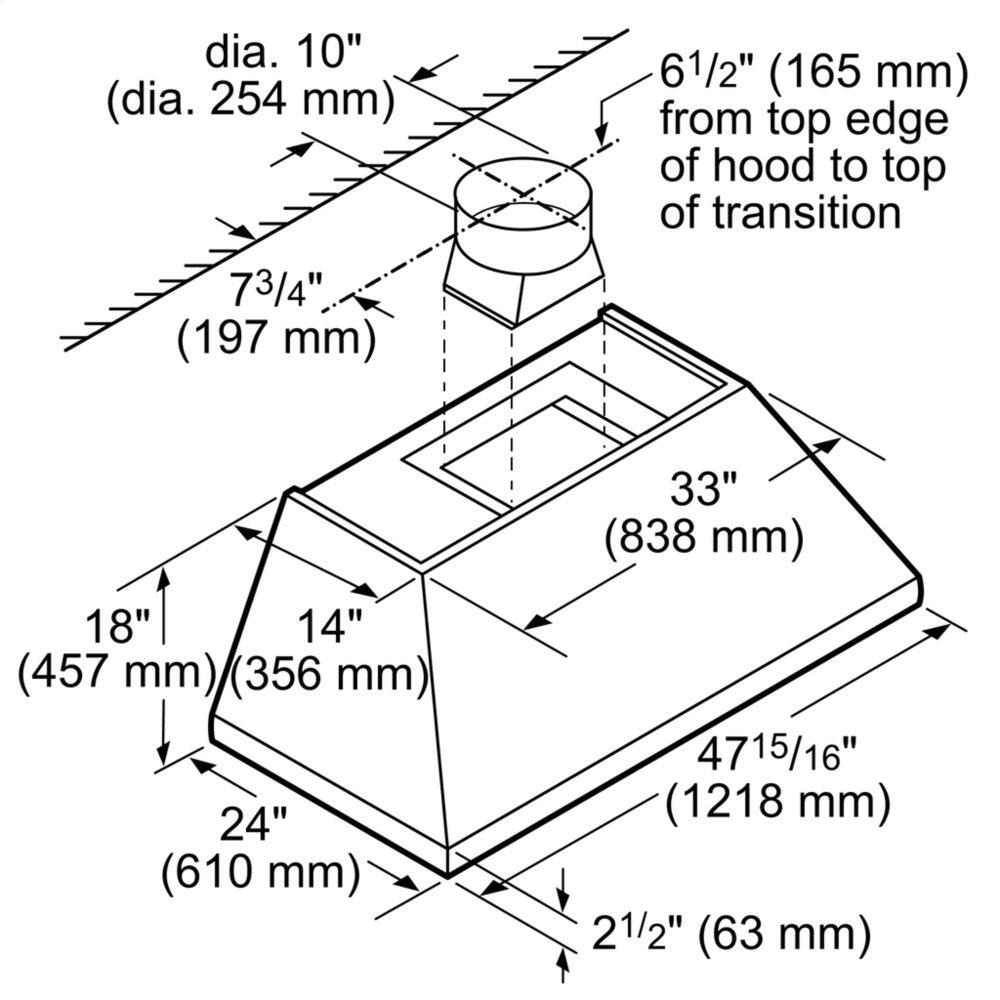

Specifications
| UPC# | 825225931577 | Weight | 39.92 kg | Depth | 60.96 cm |
| Height | 45.72 cm | Width | 121.76 cm | Class Width | 36" |
| Additional Dimensions | Required distance above cooktop or range cooking surface: 30" | Warranty | 2-Year limited warranty on parts and labor | Included | Damper |
| Series Name | Professional® Series | Style | Chimney | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | N |
| Ducting Information | Diameter of air duct: Top 10" | Wi-Fi | N | Dishwasher-Proof Filters | Y |
| Speeds | 4-Stage settings | ||||
| Optional Remote blowers: VTR630W (600 CFM), VTR1030W (1000 CFM), VTR1330W (1300 CFM) | Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM) | Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM) | 25 ft. Blower connector cable: EXTNCB25W | Roofplates: RFPLT600P, RFPLT1000P | 6" Tall duct cover, 48" wide: CHMHP486W | 18"- 35" Tall duct cover, 48" wide: CHMHP48TW | 42"- 59" Tall duct cover, 48" wide: CHMHP48XTW | Built-in remote control panel: REMCPW | Roof jack: RJ310 | 8" Wall cap: WC8 | 10" Wall cap: WC10 | |||||
| Technologies Powerfully Quiet® system | |||||
| Information Volts: 120 V | Frequency: 60 HZ | Plug type: 120V-3 Prong | |||||
Accessories
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• 6" Tall duct cover, 48" wide: CHMHP486W
• 18"- 35" Tall duct cover, 48" wide: CHMHP48TW
• 42"- 59" Tall duct cover, 48" wide: CHMHP48XTW
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
