Description
About this Product
This Thermador Professional® Series 36-inch wide Pro Grand® wall hood adds bold, distinct flair to your kitchen and is crafted to complete the ultimate cooking system, a perfect companion to Pro Grand® ranges. It features the Powerfully Quiet® system that accepts integral, inline, and remote blowers, infrared heat lamps, dishwasher-safe stainless steel commercial-style baffle filters and beautiful illumination with multi-level, vivid LED lights. This model is equipped with the Thermador Connected Experience by Home Connect™.
Documents
Product Sheet (en)

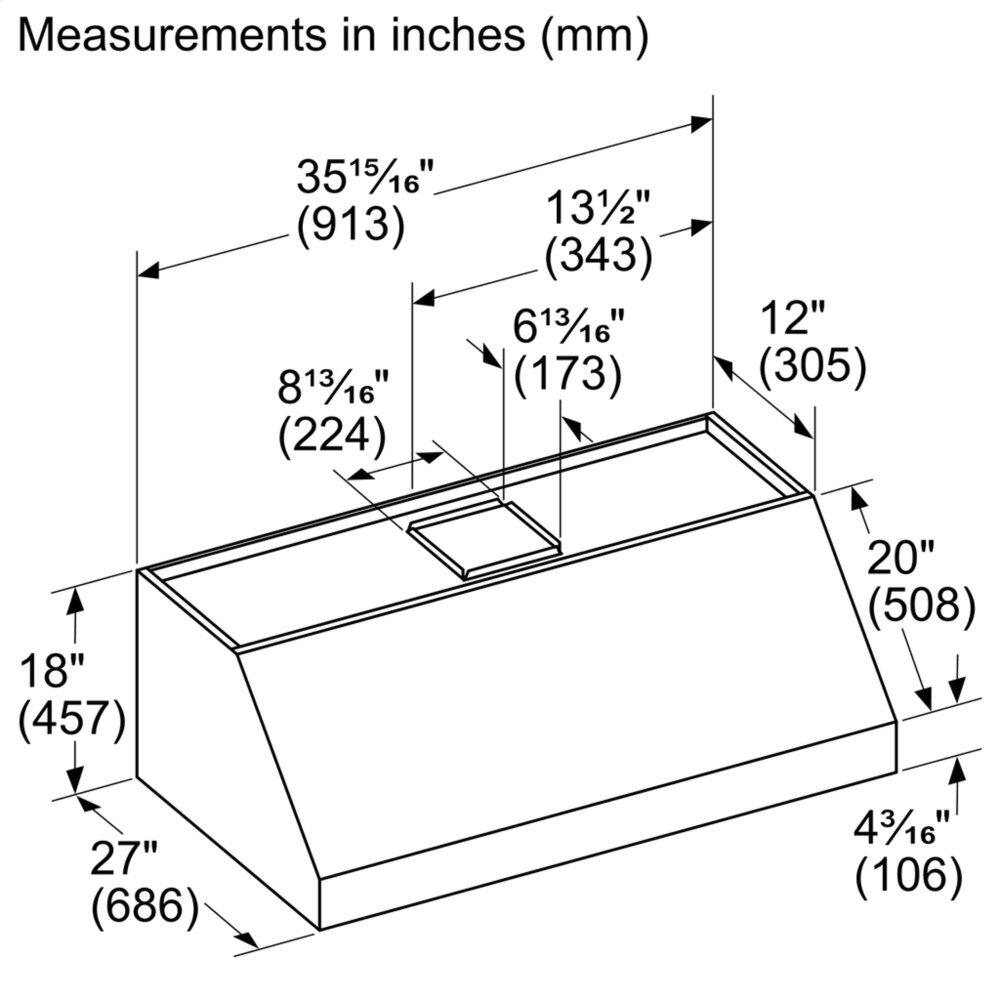

Dimensions Guide (en)
Highlights
Multi-level LED lights with fading transitions | Infrared heat lamps | Automatic mode | Check filter reminder light | Delay shut-off | Number of lights: 2 | Stainless-steel commercial style baffle filter
Specifications
| UPC# | 825225931263 | Weight | 36.29 kg | Depth | 68.58 cm |
| Height | 45.72 cm | Width | 91.28 cm | Class Width | 36" |
| Additional Dimensions | Required distance above cooktop or range cooking surface: 30" | Warranty | 2-Year limited warranty on parts and labor | Included | Damper |
| Style | Standard | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Wall Mount | Blower Included | N | Wi-Fi | Y |
| Dishwasher-Proof Filters | Y | Speeds | 4-Stage settings | ||
| Optional Remote blowers: VTR630W (600 CFM), VTR1030W (1000 CFM), VTR1330W (1300 CFM) | Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM) | Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM) | 25 ft. Blower connector cable: EXTNCB25W | Roofplates: RFPLT600P, RFPLT1000P | 6" Tall duct cover, 36" wide: DC366W | 20"- 54" Tall duct cover, 36" wide: DC36TW | Built-in remote control panel: REMCPW | Roof jack: RJ310 | 8" Wall cap: WC8 | 10" Wall cap: WC10 | |||||
| Series Name Professional® Series | Pro Grand® | |||||
| Ducting Information Diameter of air duct: Top 10" | Diameter of air duct: Back 10" | |||||
| Technologies Thermador Connected Experience by Home Connect™ | Powerfully Quiet® system | |||||
| Information Volts: 120 V | Frequency: 60 HZ | Plug type: 120V-3 Prong | |||||
Accessories
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• 6" Tall duct cover, 36" wide: DC366W
• 20"- 54" Tall duct cover, 36" wide: DC36TW
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
