Description
About this Product

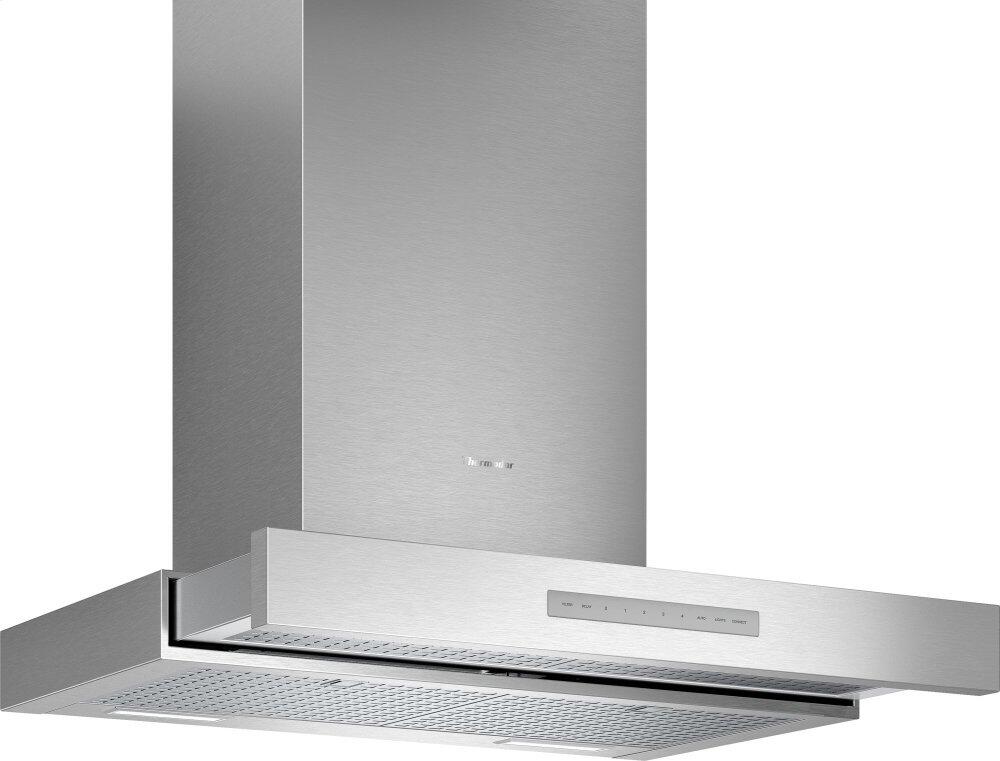

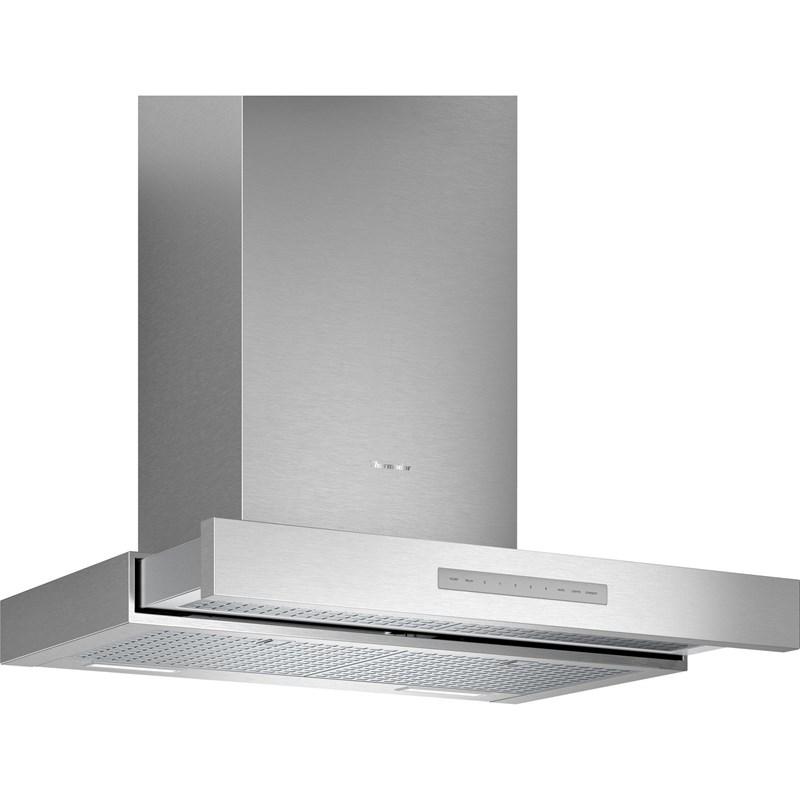

This Thermador 30-inch chimney wall drawer hood features delay shut-off, multi-level LED, Noise Control Deluxe™ and Home Connect™.
Features
- DELAYED SHUT OFF — Delayed shut-off tackles lingering odors for up to 10 minutes
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Highlights

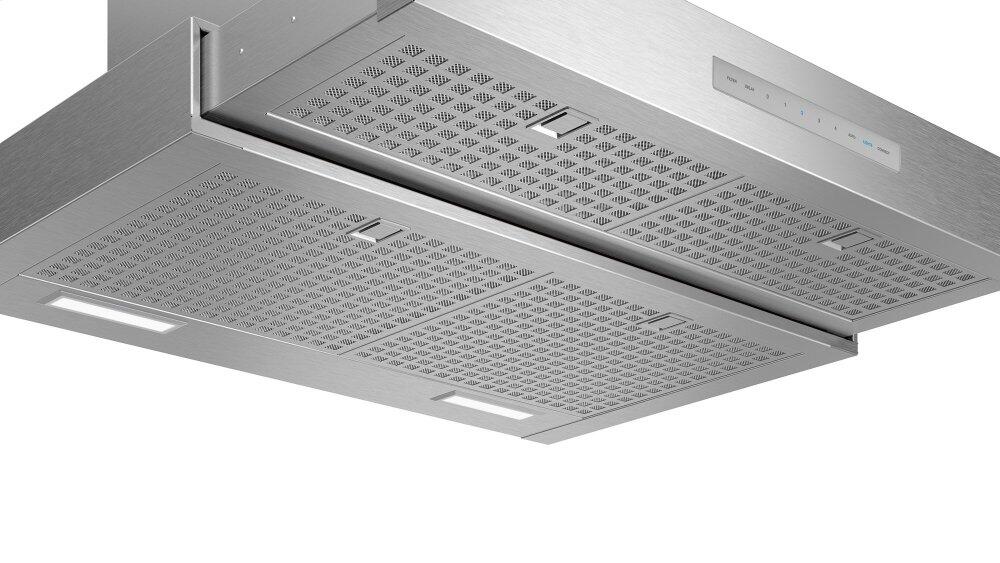

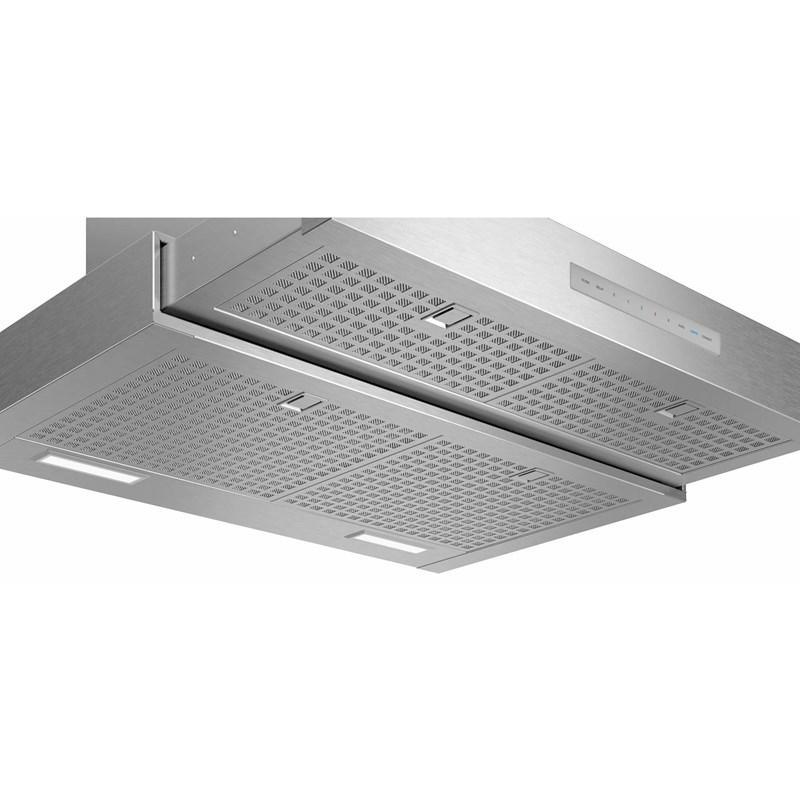

Sones: 1.7 (Measured at Speed 1 in Ducted Installation) | Hybrid Mesh Filters | Cooktop Hood-Sync Enabled | Multi-Level LED Lights with Fading Transitions | Automatic Mode | Check Filter Reminder Light | Delay Shut-Off | Washable Stainless Steel Filters
Specifications
| UPC# | 825225935728 | Weight | 42.18 kg | Depth | 46.2 cm |
| Height | 54.0 cm | Width | 76.0 cm | Class Width | 30" |
| Warranty | Limited 2 Years and Labor | Included | Damper | Series Name | Masterpiece® |
| Style | Chimney | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Wall Mount | Blower Included | Y | Airflow | 600 CFM |
| Ducting Information | Diameter of Air Duct Top: 8" | Speeds | 4-Speeds | Wi-Fi | Y |

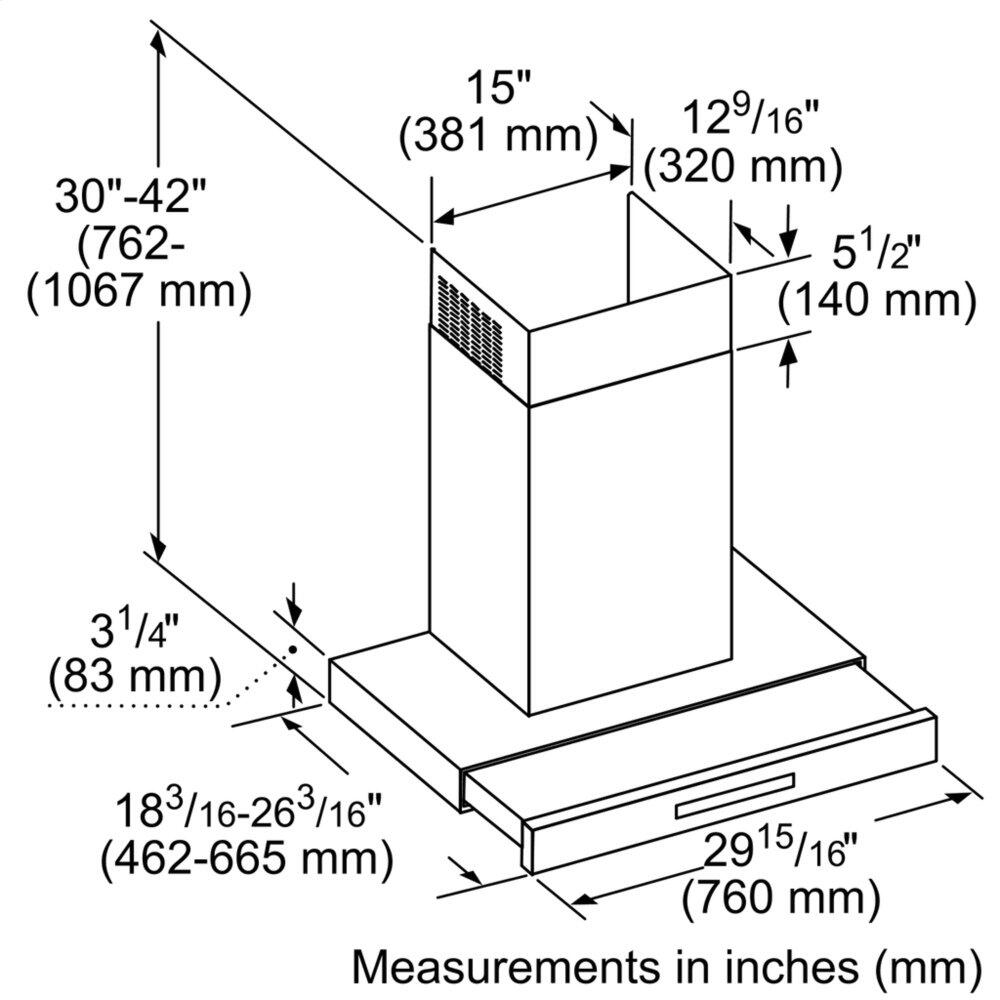

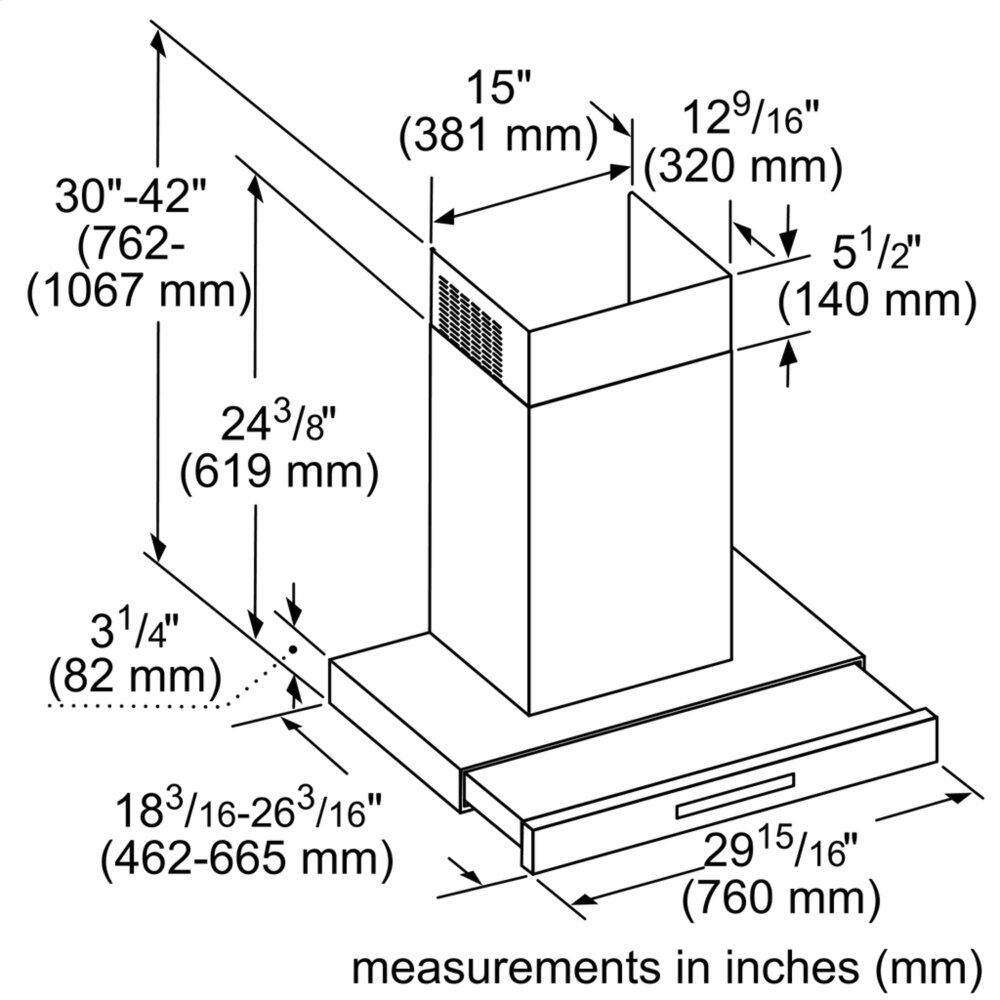

| Additional Dimensions Height of the Chimney: 26 3/4" – 38 3/4" | Accommodates Ceiling Heights Up to 9' Ceiling Heights | Required Distance Above Cooktop / Range Cooking Surface: 30" / 30" | |||||
| Optional Stainless Steel Chimney Hood Extension | CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension | Recirculation Kit | RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall | Drawer Hoods only | Replacement Charcoal Filter | CHFHMCD - For use with recirculation kit RECHDDB | Remote Control Panel | REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location | 8" Wall Cap WC8 | |||||
| Technologies Noise Control Deluxe™ | Home Connect™ (Wi-Fi Enabled) | |||||
| Information 461 W | 120 V | 60 Hz | 15 A | |||||
Accessories
• Stainless Steel Chimney Hood Extension
• CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall
• Drawer Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHDDB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
• CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall
• Drawer Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHDDB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
Damper
