Description
About this Product

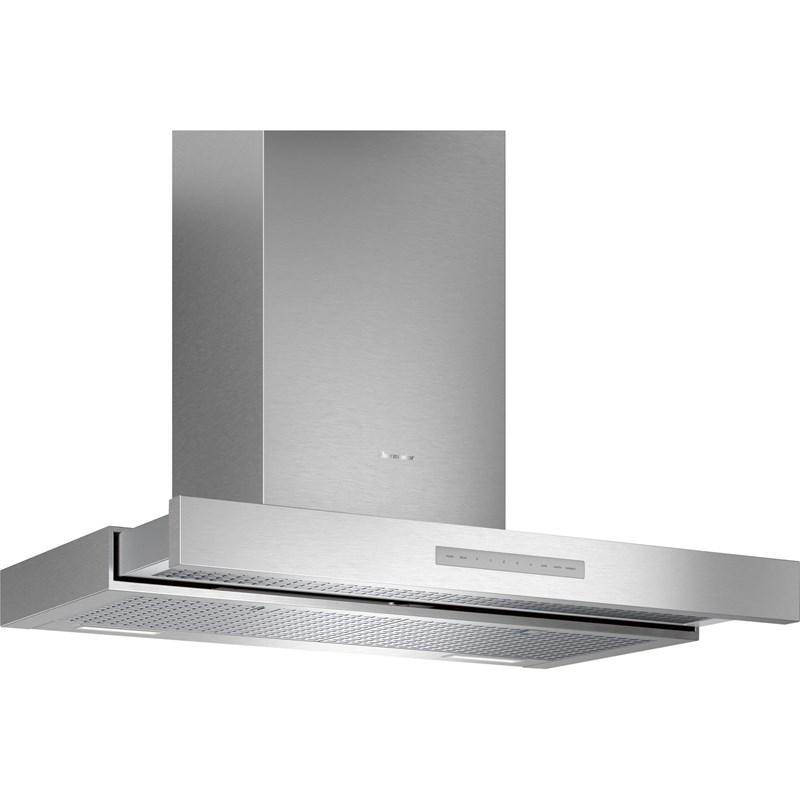

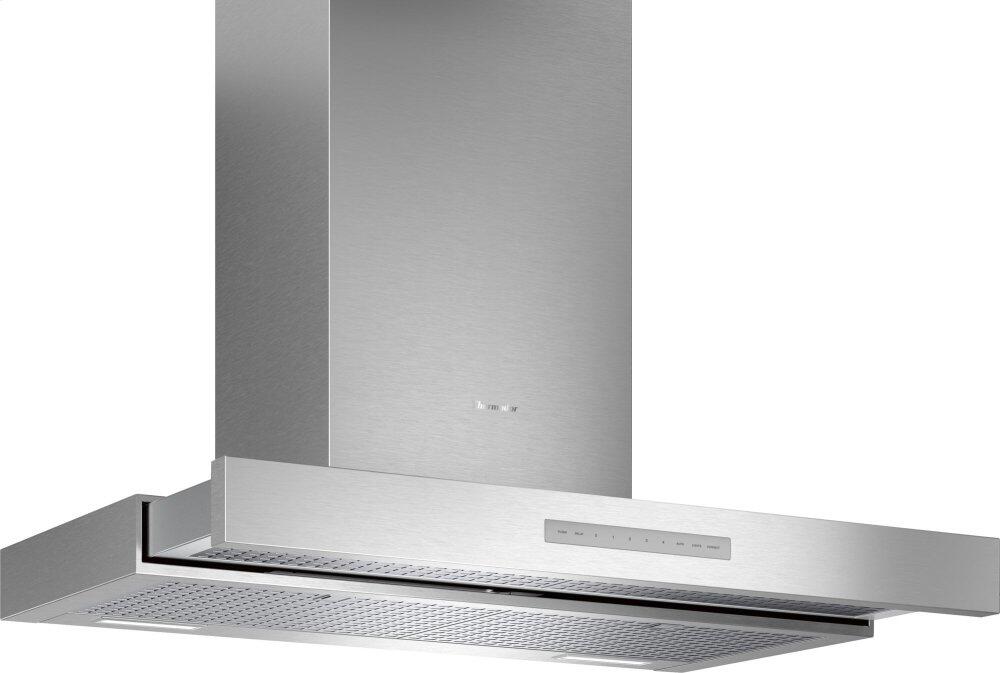

This Thermador 36-inch chimney wall drawer hood features delay shut-off, multi-level LED, Noise Control Deluxe™ and Home Connect™.
Features
- DELAYED SHUT OFF — Delayed shut-off tackles lingering odors for up to 10 minutes
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Hybrid Mesh Filters | Cooktop Hood-Sync Enabled | Multi-Level LED Lights with Fading Transitions | Automatic Mode | Check Filter Reminder Light | Delay Shut-Off | Washable Stainless Steel Filters
Specifications
| Style | Chimney | Airflow | 600 CFM | Series Name | Masterpiece® |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4-Speeds | Ducting Information | Diameter of Air Duct Top: 8" |
| Wi-Fi | Y | Width | 91.3 cm | Height | 54.0 cm |
| Depth | 46.2 cm | Class Width | 36" | UPC# | 825225935834 |
| Warranty | Limited 2 Years and Labor | Included | Damper | ||
| Technologies Noise Control Deluxe™ | Home Connect™ (Wi-Fi Enabled) | |||||
| Information 120 V | 60 Hz | 15 A | |||||

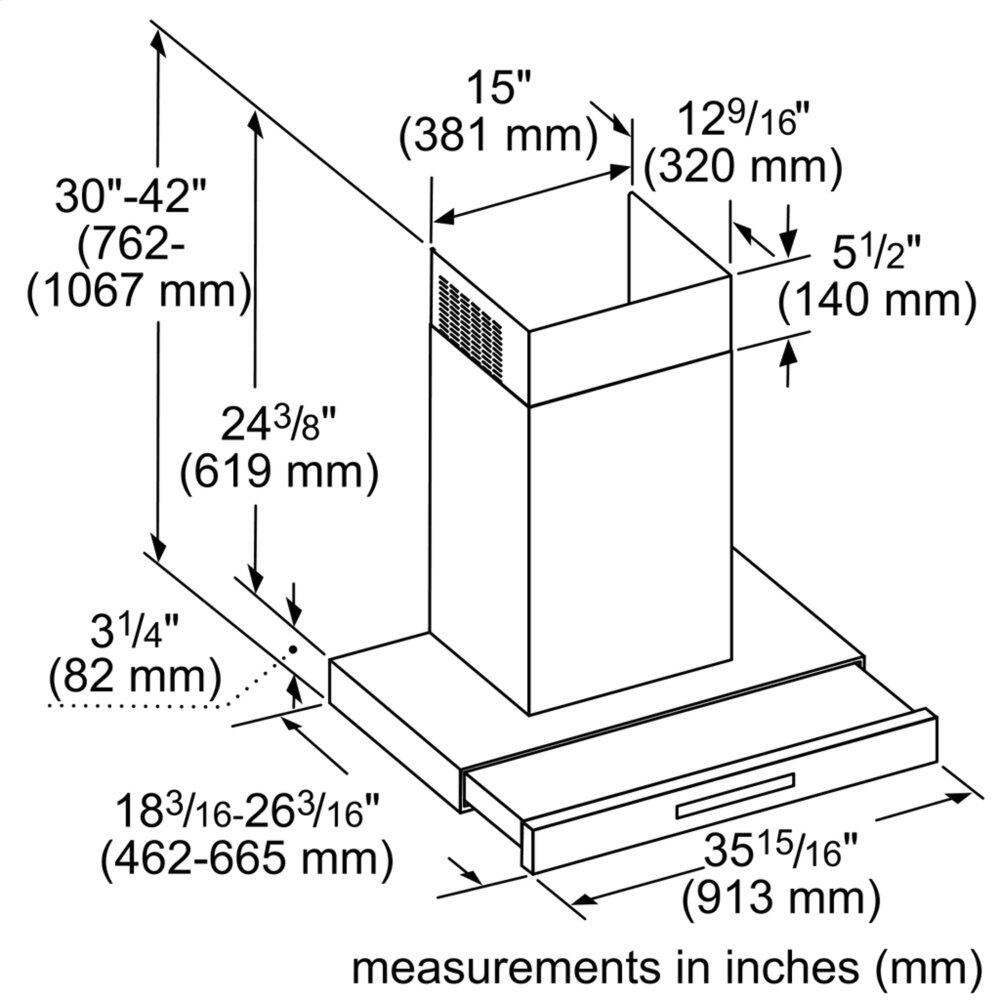

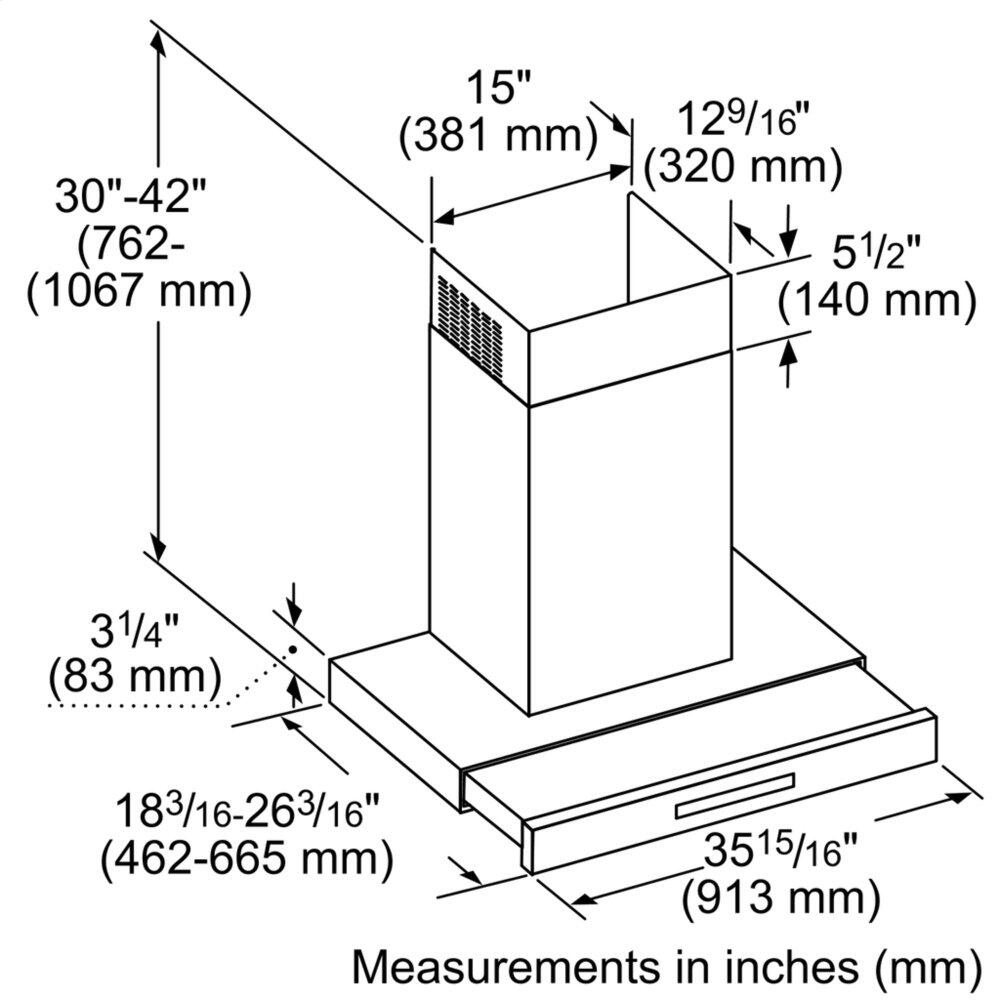

| Additional Dimensions Height of the Chimney: 26 3/4" – 38 3/4" | Accommodates Ceiling Heights Up to 9' Ceiling Heights | Required Distance Above Cooktop / Range Cooking Surface: 30" / 30" | |||||
| Optional Stainless Steel Chimney Hood Extension | CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension | Recirculation Kit | RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall | Drawer Hoods only | Replacement Charcoal Filter | CHFHMCD - For use with recirculation kit RECHDDB | Remote Control Panel | REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location | 8" Wall Cap WC8 | |||||
Accessories
• Stainless Steel Chimney Hood Extension
• CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall
• Drawer Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHDDB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
• CHXTHDDW - For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHDDB - For HDDBxxWS Masterpiece® Chimney Wall
• Drawer Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHDDB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
Damper
