Description
About this Product

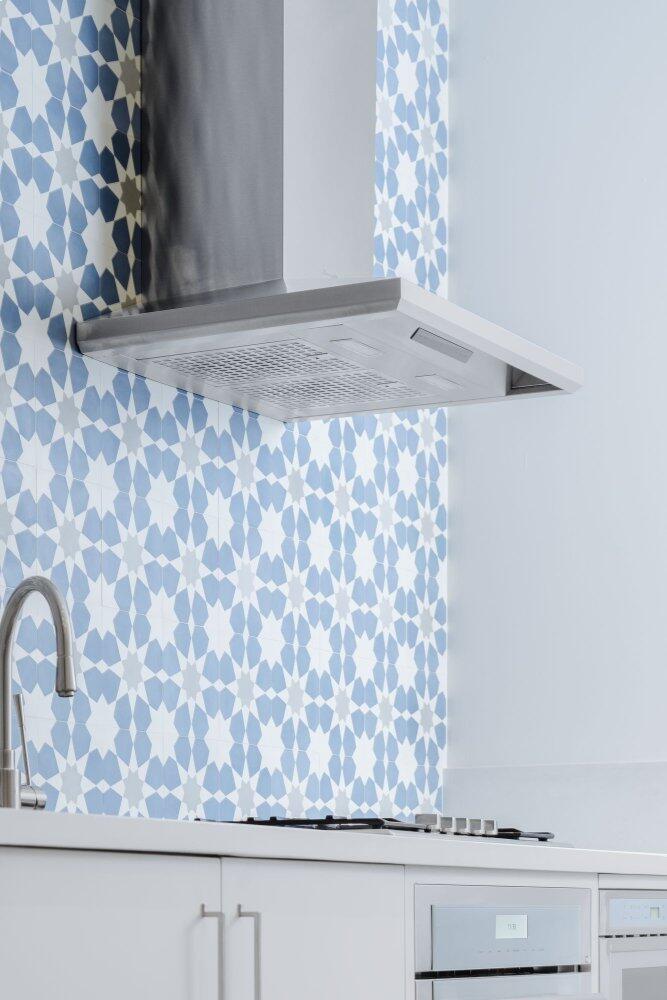

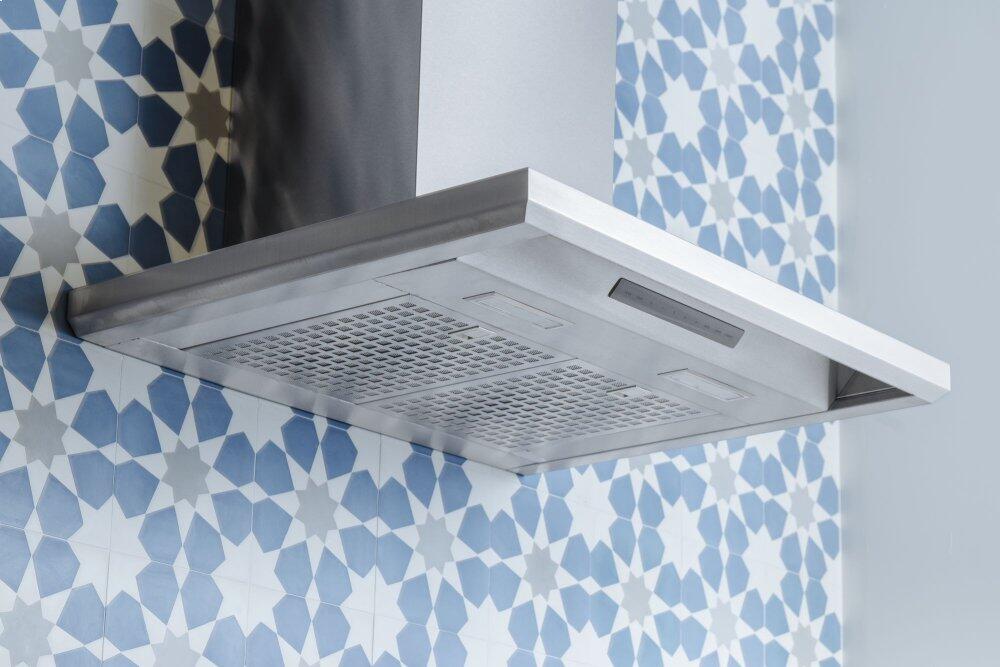

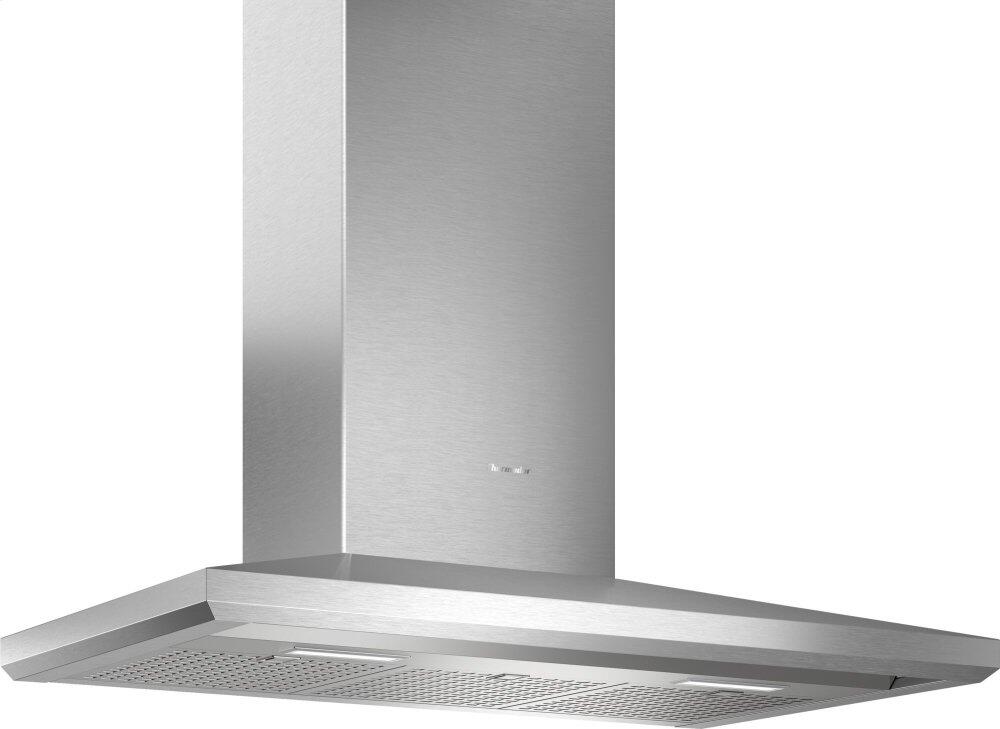

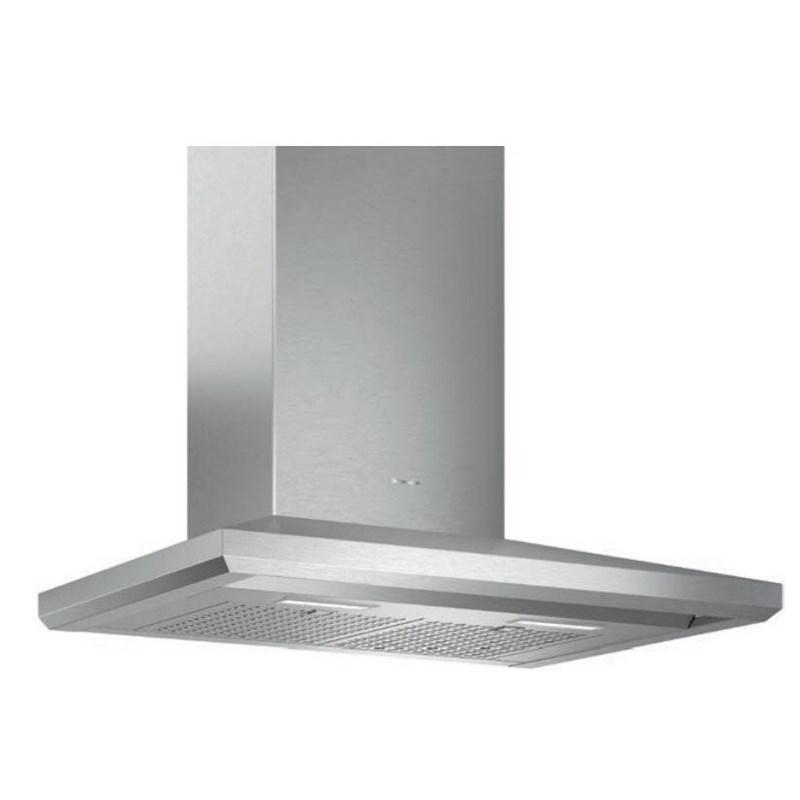

This Thermador 36-inch chimney wall hood features delay shut-off, multi-level LED, Noise Control Technology™ and Home Connect™.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Highlights

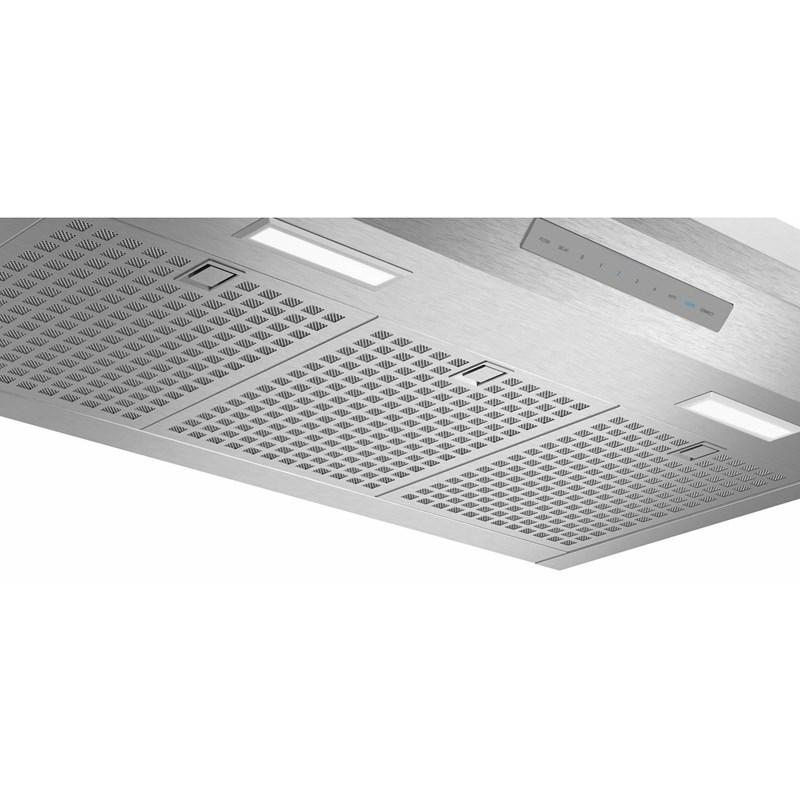

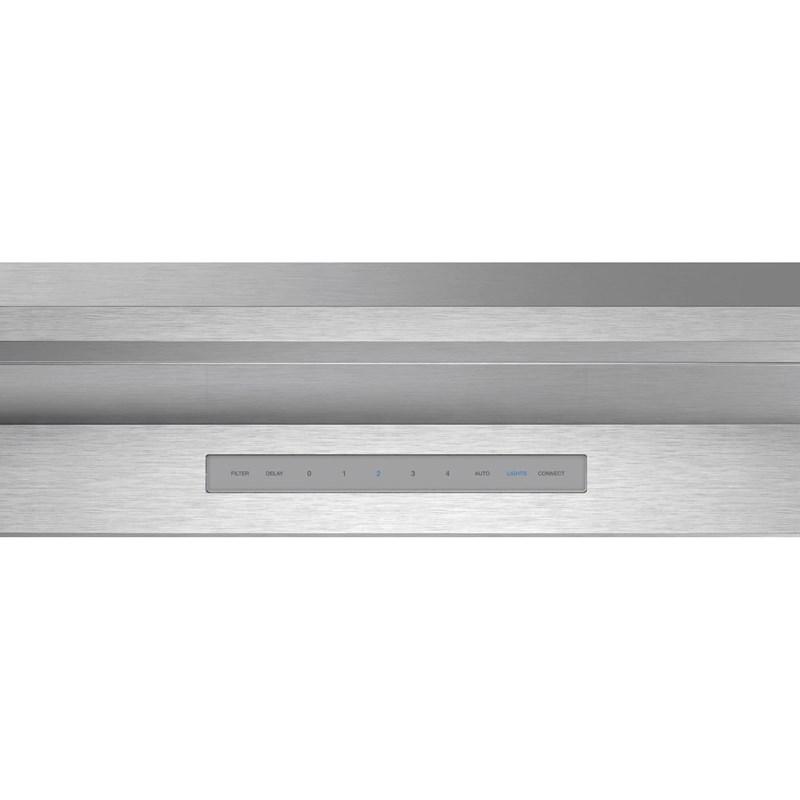

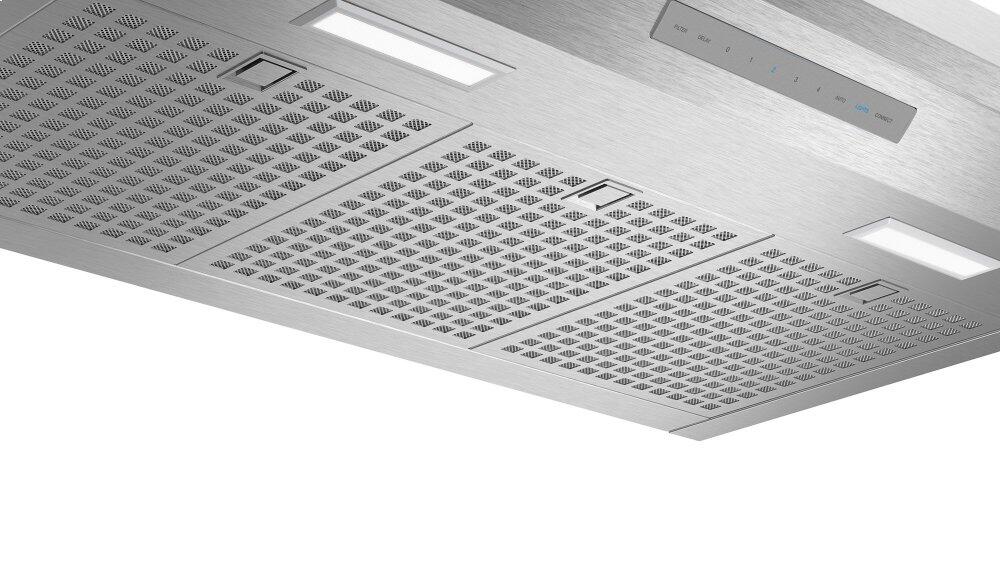

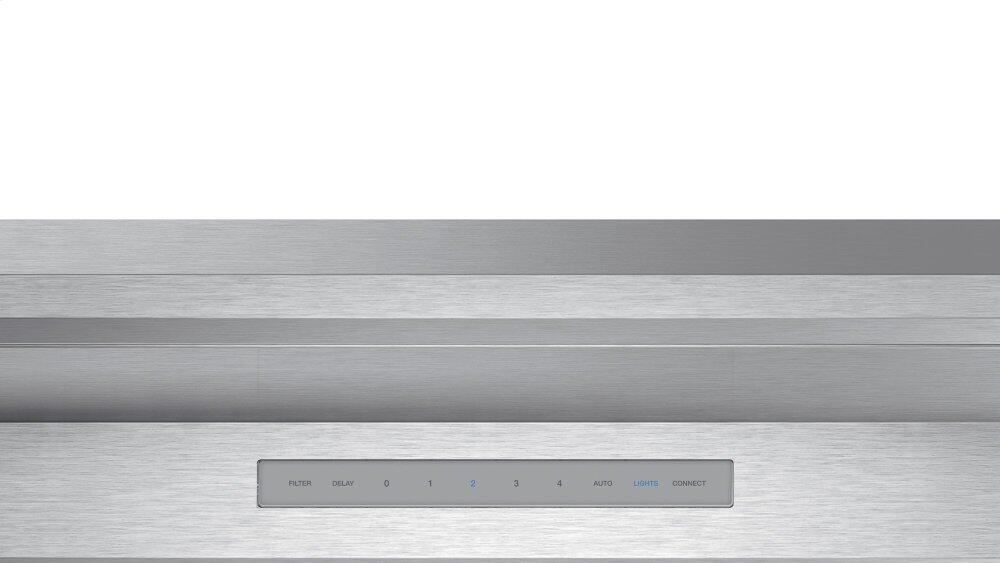

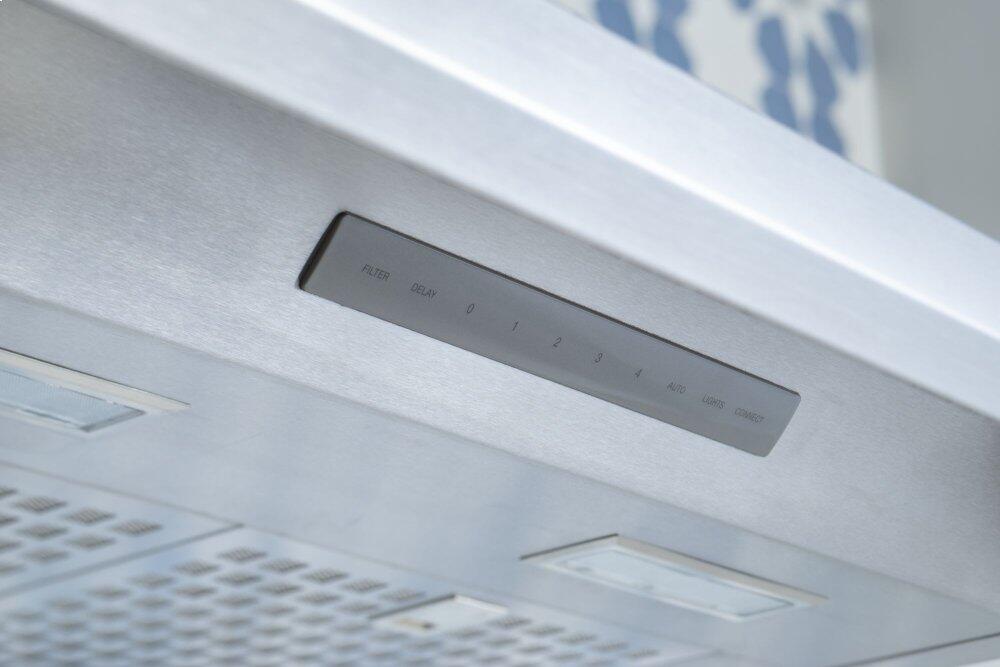

Sones: 2.3 (Measured at Speed 1 in Ducted Installation) | Hybrid Mesh Filters | Cooktop Hood-Sync Enabled | Multi-Level LED Lights with Fading Transitions | Automatic Mode | Check Filter Reminder Light | Delay Shut-Off | Washable Stainless Steel Filters
Specifications
| Style | Chimney | Airflow | 600 CFM | Series Name | Masterpiece® |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4-Speeds | Ducting Information | Diameter of Air Duct Top: 8" |
| Wi-Fi | Y | Width | 91.3 cm | Height | 76.2 cm |
| Depth | 58.9 cm | Weight | 31.3 kg | Class Width | 36" |
| UPC# | 825225935711 | Warranty | Limited 2 Years and Labor | Included | Damper |
| Technologies Noise Control Technology™ | Home Connect™ (Wi-Fi Enabled) | |||||
| Information 120 V | 60 Hz | 15 A | |||||

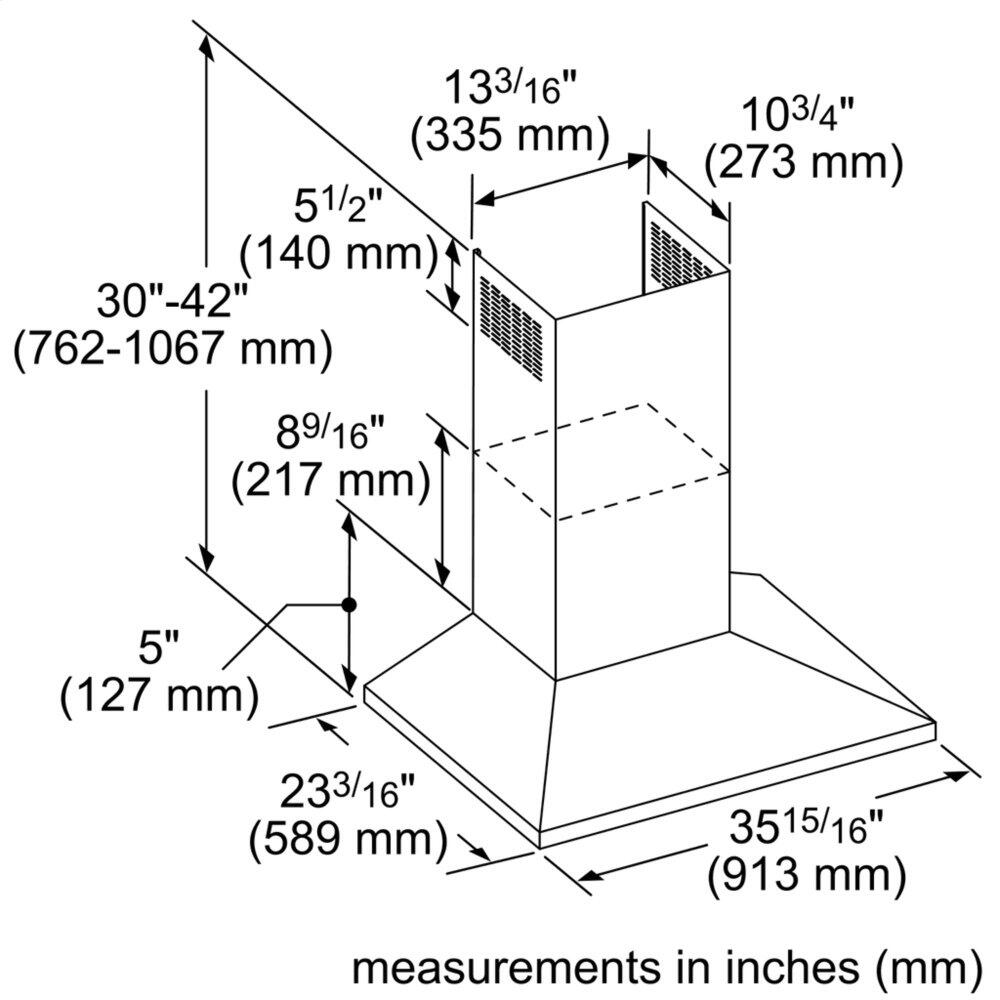

| Additional Dimensions Height of the Chimney: 25" – 27" | Accommodates Ceiling Heights Up to 9' Ceiling Heights | Required Distance Above Cooktop / Range Cooking Surface: 30" / 30" | |||||
| Optional Stainless Steel Chimney Hood Extension | CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension | Recirculation Kit | RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only | Replacement Charcoal Filter | CHFHMCD - For use with recirculation kit RECHMCB | Remote Control Panel | REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location | 8" Wall Cap WC8 | |||||
Accessories
• Stainless Steel Chimney Hood Extension
• CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHMCB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
• CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHMCB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8
Damper
