Description
About this Product

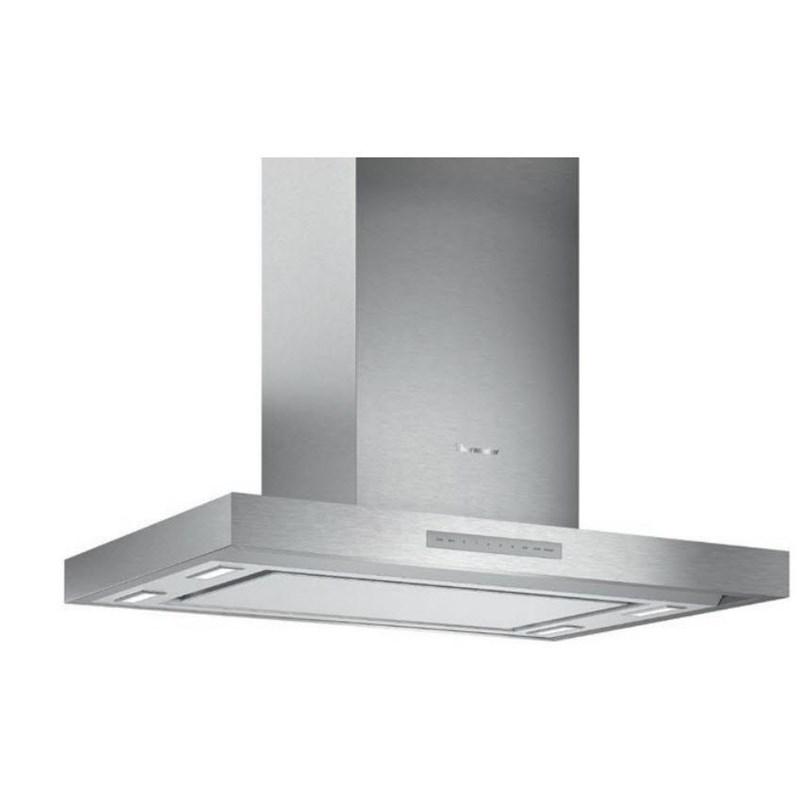

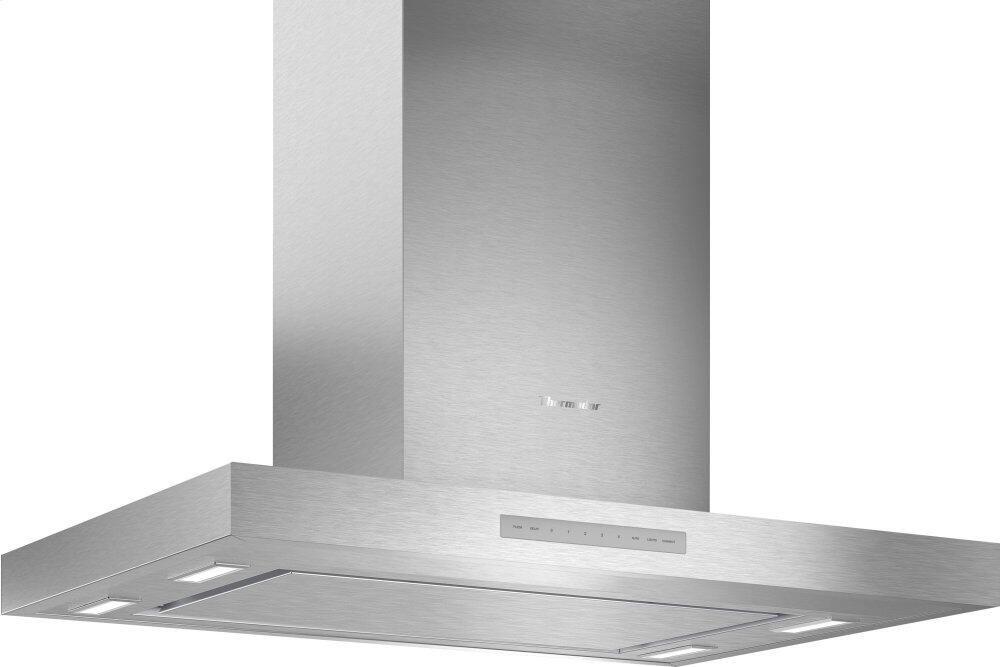

This Thermador low profile 36-inch island hood features delay shut-off, multi-level LED, Noise Control Technology™ and Home Connect™.
Documents
Product Sheet (en)
Dimensions Guide (en)
Highlights
Sones: 1.2 (Measured at Speed 1 in ducted installation) | Efficient perimeter filters | Cooktop hood-sync enabled | Multi-level LED lights with fading transitions | Automatic mode | Check filter reminder light | Delay shut-off | Washable aluminum filters
Specifications
| UPC# | 825225935841 | Weight | 47.63 kg | Depth | 65.88 cm |
| Height | 76.2 cm | Width | 91.44 cm | Class Width | 36" |
| Warranty | Limited 2 Years and Labor | Included | Damper | Series Name | Masterpiece® |
| Style | Island | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Island | Blower Included | Y | Airflow | 600 CFM |
| Ducting Information | Diameter of air duct top: 8" | Speeds | 4-Speeds | Wi-Fi | Y |

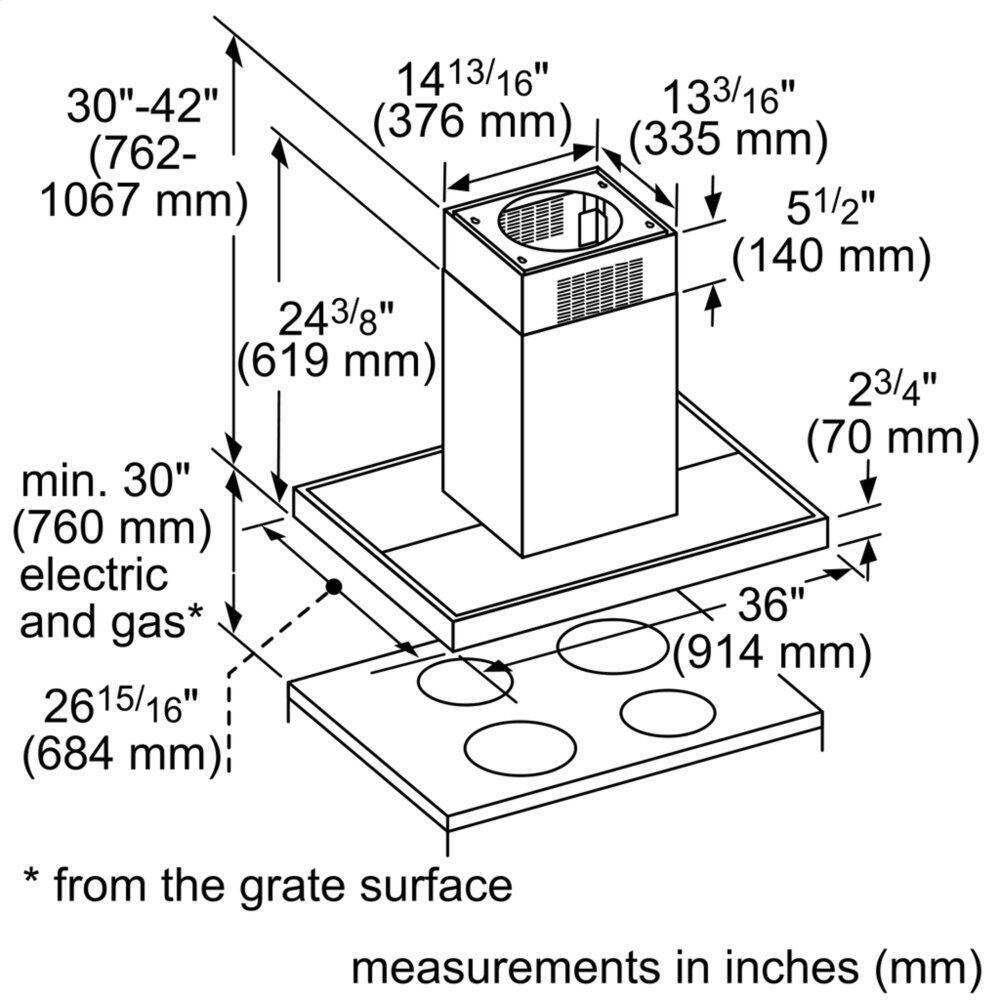

| Additional Dimensions Power cord length: 60" | Height of the chimney: 27 1/4" – 29 1/4" | Minimum ceiling height required: Up to 9' ceiling height | Required distance above cooktop / range cooking surface: 30" / 30" | |||||
| Optional Stainless steel island hood extension: CHXTHMIB | Recirculation kit: RECHMIB | Replacement charcoal filter: CHFHMIB | 8" Wall cap: WC8 | |||||
| Technologies Noise Control Deluxe™ | Home Connect™ (Wi-Fi Enabled) | |||||
| Information 120 V | 60 Hz | 15 A | |||||
Accessories
• Stainless steel island hood extension: CHXTHMIB
• Recirculation kit: RECHMIB
• Replacement charcoal filter: CHFHMIB
• 8" Wall cap: WC8
• Recirculation kit: RECHMIB
• Replacement charcoal filter: CHFHMIB
• 8" Wall cap: WC8
Damper
