Description
About this Product

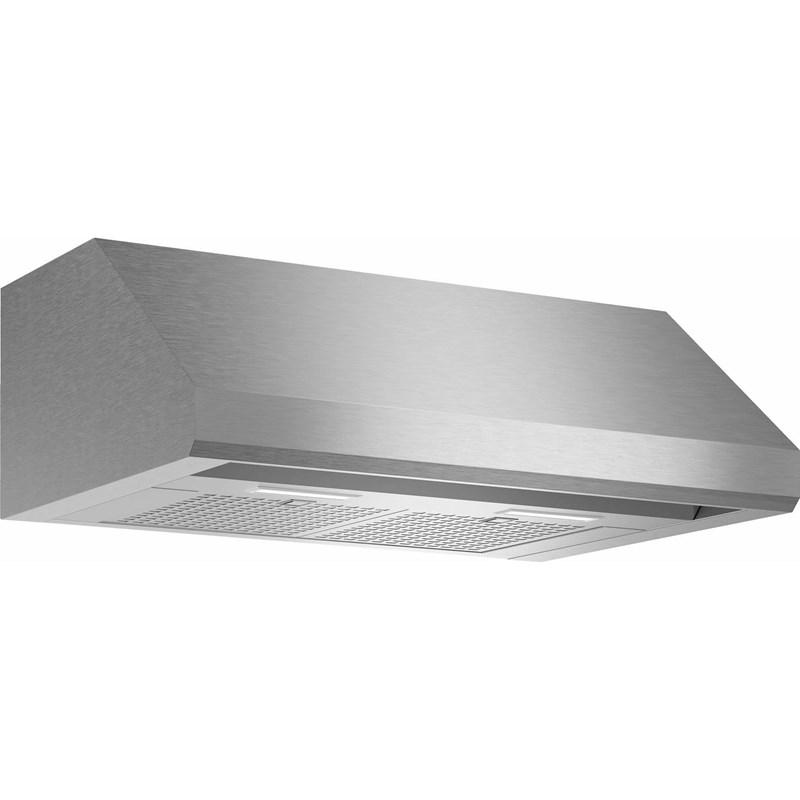

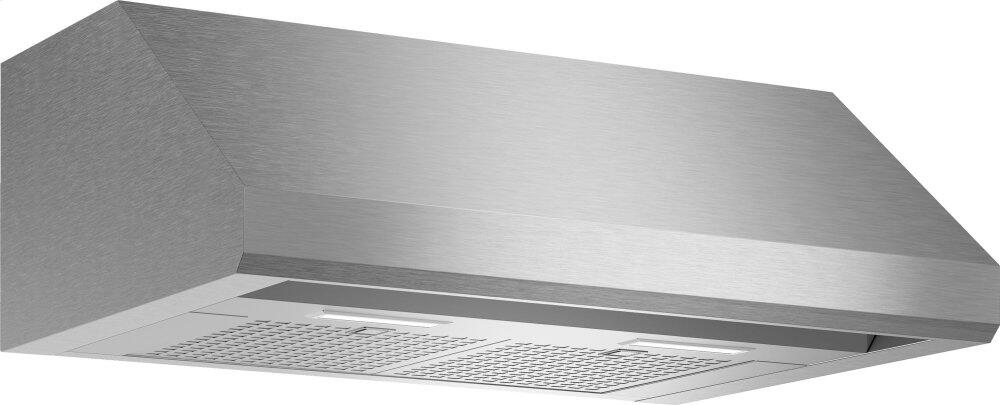

This Thermador Masterpiece® Series 30-inch wide low-profile wall hood range with blower adds a distinct flair to your kitchen and is crafted to complete the ultimate Thermador cooking system. It features the Noise Control Technology™ that reduces noise while hood is in use, washable stainless steel hybrid mesh grease filters, and beautiful illumination with multi-level, vivid LED lights. This model is equipped with the Thermador Connected Experience by Home Connect™.
Features

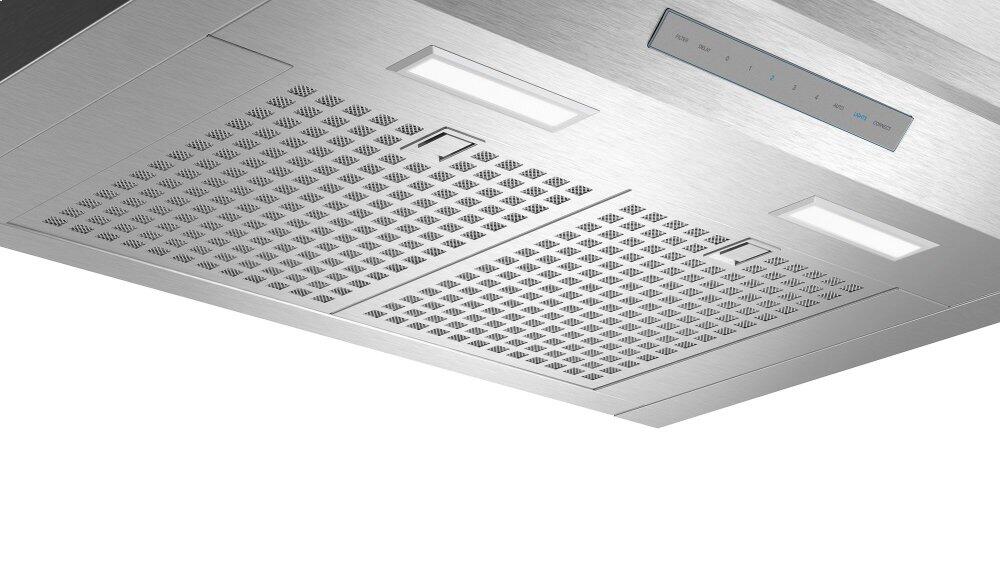

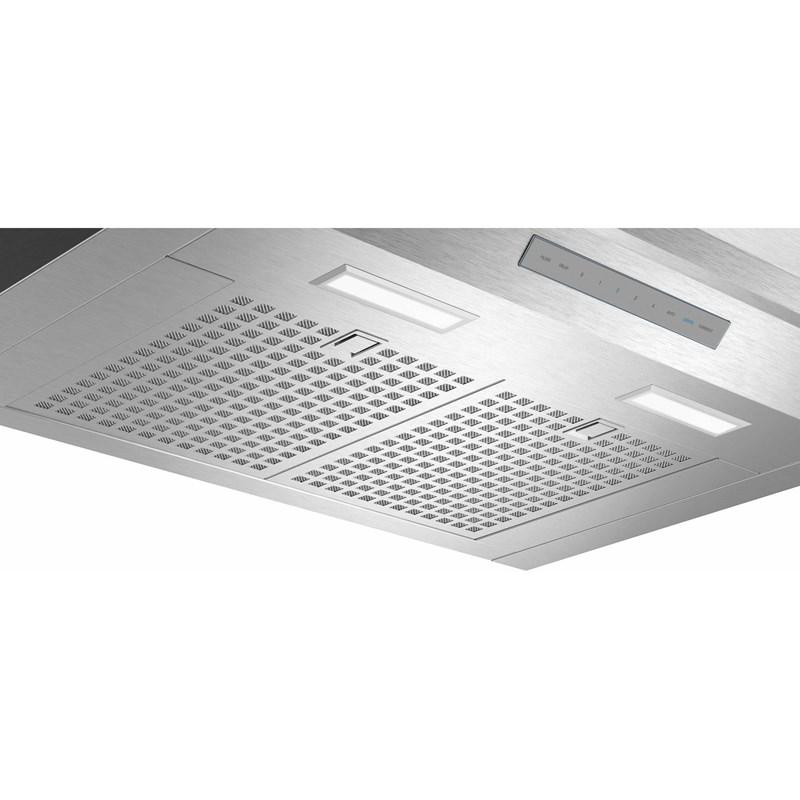

- LED LIGHTING — Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.
- AUTO FUNCTION — Auto function senses heat from the cooking surface and adjusts fan speed.
- DELAYED SHUT OFF — Delayed shut-off tackles lingering odors for up to 10 minutes
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights

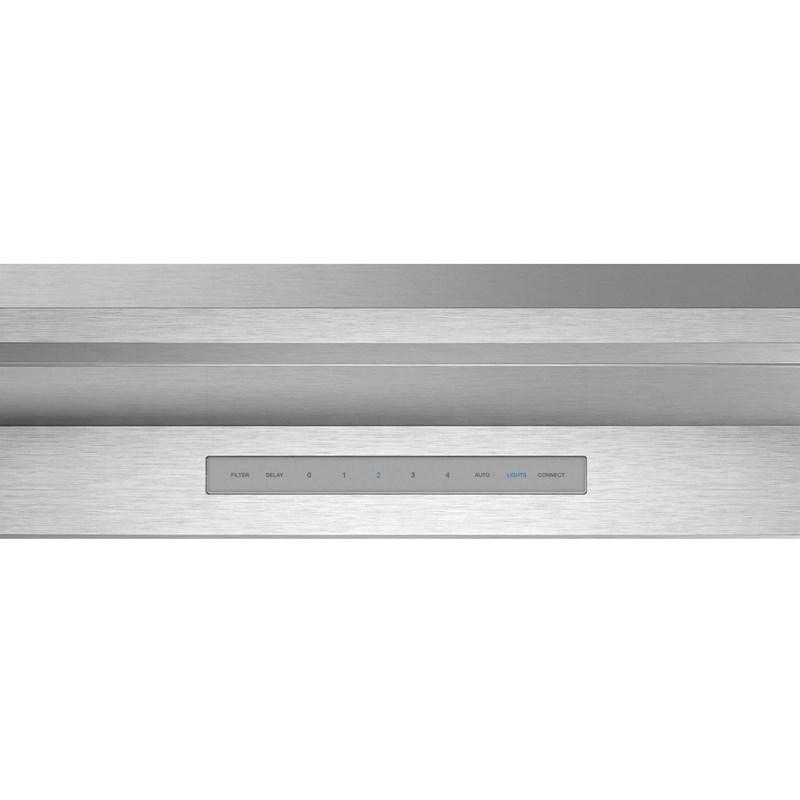

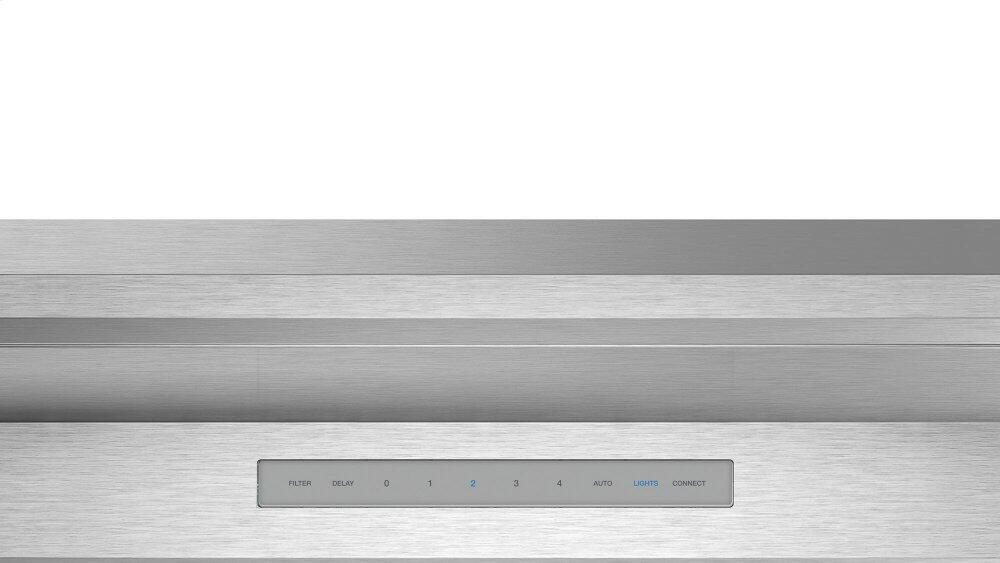

Cooktop hood-sync enabled | Multi-level LED lights with fading transitions | Automatic mode | Check filter reminder light | Delay shut-off | Number of lights: 2 | Stainless-steel washable hybrid mesh grease filter
Specifications

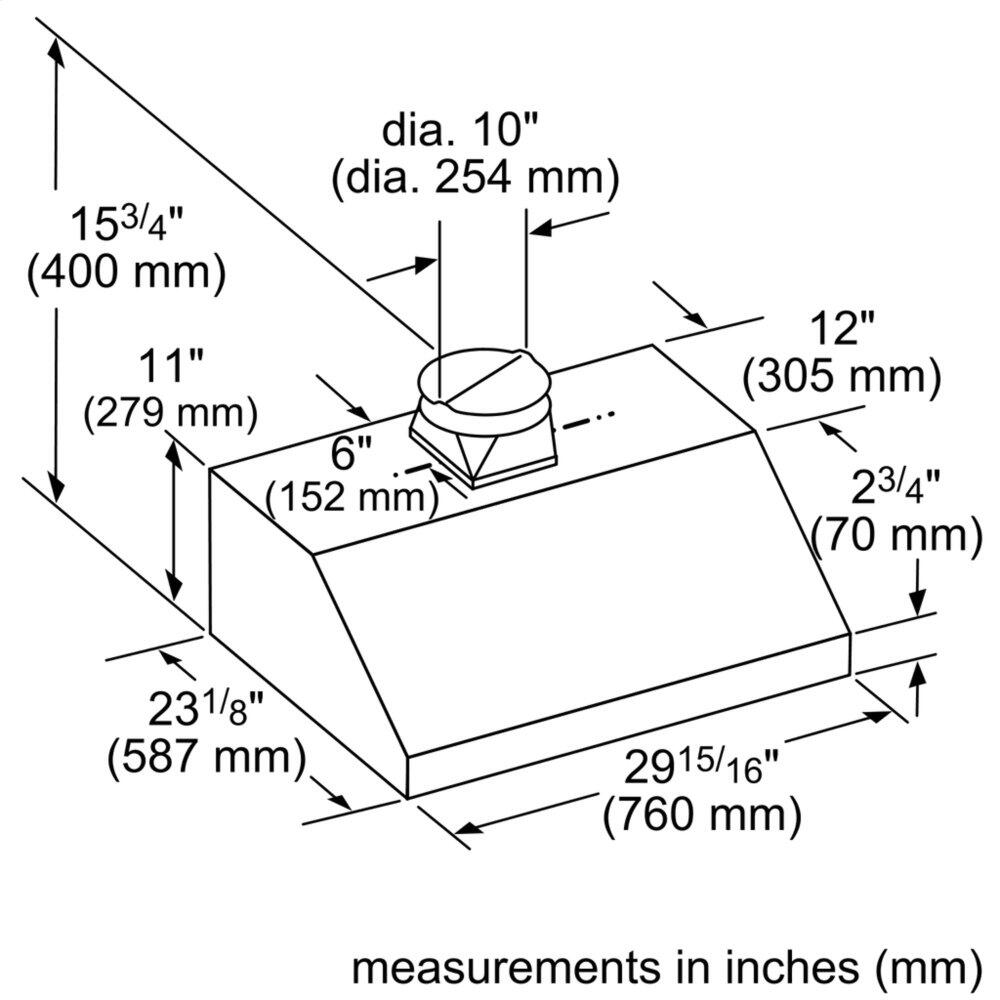

| UPC# | 825225935773 | Weight | 19.05 kg | Depth | 58.74 cm |
| Height | 40.01 cm | Width | 76.04 cm | Class Width | 30" |
| Additional Dimensions | Required distance above cooktop or range cooking surface: 30" | Warranty | 2-Year limited warranty on parts and labor | Included | Damper |
| Series Name | Masterpiece® Series | Style | Standard | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Airflow | 600 CFM | Ducting Information | Diameter of air duct: Top 10" | Wi-Fi | Y |
| Speeds | 4-Stage settings | ||||
| Optional 16" Tall duct cover, 30" Wide: DC3016W | 28" - 65" Tall duct cover, 30" Wide: DC30MTW | Recirculation kit: RECHMWB30 | Replacement charcoal filter: CHFILT3036 | Built-in remote control panel: REMCPW | Roof jack: RJ310 | 8" Wall cap: WC8 | 10" Wall cap: WC10 | |||||
| Technologies Noise Control Technology™ | Thermador Connected Experience by Home Connect™ | |||||
| Information Volts: 120 V | Frequency: 60 HZ | Plug type: 120V-3 Prong | |||||
Accessories
• 28" - 65" Tall duct cover, 30" Wide: DC30MTW
• Recirculation kit: RECHMWB30
• Replacement charcoal filter: CHFILT3036
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
