Description
About this Product

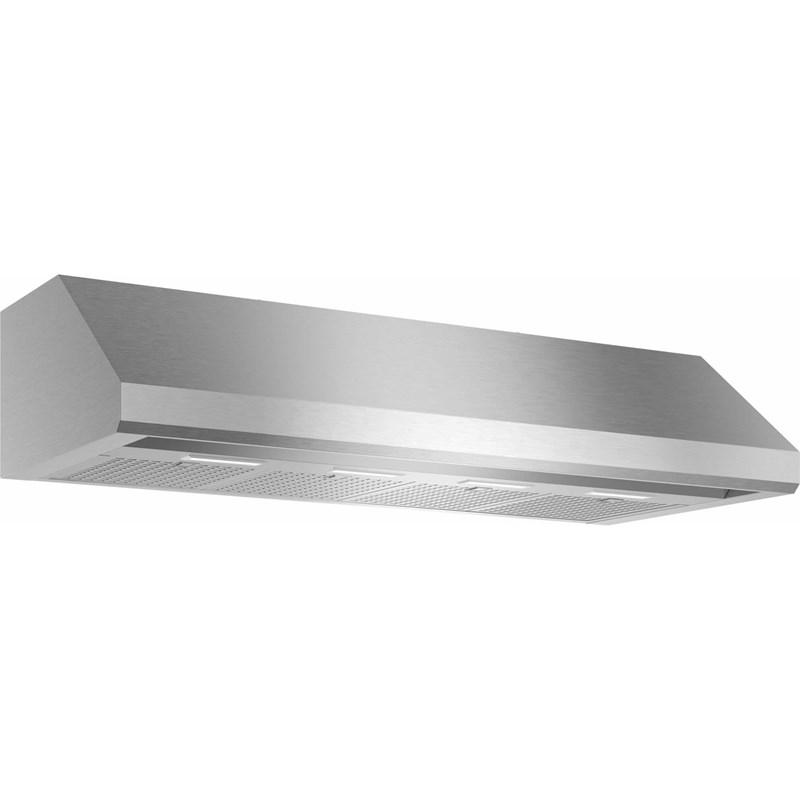

This Thermador Masterpiece® Series 48-inch wide low-profile wall hood range with blower adds a distinct flair to your kitchen and is crafted to complete the ultimate Thermador cooking system. It features the Noise Control Technology™ that reduces noise while hood is in use, washable stainless steel hybrid mesh grease filters, and beautiful illumination with multi-level, vivid LED lights. This model is equipped with the Thermador Connected Experience by Home Connect™.
Features
- AUTO FUNCTION — Auto function senses heat from the cooking surface and adjusts fan speed.
- FAN SPEED — Three fan speeds to provide the ultimate performance.

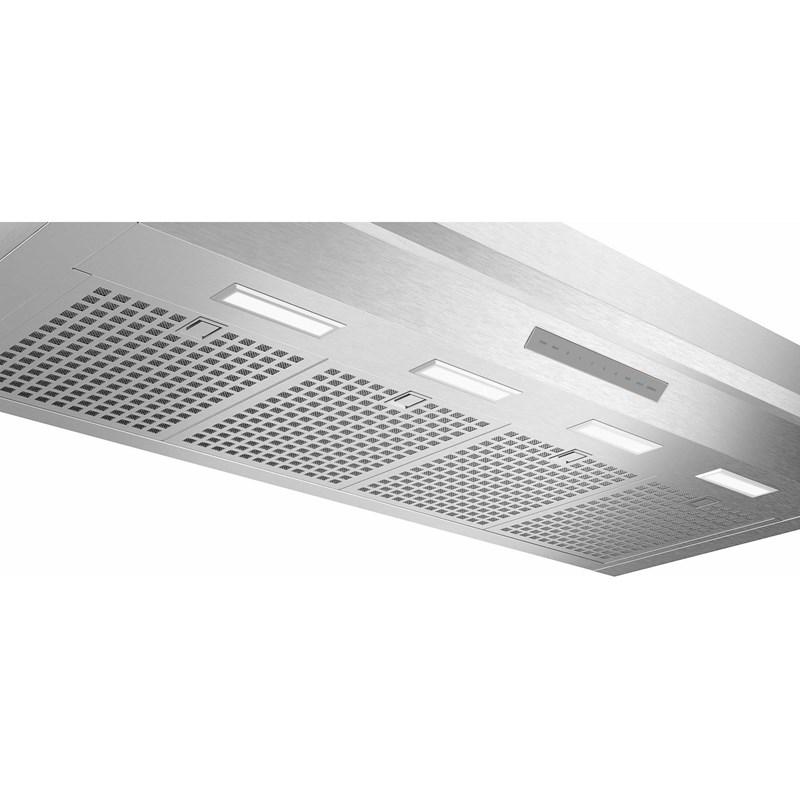

- LED LIGHTING — Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights

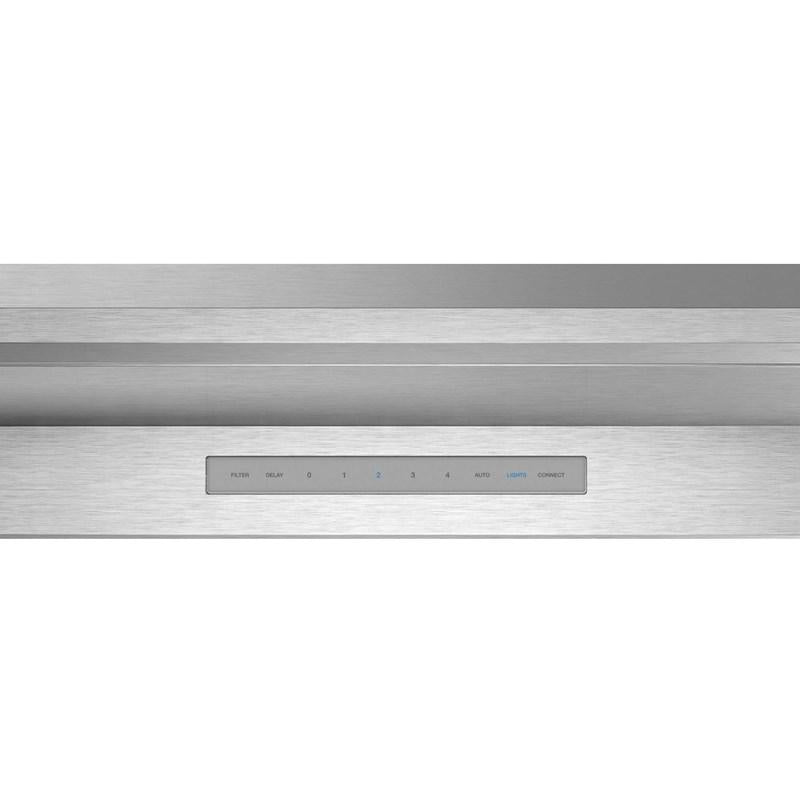

Cooktop hood-sync enabled | Multi-level LED lights with fading transitions | Automatic mode | Check filter reminder light | Delay shut-off | Number of lights: 4 | Stainless-steel washable hybrid mesh grease filter
Specifications
| Style | Standard | Airflow | 1000 CFM | Series Name | Masterpiece® Series |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4-Stage settings | Ducting Information | Diameter of air duct: Top 10" |
| Wi-Fi | Y | Width | 121.76 cm | Height | 40.01 cm |
| Depth | 58.74 cm | Weight | 30.84 kg | Additional Dimensions | Required distance above cooktop or range cooking surface: 30" |
| Class Width | 48" | UPC# | 825225946946 | Warranty | 2-Year limited warranty on parts and labor |
| Included | Damper | ||||
| Technologies Noise Control Technology™ | Thermador Connected Experience by Home Connect™ | |||||
| Information Volts: 120 V | Frequency: 60 HZ | Plug type: 120V-3 Prong | |||||
| Optional 16" Tall duct cover, 48" Wide: DC4816W | 28" - 65" Tall duct cover, 48" Wide: DC48MTW | Built-in remote control panel: REMCPW | Roof jack: RJ310 | 8" Wall cap: WC8 | 10" Wall cap: WC10 | |||||
Accessories
• 28" - 65" Tall duct cover, 48" Wide: DC48MTW
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
