Description
About this Product

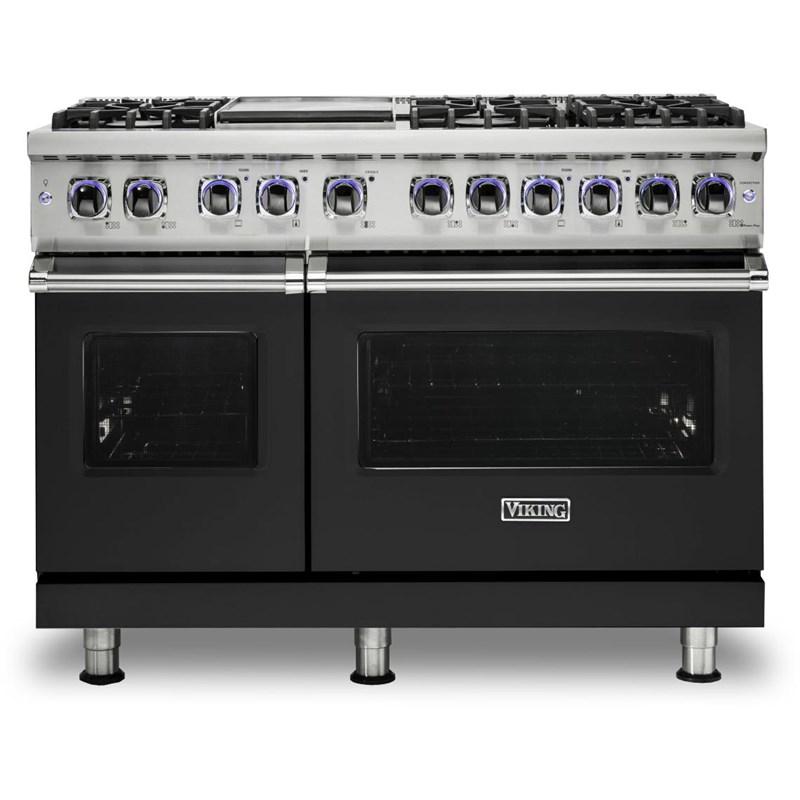

This 48-inch wide Viking, 7 Series, gas range with 6 burners and griddle features Elevation™ burners, SureSpark™ ignition system, Gourmet-Glo™ gas infrared broiler, and a 6.1 cu.ft. total capacity (2 ovens).
Features
- COOLLIT™ LED LIGHTS — BlackChrome™ Knobs with CoolLit™ LED backlighting.
- ELEVATION™ BURNERS — Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear.
- GOURMET-GLO™ GAS INFRARED BROILER — Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
- SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- VARISIMMER™ SETTING — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Continuous Grate | Easy to Clean Porcelainized Oven Cavity | Grates, Burner Caps, Knobs, Griddle and Accessories can be Easily Removed | Larger Window Opening
Specifications
| Number of Ovens | Double | Burners/Elements | 7 | Burners | Sealed |
| Other | Griddle | Height | 91.3 cm | Width | 121.6 cm |
| Depth (Without Handles) | 68.4 cm | Class Width | 48" | Depth (Including Handles) | 76.2 cm |
| Convection | Y | Fuel Type | Natural Gas | Installation Type | Freestanding |
| Manufacturer Color | Cast Black | Series Name | 7 Series | Color | Black |
| Weight | 313.89 kg | ||||
| Capacity (cu. ft.) Total Capacity: 6.1 cu.ft. | Large Oven: 4.0 cu.ft. | Small Oven: 2.1 cu.ft. | |||||
| Programs Natural Airflow Bake | Convection Bake | Infrared Broil | Convection Infrared Broil | Convection Dehydrate | Convection Defrost | |||||
| Burners/Elements Output (3x) Front Burners: 23,000 BTU | (2x) Rear Burners: 15,000 BTU | (1x) Griddle: 15,000 BTU | (1x) Burner: 8,000 BTU | |||||
| Information 120 V | 60 Hz | |||||
| Additional Dimensions Overall Height: to Top of Side Trim – 35-15/16" (91.3 cm) Min. 37-9/16" (95.4 cm) Max. Legs Adjust – 1-5/8" (4.1 cm) | Overall Depth from Rear*: to End of Side Panel – 25-1/4" (64.1 cm) | Overall Depth from Rear*: to Front of Door – 26-15/16" (68.4 cm) | Overall Depth from Rear*: to End of Door Handle – 30" (76.2 cm) | *Add 3/4" (1.9 cm) to Overall Depth for Models Installed Against a Combustible Wall | Additions to Base Height: to Top of island trim – Add 1" (.5 cm) | Additions to Base Height: to Top of Backguard – Add 10" (25.4 cm) | Additions to Base Height: to Top of High Shelf – Add 24-1/8" (61.3 cm) | |||||
| Technologies Viking Elevation™ Burners with Brass Flame Ports | VariSimmer™ Setting on All Burners | SureSpark™ Ignition System | GentleClose™ Door | BlackChrome™ Knobs with CoolLit™ LED Backlighting | TruGlide™ Full Extension Rack | Gourmet Glo™ Infrared Broiler | Proflow™ Convection Baffle | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited - Gas Burners and Electric Ovens | |||||
| Optional BG107482SS 10"H. Backguard for 48" Range | HS24748SS 24"H. High Shelf for 48" Range | P48CRTSS Countertop Rear Trim for 48" Range | CRG7VGR ViChrome Griddle Accessory (for Use with Griddle Model) | CBGVGR Bamboo Cover for 7 Series | LPKVGR LP/Propane Conversion Kit for 7 Series | GCKVGR Gas Connector Kit for 7 Series | WOKVGR7 Wok Ring Accessory for 7 Series | |||||
Accessories
• BG107482SS 10"H. Backguard for 48" Range
• HS24748SS 24"H. High Shelf for 48" Range
• P48CRTSS Countertop Rear Trim for 48" Range
• CRG7VGR ViChrome Griddle Accessory (for Use with Griddle Model)
• CBGVGR Bamboo Cover for 7 Series
• LPKVGR LP/Propane Conversion Kit for 7 Series
• GCKVGR Gas Connector Kit for 7 Series
• WOKVGR7 Wok Ring Accessory for 7 Series
• HS24748SS 24"H. High Shelf for 48" Range
• P48CRTSS Countertop Rear Trim for 48" Range
• CRG7VGR ViChrome Griddle Accessory (for Use with Griddle Model)
• CBGVGR Bamboo Cover for 7 Series
• LPKVGR LP/Propane Conversion Kit for 7 Series
• GCKVGR Gas Connector Kit for 7 Series
• WOKVGR7 Wok Ring Accessory for 7 Series
