Description
About this Product

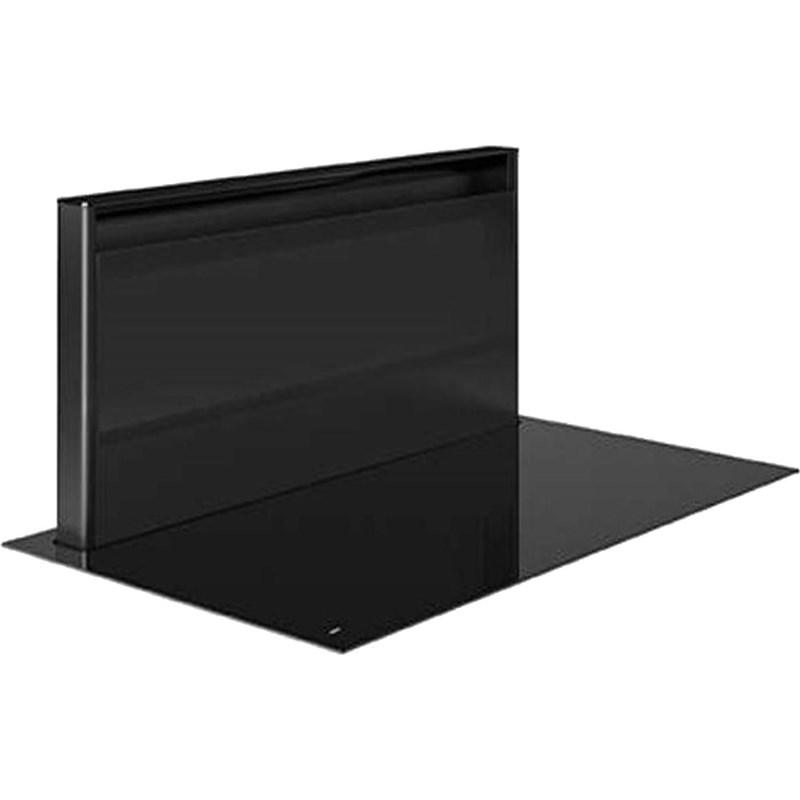

This Viking RVL Collection bridges present and future with a fully integrated design that fits seamlessly into surrounding cabinetry. Although its sleek look is decidedly minimal, it boldly conveys Viking performance at a glance. And rest assured, no commercial cooking power was sacrificed for appearance sake. With streamlined silhouettes, a sleek user interface, transitional sizes, and outfitted in stunning black glass this collection gives you limitless contemporary design possibilities that will ignite your culinary passions.
Documents
Highlights
All black glass front offers a sleek, modern aesthetic to complement any kitchen style | Electronic touch control ensures effortless operation with a responsive, minimalist interface | Can be installed flush or integrated, allowing for flexible design options to match any kitchen layout | Nine power levels plus double boost | Simmer setting provides gentle, consistent heat, ideal for melting delicate ingredients or keeping food warm | Power management system delivers an extra boost of power for faster boiling and reduced cooking time | Element lights indicate active heating zones and hot surfaces, enhancing safety during cooking | Sensor automatically turns off the element when cookware is not detected, preventing unnecessary energy use, while the pause function allows for easy cooking adjustments | Two timer functions provide precise cooking control, with one dedicated to the cooktop element and another as a standalone timer for multitasking in the kitchen | Automatic bridge function | Variable blower speeds with three intense power settings | Integrated downdraft seamlessly retracts, becoming flush with the cooktop when not in use. | Variable downdraft heights | Delay Off setting
Specifications
| Surface Features | Built-in Downdraft CFM: 177/497/663 (Low/Normal/ Boost) | Elements | Smoothtop | Burners/Elements | 5 |
| Power Output | (5) 3,000 watt elements | Height | 8.89 cm | Width | 118.11 cm |
| Class Width | 48" or More | Depth | 52.07 cm | Type | Built-In |
| Series Name | RVL Series | Fuel Type | Electric Induction | Color | Black |
| Manufacturer Color | Black Glass | Downdraft Ventilation | Y | ||
| Information Cooktop - Electrical Requirements: 208-240V 2 phase 3X 8AWG conduit/50-60 Hz | Downdraft - Electrical Requirements: 110-130V 4' Type B 3 Prong Plug/50-60Hz | Cooktop - Max. Amp Usage: 50 | Downdraft - Max. Amp Usage: 5.5 | |||||
| Additional Dimensions Cutout Width: 45-11/16" (116 cm) | Cutout Depth: 19-9/16" (49 cm) | |||||
| Optional MVRK48 (GR/BK/WH) – 48"W. Recirculating Kit | CF48IDC – 48" Charcoal Filter | DAKIDC – Duct Adapter Kit | |||||
| Warranty 2-year full – complete product | 90-day full – cosmetic parts such as glass, painted items and decorative items | 5-year limited – induction element components and ventilator motor | |||||
| Technologies MagneQuick Induction Elements use magnetic energy for superior power, rapid heat response, and enhanced energy efficiency | |||||
Accessories
• CF48IDC – 48" Charcoal Filter
• DAKIDC – Duct Adapter Kit
