Description
About this Product

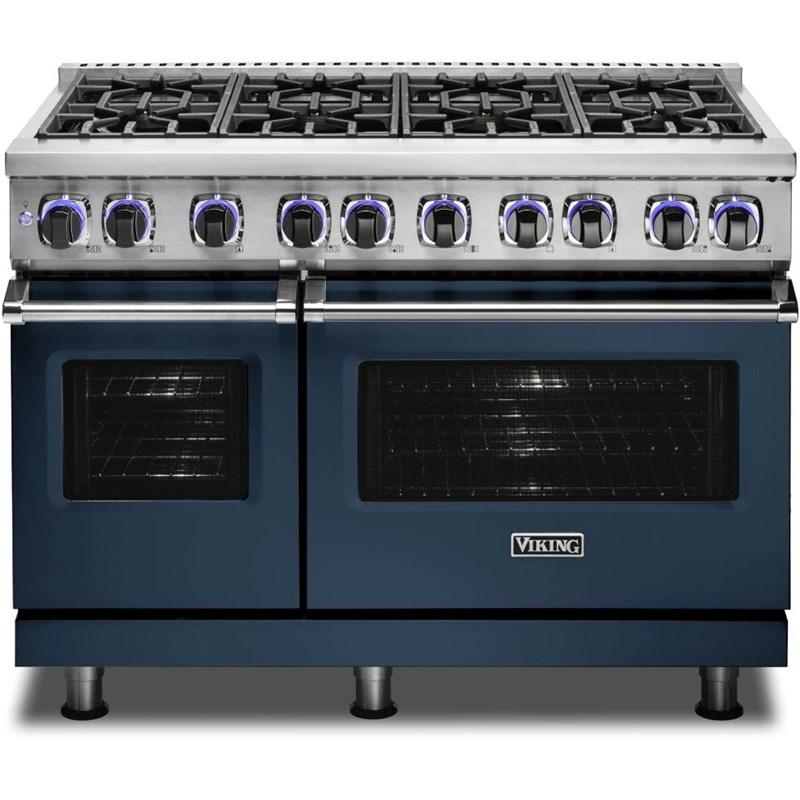

This 48-inch wide Viking 7 Series dual-fuel range with 8 burners features Elevation™ burners, VariSimmer™ setting and TruConvec™ convection cooking. The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
Features
- COOLLIT™ LED LIGHTS — BlackChrome™ Knobs with CoolLit™ LED backlighting.
- ELEVATION™ BURNERS — Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear.
- GOURMET-GLO™ GAS INFRARED BROILER — Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
- RAPID READY™ PREHEAT SYSTEM — Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
- SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- VARISIMMER™ SETTING — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
12 High-Performance Cooking Modes | Concealed 10 Pass Dual Bake Element | Continuous Grates
Specifications
| Class Width | 48" | Depth (Including Handles) | 76.2 cm | Width | 121.6 cm |
| Depth (Without Handles) | 68.4 cm | Height | 91.3 cm | Oven Light | Y |
| Self-Cleaning | Y | Convection | Y | Burners | Sealed |
| Burners/Elements | 8 | Weight | 313.89 kg | Number of Ovens | Double |
| Fuel Type | Dual Fuel - Natural Gas | Series Name | 7 Series | Manufacturer Color | Slate Blue |
| Color | Blue | Installation Type | Freestanding | ||
| Additional Dimensions Overall Height: To top of side trim – 35-15/16" (91.3 cm) min. 37-9/16" (95.4 cm) max. Legs adjust – 1-5/8" (4.1 cm) | Overall Depth from Rear*: | To end of side panel: 25-1/4" (64.1 cm) | To front of door: 26-15/16" (68.4 cm) | To end of door handle: 30" (76.2 cm) | *Add 3/4" (1.9 cm) to overall depth for models installed against a combustible wall | |||||
| Technologies Viking Elevation™ Burners with Brass Flame Ports | VariSimmer™ Setting on All Burners | SureSpark™ Ignition System | GentleClose™ Door | TruGlide™ Full Extension Racks | BlackChrome™ Knobs with CoolLit™ LED Backlighting | Vari-Speed Dual Flow™ Convection System | GourmetGlo™ Infrared Broiler | |||||
| Burners/Elements Output (4x) Front Burners: 23,000 BTU | (3x) Rear Burners: 15,000 BTU | (1x) Burner: 8,000 BTU | |||||
| Information 240 V / 208 V | 60 Hz | 43.0 A | 37.3 A | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited - Gas Burners and Electric Ovens | |||||
| Programs Bake | Convection Bake | Truconvec™ Convection Cooking | Convection Roast | Hi Broil | Med Broil | Low Broil | Convection Broil | Convection Dehydrate | Convection Defrost | Proof (Left Oven) | Self-Clean | |||||
| Capacity (cu. ft.) Total Oven Capacity: 7.3 cu.ft. | Large Oven: 4.7 cu.ft. | Small Oven: 2.6 cu.ft. | |||||
| Optional BG107482SS 10"H. Backguard for 48" Range | HS24748SS 24"H. High Shelf for 48" Range | P48CRTSS Countertop Rear Trim for 48" Range | CRG7VGR Vichrome Griddle Accessory (for Use with Griddle Model) | CBGVGR Bamboo Cover for 7 Series | LPKVGR LP/Propane Conversion Kit for 7 Series | GCKVGR Gas Connector Kit for 7 Series | WOKVGR7 Wok Ring Accessory for 7 Serie | |||||
Accessories
• BG107482SS 10"H. Backguard for 48" Range
• HS24748SS 24"H. High Shelf for 48" Range
• P48CRTSS Countertop Rear Trim for 48" Range
• CRG7VGR Vichrome Griddle Accessory (for Use with Griddle Model)
• CBGVGR Bamboo Cover for 7 Series
• LPKVGR LP/Propane Conversion Kit for 7 Series
• GCKVGR Gas Connector Kit for 7 Series
• WOKVGR7 Wok Ring Accessory for 7 Serie
