Description
About this Product

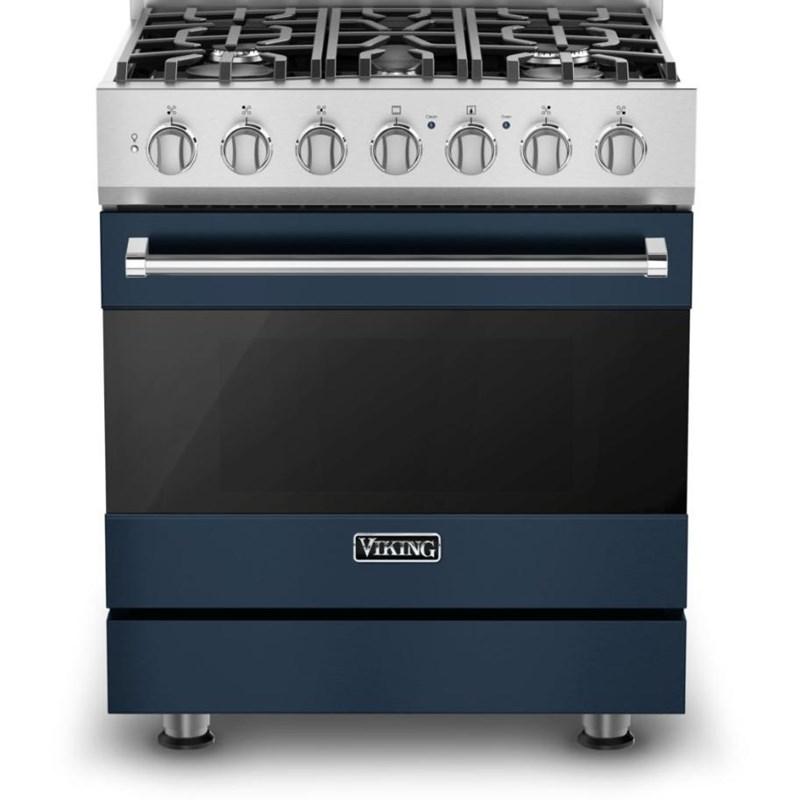

This 30-inch wide Viking gas range features 5 sealed burners, SureSpark™ ignition system, TruGlide™ oven racks and ProFlow™ convection baffle.
Features
- FIVE PERMANENTLY SEALED BURNERS — With a variety of BTU ratings including a fifth burner, this range can handle all of your surface cooking needs.
- SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- CONTINUOUS GRATE — It’s a breeze to slide stew laden pots or to utilize multiple burners with the heavy-duty virtually continuous grate surface.
- TRUGLIDE™ OVEN RACKS — This large capacity oven has six rack positions and ships standard with TruGlide oven racks.
- PROFLOW™ CONVECTION BAFFLE — Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Sealed Burners with Porcelainized, Cast-Iron Burner Caps | Oven Has Six Porcelain-Coated Rack Supports and Comes Standard with One Truglide™ Full Extension Oven Rack and Two Standard Racks | All Convection Functions Utilize The Proflow™ Convection Air Baffle; Specifically Designed to Ensure Balanced Air Flow for Even Heat Distribution | Two Halogen Oven Lights | 15,000 BTU Broiler | Shipped Standard with Island Trim | Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety
Specifications
| Capacity (cu. ft.) | 4.0 cu.ft. | Number of Ovens | Single | Burners/Elements | 5 |
| Burners | Sealed | Self-Cleaning | Y | Oven Light | Y |
| Convection | Y | Height | 91.1 cm | Width | 75.9 cm |
| Depth (Without Handles) | 68.9 cm | Class Width | 30" | Depth (Including Handles) | 73.7 cm |
| Fuel Type | Natural Gas | Installation Type | Freestanding | Manufacturer Color | Slate Blue |
| Series Name | 3 Series | Color | Blue | Weight | 184.5 kg |
| Programs Natural Airflow Bake | Convection Bake | Broil | Convection Broil | Convection Dehydrate | Convection Defrost | |||||
| Burners/Elements Output Left Front Burner: 18,000 BTU | Left Rear Burner: 8,000 BTU | Center Burner: 9,000 BTU | Right Front Burner: 17,000 BTU | Right Rear Burner: 12,000 BTU | |||||
| Information 120 V | 60 Hz | .74 A | |||||
| Technologies ProFlow™ Convection Baffle | TruGlide™ Oven Racks | SureSpark™ Ignition System | |||||
| Additional Dimensions Oven Interior Height: 16-1/8" (40.9 cm) | Oven Interior Width: 23" (58.4 cm) | Overall Height: to Top of Side Trim – 35-7/8" (91.1 cm) Min.; 37" (94.0 cm) Max., Legs Adjust – 1-1/8" (2.9 cm) | Overall Depth from Rear: to Front of Side Panel – 25" (63.5 cm) | Overall Depth from Rear: to Front of Door – 25-3/4" (65.4 cm) | Overall Depth from Rear: to Front of Control Panel – 27-1/8" (68.9 cm) | Overall Depth from Rear: to end of Knobs – 29" (73.7 cm) | |||||
| Appliance Care Customer-Removable Knobs, Grates, and Burners/Caps for Easy Cleaning | Self-Clean Oven | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited - Gas Burners and Electric Ovens | |||||
| Optional 6" High Backguard (RD301BG6SS) | High Shelf (RD301HS24SS) | Countertop Side Trim (RD24CSTSS) | Countertop Rear Trim (P30CRTSS) | Curb Base and Custom Curb Base Front (P30CBF4SS) | LP Conversion Kit (RDLPKR) | Accessory Portable Griddle/Grill (RDPGD) Available for use Over Center Burner | |||||
Accessories
• High Shelf (RD301HS24SS)
• Countertop Side Trim (RD24CSTSS)
• Countertop Rear Trim (P30CRTSS)
• Curb Base and Custom Curb Base Front (P30CBF4SS)
• LP Conversion Kit (RDLPKR)
• Accessory Portable Griddle/Grill (RDPGD) Available for use Over Center Burner
