Description
About this Product

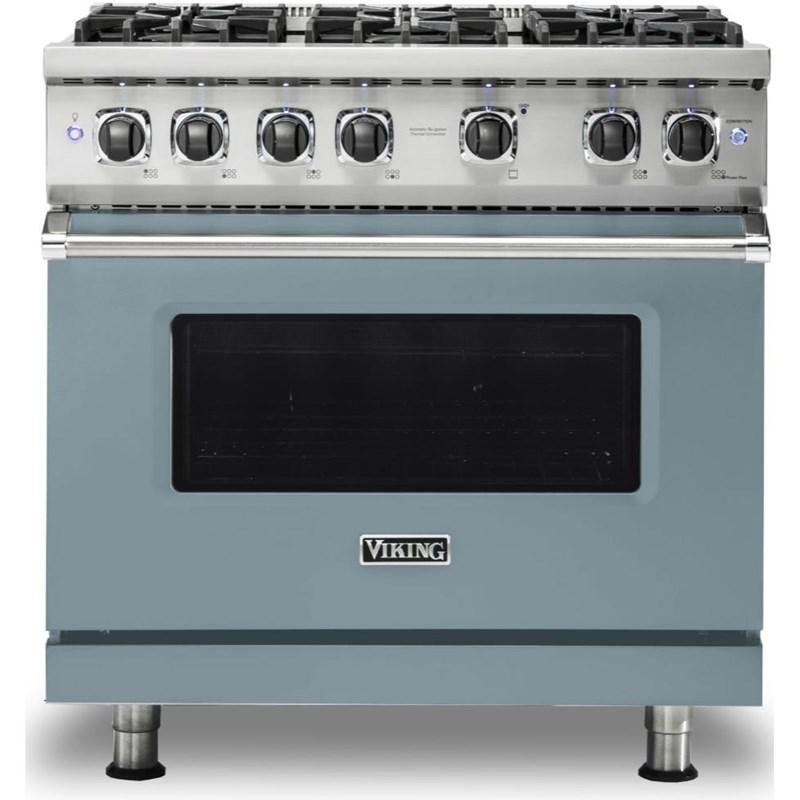

This 36-inch wide Viking, 5 Series gas range with 6 burners. This range features VSH™ Pro sealed burner System, VariSimmer™ setting on all burners, SureSpark™ ignition system and Gourmet-Glo™ gas infrared broiler.
Features
- GOURMET-GLO™ GAS INFRARED BROILER — Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
- PORCELAINIZED COOKING SURFACE — Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
- PROFLOW™ CONVECTION BAFFLE — Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
- SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- VARISIMMER™ SETTING — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
- VSH™ PRO SEALED BURNER SYSTEM — Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. A combination of a unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Porcelainized Cooking Surface | 6 Oven Rack Positions | 3 Racks | Two Halogen Oven Lights | Broil Burner: 18,000 BTU | Bake Burner: 30,000 BTU | Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting | Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard | Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates
Specifications
| Capacity (cu. ft.) | 5.1 cu.ft. | Number of Ovens | Single | Burners/Elements | 6 |
| Burners | Sealed | Height | 91.1 cm | Width | 91.1 cm |
| Depth (Without Handles) | 65.4 cm | Class Width | 36" | Depth (Including Handles) | 72.9 cm |
| Oven Light | Y | Convection | Y | Fuel Type | Natural Gas |
| Installation Type | Freestanding | Manufacturer Color | November Sky | Series Name | 5 Series |
| Color | Blue | Weight | 226.8 kg | Included | Island Trim (shipped standard with 36" range) |
| Programs Natural Airflow Bake | Convection Bake | Infrared Broil | Convection Infrared Broil | Convection Dehydrate | Convection Defrost | |||||
| Burners/Elements Output (1x) Burner TruPowerPlus™: 18,500 BTU | (5x) Burners: 15,000 BTU | |||||
| Information 120 V | 60 Hz | 1.5 A | |||||
| Additional Dimensions Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm) | Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm) | Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm) | |||||
| Technologies VSH™ Pro Sealed Burner System | VariSimmer™ Setting | SureSpark™ Ignition System | Gourmet-Glo™ Gas Infrared Broiler | Gentle Close™ Door | ProFlow™ Convection Baffle | |||||
| Appliance Care One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup | Burner Caps are Easily Removable for Quick Cleaning | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | 5-Year Limited – Gas Burners | |||||
| Optional 8"H. Backguard – BG8536BSS | High Shelf – HS24536SS | Countertop Side Trim - P24CST | Countertop Rear Trim - P36CRT | Curb Base and Custom Curb Base Front - P36CBF4 | LP/Propane Conversion Kit - LPKPDR | |||||
Accessories
• 8"H. Backguard – BG8536BSS
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDR
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDR
Island Trim (shipped standard with 36" range)
