Description
About this Product

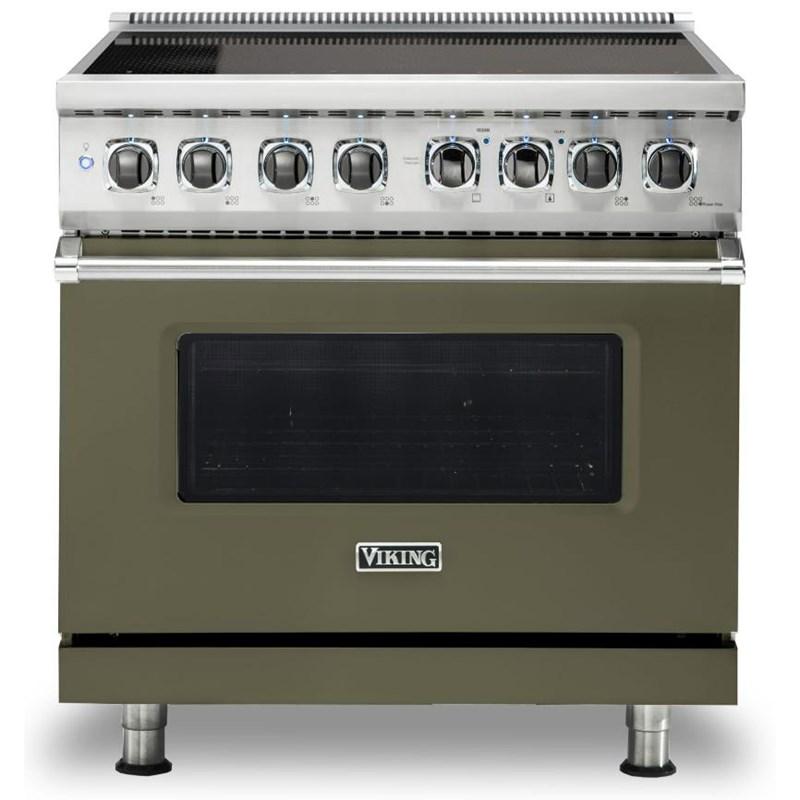

Viking 36-inch induction range features MagneQuick™ induction power generators, 6 induction elements, heavy-duty BlackChrome™ knobs and square bezels, and a total oven capacity of 5.6 cu. ft.
Features
- MAGNEQUICK™ INDUCTION ELEMENTS — MagneQuick™ Induction Elements convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source.
- VARI-SPEED DUAL FLOW™ CONVECTION — Maximize air flow and fluffiness with Vari-Speed Dual Flow™ Convection system. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blades in the industry provides maximum airflow.
- CONCEALED BAKE ELEMENT — Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.
- RAPID READY™ PREHEAT SYSTEM — Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
- EXTRA LARGE CAPACITY OVEN — Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
- EXCLUSIVE GENTLE CLOSE™ DOOR FEATURE — No more worries about slamming the door. With the Gentle Close™ Door, the hinge allows for the door to close slowly behind you.
- 10-PASS BROILER WITH HEAT REFLECTOR — Go from toasting to searing with the variety of settings available on the electric broiler with heat reflector. 10-Pass Broiler with Heat Reflector with HI, MED, and LOW settings provides intense searing heat for a variety of broiling applications.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Power management induction system provides a boost of superior power on all elements for faster boil times | Large 9" induction elements each provide up to 3,700 watts of power | Simmer setting is perfect for gentle melting or keeping cooked food warm | Heavy-duty BlackChrome™ knobs and square bezels shipped standard | One of the largest oven cavities in the industry | Concealed 10-pass dual bake element provides precise temperature control | Large 10-pass broiler with heat reflector | Oven has six porcelain-coated rack positions and comes standard with three oven racks | Three strategically located oven lights provide maximum visibility | Surface graphics on strong, wear-resistant glass ceramic surface for excellent cleanability | AHAM Standard – 4.9 cu. ft.
Specifications
| Capacity (cu. ft.) | 5.6 cu. ft. | Number of Ovens | Single | Burners/Elements | 6 |
| Burner/Element Size | (6x) Elements: 9" | Elements | Induction | Self-Cleaning | Y |
| Oven Light | Y | Convection | Y | Height | 94.0 cm |
| Width | 91.1 cm | Depth (Without Handles) | 66.4 cm | Weight | 238.14 kg |
| Class Width | 36" | Depth (Including Handles) | 73.0 cm | Fuel Type | Electric - Induction |
| Installation Type | Freestanding | Manufacturer Color | Martini | Series Name | 5 Series – VIR |
| Color | Green | Appliance Care | Self-cleaning porcelain oven | ||
| Programs High-performance cooking modes include: | Bake | Convection Bake | TruConvec Convection Cooking | Convection Roast | Broil | Convection Broil | Convection Dehydrate | Convection Defrost | |||||
| Burners/Elements Output Left Front Element: 3,700-watt boost/2,300 watts | Left Rear Element: 3,700-watt boost/2,300 watts | Center Front Element: 3,700-watt boost/2,300 watts | Center Rear Element: 3,700-watt boost/2,300 watts | Right Front Element: 3,700-watt boost/2,300 watts | Right Rear Element: 3,700-watt boost/2,300 watts | |||||
| Information 240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or "pigtail" rated 50 amp 125-250VAC minimum. Cord must be agency approved for use with household electric ranges. | 50 amp dedicated circuit | |||||
| Technologies MagneQuick™ Induction Power Generators utilize magnetic energy for superior power, responsiveness, and efficiency | Patented Vari-Speed Dual Flow™ Convection System has the largest convection fan in the industry; the 8-1/2" fan works bi-directionally for maximum airflow and excellent cooking results | Rapid Ready™ Preheat provides one of the fastest preheat times, meaning less wait time for the oven to preheat | Gentle Close™ Door allows door to close slowly | |||||
| Warranty 2-year full – complete product | 90-day full – cosmetic parts such as glass, painted items and decorative items | 5-year limited – induction element components | |||||
| Optional | |||||
Accessories
