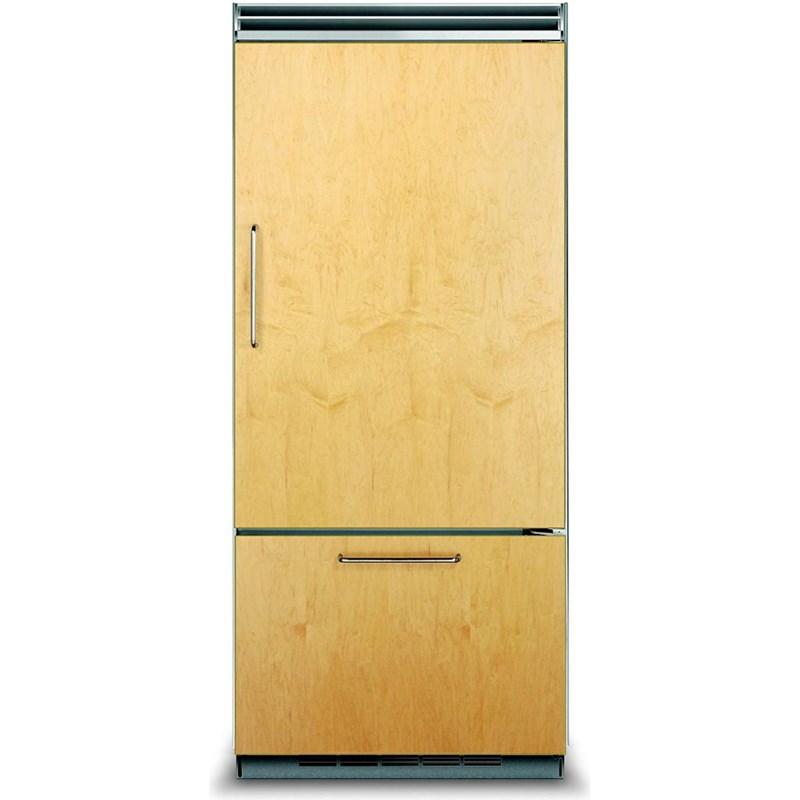

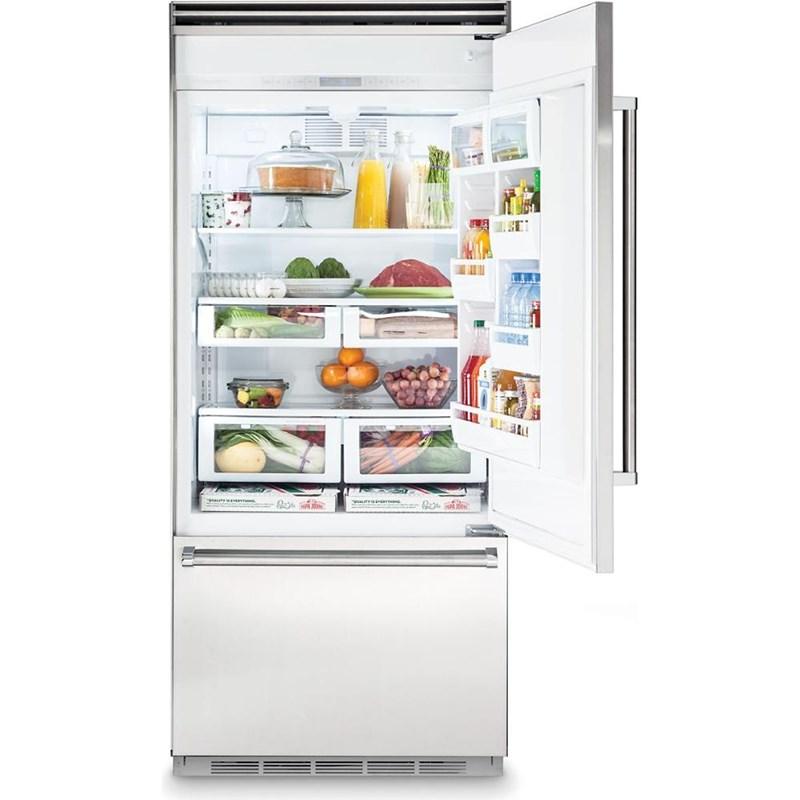

Viking 20.4 cu. ft. Panel-Ready Bottom Freezer Refrigerator features a Variable Speed DC Overdrive™ Compressor, EXCLUSIVE Plasmacluster™ Ion Air Purifier, and two adjustable Humidity Zone™ drawers with soft-close slides for superior food preservation. * Panel Kit Sold Separately
Features

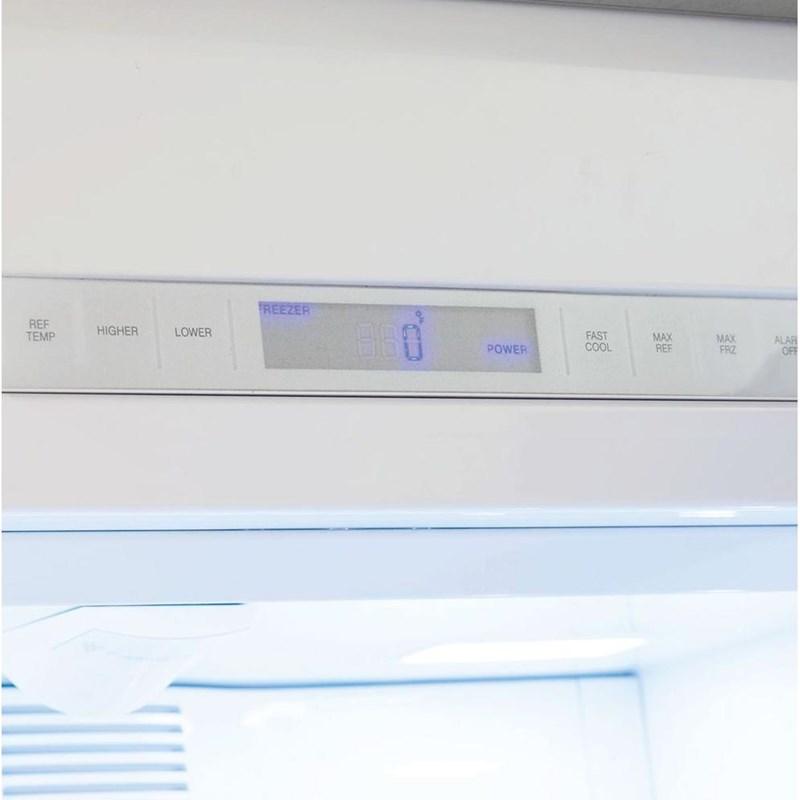

- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.

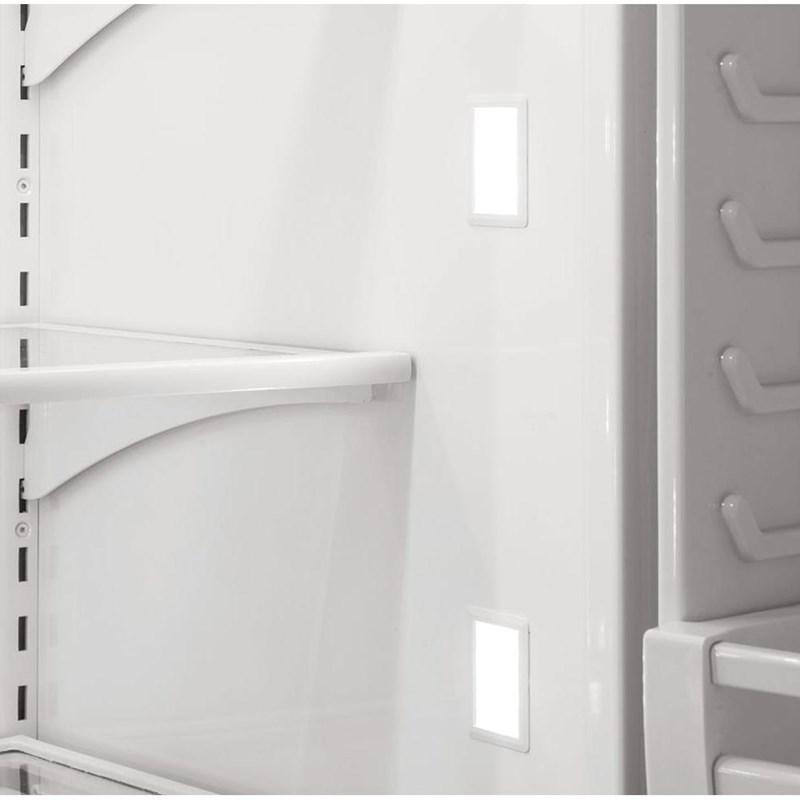

- LED LIGHTING — Bright, energy-efficient LED lighting from top and sidewalls.

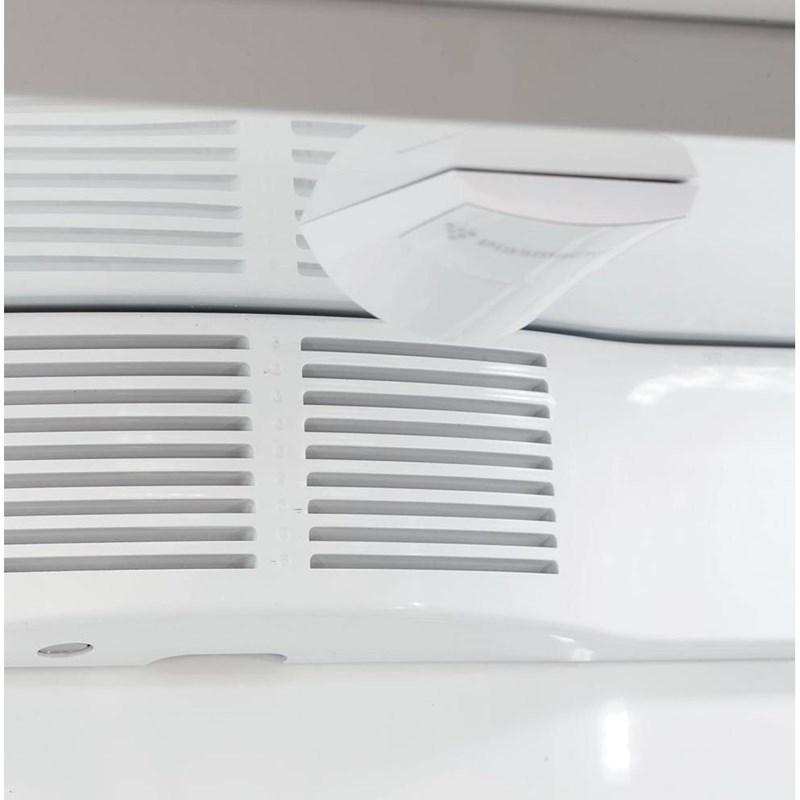

- FILTER-FREE FRESHNESS — The Plasmacluster™ Ion Air Purifier uses ions to eliminate airbourne bacteria and mold spores, remove odors and enhance food preservation. Plasmacluster™ is a trademark of Sharp Corporation.
- METAL DOOR BINS — Metal door bins provide enduring performance to securely store heavy items.
- ADUSTABLE HUMIDIY ZONE™ DRAWERS — Produce the freshest leafy vegetables and fruits in moisture-adjustable drawer(s) with soft-close feature.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | 5 Series – FDBB | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | Bottom Freezer | Interior Light | Y | Frost Free | Y |
| Digital Display | Y | Crisper Drawers | Y | Deli Drawer/Meat | Y |
| Weight | 226.8 kg | Water System | None | Ice System | None |
| Freezer | 5.1 cu. ft. | Refrigerator | 15.3 cu. ft. | Total | 20.4 cu. ft. |
| Overall Depth | 61.0 cm | Class Height | 70" and More | Class Width | 35" to 37.9" |
| Width | 91.5 cm | Height (With Hinge) | 210.2 cm | Energy Star Certified | Y |
| Technologies Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Plasmacluster™ Ion Air Purifier | Adjustable Humidity Zone™ Drawers with Soft-Close Slides | ProChill™ Temperature Management | |||||
| Additional Freezer Information Specialized Freezer Storage: | Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods | Opens quietly and easily, with ball-bearing rollers which glide on a steel track | Positive self-closing feature ensures a good seal | Upper freezer basket slides independently of main freezer compartment; ideal for fragile or frequently used items | Adaptive defrost controls the timing of the defrost periods, instead of an electromechanical defrost timer | Extends to 96 hours – improves food storage because the unit defrosts less often | Factory-installed automatic ice maker features large-capacity ice bucket | Door alarm sounds and glows to warn that fresh food door and/or freezer drawer have been ajar for three minutes, and that the temperature has risen above normal operating range | |||||
| Warranty 2-year full – covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system | |||||
| Optional Panel Kit | PHK28 – Professional SS handle kit (1 piece) | Center Trim Kit | |||||
| Information 115 V | 60 Hz | 15 A | 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 9.9 amps | |||||
Accessories
• Panel Kit
• PHK28 – Professional SS handle kit (1 piece)
• Center Trim Kit
• PHK28 – Professional SS handle kit (1 piece)
• Center Trim Kit
Door Hinge: Right
